POWER STEERING ECU
1. JACK UP VEHICLE AND SUPPORT IT ON STANDS
2. START ENGINE
3. MEASURE VOLTAGE OF ECU
(a) Using a voltmeter, measure the voltage between ECUterminals SOL and GND while the engine is idling.
Standard voltage:
0.3±0.5 V
(b) Place the transmission in gear and while running at about 37
mph (60 km/h), measure the voltage between ECU terminals
SOL and GND.
Standard voltage:
Voltage measured in (a) above, minus
(IUZ±FE Engine)
0.07±0.02 V
(2JZ±FE Engine)
0.05±0.18 V
If no voltage, try another ECU.
4. LOWER VEHICLE
SR±168
±
STEERING POWER STEERING
WhereEverybodyKnowsYourName
Page 3018 of 4087

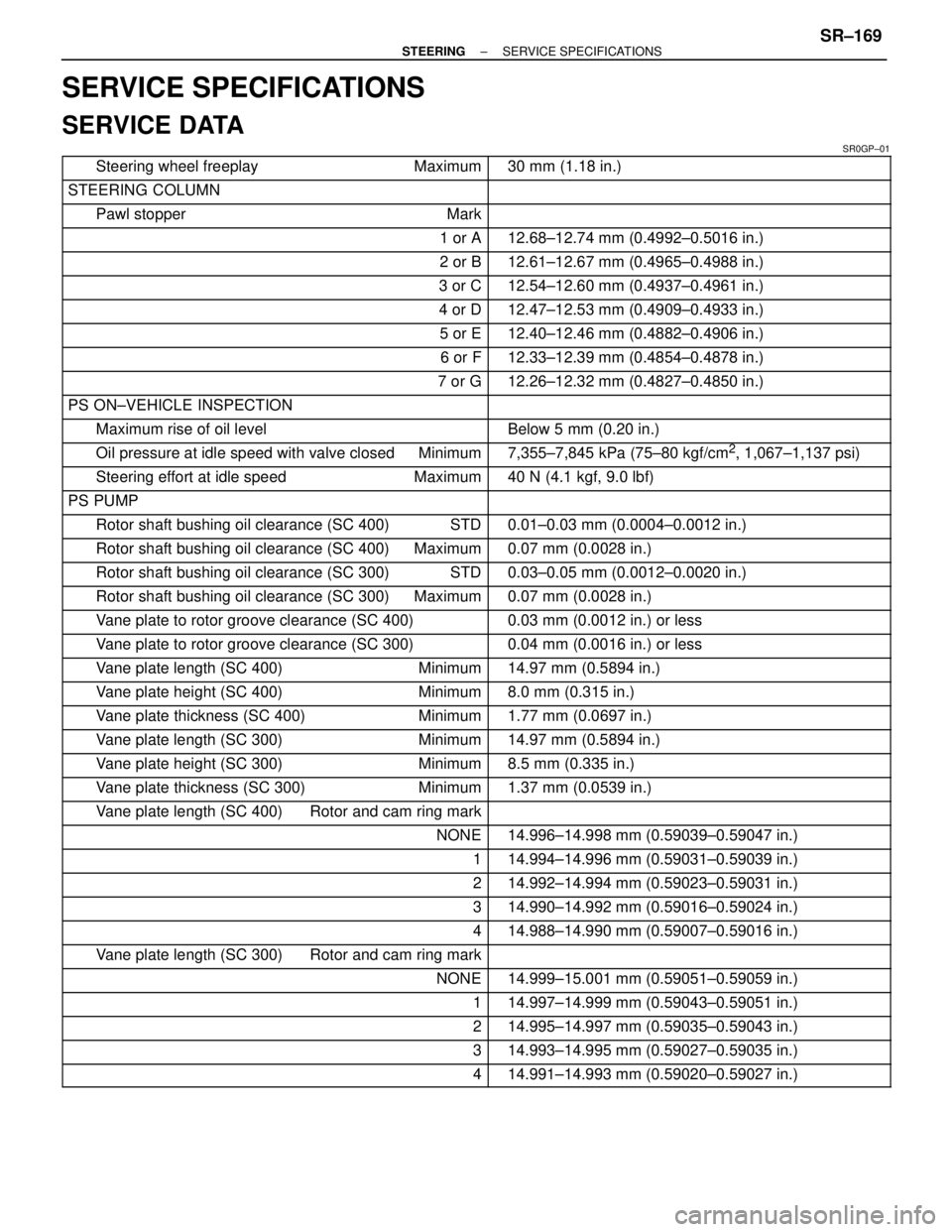

SERVICE SPECIFICATIONS
