Page 1929 of 4087
If the resistance is not as specified, replace the sensor as fol-
lows:
wDisconnect the grommet from the floor panel, and pull
out the wire of the sub±oxygen sensor from the floor
panel.
w Remove the two nuts, cover and sub±oxygen sensor
from the front exhaust pipe.
w Install a new gasket, a new sub±oxygen sensor and the
cover to the front exhaust pipe with the two nuts.
Torque: 18 N Vm (180 kgf Vcm, 13 ft Vlbf)
w Run the wire of the sub±oxygen sensor through the hole
in the floor panel.
9. RECONNECT SUB±OXYGEN SENSOR CONNECTOR
10. (A/T) REINSTALL UPPER REAR CONSOLE PANEL
(a) Fit the console panel to the console box with five clips.
(b) Install the console panel with the six screws.
11. REINSTALL UPPER CONSOLE PANEL Fit the console panel to the console box with the four clips.
12. (A/T) REINSTALL CUP HOLDER
Fit the cup holder to the console box.
±
EFI SYSTEMFI±79
Electronic Control System (Sub±Oxygen Sensor (USA Spec. only))
WhereEverybodyKnowsYourName
Page 1930 of 4087
13. REINSTALL TRANSMISSION SHIFT LEVER KNOB(A/T)
(a) Slide the lever cover on the lever shaft.
(b) Install the shift lever knob with the two screws.
(c) Attach the l ever cover to the lower side of the lever knob.
14. RECONNECT CABLE TO NEGATIVE TERMINAL OF BAT-
TERY
FI±80
±
EFI SYSTEM
Electronic Control System (Sub±Oxygen Sensor (USA Spec. only))
WhereEverybodyKnowsYourName
Page 1931 of 4087
Idle Speed Control (ISC) Valve
ON±VEHICLE INSPECTION
INSPECT ISC VALVE FOR OPERATING SOUNDCheck that there is a clicking sound immediately after stop-
ping the engine.
If the rpm operation is not as specified, check the ISC valve,
wiring and ECU.
FI±80
± Air Induction System (Idle Speed Control (ISC\
) Valve)EFI SYSTEM
WhereEverybodyKnowsYourName
Page 1932 of 4087

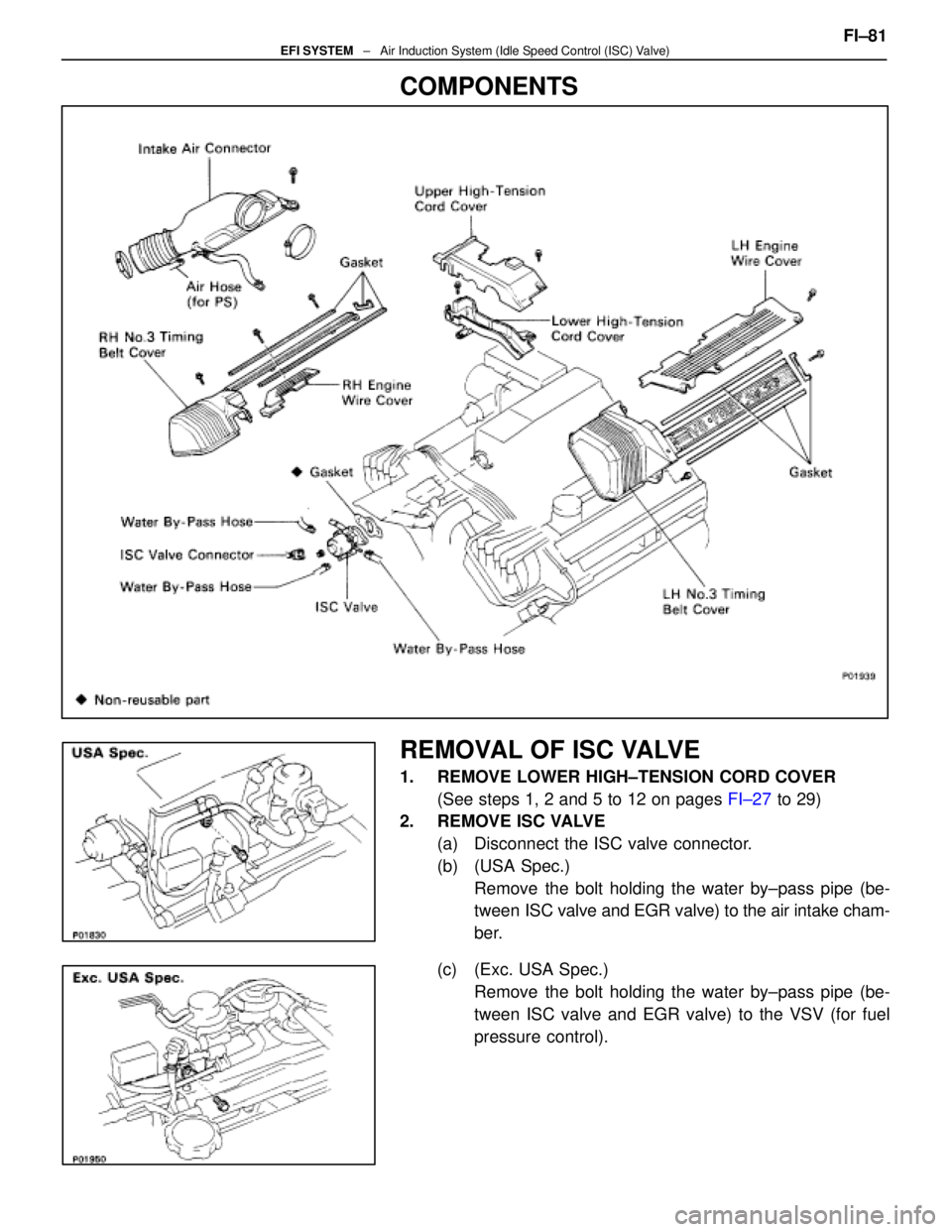

COMPONENTS
REMOVAL OF ISC VALVE
1. REMOVE LOWER HIGH±TENSION CORD COVER(See steps 1, 2 and 5 to 12 on pages FI±27 to 29)
2. REMOVE ISC VALVE
(a) Disconnect the ISC valve connector.
(b) (USA Spec.)Remove the bolt holding the water by±pass pipe (be-
tween ISC valve and EGR valve) to the air intake cham-
ber.
(c) (Exc. USA Spec.) Remove the bolt holding the water by±pass pipe (be-
tween ISC valve and EGR valve) to the VSV (for fuel
pressure control). FI±81
EFI SYSTEM
± Air Induction System (Idle Speed Control (ISC) Valve)
WhereEverybodyKnowsYourName
Page 1933 of 4087

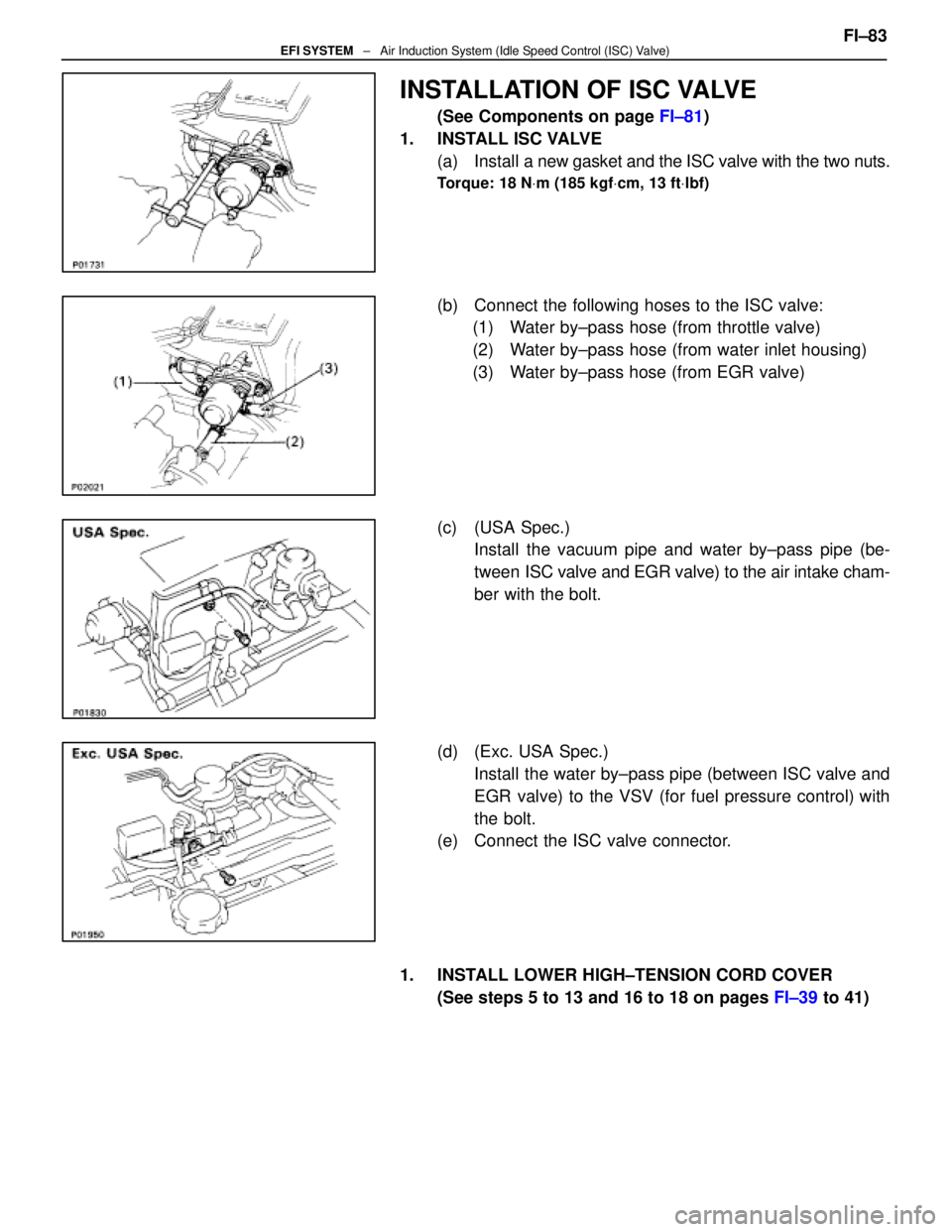

(d) Disconnect the following hoses from the ISC valve:(1) Water by±pass hose (from throttle valve)
(2) Water by±pass hose (from water inlet housing)
(3) Water by±pass hose (from EGR valve)
(e) Remove the two nuts, ISC valve and gasket.
INSPECTION OF ISC VALVE
1. INSPECT ISC VALVE RESISTANCE Using an ohmmeter, measure the resistance between the ter-
minals (B1±S1 and S3, B2±S2 and S4).
Resistance: 10±30
If resistance is not as specified, replace the ISC valve.
2. INSPECT ISC VALVE OPERATION (a) Apply battery voltage to terminals B1 and B2, and whilerepeatedly grounding S1±S2±S3±S4±S1 in sequence,
and check that the valve moves toward the closed
position.
(b) Apply battery voltage to terminals B1 and B2, and while repeatedly grounding S4±S3±S2±S1±S4 in sequence,
and check that the valve moves toward the open
position.
If operation is not as specified, replace the ISC valve.
FI±82
EFI SYSTEM
± Air Induction System (Idle Speed Control (ISC) Valve)
WhereEverybodyKnowsYourName
Page 1934 of 4087
INSTALLATION OF ISC VALVE
(See Components on page FI±81)
1. INSTALL ISC VALVE (a) Install a new gasket and the ISC valve with the two nuts.
Torque: 18 N Vm (185 kgf Vcm, 13 ft Vlbf)
(b) Connect the following hoses to the ISC valve:
(1) Water by±pass hose (from throttle valve)
(2) Water by±pass hose (from water inlet housing)
(3) Water by±pass hose (from EGR valve)
(c) (USA Spec.) Install the vacuum pipe and water by±pass pipe (be-
tween ISC valve and EGR valve) to the air intake cham-
ber with the bolt.
(d) (Exc. USA Spec.) Install the water by±pass pipe (between ISC valve and
EGR valve) to the VSV (for fuel pressure control) with
the bolt.
(e) Connect the ISC valve connector.
1. INSTALL LOWER HIGH±TENSION CORD COVER (See steps 5 to 13 and 16 to 18 on pages FI±39 to 41)FI±83
EFI SYSTEM
± Air Induction System (Idle Speed Control (ISC) Valve)
WhereEverybodyKnowsYourName
Page 1935 of 4087

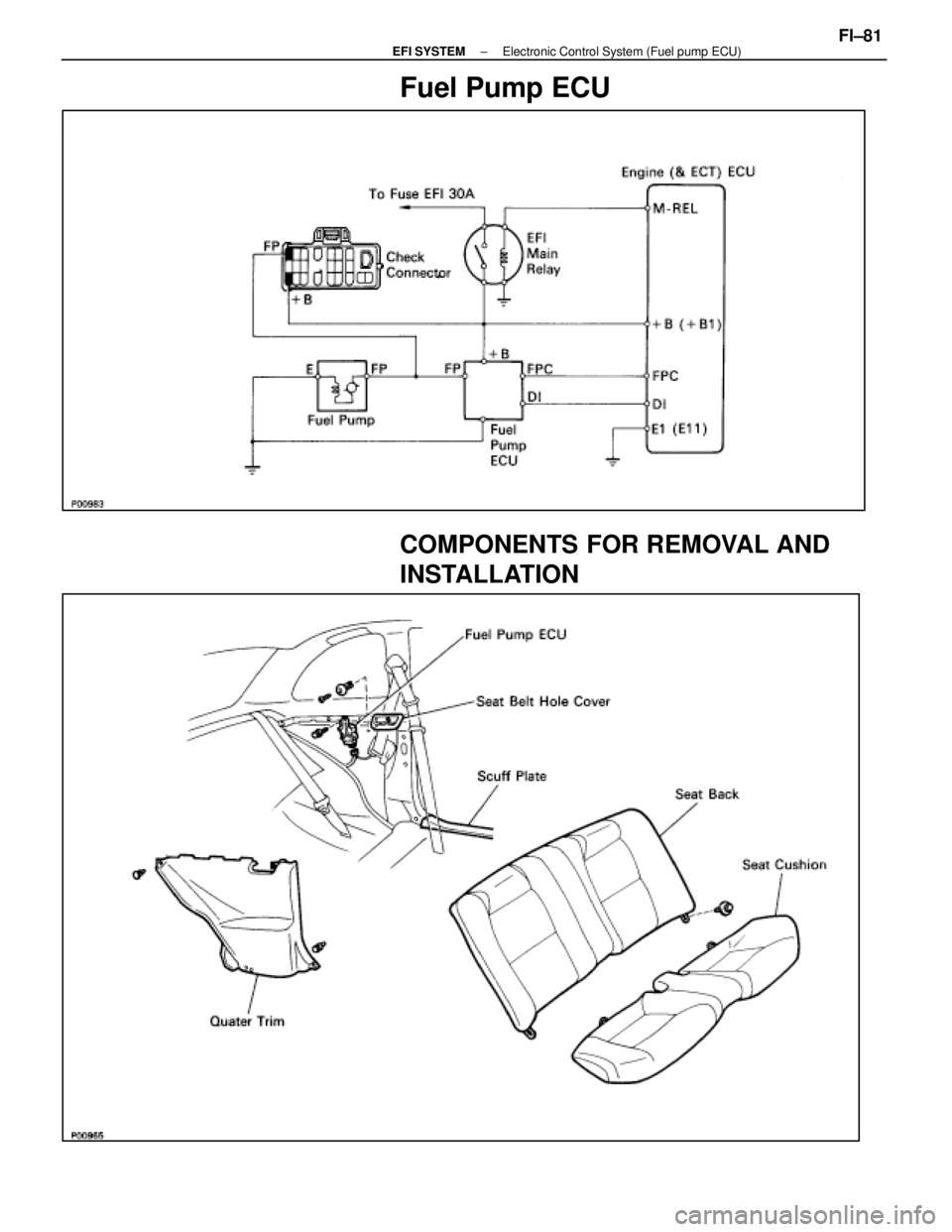

Fuel Pump ECU
COMPONENTS FOR REMOVAL AND
INSTALLATION
±
EFI SYSTEM Electronic Control System (Fuel pump ECU)FI±81
WhereEverybodyKnowsYourName
Page 1936 of 4087

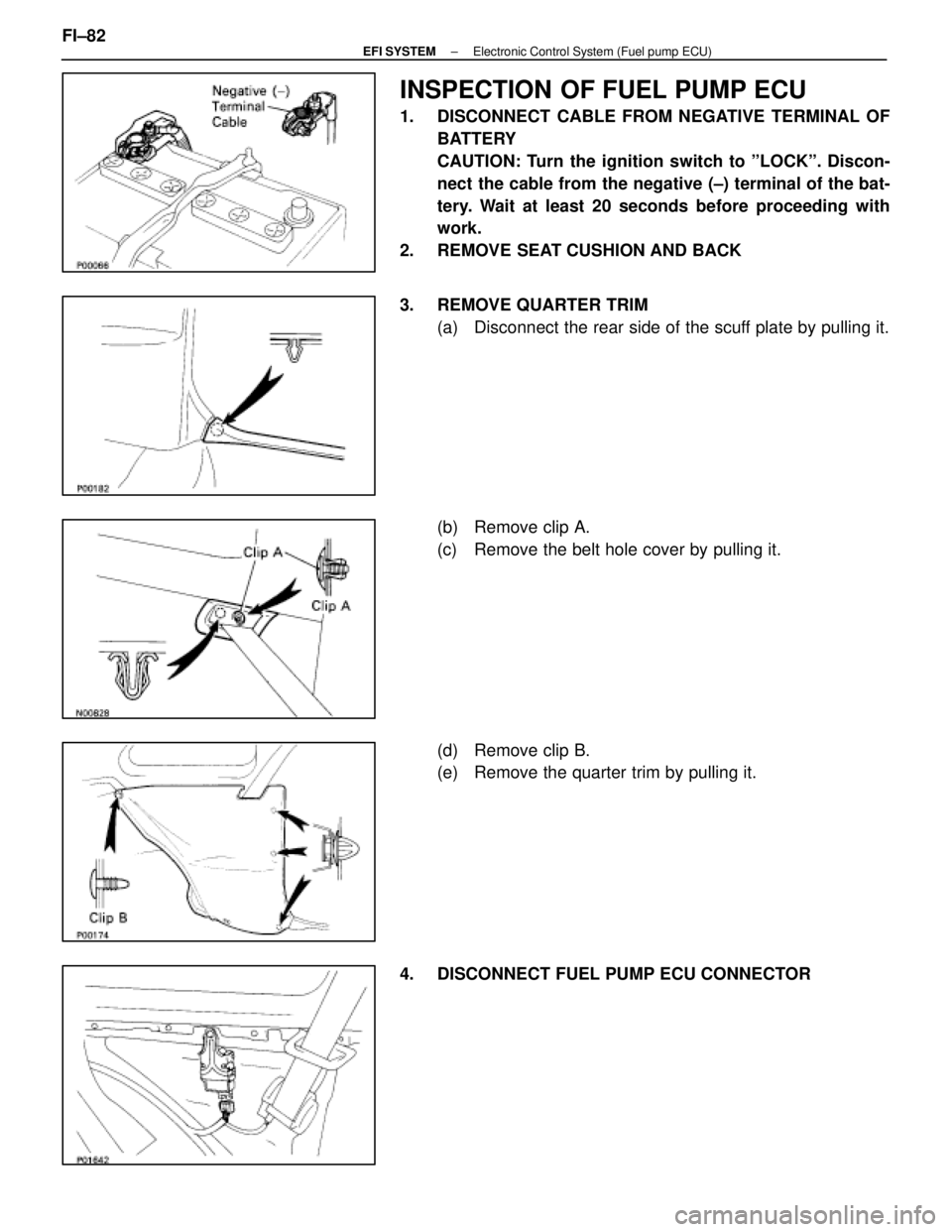

INSPECTION OF FUEL PUMP ECU
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OFBATTERY
CAUTION: Turn the ignition switch to ºLOCKº. Discon-
nect the cable from the negative (±) terminal of the bat-
tery. Wait at least 20 seconds before proceeding with
work.
2. REMOVE SEAT CUSHION AND BACK
3. REMOVE QUARTER TRIM (a) Disconnect the rear side of the scuff plate by pulling it.
(b) Remove clip A.
(c) Remove the belt hole cover by pulling it.
(d) Remove clip B.
(e) Remove the quarter trim by pulling it.
4. DISCONNECT FUEL PUMP ECU CONNECTOR
FI±82
±
EFI SYSTEM Electronic Control System (Fuel pump ECU)
WhereEverybodyKnowsYourName
