Page 2649 of 4087

LEXUS SC400 1991 Service Repair Manual Location of Connectors in Engine Compartment (Contd) TR±38± ENGINE TROUBLESHOOTING Location of Connectors WhereEverybodyKnowsYourName

Page 2650 of 4087

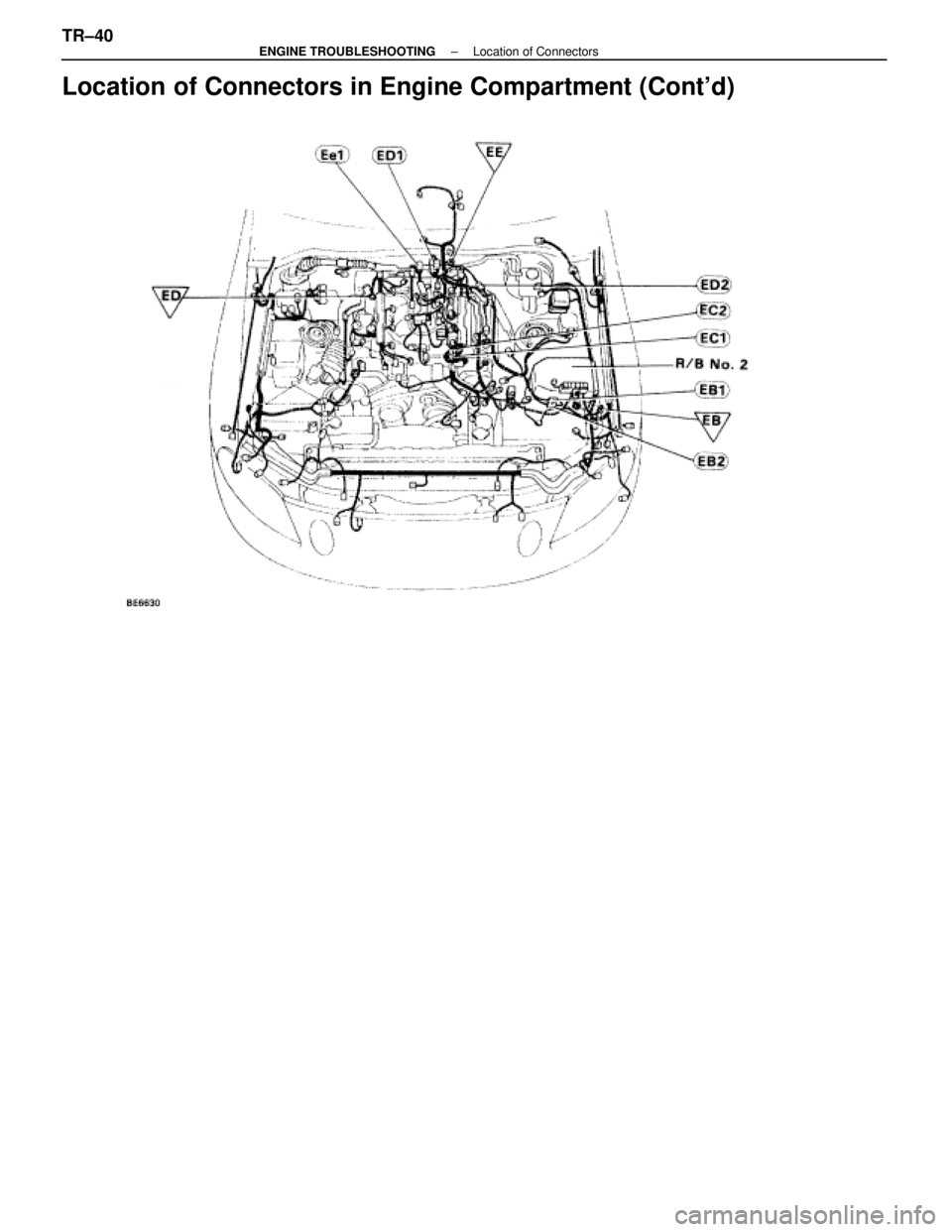

LEXUS SC400 1991 Service Repair Manual ± ENGINE TROUBLESHOOTING Location of ConnectorsTR±39 WhereEverybodyKnowsYourName

Page 2651 of 4087

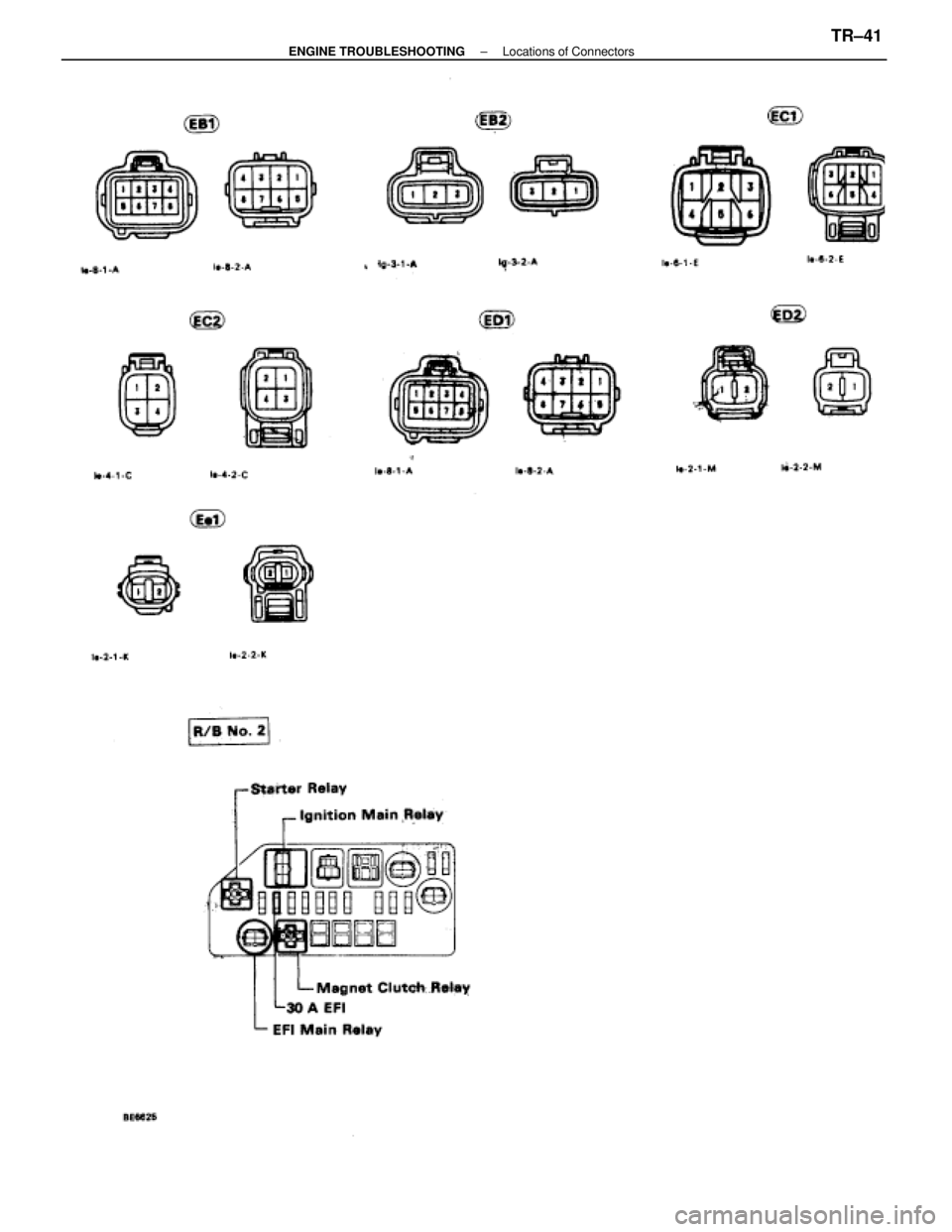

LEXUS SC400 1991 Service Repair Manual Location of Connectors in Engine Compartment (Contd) TR±40± ENGINE TROUBLESHOOTING Location of Connectors WhereEverybodyKnowsYourName

Page 2652 of 4087

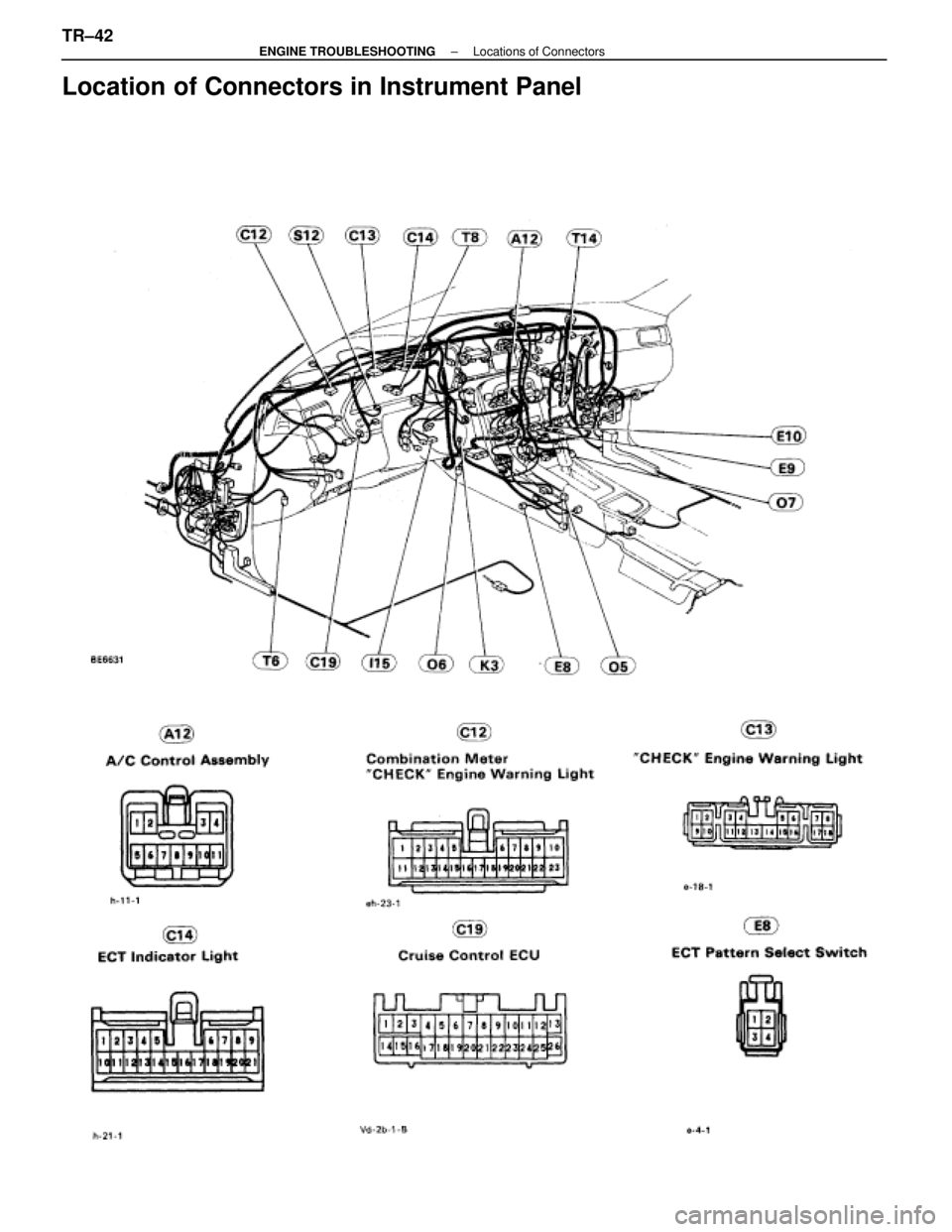

LEXUS SC400 1991 Service Repair Manual ± ENGINE TROUBLESHOOTING Locations of ConnectorsTR±41 WhereEverybodyKnowsYourName

Page 2653 of 4087

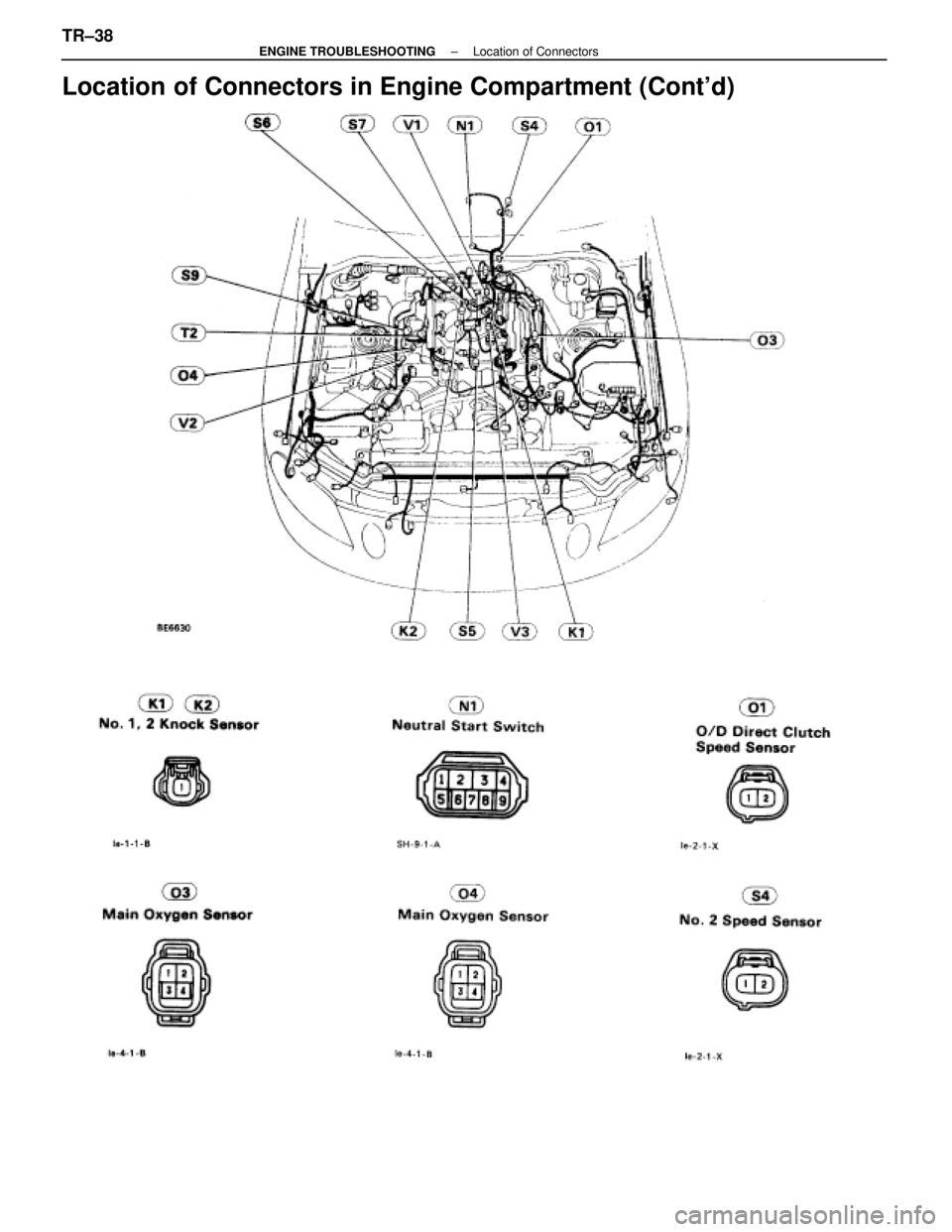

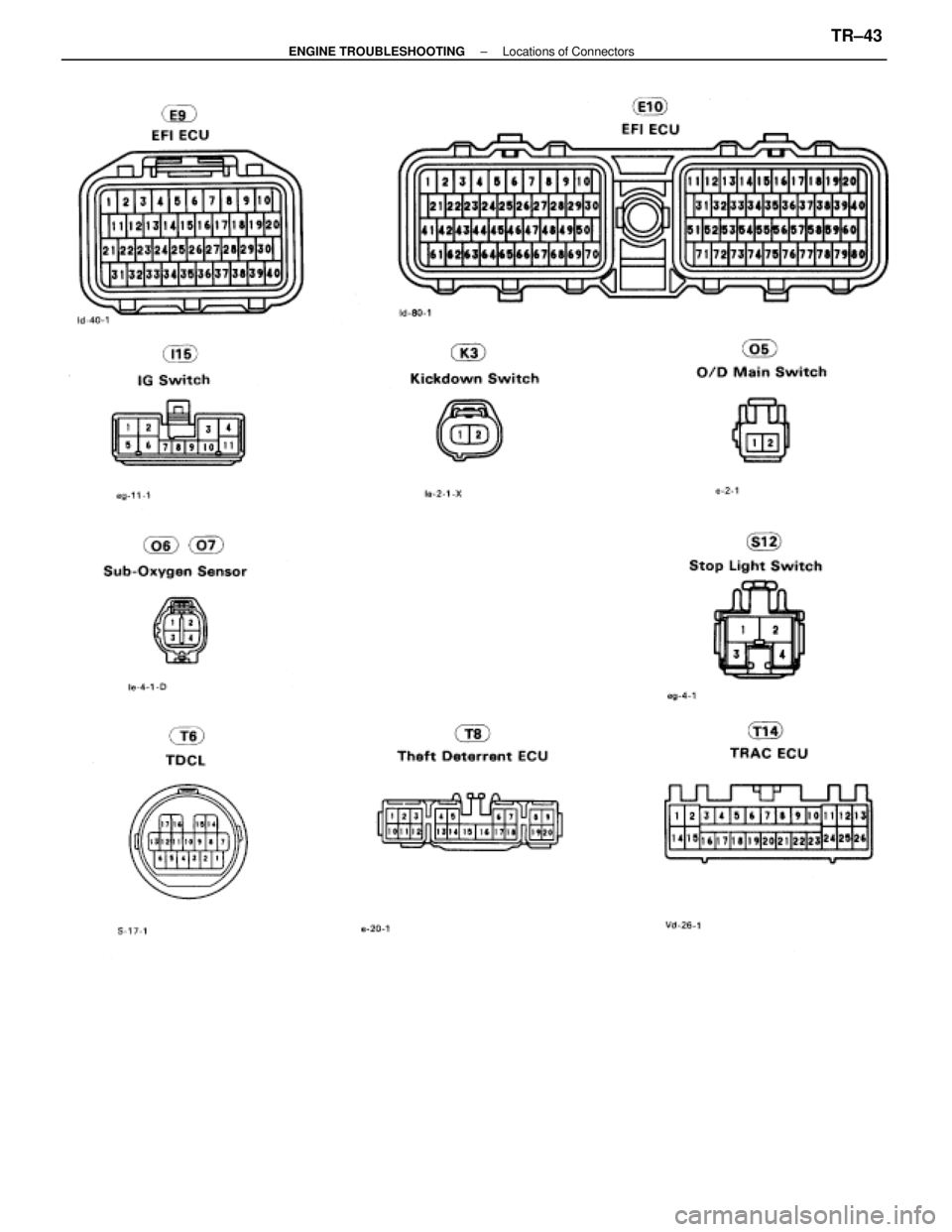

LEXUS SC400 1991 Service Repair Manual Location of Connectors in Instrument Panel TR±42± ENGINE TROUBLESHOOTING Locations of Connectors WhereEverybodyKnowsYourName

Page 2654 of 4087

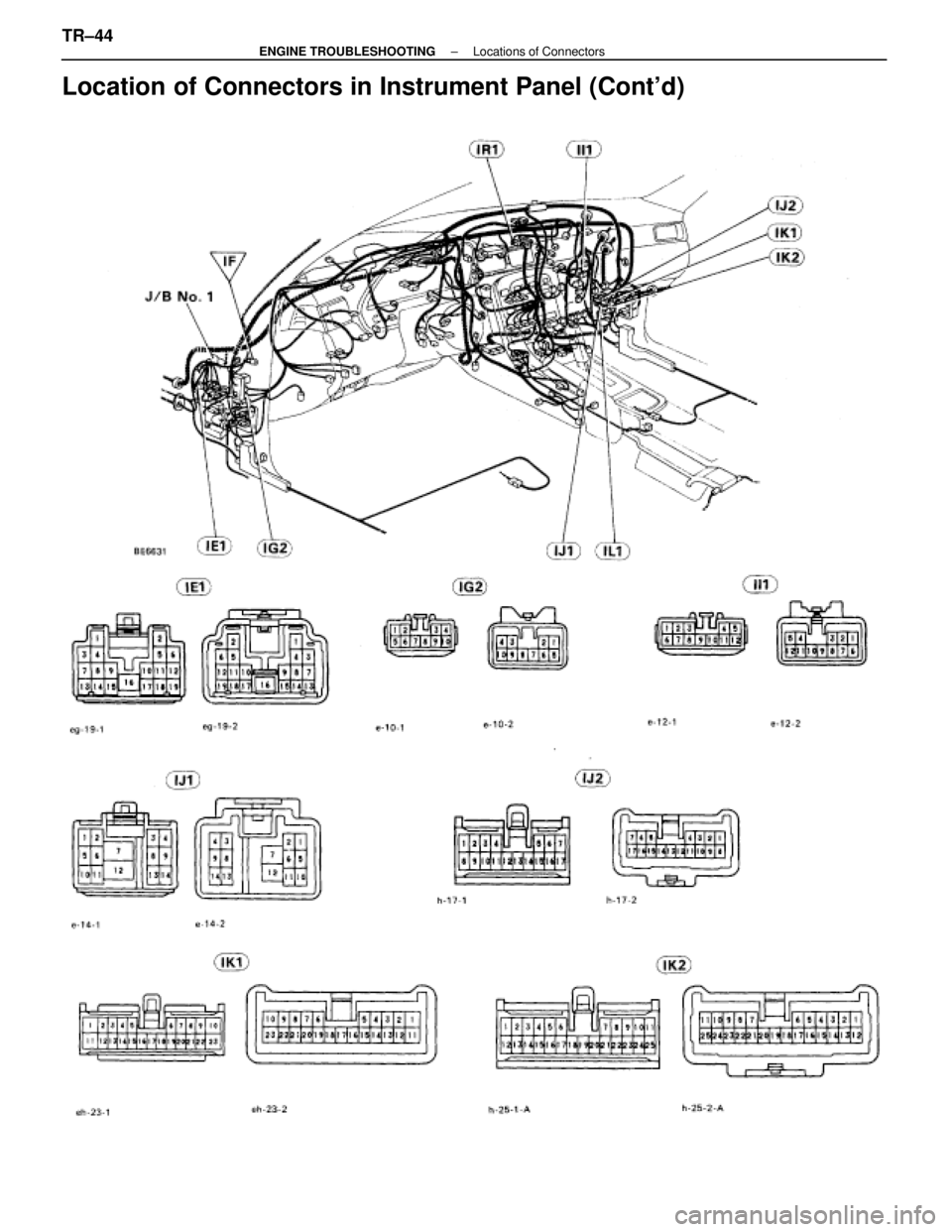

LEXUS SC400 1991 Service Repair Manual ± ENGINE TROUBLESHOOTING Locations of ConnectorsTR±43 WhereEverybodyKnowsYourName

Page 2655 of 4087

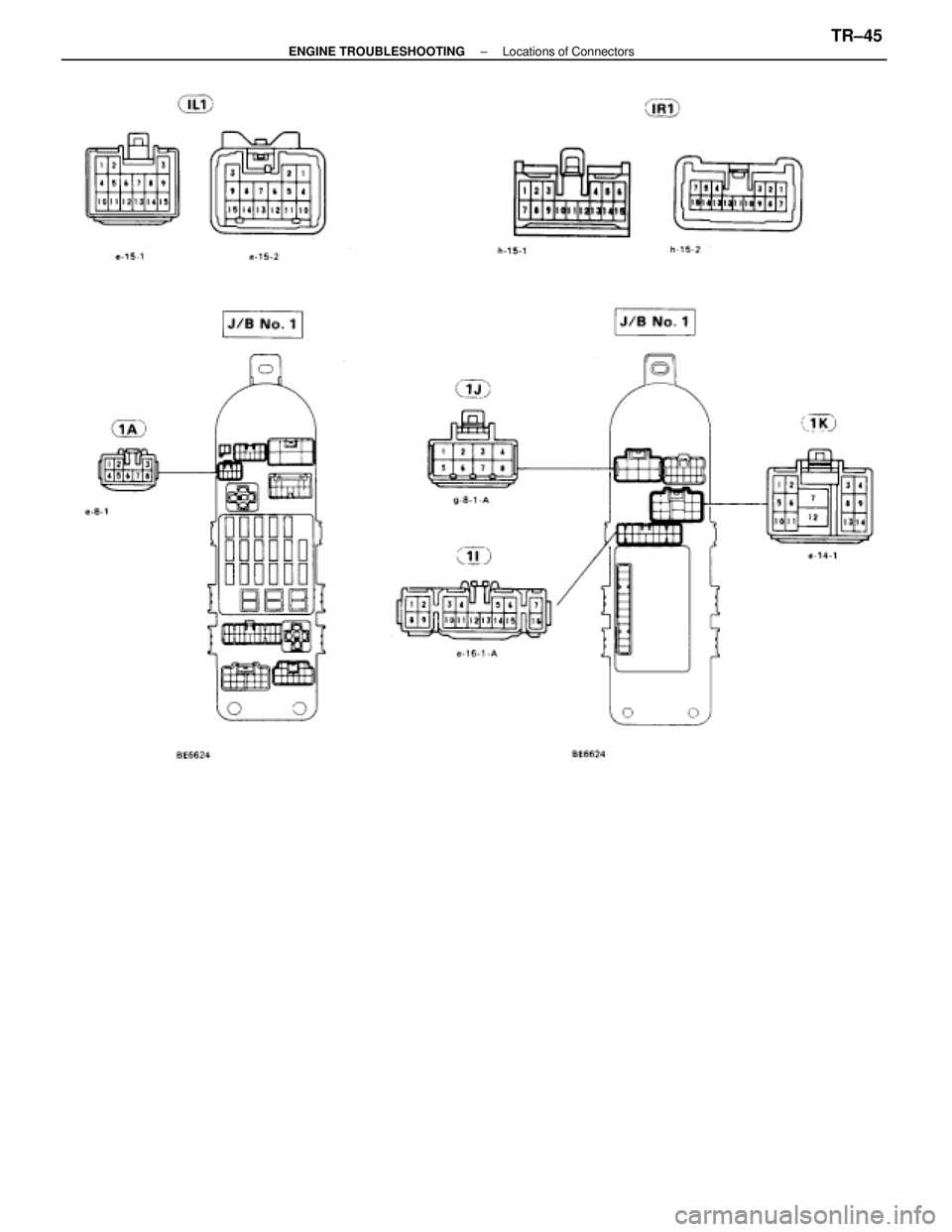

LEXUS SC400 1991 Service Repair Manual Location of Connectors in Instrument Panel (Contd) TR±44± ENGINE TROUBLESHOOTING Locations of Connectors WhereEverybodyKnowsYourName

Page 2656 of 4087

LEXUS SC400 1991 Service Repair Manual ± ENGINE TROUBLESHOOTING Locations of ConnectorsTR±45 WhereEverybodyKnowsYourName
