Page 865 of 4087

LEXUS SC400 1991 Service Repair Manual WIRING AND CONNECTOR DIAGRAMS Turn Signal and Hazard Warning Lights BE±66± BODY ELECTRICAL SYSTEM Lighting System WhereEverybodyKnowsYourName

Page 866 of 4087

LEXUS SC400 1991 Service Repair Manual Parts Replacement (Turn Signals) (Cornering Light) REPLACEMENT OF CORNARING LIGHT 1. REMOVE CORNARING LIGHT(a) Disconnect negative (±) terminal from the battery. CAUTION: Work must be started afte

Page 867 of 4087

LEXUS SC400 1991 Service Repair Manual Parts Inspection (Turn and Hazard) (Combination Switch Assembly) (See page BE±39) HINT: Inspect turn signal light switch. (Turn Signal Flasher) REMOVAL AND INSTALLATION OF TURN SIGNAL FLASHER (S

Page 868 of 4087

LEXUS SC400 1991 Service Repair Manual INSPECTION OF HAZARD WARNING SWITCH INSPECTION HAZARD WARNING SWITCH(Continuity) Inspect the switch continuity between terminals. If continuity is not as specified, replace the switch. (Switch Circui

Page 869 of 4087

LEXUS SC400 1991 Service Repair Manual TROUBLESHOOTING Turn Signal and Hazard Warning Light System You will find the cause of trouble more easily using the table shown below. In this table, the numbers indicate the order priority of the

Page 870 of 4087

LEXUS SC400 1991 Service Repair Manual (ILLUMINATION LIGHT SYSTEM) DESCRIPTION ± ILLUMINATION LIGHT SYSTEM The component parts of this system and their function are described in the \ following table. Parts NameFunction Rheostat LightIn

Page 871 of 4087

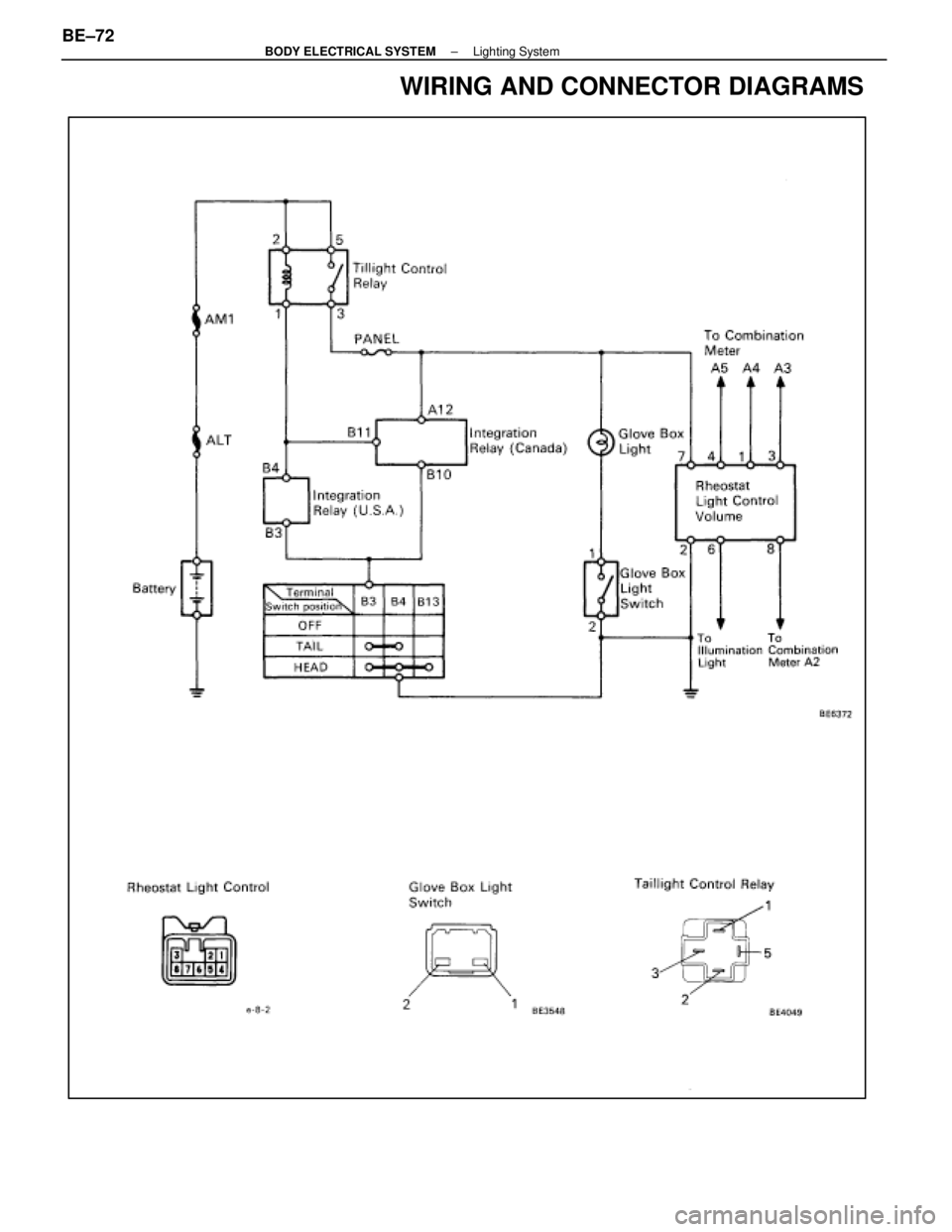

LEXUS SC400 1991 Service Repair Manual WIRING AND CONNECTOR DIAGRAMS BE±72± BODY ELECTRICAL SYSTEM Lighting System WhereEverybodyKnowsYourName

Page 872 of 4087

LEXUS SC400 1991 Service Repair Manual Parts Inspection ± ILLUMINATION LIGHT SYSTEM (Rheostat Light Control Volume) REMOVAL AND INSTALLATION OF RHEOSTAT LIGHT CONTROL VOLUME (See page BE±103 ) INSPECTION OF RHEOSTAT LIGHT CONTROL VOLUM
