Body Outside Moulding
COMPONENTS
Front Door Belt Moulding
REMOVAL AND INSTALLATION
1. REMOVE FOLLOWING PARTS:(See steps 1 to 7 on pages BO±33 to 34)
(a) Armrest base panel
(b) Door Trim
(c) Door Speaker Grille
(d) Door Trim Upper Panel
(e) Outside Rear View Mirror
2. REMOVE FRONT DOOR BELT MOULDING
(See step 13 on page BO±35)
3. INSTALL FRONT DOOR BELT MOULDING (See step 8 on page BO±39)
4. INSTALL FOLLOWING PARTS: Install the parts following removal sequence in reverse.
(See steps 14 to 20 on pages BO±40 to 41)
±
BODY Moulding (Body Outside Moulding)BO±101
WhereEverybodyKnowsYourName
Page 458 of 4087

Quarter Window Glass with Moulding
REMOVAL AND INSTALLATION
(See page BO±101)
1. REMOVE FOLLOWING PARTS: (See steps 5 to 8 on pages BO±123 to 124)
(a) Rear seat cushion
(b) Rear seat back
(c) Quarter trim
(d) Roof side inner garnish
(e) Shoulder belt anchor
2. REMOVE QUARTER WINDOW GLASS (See page BO±52)
3. INSTALL QUARTER WINDOW GLASS (See page BO±53)
4. INSTALL FOLLOWING PARTS: Install the parts following removal sequence in reverse.
Rocker Panel Moulding
REMOVAL AND INSTALLATION
(See page BO±101)
1. REMOVE ROCKER PANEL MOULDING (a) Remove two screws.
(b) Pry l oose clips and remove the moulding onto the panel.
2. INSTALL ROCKER PANEL MOULDING (a) Insert the top of clips into the panel hole and tap themoulding onto the panel.
(b) Install two screws.
Front Fender Wheel Opening Moulding
REMOVAL AND INSTALLATION
(See page BO±101)
1. REMOVE FRONT FENDER WHEEL OPENING MOULDING
Remove eight screws and the moulding.
2. INSTALL FRONT FENDER WHEEL OPENING MOULDING Install eight screws and the moulding.
Quarter Wheel Opening Moulding
REMOVAL AND INSTALLATION
(See page BO±101)
HINT: Do the same manner as the front fender wheel
opening moulding.
BO±102
±
BODY Moulding (Body Outside Moulding)
WhereEverybodyKnowsYourName
Page 459 of 4087

Front Fender Side Protection Moulding
REMOVAL AND INSTALLATION
1. REMOVE FRONT FENDER SIDE PROTECTIONMOULDING
(a) Remove a nut.
(b) Pry loose the clip and remove the moulding onto thepanel.
2. INSTALL FRONT FENDER SIDE PROTECTION MOULDING
(a) Insert the top of the clip into the panel hole and tap the
moulding onto the panel.
(b) Install a nut.
Front Door Side Protection Moulding
REMOVAL AND INSTALLATION
1. REMOVE FRONT DOOR SIDE PROTECTION MOULDING (a) Remove two nuts.
(b) Pry loose clips remove the moulding onto the panel.
2. INSTALL FRONT DOOR SIDE PROTECTION MOULDING (a) Insert the top of clips into the panel hole and tap themoulding onto the panel.
(b) Install two nuts.
Quarter Side Protection Moulding
REMOVAL AND INSTALLATION
1. REMOVE QUARTER SIDE PROTECTION MOULDING (a) Remove a nut.
(b) Pry l oose clips and remove the moulding onto the panel.
2. INSTALL QUARTER SIDE PROTECTION MOULDING (a) Insert the top of clips into the panel hole and tap themoulding onto the panel.
(b) Install a nut.
±
BODY Moulding (Body Outside Moulding)BO±103
WhereEverybodyKnowsYourName
Page 460 of 4087
MUD GUARD (For Canada)
COMPONENTS
Front Fender Mudguard
REMOVAL AND INSTALLATION
1. REMOVE FRONT FENDER MUDGUARDRemove three screws and the mudguard.
2. INSTALL FRONT FENDER MUDGUARD Install the mudguard with three screws.
Quarter Panel Mudguard
REMOVAL AND INSTALLATION
HINT: Do the same manner as the front fender mudguard.
BO±104
±
BODY Mud Guard
WhereEverybodyKnowsYourName
Page 461 of 4087
REAR SPOILER
COMPONENTS
REMOVAL AND INSTALLATION
1. REMOVE DOOR TRIM
2. REMOVE REAR SPOILERDisconnect the connector, remove five nuts and the spoiler.
3. INSTALL REAR SPOILER Connect the connector, install five nuts and the spoiler.
4. INSTALL DOOR TRIM
±
BODY SpoilerBO±105
WhereEverybodyKnowsYourName
Page 462 of 4087
FUEL LID
Fitting Adjustments
HINT: Adjust the fuel lid according to the following meth-
od.
ADJUST FUEL FILLER OPENING LID Loosen the two screws and adjust the lid as shown.
Fuel Lid
COMPONENTS
BO±106±
BODY Fuel Lid (Fitting Adjustments)
WhereEverybodyKnowsYourName
Page 463 of 4087
INSTRUMENT PANEL
COMPONENTS
BO±108±
BODY Instrument Panel
WhereEverybodyKnowsYourName
Page 464 of 4087
COMPONENTS (Cont'd)

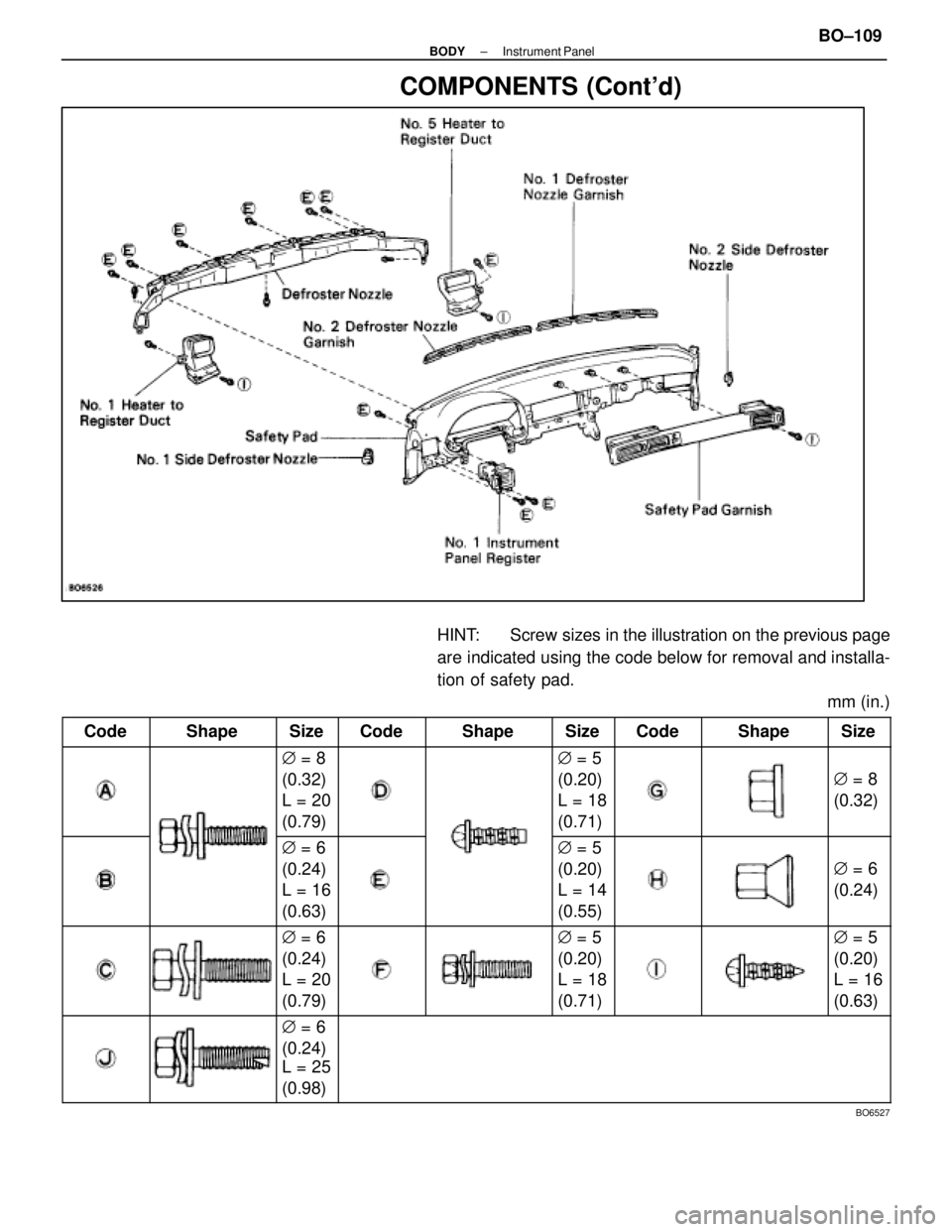

HINT: Screw sizes in the illustration on the previous page
are indicated using the code below for removal and installa-
tion of safety pad.mm (in.)
Code
ShapeSizeCodeShapeSizeCodeShapeSize
j = 8
(0.32)
L = 20
(0.79)j = 5
(0.20)
L = 18
(0.71)
j = 8
(0.32)
j = 6
(0.24)
L = 16
(0.63)j = 5
(0.20)
L = 14
(0.55)
j = 6
(0.24)
j = 6
(0.24)
L = 20
(0.79)j = 5
(0.20)
L = 18
(0.71)j = 5
(0.20)
L = 16
(0.63)
j = 6
(0.24)
L = 25
(0.98)
BO6527
±
BODY Instrument PanelBO±109
