Page 2105 of 4087

LEXUS SC400 1991 Service Repair Manual 6. INSTALL VSV FOR EVAP SYSTEMInstall the VSV with the two bolts. 7. INSTALL LH NO.3 TIMING BELT COVER (a) Install the three gaskets to the timing belt cover. (b) Install the cord grommet to the

Page 2106 of 4087

LEXUS SC400 1991 Service Repair Manual (b) Push the front side of the high±tension cord cover, andconnect the front side claw groove of the upper high±tension cord cover to the claw of the lower high±tension cord cover. (c) Install

Page 2107 of 4087

LEXUS SC400 1991 Service Repair Manual SERVICE SPECIFICATIONS SERVICE DATA IgnitionT/M in N range105 BTDC @ idle timing[Check connector terminals TE1 and E1 con- nect] Spark plugTypeNDPK16R11 NGK BKR5EP11 GAPSTD 1.1 mm0.043 in. Limit 1.3

Page 2108 of 4087

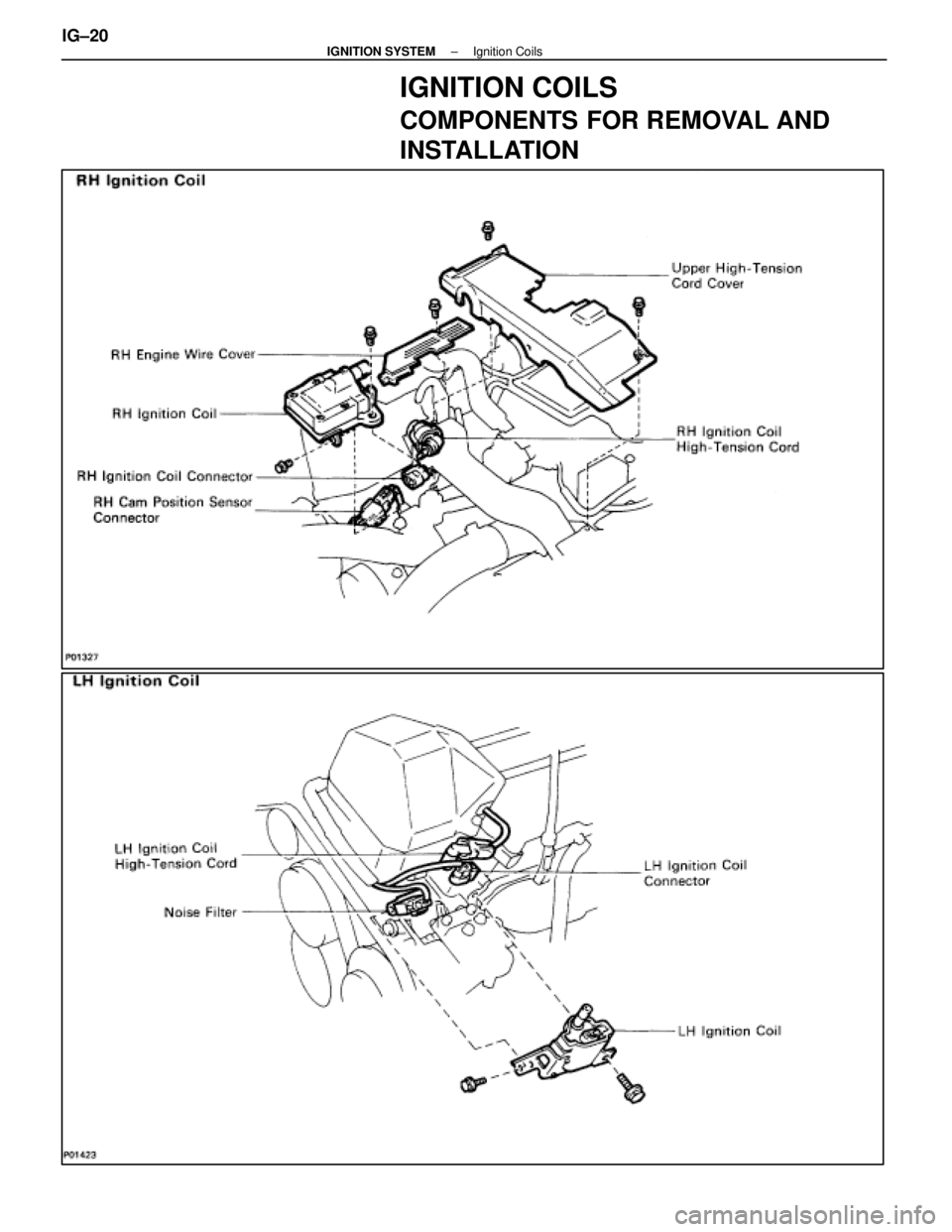

LEXUS SC400 1991 Service Repair Manual IGNITION COILS COMPONENTS FOR REMOVAL AND INSTALLATION IG±20± IGNITION SYSTEM Ignition Coils WhereEverybodyKnowsYourName

Page 2109 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF RH IGNITION COIL (See Components on page IG±20) 1. REMOVE RH ENGINE WIRE COVER (See steps 1, 3 and 4 on pages IG±11 and 12) 2. DISCONNECT HIGH±TENSION CORD (See step 9 on pages IG±

Page 2110 of 4087

LEXUS SC400 1991 Service Repair Manual INSTALLATION OF RH IGNITION COIL (See Components on page IG±20) 1. INSTALL IGNITION COIL (a) Install the ignition coil with the three bolts. (b) Install the cam position sensor connector to the i

Page 2111 of 4087

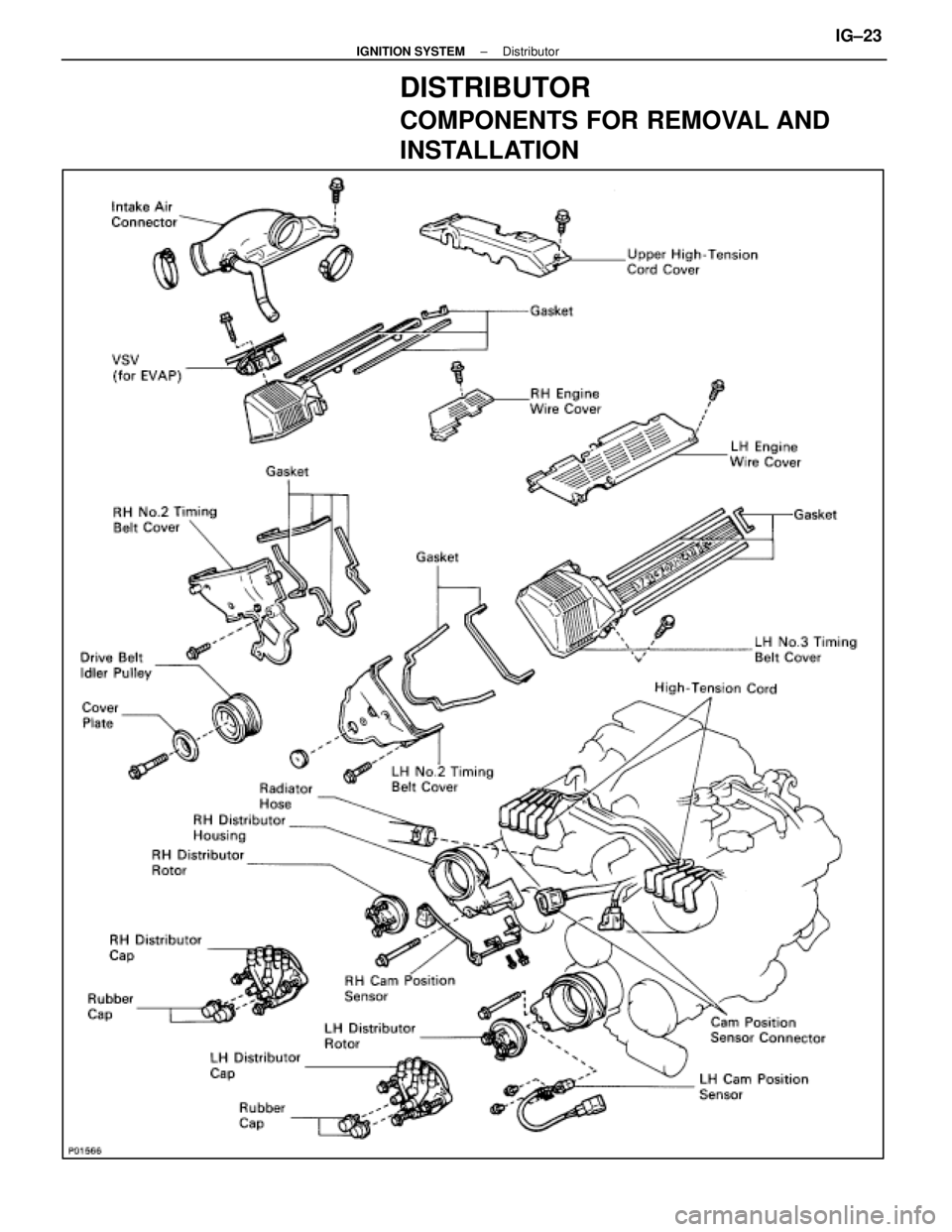

LEXUS SC400 1991 Service Repair Manual DISTRIBUTOR COMPONENTS FOR REMOVAL AND INSTALLATION ± IGNITION SYSTEM DistributorIG±23 WhereEverybodyKnowsYourName

Page 2112 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF DISTRIBUTOR (See Components on page IG±23) 1. DRAIN ENGINE COOLANT (See page CO±6) 2. DISCONNECT RADIATOR HOSE FROM WATER INLET 3. REMOVE NO.3 TIMING BELT COVERS (See steps 1 to 8 on
