LEXUS SC400 1991 Service Repair Manual
NGOK
OKNG
OKNG
INSPECTION PROCEDURE
1Check voltage between terminals TE1, TE2 and E1 of check connector, TDCL.
C
OK
PTurn ignition switch on.
Measure voltage between terminals TE1, TE2 and E1
of che

Page 3586 of 4087

LEXUS SC400 1991 Service Repair Manual
ENGINE TROUBLESHOOTING
TR±1
WhereEverybodyKnowsYourName

Page 3587 of 4087

$LEXUS SC400 1991 Service Repair Manual HOW TO PROCEED WITH TROUBLESHOOTING The Engine Control System broadly consists of the sensors, ECU and actuator\ s. The ECU receives signals from various sensors, judges the operating conditions and$

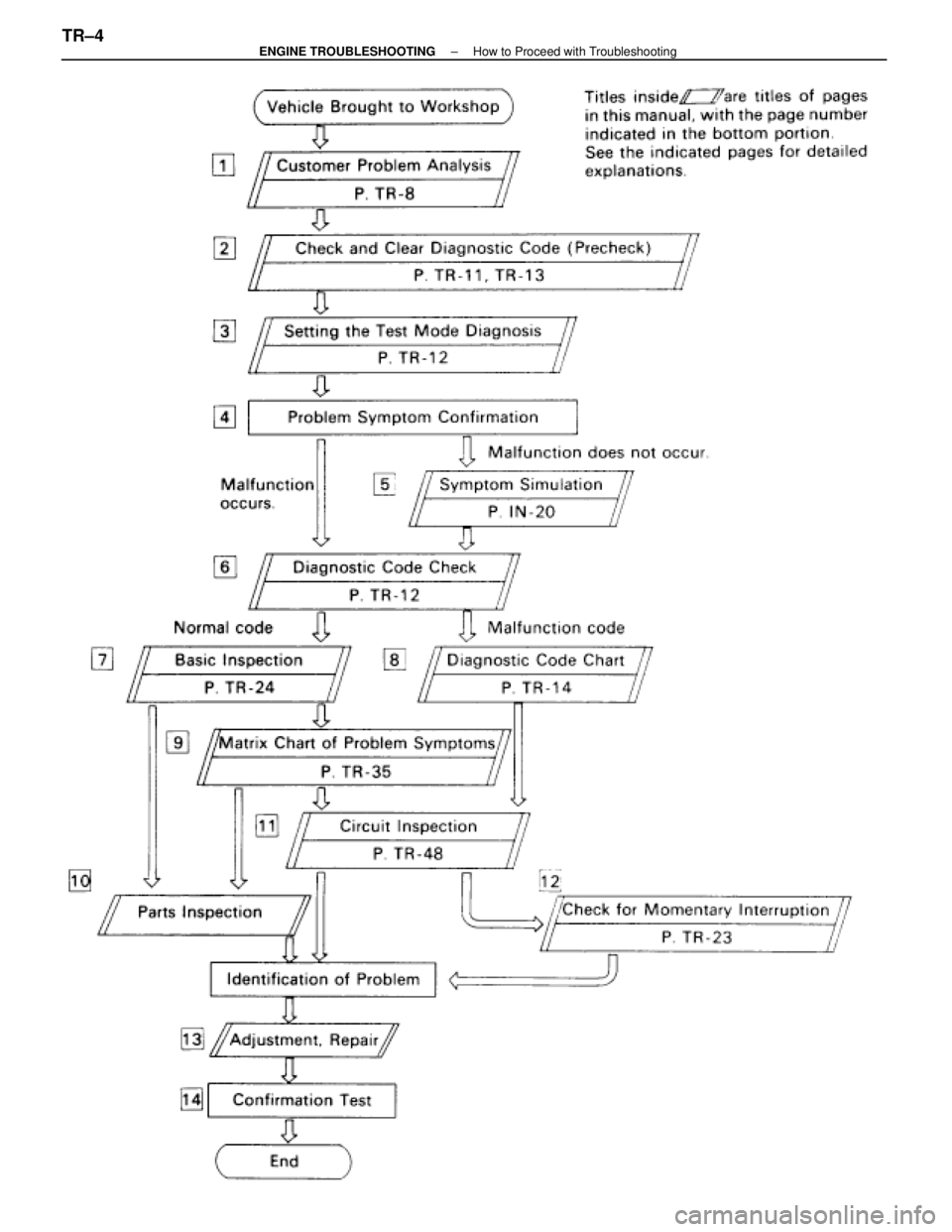

HOW TO PROCEED WITH TROUBLESHOOTING
The Engine Control System broadly consists of the sensors, ECU and actuator\
s. The ECU receives signals from
various sensors, judges the operating conditions and determines the opti\
mum injection duration, timing, ignition
timing and idle speed.
In general, the Engine Control System is considered to be a very intricate\
system to troubleshoot. But, the fact
is that if you proceed to inspect the circuit one by one following the p\
rocedures directed in this manual, trouble-
shooting of this system is not complex.
This section explains the most ideal method of troubleshooting and tells how\
to carry out the necessary repairs.
[1] CUSTOMER PROBLEM ANALYSISUsing the customer problem analysis check sheet for reference, ask the c\
ustomer in as much details as
possible about the problem.
[2] CHECK AND CLEAR DIAGNOSTIC CODE (PRECHECK) Before confirming the problem symptom, first check the diagnostic code and mak\
e a note of any malfunc-
tion code which is output, then clear the code.
HINT: Output of the malfunction code indicates that there is a malfunction in\
the circuit indicated. However,
it does not indicate whether the malfunction is still occurring or occur\
red in the past and returned to normal.
In order to determine this, the problem symptoms should be confirmed in 4 \
first and the diagnostic code
be rechecked in [6].
Accordingly, if troubleshooting is begun based on the malfunction code only in diag\
nostic code check in
[2] , it could result in a misdiagnosis, leading to troubleshooting of circuits which are normal \
and making
it more difficult to locate the cause of the problem.
[3] SETTING THE TEST MODE DIAGNOSIS, [4] PROBLEM SYMPTOM CONFIRMATION, [5] SYMPTOM SIMULATION
In order to find out the trouble more quickly, set the diagnosis check in test mode and with higher sensing
ability of the ECU, confirm the problem symptoms. If the trouble does not reappear, use the symptom simu-
lation method to make sure the trouble is reproduced.
[6] DIAGNOSTIC CODE CHECK IN TEST MODE Check the diagnostic code in test mode. If the malfunction code is output, pr\
oceed to ºstep [8] Diagnostic
Code Chartº. If the normal code is output, proceed to ºstep [7] Basic Inspectionº.
[7] BASIC INSPECTION Carry out basic inspection such as the spark check and fuel pressure che\
ck, etc.
[8] DIAGNOSTIC CODE CHART If the malfunction code is displayed, proceed to inspect the circuit ind\
icated by the chart for each code.
[9] MATRIX CHART OF PROBLEM SYMPTOMS If the normal code is displayed in the diagnosis in test mode, perform tro\
ubleshooting according to the in-
spection order in the Matrix Chart of Problem Symptoms.
[10] PARTS INSPECTION When the Matrix Chart of Problem Symptoms instructs to check the parts, proc\
eed to parts inspection sec-
tion included in this manual.
[11] CIRCUIT INSPECTION Determine if the malfunction is the sensor, actuator, wire harness, connector or the ECU.
TR±2
±
ENGINE TROUBLESHOOTING How to Proceed with Troubleshooting
WhereEverybodyKnowsYourName

Page 3588 of 4087

$LEXUS SC400 1991 Service Repair Manual [12] CHECK FOR MOMENTARY INTERRUPTIONBy performing the check for momentary interruption, the place where moment\ ary interruptions or momen- tary shorts are occurring due to poor contacts can be iso$

Page 3589 of 4087

LEXUS SC400 1991 Service Repair Manual
TR±4±
ENGINE TROUBLESHOOTING How to Proceed with Troubleshooting
WhereEverybodyKnowsYourName

Page 3590 of 4087

LEXUS SC400 1991 Service Repair Manual
±MEMO±
ENGINE TROUBLESHOOTINGTR±5
WhereEverybodyKnowsYourName

Page 3591 of 4087

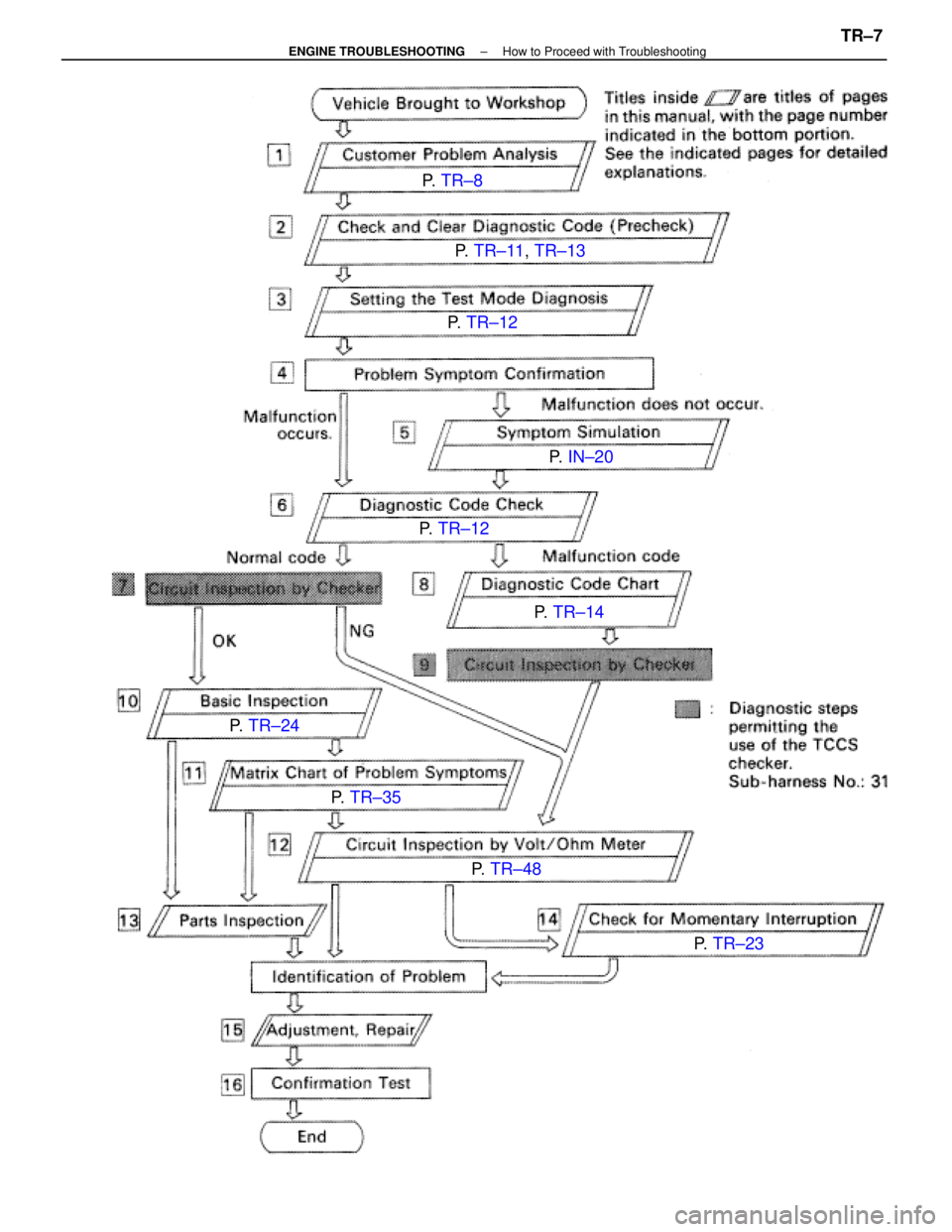

$LEXUS SC400 1991 Service Repair Manual How to Proceed with Troubleshooting Using Volt/Ohm Meter and TCCS Checker For the explanation of steps [1] ~ [6], [8] and [10] ~ [16], see the explan\ ation of steps with the same title on page TR±2$

Page 3592 of 4087

LEXUS SC400 1991 Service Repair Manual
P. TR±8
P. TR±11 , TR±13
P. TR±12
P. IN±20
P. TR±12
P. TR±14
P. TR±24
P. TR±35
P. TR±48
P. TR±23
±
ENGINE TROUBLESHOOTING How to Proceed with TroubleshootingTR±7
