Page 2561 of 4087

LEXUS SC400 1991 Service Repair Manual REPLACEMENT OF ENGINE OIL AND OIL FILTER CAUTION: wProlonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermat

Page 2562 of 4087

LEXUS SC400 1991 Service Repair Manual (d) Tighten the oil filter by hand until the rubber gasketcontacts the seat of the filter mounting. Then using SST, give it an additional 3/4 turn to seat the oil filter. SST 09228±07500 3. FILL

Page 2563 of 4087

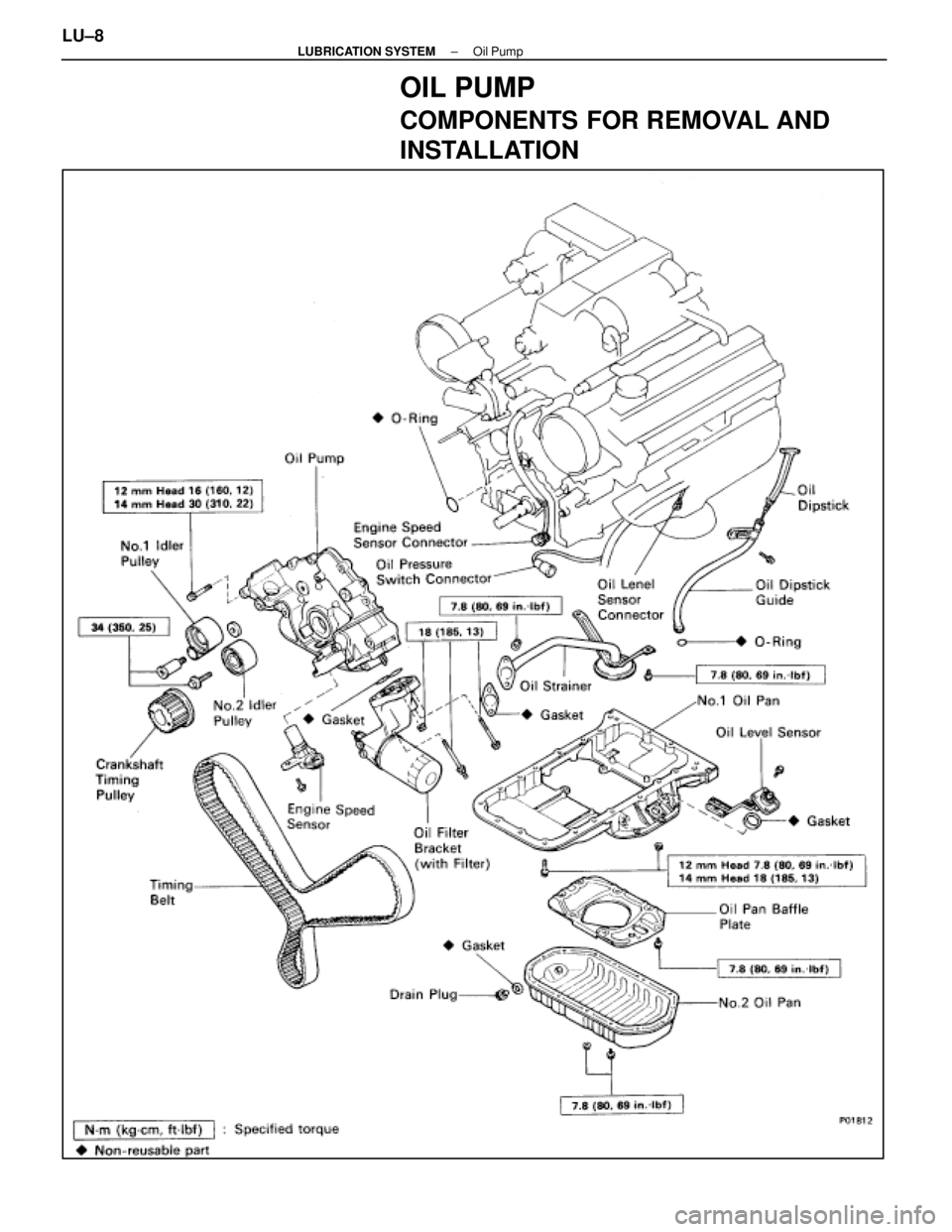

LEXUS SC400 1991 Service Repair Manual OIL PUMP COMPONENTS FOR REMOVAL AND INSTALLATION LU±8± LUBRICATION SYSTEM Oil Pump WhereEverybodyKnowsYourName

Page 2564 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF OIL PUMP (See Components on page LU±8) HINT: When repairing the oil pump, the oil pan and strainer should be removed and cleaned. 1. REMOVE ENGINE WITH TRANSMISSION (See pages EM±118 t

Page 2565 of 4087

LEXUS SC400 1991 Service Repair Manual (b) Insert the blade of SST between the No.1 and No.2 oilpan, cut off applied sealer and remove the No.1 oil pan. SST 09032±00100 NOTICE: w Be careful not to damage the No.2 oil pan contact surfac

Page 2566 of 4087

LEXUS SC400 1991 Service Repair Manual 12. REMOVE OIL STRAINERRemove the two bolts, two nuts, oil strainer and gasket. 13. REMOVE OIL FILTER BRACKET (a) Disconnect the oil pressure switch connector. (b) Remove the two bo lts, stud bol

Page 2567 of 4087

LEXUS SC400 1991 Service Repair Manual COMPONENTS FOR DISASSEMBLY AND ASSEMBLY OF OIL PUMP DISASSEMBLY OF OIL PUMP 1. REMOVE RELIEF VALVEUsing snap ring pliers, remove the snap ring and following parts:(1) Retainer (2) Compression spring

Page 2568 of 4087

LEXUS SC400 1991 Service Repair Manual INSPECTION OF OIL PUMP 1. INSPECT RELIEF VALVECoat the valve with engine oil and check that it falls smoothly into the valve hole by its own weight. If it doesnt, replace the relief valve. If neces
