Page 2825 of 4087

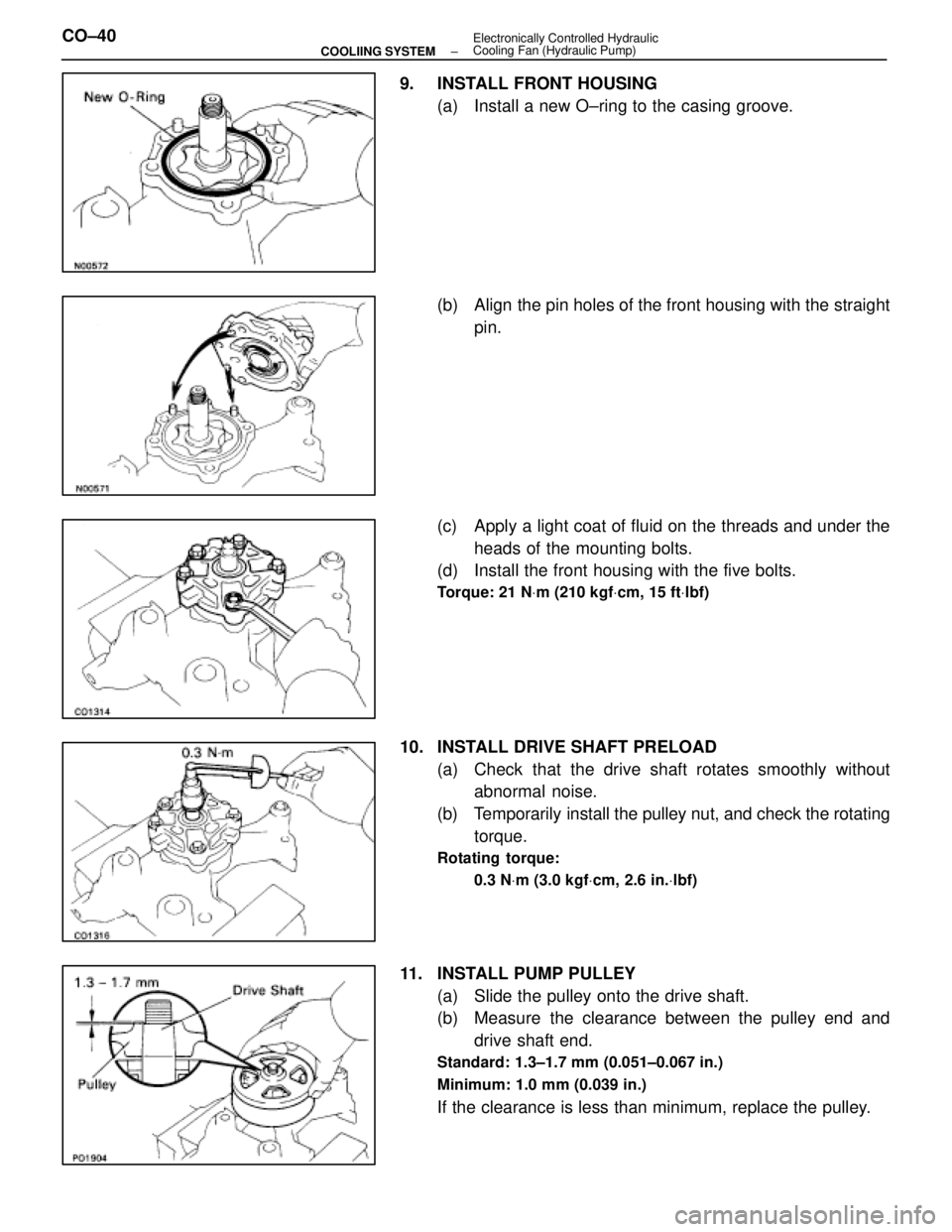

LEXUS SC400 1991 Service Repair Manual 3. REMOUNT REAR HOUSINGHINT: Mount the parts in a vise as shown in the illustration. 4. INSTALL CASING HINT: If rubber from the O±rings adheres to the O±ring instal- lation location, replace the c

Page 2826 of 4087

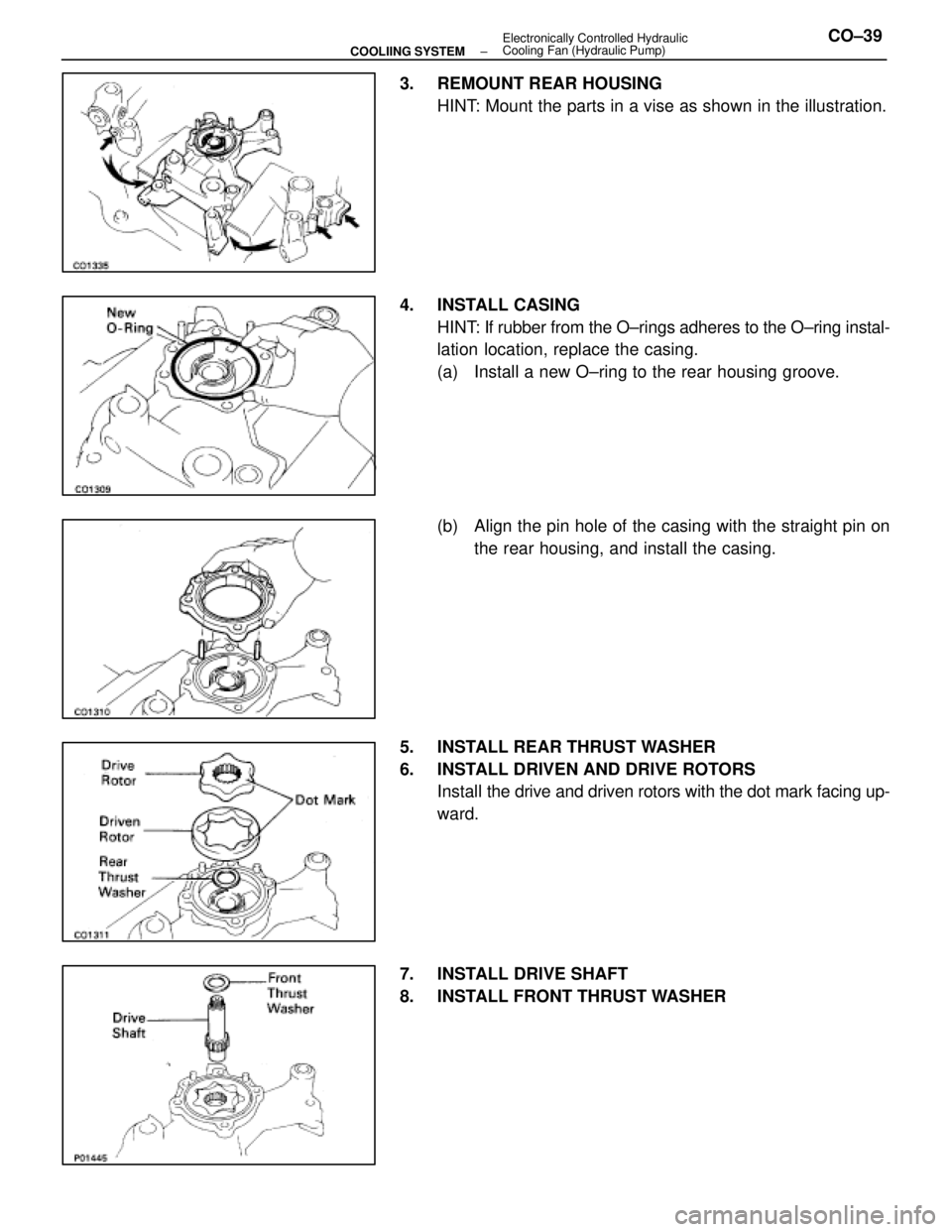

LEXUS SC400 1991 Service Repair Manual 9. INSTALL FRONT HOUSING(a) Install a new O±ring to the casing groove. (b) Align the pin holes of the front housing with the straightpin. (c) Apply a light coat of fluid on the threads and under

Page 2827 of 4087

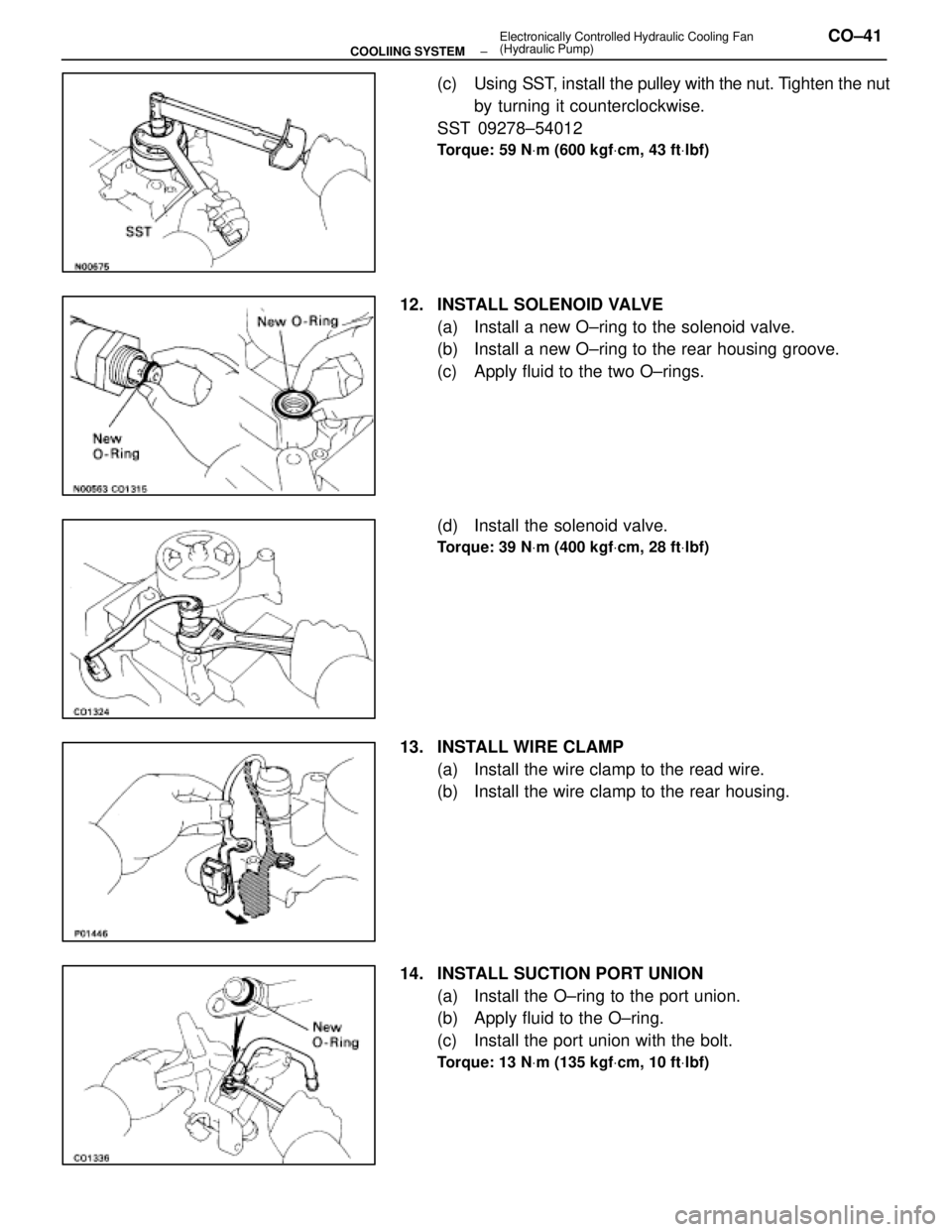

LEXUS SC400 1991 Service Repair Manual (c) Using SST, install the pulley with the nut. Tighten the nut by turning it counterclockwise. SST 09278±54012 Torque: 59 N Vm (600 kgf Vcm, 43 ft Vlbf) 12. INSTALL SOLENOID VALVE (a) Install a

Page 2828 of 4087

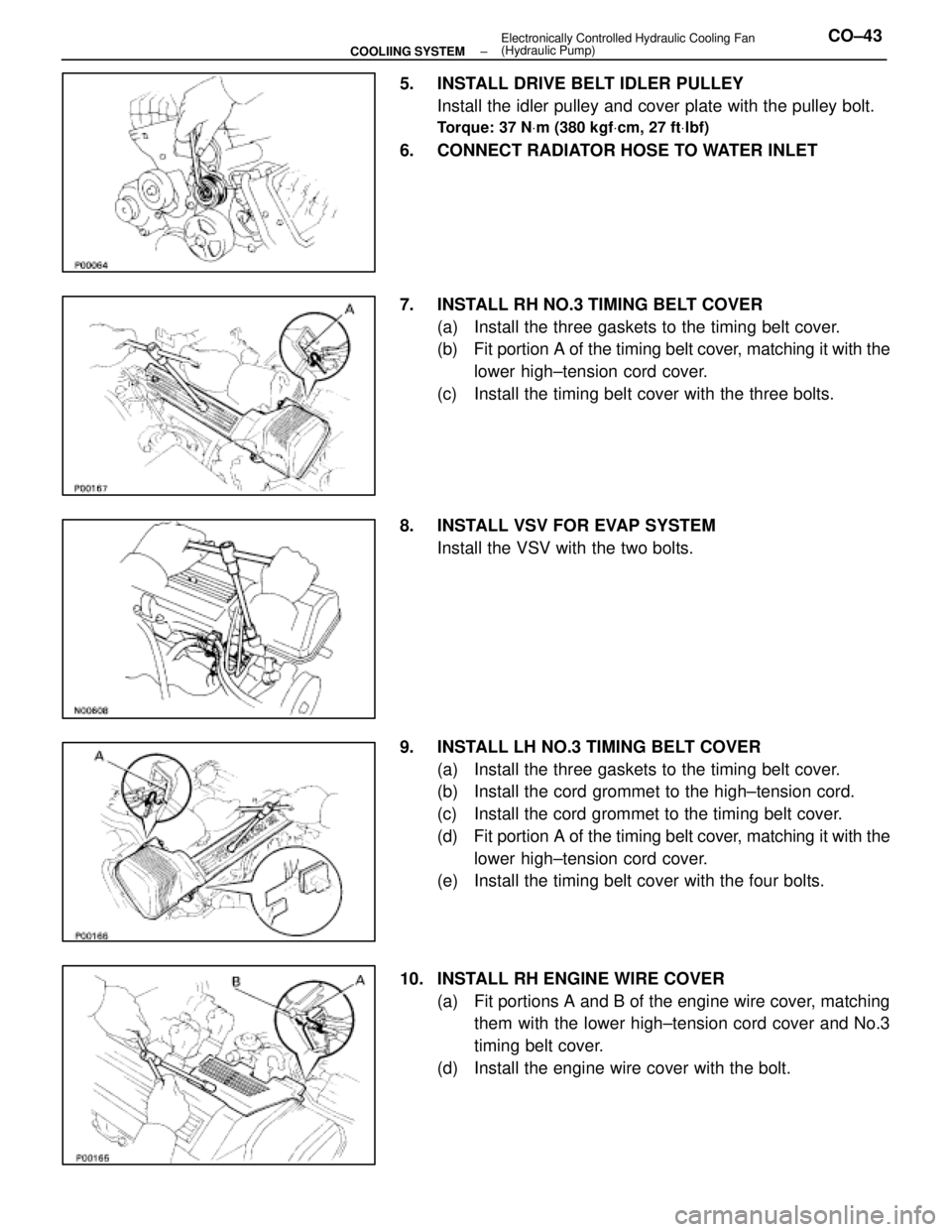

LEXUS SC400 1991 Service Repair Manual INSTALLATION OF HYDRAULIC PUMP (See Components on page CO±26) 1. INSTALL HYDRAULIC PUMP (a) Install the hydraulic pump, solenoid valve connector clamp and engine speed sensor wire clamp with the

Page 2829 of 4087

LEXUS SC400 1991 Service Repair Manual 5. INSTALL DRIVE BELT IDLER PULLEYInstall the idler pulley and cover plate with the pulley bolt. Torque: 37 N Vm (380 kgf Vcm, 27 ft Vlbf) 6. CONNECT RADIATOR HOSE TO WATER INLET 7. INSTALL RH NO.

Page 2830 of 4087

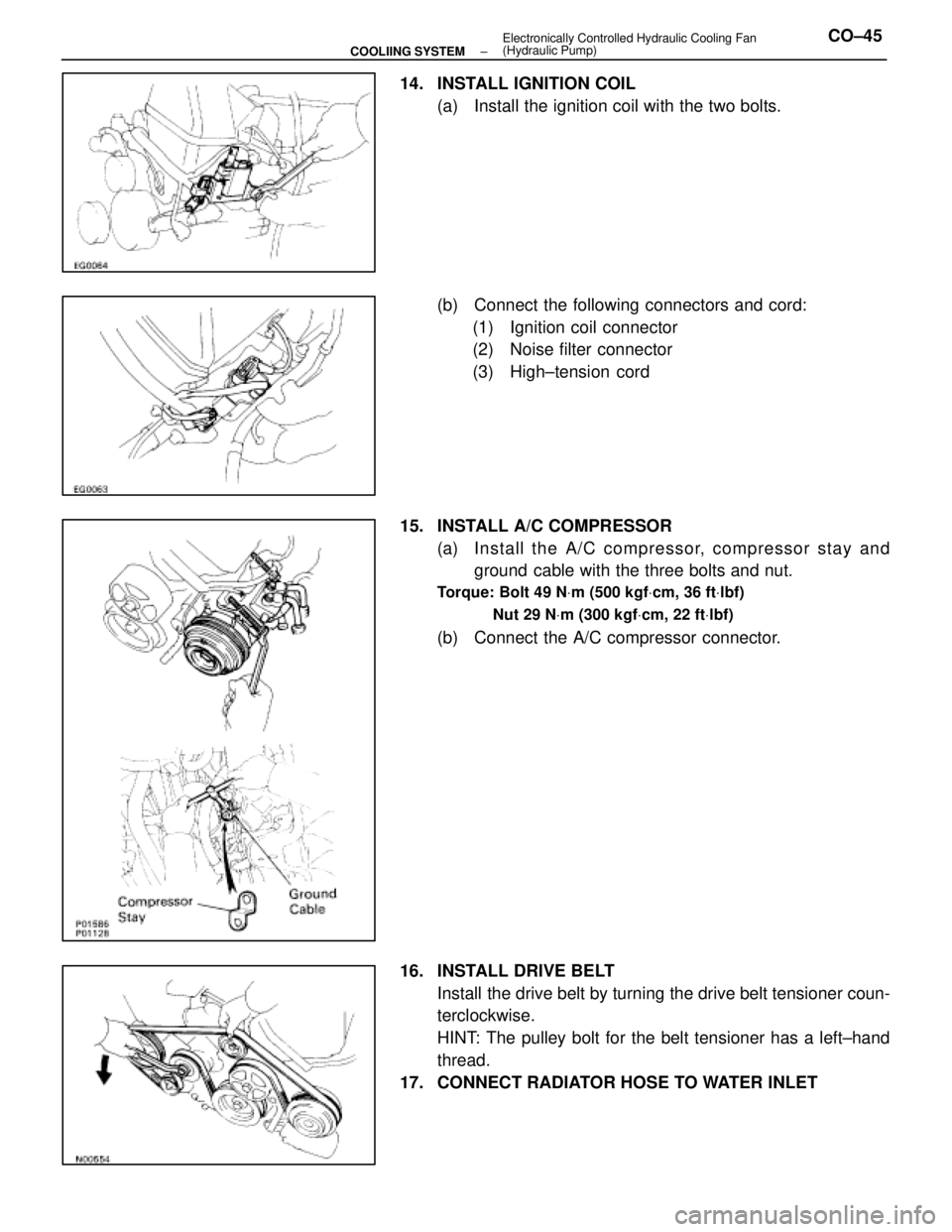

LEXUS SC400 1991 Service Repair Manual 11. INSTALL LH ENGINE WIRE COVER(a) Connect portions A and B engine wire cover to the wirebrackets. (b) Set the VSV (for fuel pressure control system) wire in original position. (c) Fit portions

Page 2831 of 4087

LEXUS SC400 1991 Service Repair Manual 14. INSTALL IGNITION COIL(a) Install the ignition coil with the two bolts. (b) Connect the following connectors and cord:(1) Ignition coil connector (2) Noise filter connector (3) High±tension cor

Page 2832 of 4087

LEXUS SC400 1991 Service Repair Manual 18. INSTALL BATTERY 19. FILL ENGINE WITH COOLANT (See page CO±7) 20. FILL COOLING FAN RESERVOIR TANK WITH FLUID (See pages CO±23 and 24) 21. START ENGINE AND CHECK FOR LEAKS 22. INSTALL ENGINE
