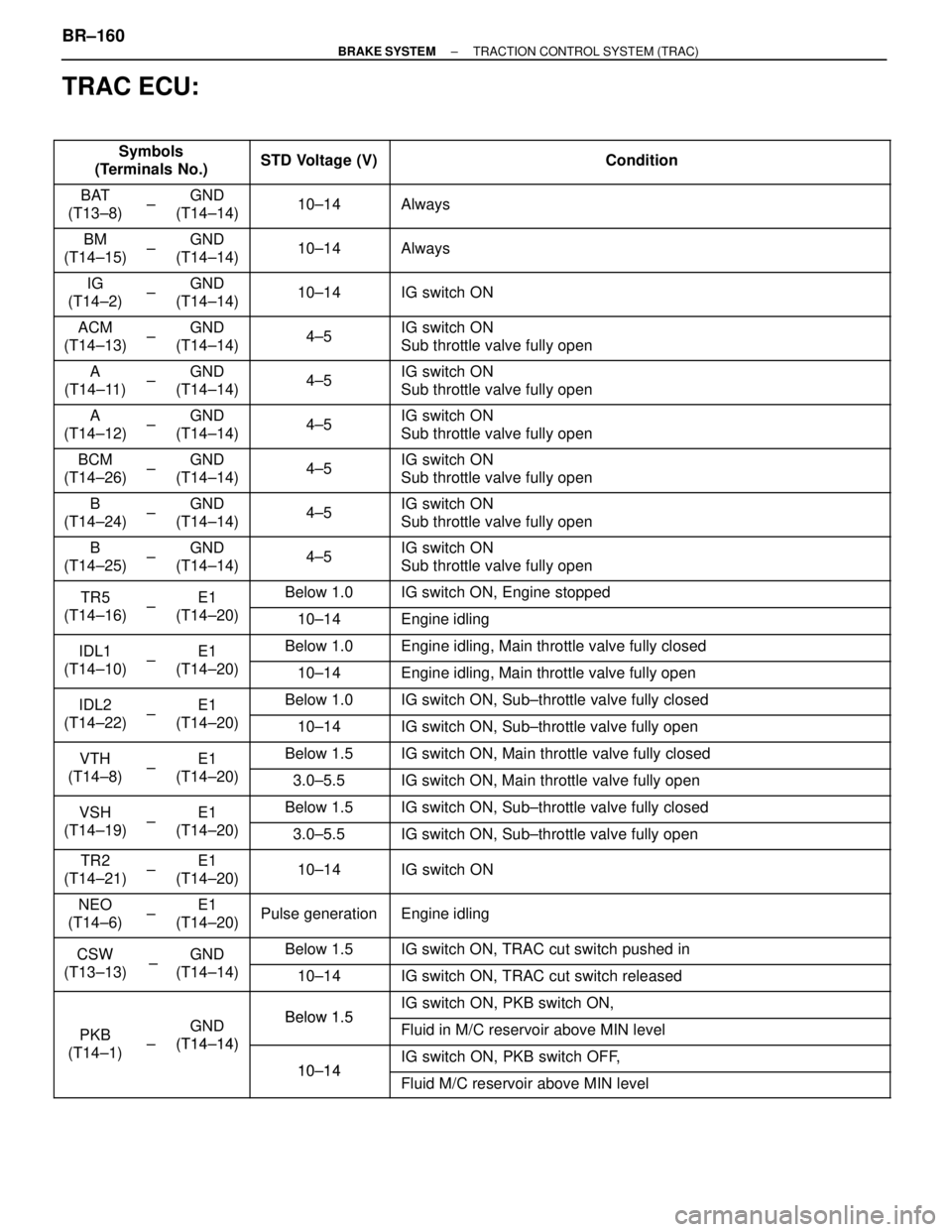

TRAC ECU:
Symbols
(Terminals No.)
STD Voltage (V)
\
\
\
Condition
BAT
(T13±8)
±
GND
(T14±14)
10±14
\
\
\
Always
BM
(T14±15)
±
GND
(T14±14)
10±14\
\
\
Always
IG
(T14±2)
±
GND
(T14±14)
10±14\
\
\
IG switch ON
ACM
(T14±13)
±
GND
(T14±14)
4±5\
\
\
IG switch ON
Sub throttle valve fully open
A
(T14±11) ± GND
(T14±14) 4±5\
\
IG switch ON
Sub throttle valve fully open
A
(T14±12)
±
GND
(T14±14)
4±5
\
\
\
IG switch ON
Sub throttle valve fully open
BCM
(T14±26)
±
GND
(T14±14)
4±5
\
\
\
IG switch ON
Sub throttle valve fully open
B
(T14±24)
±
GND
(T14±14)
4±5
\
\
\
IG switch ON
Sub throttle valve fully open
B
(T14±25)
±
GND
(T14±14)
4±5\
\
\
IG switch ON
Sub throttle valve fully open
TR5 ± E1 Below 1.0\
\
IG switch ON, Engine stopped
TR5
(T14±16) ±
E1
(T14±20) 10±14\
\
Engine idling
IDL1
±
E1 Below 1.0\
\
Engine idling, Main throttle valve fully closed
IDL1
(T14±10) ± E1
(T14±20) 10±14\
\
Engine idling, Main throttle valve fully open
IDL2
±
E1
Below 1.0\
\
IG switch ON, Sub±throttle valve fully closed
IDL2
(T14±22)
±
E1
(T14±20)
10±14\
\
\
IG switch ON, Sub±throttle valve fully open
VTH ± E1 Below 1.5\
\
IG switch ON, Main throttle valve fully closed
VTH
(T14±8)
±
E1
(T14±20) 3.0±5.5\
\
IG switch ON, Main throttle valve fully open
VSH ± E1 Below 1.5\
\
IG switch ON, Sub±throttle valve fully closed
VSH
(T14±19) ±
E1
(T14±20) 3.0±5.5\
\
IG switch ON, Sub±throttle valve fully open
TR2
(T14±21)
±
E1
(T14±20)
10±14\
\
\
IG switch ON
NEO
(T14±6)
±
E1
(T14±20)
Pulse generation\
\
\
Engine idling
CSW ± GND Below 1.5\
\
IG switch ON, TRAC cut switch pushed in
CSW
(T13±13) ±
GND
(T14±14) 10±14\
\
IG switch ON, TRAC cut switch released
Below 1 5
\
\
IG switch ON, PKB switch ON,
PKB
±
GND
(T14±14)
Below 1.5\
\
Fluid in M/C reservoir above MIN level
PKB
(T14±1) ± (T14±14)
10±14
\
\
IG switch ON, PKB switch OFF, 10±14\
\
Fluid M/C reservoir above MIN level
