LEXUS SC400 1991 Service Repair Manual
TR±4±

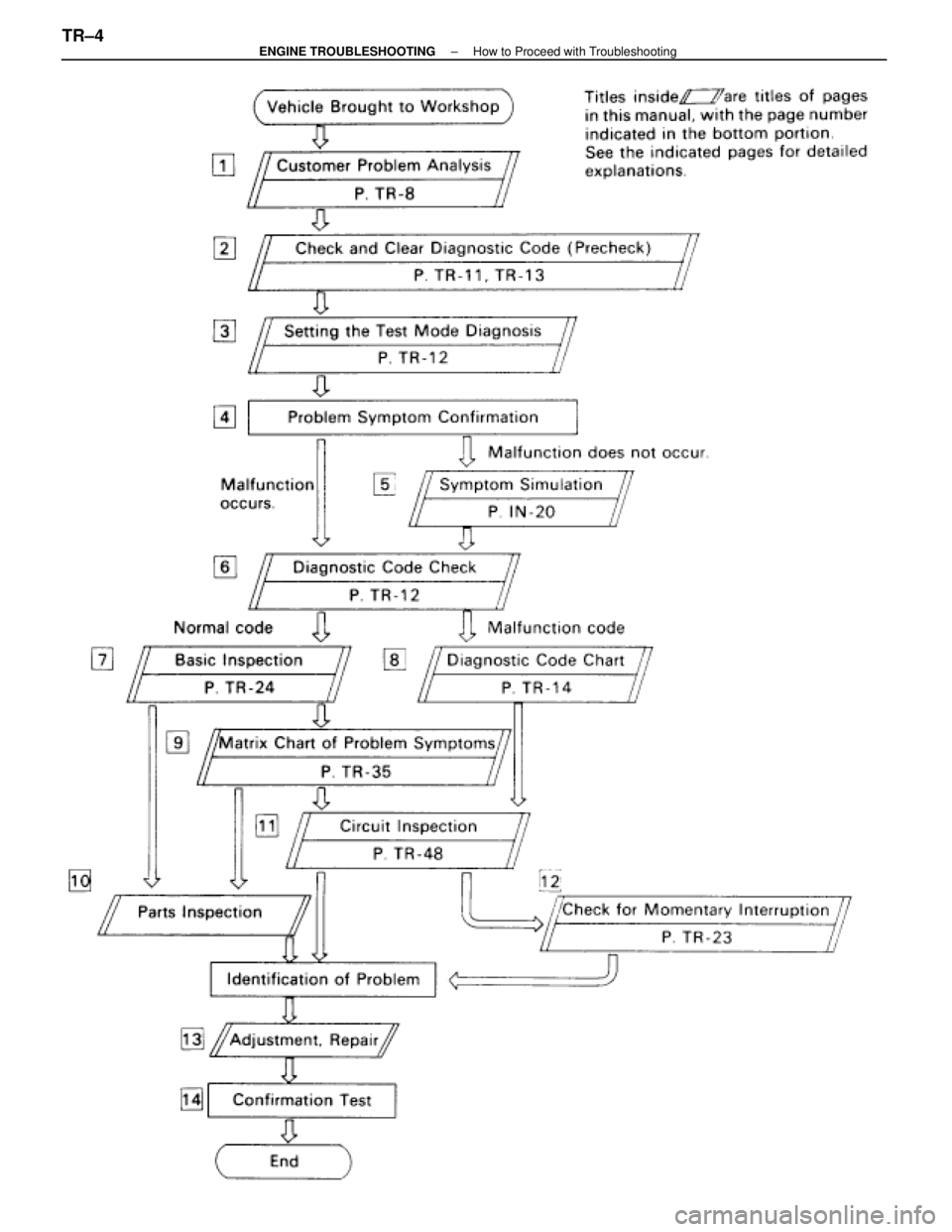

ENGINE TROUBLESHOOTING How to Proceed with Troubleshooting
WhereEverybodyKnowsYourName

Page 3378 of 4087

LEXUS SC400 1991 Service Repair Manual
±MEMO±
ENGINE TROUBLESHOOTINGTR±5
WhereEverybodyKnowsYourName

Page 3379 of 4087

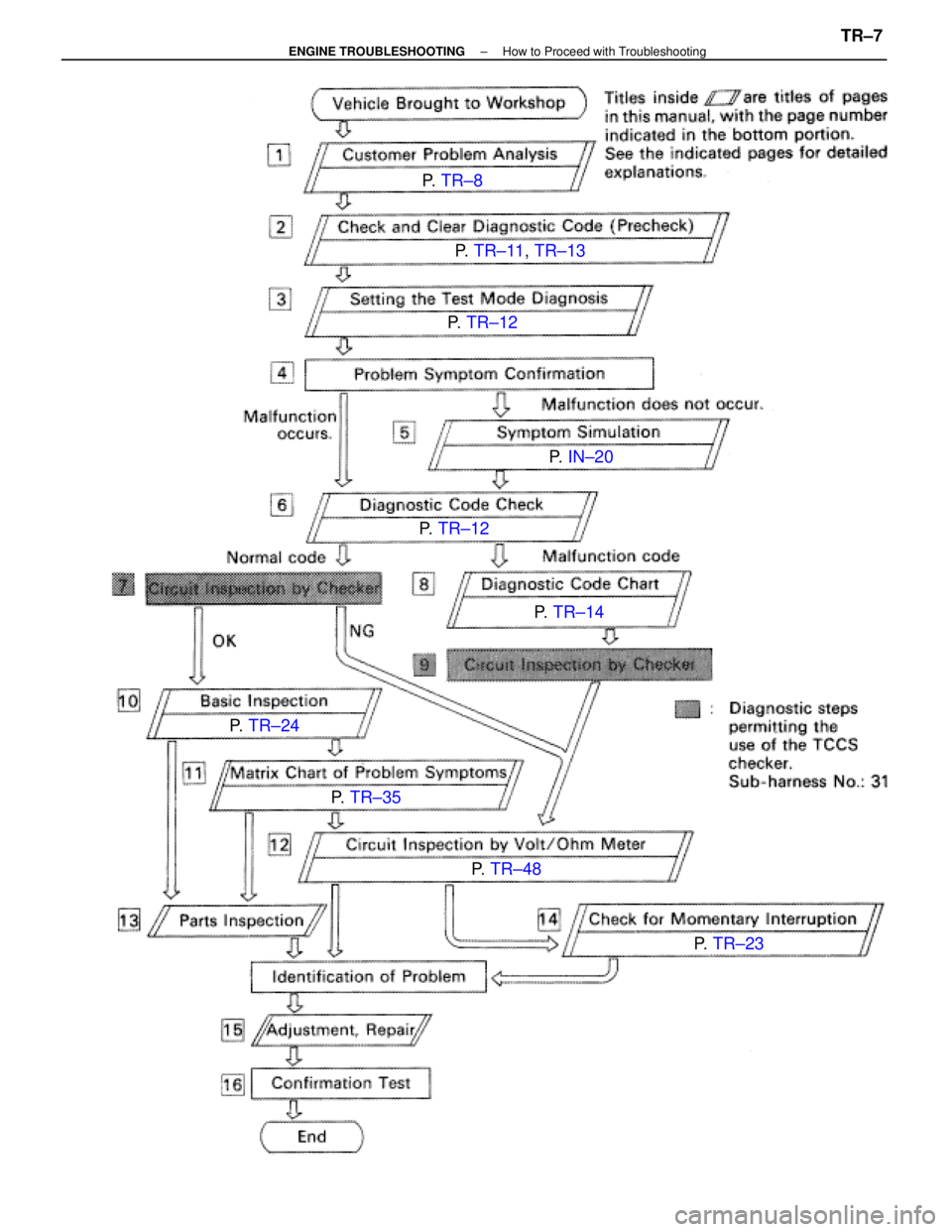

$LEXUS SC400 1991 Service Repair Manual How to Proceed with Troubleshooting Using Volt/Ohm Meter and TCCS Checker For the explanation of steps [1] ~ [6], [8] and [10] ~ [16], see the explan\ ation of steps with the same title on page TR±2$

Page 3380 of 4087

LEXUS SC400 1991 Service Repair Manual
P. TR±8
P. TR±11 , TR±13
P. TR±12
P. IN±20
P. TR±12
P. TR±14
P. TR±24
P. TR±35
P. TR±48
P. TR±23
±
ENGINE TROUBLESHOOTING How to Proceed with TroubleshootingTR±7
WhereEver

Page 3381 of 4087

LEXUS SC400 1991 Service Repair Manual
CUSTOMER PROBLEM ANALYSIS CHECK SHEET
TR±8±
ENGINE TROUBLESHOOTING Customer Problem Analysis
WhereEverybodyKnowsYourName

Page 3382 of 4087

LEXUS SC400 1991 Service Repair Manual
@@@@
±MEMO±
ENGINE TROUBLESHOOTINGTR±9
WhereEverybodyKnowsYourName

Page 3383 of 4087

LEXUS SC400 1991 Service Repair Manual
DIAGNOSIS SYSTEM
DESCRIPTION
The ECU contains a built±in self±diagnosis system by which
troubles with the engine signal network are detected and a
ºCHECKº engine warning light on the instrument p

DIAGNOSIS SYSTEM
DESCRIPTION
The ECU contains a built±in self±diagnosis system by which
troubles with the engine signal network are detected and a
ºCHECKº engine warning light on the instrument panel lights up.
By analyzing various signals as shown in the later table (See page
TR±14) the Electronic Control Unit (ECU) detects system malfunc-
tions relating to the sensors or actuators.
In the normal mode, the self±diagnosis system monitors 22 (USA
specification vehicles with TRAC control) or 21 (USA (except for
California) and Canadian specification vehicles with TRAC con-
trol) items, indicated by code No. as shown in TR±14. A ºCHECKº
engine warning light informs the driver that a malfunction has been
detected. The light goes off automatically when the malfunction
has been repaired. But the diagnostic code(s) remains stored in
the ECU memory (except for code Nos. 16 and 53). The ECU
stores the code(s) until it is cleared by removing the EFI fuse with
the ignition switch off.
The diagnostic code can be read by the number of blinks of the
ºCHECKº engine warning light when TE1 and E1 terminals on the
TDCL or check connector are connected. When 2 or more codes
are indicated, the lowest number (code) will appear first.
In the test mode, 15 (USA specification vehicles with TRAC con-
trol) or 14 (USA (except for California) and Canadian specification
vehicles with TRAC control) items, indicated by code No. as
shown in TR±14 are monitored. If a malfunction is detected in any
one of the systems indicated by code Nos. 13, 21, 22, 24, 25, 26,
27, 28, 29, 35, 41, 42, 47, 71 and 78 (USA specification vehicles)
or 13, 21, 22, 24, 25, 26, 27, 28, 29, 35, 41, 42, 47 and 78 (USA
(except for California) and Canadian specification vehicles) the
ECU lights the ºCHECKº engine warning light to warn the techni-
cian that malfunction has been detected. In this case, TE2 and E1
terminals on the TDCL should be connected as shown later. (See
page TR±12 ).
In the test mode, even if the malfunction is corrected, the malfunc-
tion code is stored in the ECU memory even when the ignition
switch is off (except code Nos. 43 and 51). This also applies in the
normal mode. The diagnostic mode (normal or test) and the output
of the ºCHECKº engine warning light can be selected by connect-
ing the TE1, TE2 and E1 terminals on the check connector or
TDCL, as shown later.
A test mode function has been added to the functions of the self±
diagnosis system of the normal mode for the purpose of detecting
malfunctions such as poor contact, which are difficult to detect in
the normal mode. This function fills up the selfdiagnosis system.
The test mode can be implemented by the technician following the
appropriate procedures of check terminal connection and opera-
tion described later. (See page TR±12)
TR±10
±
ENGINE TROUBLESHOOTING Diagnosis System
WhereEverybodyKnowsYourName

Page 3384 of 4087

LEXUS SC400 1991 Service Repair Manual
Diagnosis Inspection (Normal Mode)
ºCHECKº ENGINE WARNING LIGHT
CHECK
1. The ºCHECKº engine warning light will come on when theignition switch is turned ON and the engine is not running.
HINT: I
