LEXUS SC400 1991 Service Repair Manual REMOVAL OF INSTRUMENT PANEL (See page BO±108) 1. TILT DOWN AND PULL OUT STEERING WHEEL 2. DISCONNECT BATTERY CABLE FROM NEGATIVE TERMINAL CAUTION: Work must be started after approx. 20 seconds or

Page 466 of 4087

LEXUS SC400 1991 Service Repair Manual 10. REMOVE RADIO WITH A/C CONTROL ASSEMBLY(a) Remove six bolts and the radio. (b) Disconnect the connectors. 11. REMOVE NO. 2 UNDER COVER (a) Using a clip remover, remove two clips. (b) Remove

Page 467 of 4087

LEXUS SC400 1991 Service Repair Manual 15. REMOVE CENTER PADUsing a screwdriver, pry out the panel and remove it. HINT: Tape screwdriver tip before use. 16. REMOVE ENGINE HOOD RELEASE LEVER (a) Remove two screws and the engine hood re

Page 468 of 4087

LEXUS SC400 1991 Service Repair Manual 21. REMOVE KNEE PANEL(a) Remove four bolts. (b) Remove knee panel. 22. REMOVE NO. 2 HEATER TO REGISTER DUCT Remove the screw and pull out the duct. 23. REMOVE NO. 4 HEATER TO REGISTER DUCT Remov

Page 469 of 4087

LEXUS SC400 1991 Service Repair Manual 25. REMOVE WIRE HARNESSRemove five screws, clips and the wire harness from the safety pad. 26. DISASSEMBLY OF SAFETY PADRemove following parts: (a) Safety pad garnish (b) No. 1 Instrument panel r

Page 470 of 4087

LEXUS SC400 1991 Service Repair Manual 27. REMOVE INSTRUMENT PANEL REINFORCEMENTRemove four bolts and seven nuts to remove the reinforce- ment as shown. INSTALLATION OF INSTRUMENT PANEL (See page BO±108) INSTALL INSTRUMENT PANEL PARTS

Page 471 of 4087

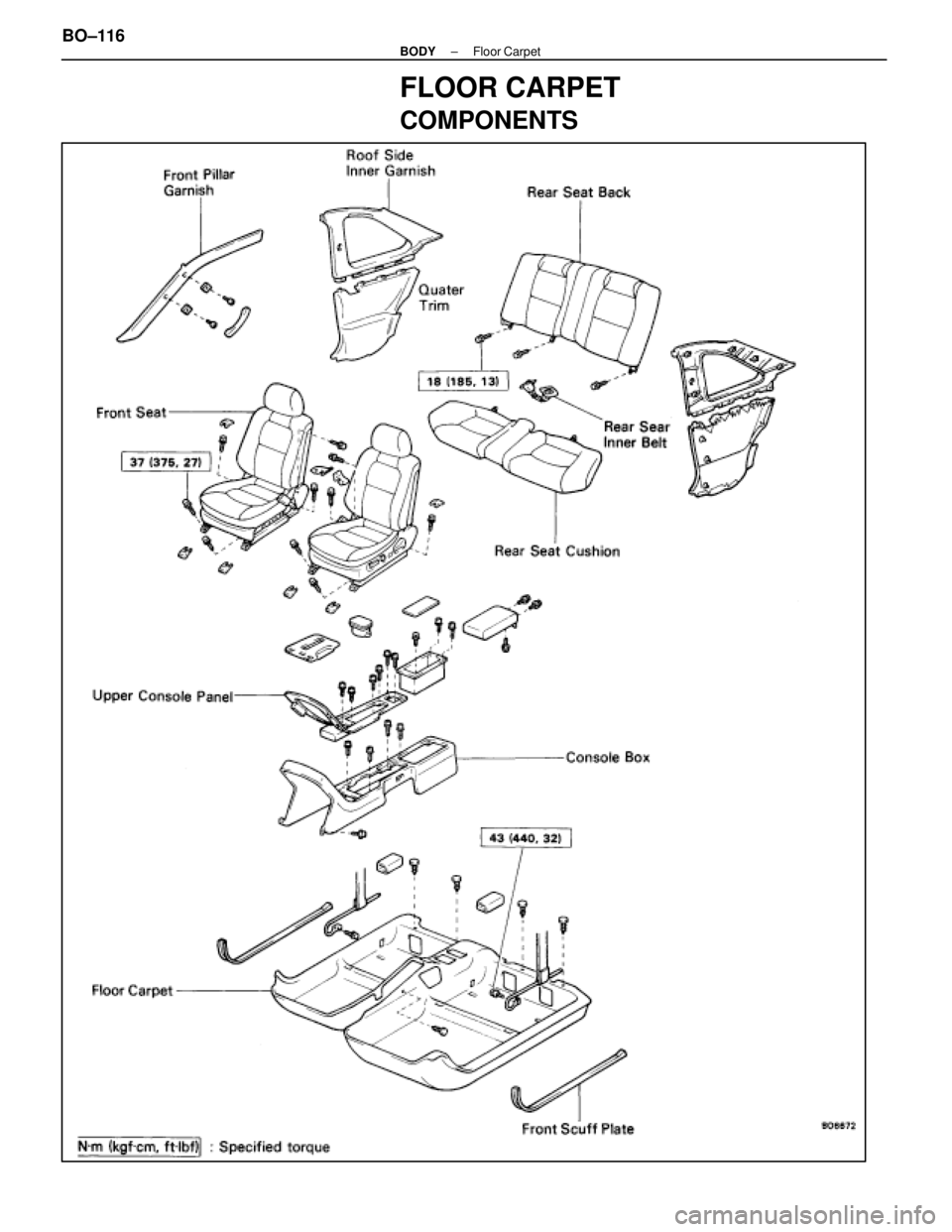

LEXUS SC400 1991 Service Repair Manual FLOOR CARPET COMPONENTS BO±116± BODY Floor Carpet WhereEverybodyKnowsYourName

Page 472 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF FLOOR CARPET 1. REMOVE FOLLOWING PARTS: wFront seat (See step 3 on page BO±58) wRear seat (See steps 1 to 2 on page BO±66) wRoof side inner garnish (See step 8 on page BO±123) wFront
