Page 401 of 4087

LEXUS SC400 1991 Service Repair Manual WINDSHIELD COMPONENTS REMOVAL OF WINDSHIELD 1. REMOVE FOLLOWING PARTS:(a) Front pillar garnish (See step 2 on page BO±123) (b) Interior light (See step 2 on page BO±85) (c) Center visor and i

Page 402 of 4087

LEXUS SC400 1991 Service Repair Manual 2. REMOVE WIPER ARMSRemove two nuts and two wiper arms. 3. REMOVE COWL LOUVER (a) Using a clip remover, remove four clips. (b) U s i n g a c l i p r e m o v e r, r e m o v e t e n c l i p s a n d

Page 403 of 4087

LEXUS SC400 1991 Service Repair Manual INSTALLATION OF WINDSHIELD (See page BO±45) 1. CLEAN AND SHAPE CONTACT SURFACE OF BODY (a) Using a knife, cut away any rough areas on the body. HINT: Leave as m uch of the adhesive on the body as

Page 404 of 4087

LEXUS SC400 1991 Service Repair Manual If the clearance is not as wide, slide the retainer part to adjust the length of retainer. (d) Install the retainers. 6. POSITION GLASS (a) Place glass in correct position. (b) Check that all cont

Page 405 of 4087

LEXUS SC400 1991 Service Repair Manual 9. COAT CONTACT SURFACE OF BODY WITH PRIMER ºMºUsing a brush, coat the contact surface on the body with Primer M. NOTICE: wLet the Primer coating dry for 10 minutes or more. Make sure that the ins

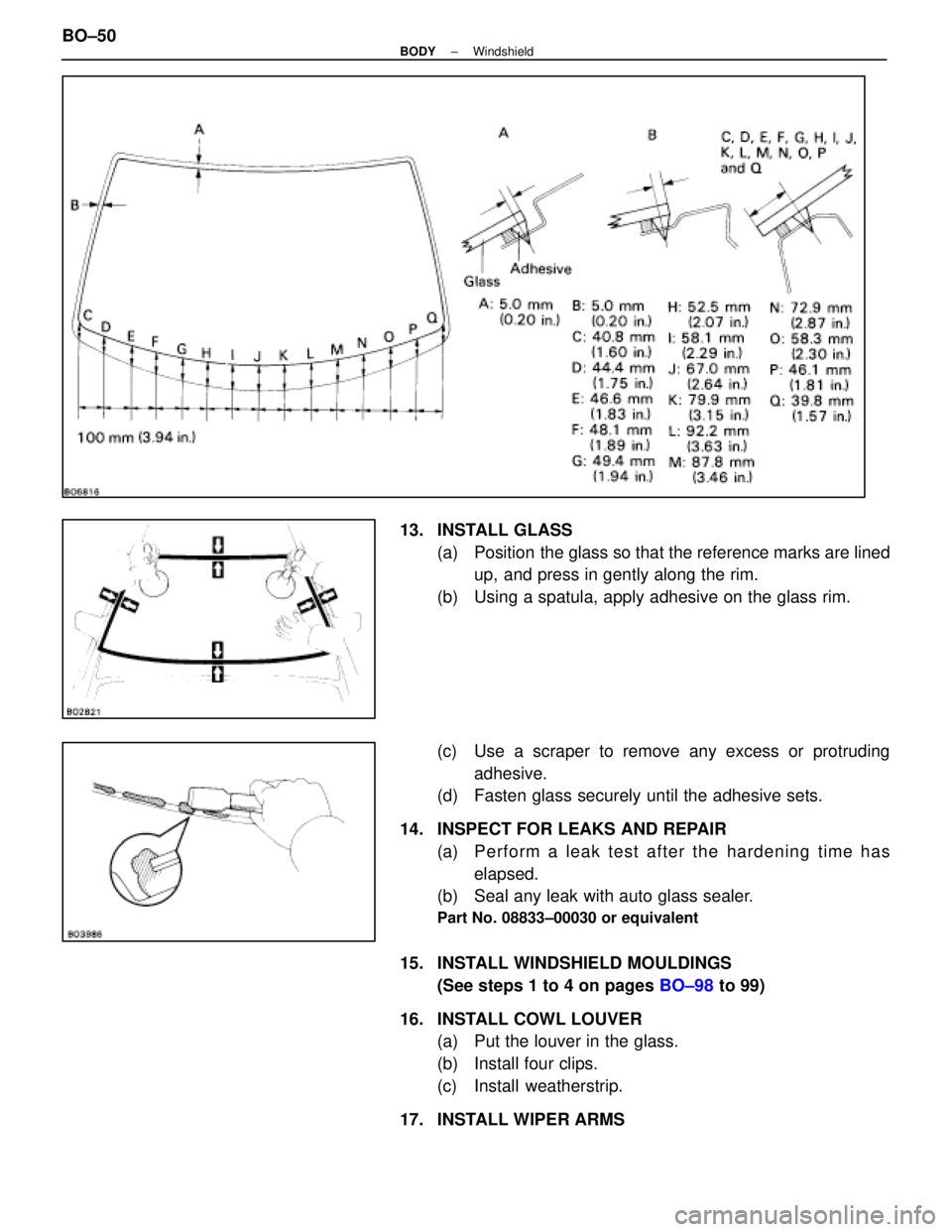

Page 406 of 4087

LEXUS SC400 1991 Service Repair Manual 13. INSTALL GLASS(a) Position the glass so that the reference marks are linedup, and press in gently along the rim. (b) Using a spatula, apply adhesive on the glass rim. (c) Use a scraper to remov

Page 407 of 4087

LEXUS SC400 1991 Service Repair Manual 18. INSTALL FOLLOWING PARTS:(a) Hood HINT: Torque the hood support Torque: 22 N Vm (225 kgf Vcm, 16 ft Vlbf) (b) Front roof headlining (c) Holders (d) Center visor and inner rear view mirror (e) I

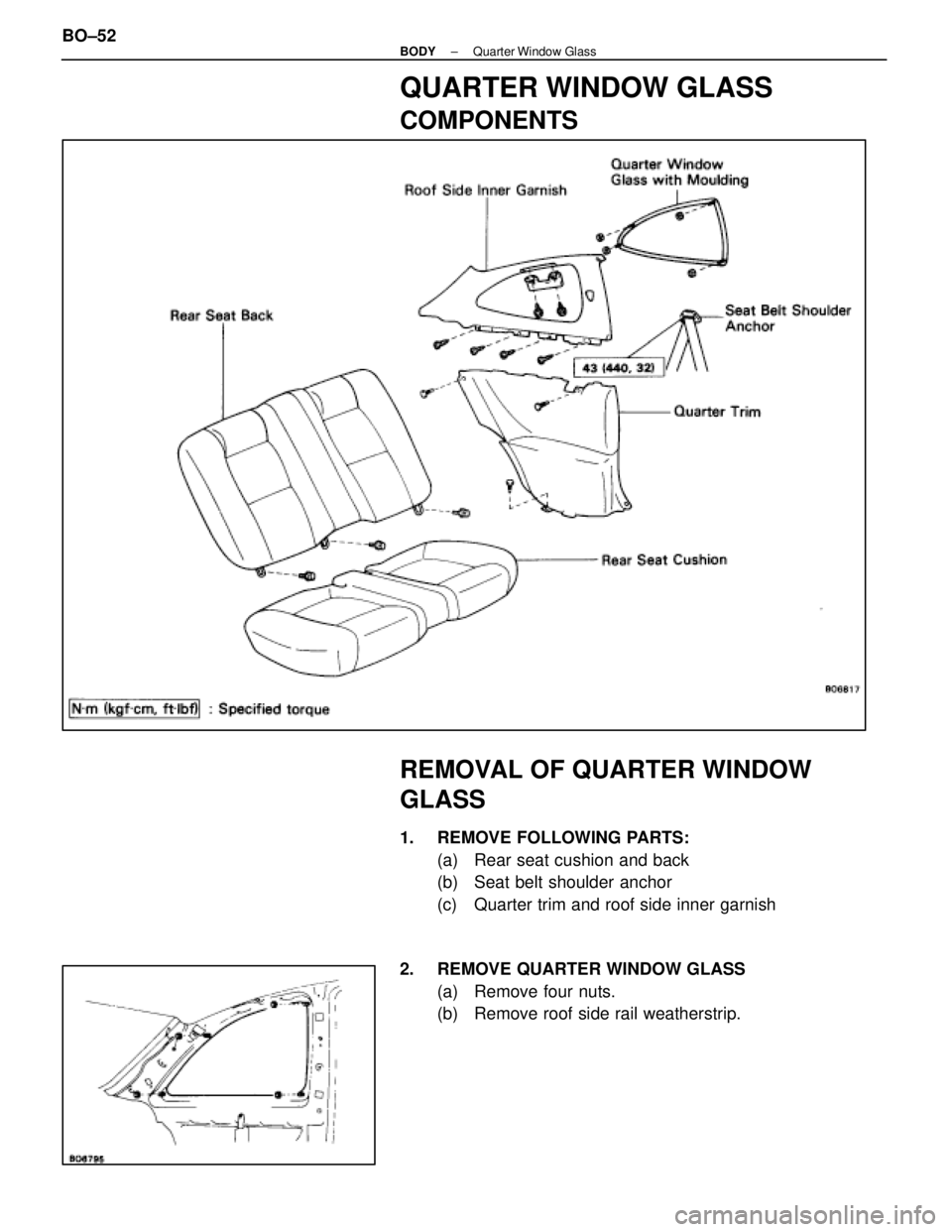

Page 408 of 4087

LEXUS SC400 1991 Service Repair Manual QUARTER WINDOW GLASS COMPONENTS REMOVAL OF QUARTER WINDOW GLASS 1. REMOVE FOLLOWING PARTS:(a) Rear seat cushion and back (b) Seat belt shoulder anchor (c) Quarter trim and roof side inner garnish
