Troubleshooting
Taillight System
You will find the cause of troubles more easily using the table well shown \
below. In this table, the numbers indi-
cate the order priority of the causes in troubles. Check each part in the o\
rder shown. If necessary, replace the
parts.
See page
BE±4,20BE±20 ,57BE±46BE±49BE±62BE±79BE±4,20
±
BE±6
±
Trouble
Part name
TAIL FuseTaillignt Control RelayLight Control SwitchIntegration RelayLight Failure SensorDoor CourtesyGAUGE FuseWire HarnessBulbOther Parts
Taillight does not light. (Headlight does
not light.) 12 3
SA
Taillight does not light. (Headlight is
normal.)12345
US
A
Only one light does not light. (Taillight) 2 1 U
Rear combination light does not light. 213
ªLight Auto Turn±Off Systemº does
not operate. 1432
Taillight does not light. (Headlight is
does not light.) 123
Taillight does not light. (Headlight is
normal.)12345
Only one light does not light. (Taillight) 21
ARear combination light does not light. 213
ANADA
ªLight Auto Turn±Off Systemº does
not operate. 1423
CA
N
Taillight does not light with light control
SW in TAIL123
Taillight does not go out with light
control SW in OFF1324
Headlight and Taillight do not light with
engine running and light control SW in
OFF
213*14
*1:
Alternator
L
Terminal
BE±58±
BODY ELECTRICAL SYSTEM Lighting System
WhereEverybodyKnowsYourName
Page 858 of 4087
(STOP LIGHT SYSTEM)
DESCRIPTION ± Stoplight System
The component parts of this system and their function are as shown in the f\
ollowing table.
Parts Name\
\
Function
Stop Light Switch
\
\
\
Creates a closed circuit for current from the STOP fuse when the brake pedal is depressed,
thus turning on the stop lights.
Light Failure Sen-
sor\
\
\
This sensor senses when a bulb in rear combination light is burnt out an\
d lights up a warning
light.
PARTS LOCATION ± Stoplight System
±
BODY ELECTRICAL SYSTEM Lighting SystemBE±59
WhereEverybodyKnowsYourName
Page 859 of 4087

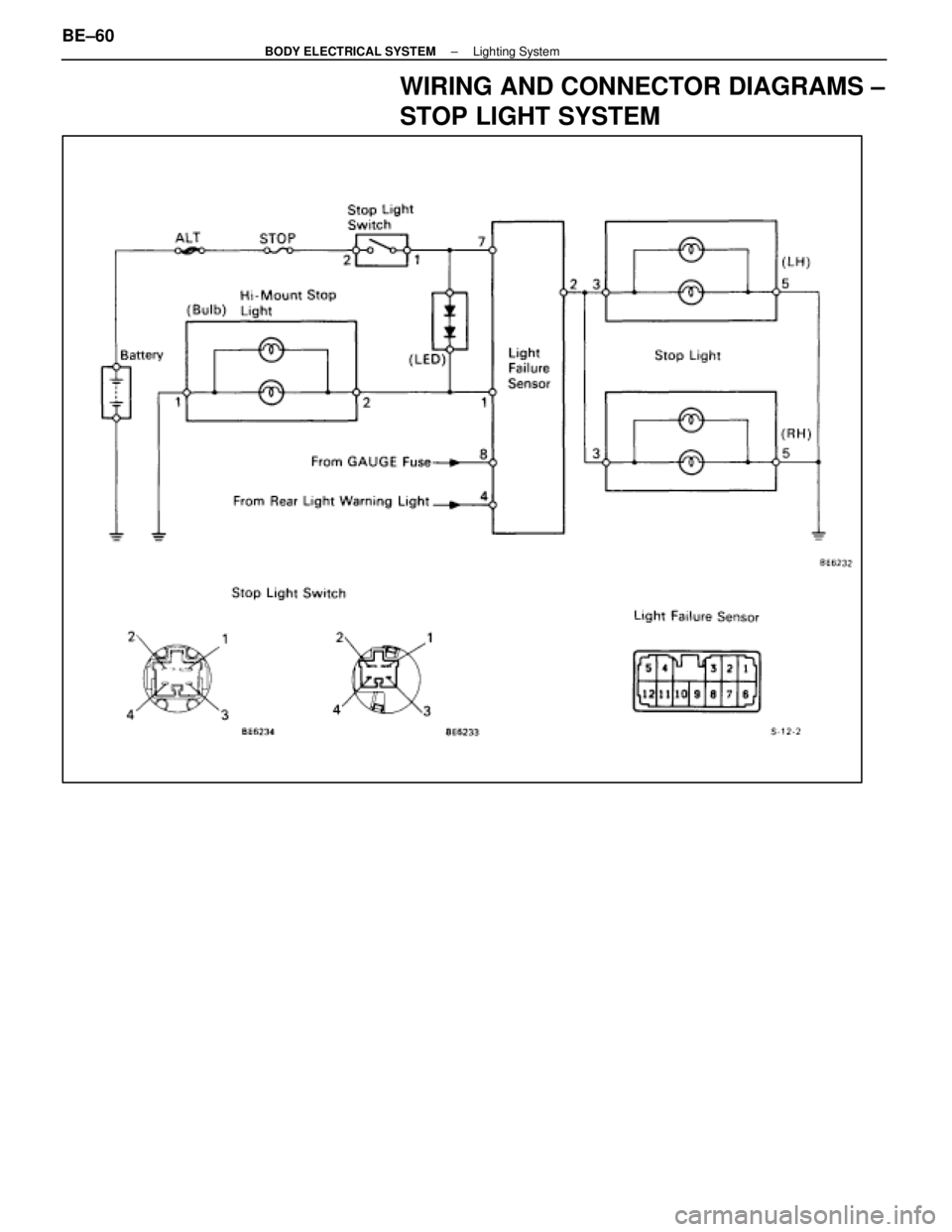

WIRING AND CONNECTOR DIAGRAMS ±
