Page 617 of 4087

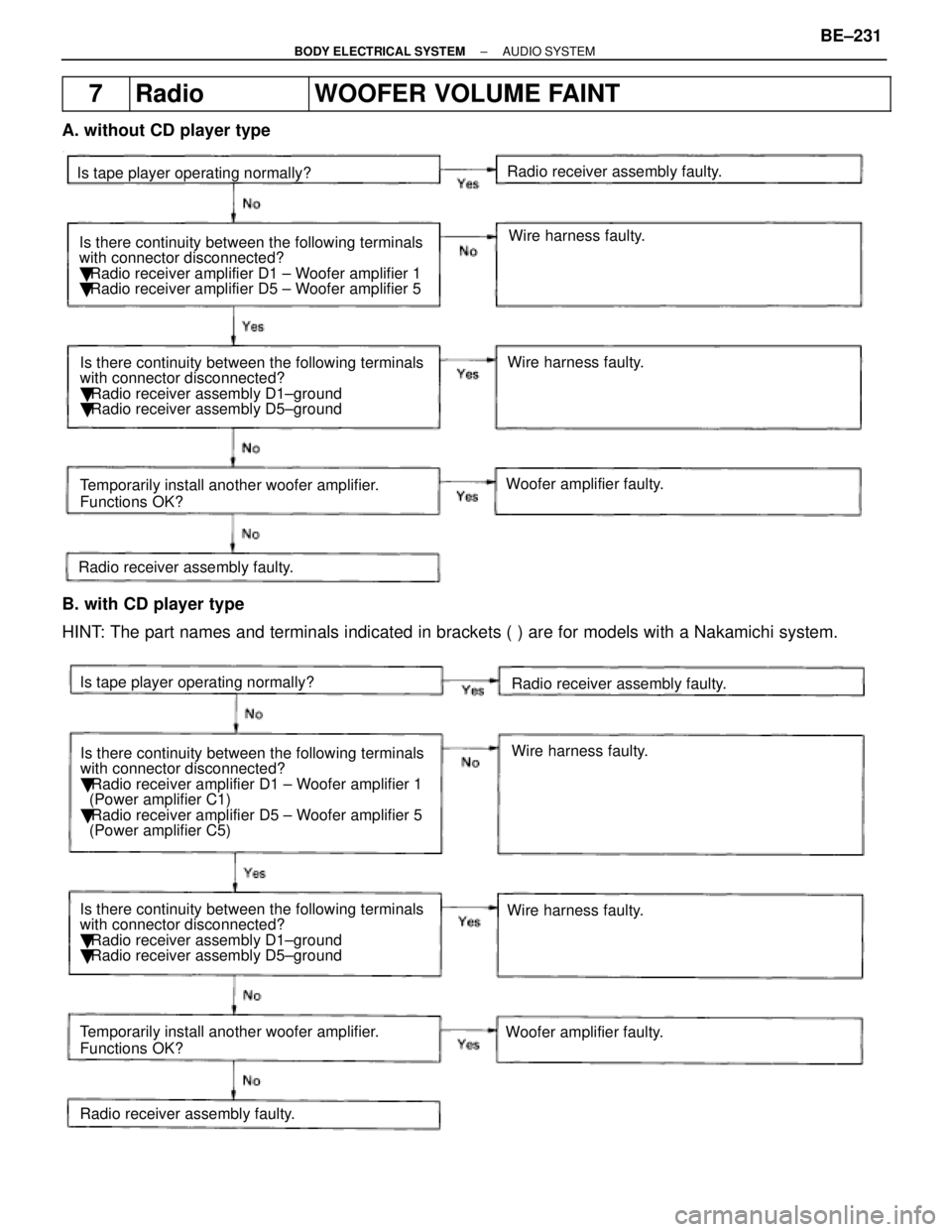

LEXUS SC400 1991 Service Repair Manual 7RadioWOOFER VOLUME FAINT A. without CD player type Wire harness faulty.Wire harness faulty. Radio receiver assembly faulty. Is tape player operating normally? Is there continuity between the followi

Page 618 of 4087

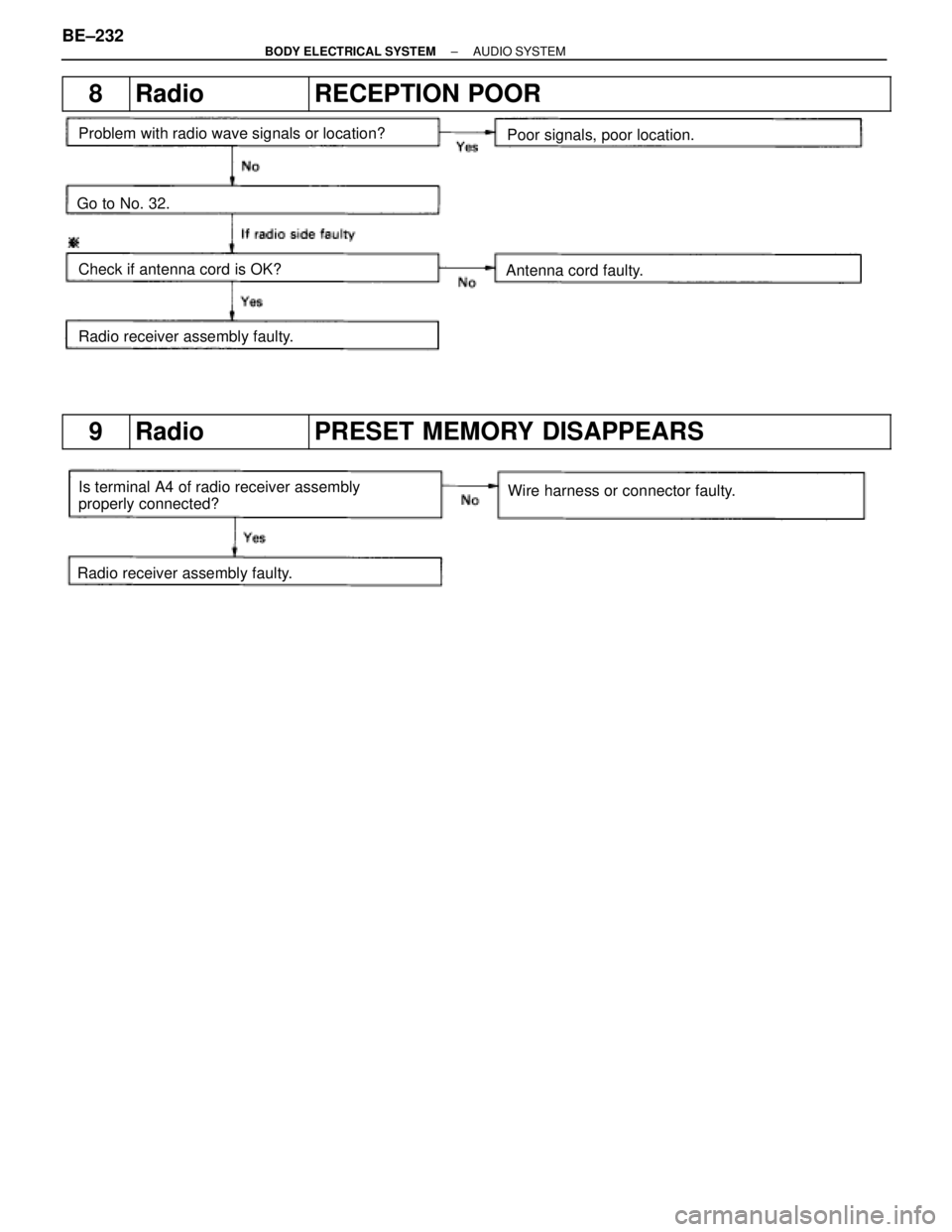

LEXUS SC400 1991 Service Repair Manual 8RadioRECEPTION POOR Antenna cord faulty.Poor signals, poor location. Problem with radio wave signals or location? Go to No. 32. Check if antenna cord is OK? Radio receiver assembly faulty. 9RadioPRE

Page 619 of 4087

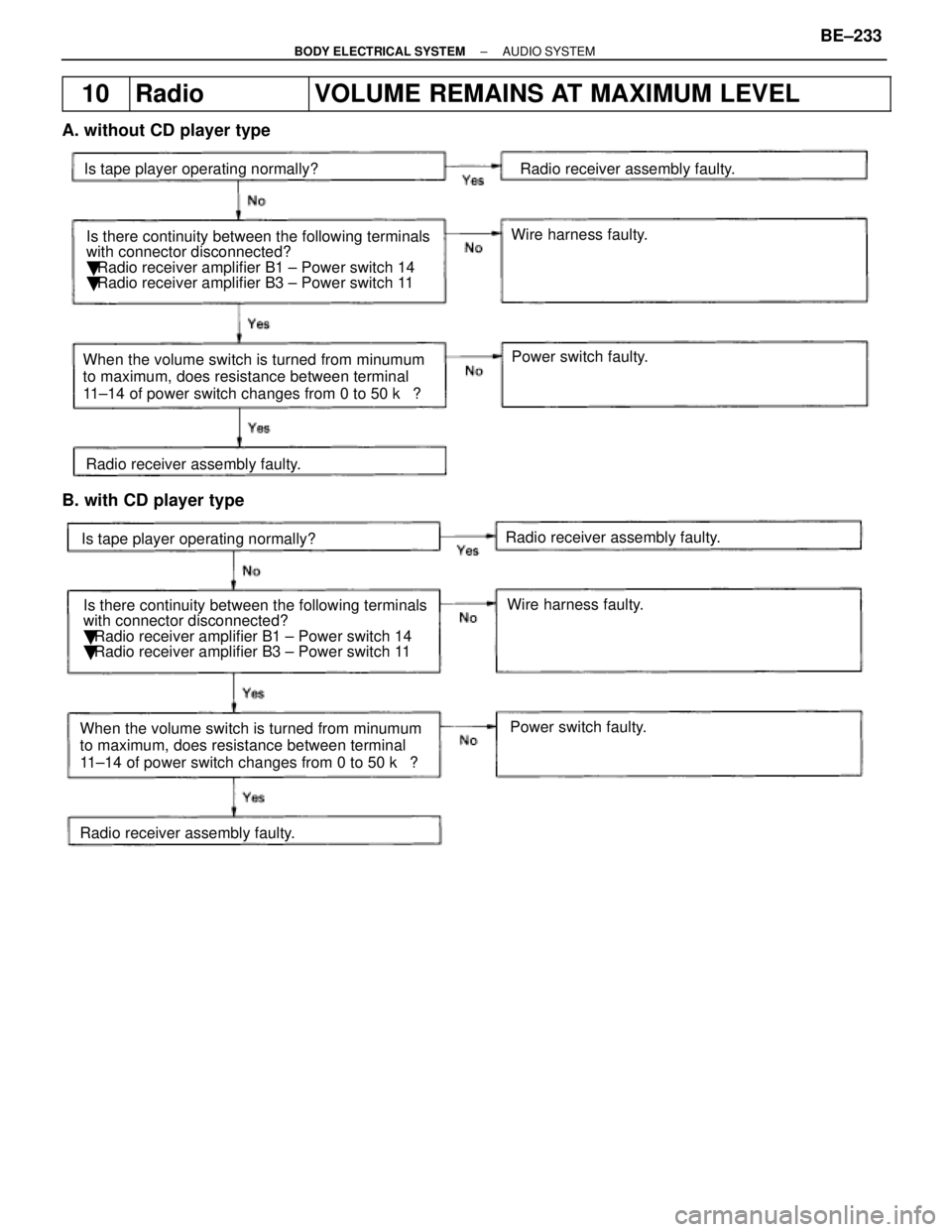

LEXUS SC400 1991 Service Repair Manual 10RadioVOLUME REMAINS AT MAXIMUM LEVEL A. without CD player type Wire harness faulty.Radio receiver assembly faulty. Is tape player operating normally? Is there continuity between the following termi

Page 620 of 4087

LEXUS SC400 1991 Service Repair Manual 11Tape playerCASSETTE TAPE CANNOT BE INSERTED A. without CD player type Wire harness faulty. Radio receiver assembly faulty. Is there continuity between the following terminals with connector connect

Page 621 of 4087

LEXUS SC400 1991 Service Repair Manual B. with CD player type Wire harness faulty. Radio receiver assembly faulty. Is there continuity between the following terminals with connector connected?  Radio receiver amplifier A3 ± ground  R

Page 622 of 4087

LEXUS SC400 1991 Service Repair Manual 12Tape playerCASSETTE TAPE WILL NOT EJECT A. without CD player type Is there battery voltage between the following ter- minals with connector connected?  Radio receiver amplifier A3 ± ground  Rad

Page 623 of 4087

LEXUS SC400 1991 Service Repair Manual B. with CD player Is there battery voltage between the following ter- minals with connector connected?  Radio receiver amplifier A3 ± ground  Radio receiver amplifier A4 ± ground Replace fuse. W

Page 624 of 4087

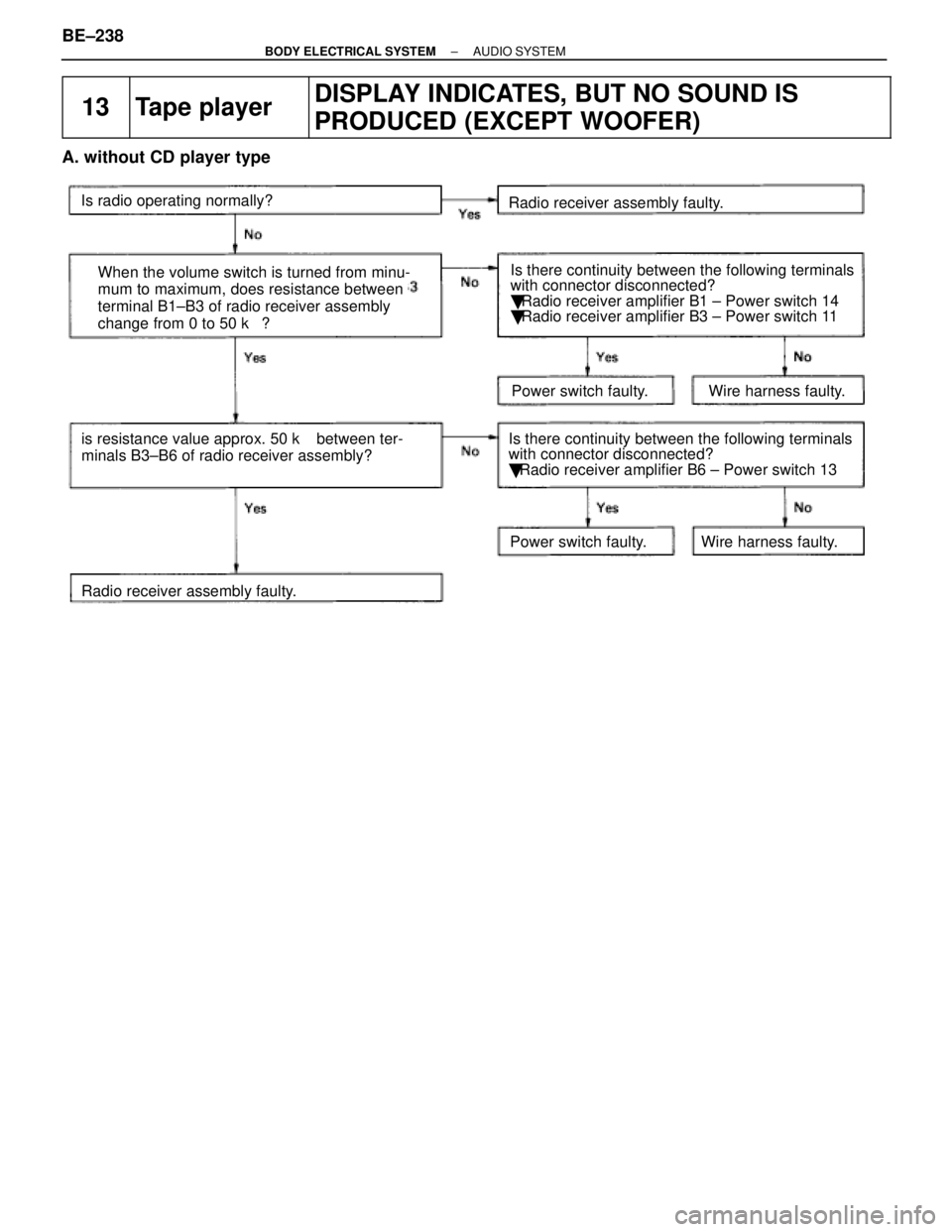

LEXUS SC400 1991 Service Repair Manual 13Tape playerDISPLAY INDICATES, BUT NO SOUND IS PRODUCED (EXCEPT WOOFER) A. without CD player type Is radio operating normally?Radio receiver assembly faulty. Radio receiver assembly faulty. Is ther
