INSTALLATION OF HIGH±TENSION
CORDS AND CORD CLAMPS
(See Components on page IG±11)
1. INSTALL LOWER HIGH±TENSION CORD COVER Install the high±tension cord cover with the bolt.
2. INSTALL RH HIGH±TENSION CORD CLAMPS (a) Install the cord clamp to the front high±tension cordclamp.
(b) Install front and rear high±tension cord clamps with the two bolts.
HINT: Place the front and rear ends of the front high±tension
cord clamp on the rear high±tension cord clamp and lower
high±tension cord cover.
3. INSTALL LH HIGH±TENSION CORD CLAMPS (a) Install the cord clamp to the front high±tension cordclamp.
(b) Install front and rear high±tension cord clamps with the two bolts.
HINT: Place the front and rear ends of the front high±tension
cord clamp on the rear high±tension cord clamp and lower
high±tension cord cover.
±
IGNITION SYSTEM High±Tension Cords and Cord ClampsIG±15
WhereEverybodyKnowsYourName
Page 2538 of 4087
4. INSTALL HIGH±TENSION CORDS(a) Connect the high±tension cords to the spark plugs anddistributor caps.
(b) Secure the high±tension cords with the cord clamps as
shown in the illustration.
(b) Connect the high±tension cords to the ignition coils.w Insert the grommet portion into the terminal hole of
the ignition coil.
IG±16
±
IGNITION SYSTEM High±Tension Cords and Cord Clamps
WhereEverybodyKnowsYourName
Page 2539 of 4087
wAlign the spline of the ignition coil with the spline of
the holder, and slide on the holder.
NOTICE: Check that holder is correctly installed to the
grommet and ignition coil as shown in the illustration. w Check that the lock claw of the holder is engaged
by lightly pulling the holder.
5. INSTALL RH NO.3 TIMING BELT COVER (a) Install the three gaskets to the timing belt cover.
(b) Fit portion A of the timing belt cover, matching it with the
lower high±tension cord cover.
(c) Install the timing belt cover with the three bolts.
±
IGNITION SYSTEM High±Tension Cords and Cord ClampsIG±17
WhereEverybodyKnowsYourName
Page 2540 of 4087

6. INSTALL VSV FOR EVAP SYSTEMInstall the VSV with the two bolts.
7. INSTALL LH NO.3 TIMING BELT COVER (a) Install the three gaskets to the timing belt cover.
(b) Install the cord grommet to the high±tension cord.
(c) Install the cord grommet to the timing belt cover.
(d) Fit portion A of the timing belt cover, matching it with the
lower high±tension cord cover.
(e) Install the timing belt cover with the four bolts.
8. INSTALL RH ENGINE WIRE COVER (a) Fit portions A and B of the engine wire cover, matchingthem with the lower high±tension cord cover and No.3
timing belt cover.
(d) Install the engine wire cover with the bolt.
9. INSTALL LH ENGINE WIRE COVER (a) Connect portions A and B engine wire cover to the wirebrackets.
(b) Set the VSV (for fuel pressure control system) wire in original position.
(c) Fit portions C and D of the engine wire cover, matching them with the lower high±tension cord cover and No.3
timing belt cover.
(d) Install the engine wire cover with the two bolts.
10. INSTALL UPPER HIGH±TENSION CORD COVER (a) Fit portion A of the upper high±tension cover, matchingit with the top of the lower high±tension cord cover.
IG±18
±
IGNITION SYSTEM High±Tension Cords and Cord Clamps
WhereEverybodyKnowsYourName
Page 2541 of 4087
(b) Push the front side of the high±tension cord cover, andconnect the front side claw groove of the upper
high±tension cord cover to the claw of the lower
high±tension cord cover.
(c) Install the upper high±tension cord cover with the two bolts.
11. INSTALL INTAKE AIR CONNECTOR (a) Connect the end portions of the intake air connector tothe throttle body and air cleaner hose.
(b) Tighten the two hose clamps.
(c) Install the bolt holding the intake air connector to the cylinder head cover.
(d) Connect the following hoses: (1) Air hose to ISC valve
(2) Air hose (from PS air control valve) to intake air con-
nector
12. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
13. CHECK THAT ENGINE STARTS
±
IGNITION SYSTEM High±Tension Cords and Cord ClampsIG±19
WhereEverybodyKnowsYourName
Page 2542 of 4087

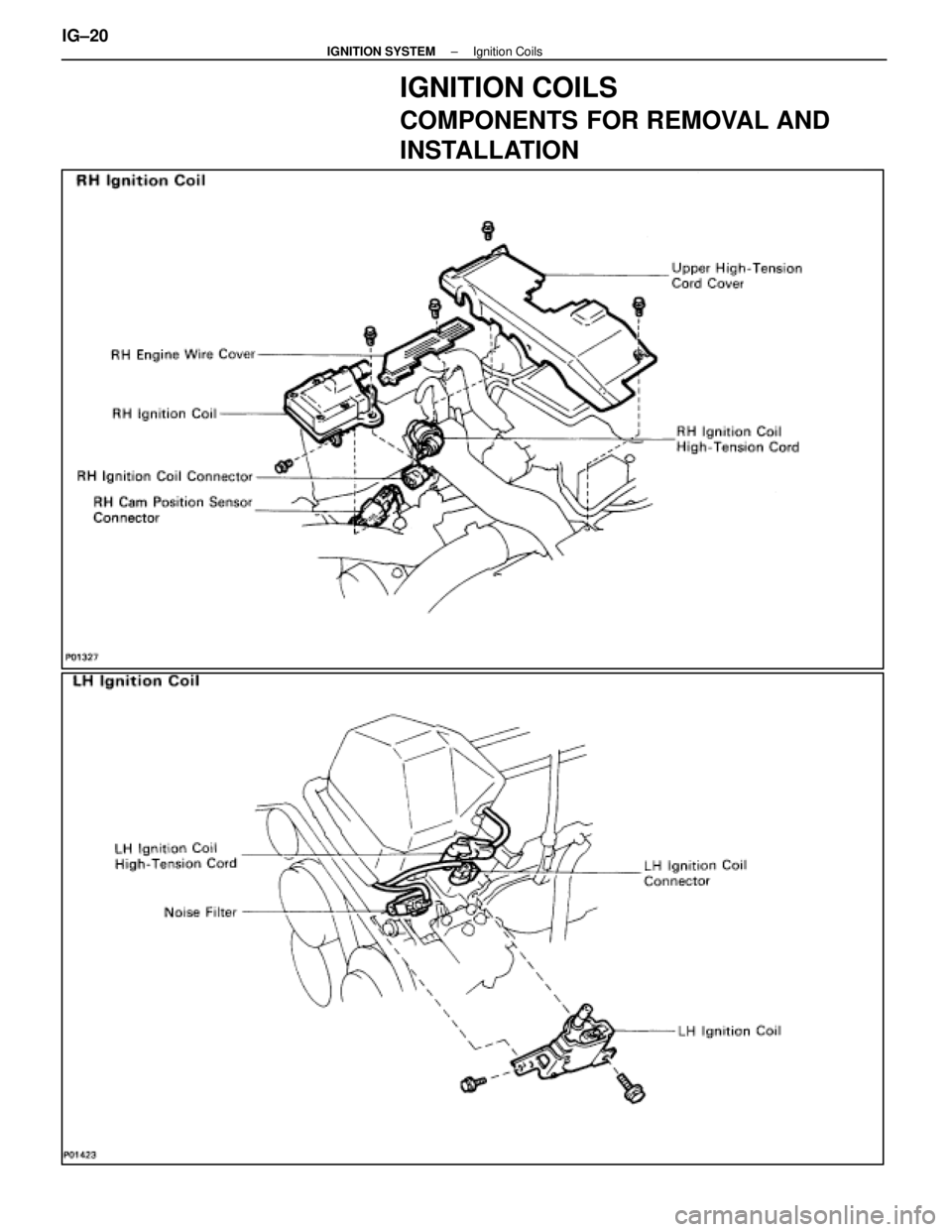

IGNITION COILS
