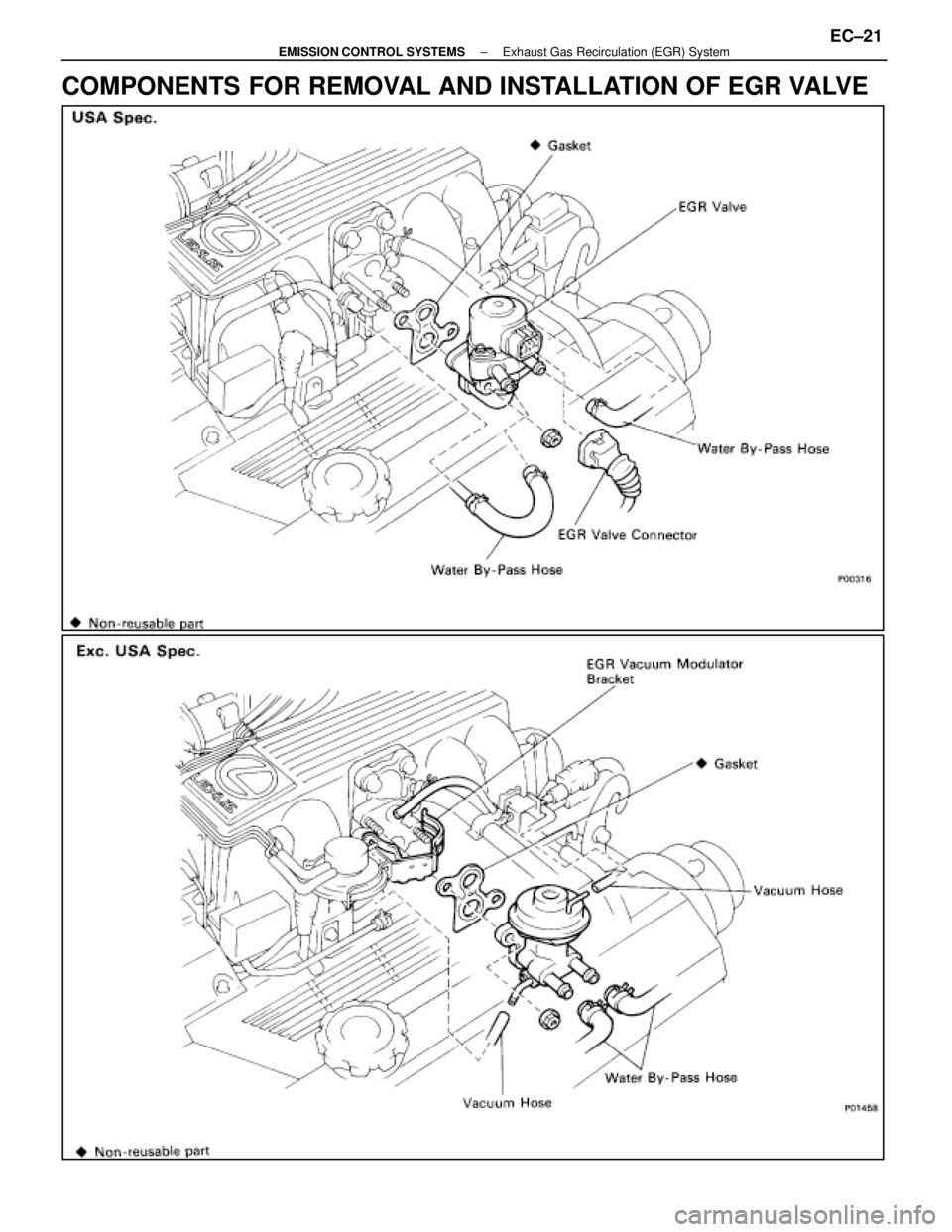

COMPONENTS FOR REMOVAL AND INSTALLATION OF EGR VALVE
±
EMISSION CONTROL SYSTEMS Exhaust Gas Recirculation (EGR) SystemEC±21
WhereEverybodyKnowsYourName
Page 1362 of 4087

INSPECTION OF EGR VALVE
(USA Spec.)
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OFBATTERY
CAUTION: Work must be started after approx. 20 se-
conds or longer from the time the ignition switch is
turned to the ºLOCKº position and the negative (±) termi-
nal cable is disconnected from the battery.
2. DISCONNECT EGR VALVE CONNECTOR

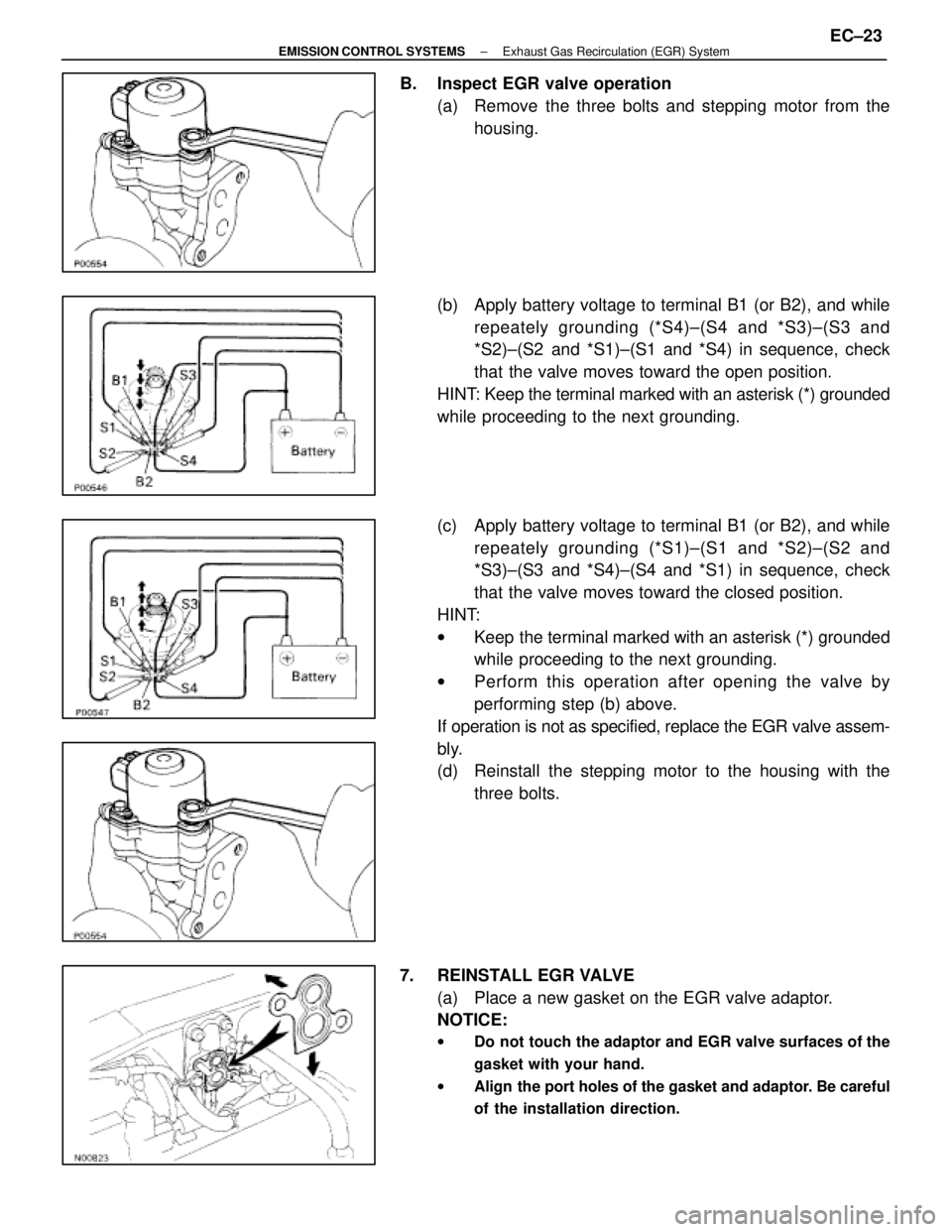

3. INSPECT EGR VALVE RESISTANCE Using an ohmmeter, measure the resistance between termi-
nal B1 (or B2) and other terminals (S1, S2, S3 and S4).
Resistance (Cold): 19.9±23.4
4. DRAIN ENGINE COOLANT (See page CO±6)
5. REMOVE EGR VALVE (a) Disconnect the following hoses:(1) Water by±pass hose (from ISC valve) from the EGR
valve
(2) Water by±pass hose (from rear water by±pass joint) from the EGR valve
(b) Remove the two nuts, EGR valve and gasket.
6. INSPECT EGR VALVE
A. Visually inspect EGR valve Check for sticking and heavy carbon deposits.
If a problem is found, replace the EGR valve assembly.
EC±22
±
EMISSION CONTROL SYSTEMS Exhaust Gas Recirculation (EGR) System
WhereEverybodyKnowsYourName
Page 1363 of 4087

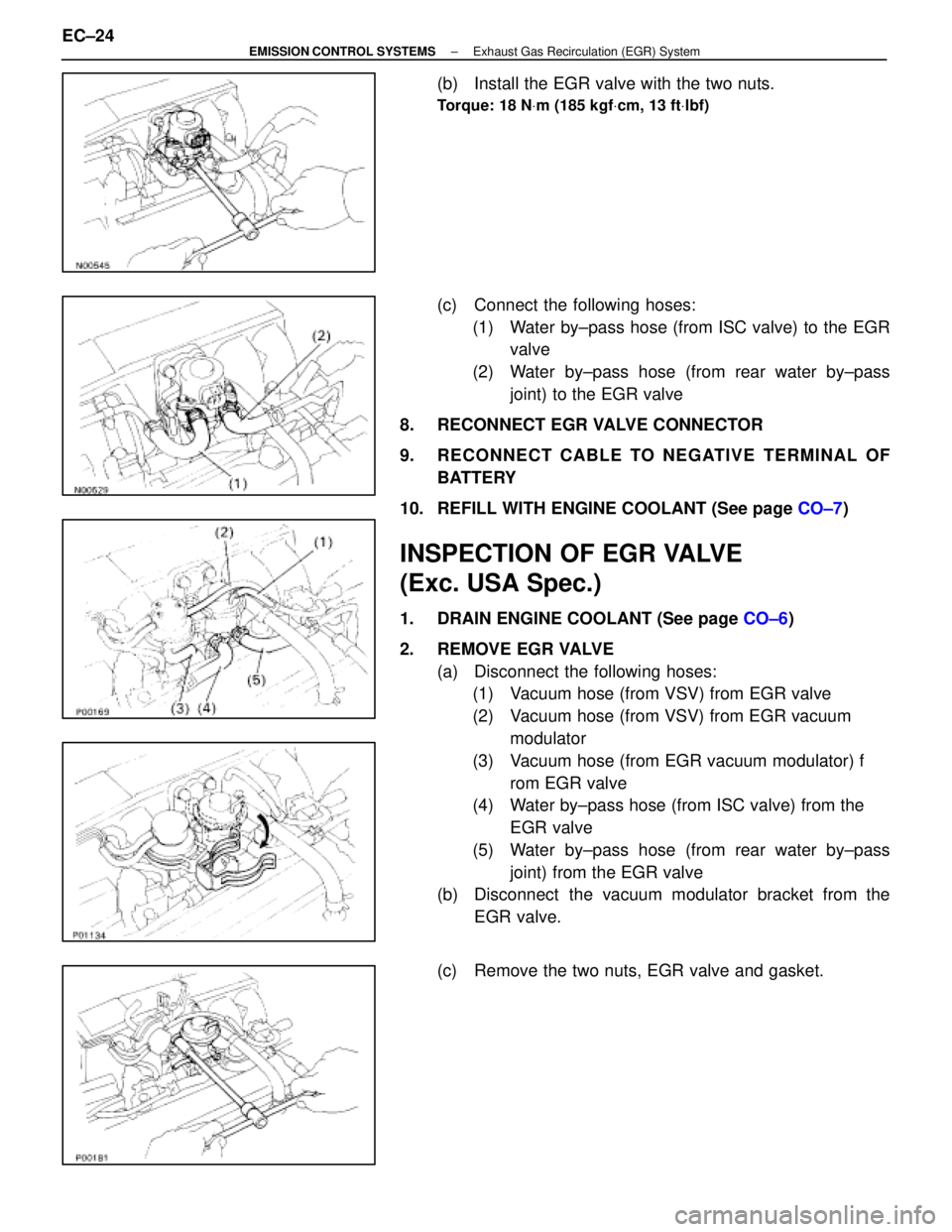

B. Inspect EGR valve operation(a) Remove the three bolts and stepping motor from thehousing.
(b) Apply battery voltage to terminal B1 (or B2), and while repeately grounding (*S4)±(S4 and *S3)±(S3 and
*S2)±(S2 and *S1)±(S1 and *S4) in sequence, check
that the valve moves toward the open position.
HINT: Keep the terminal marked with an asterisk (*) grounded
while proceeding to the next grounding.
(c) Apply battery voltage to terminal B1 (or B2), and while repeately grounding (*S1)±(S1 and *S2)±(S2 and
*S3)±(S3 and *S4)±(S4 and *S1) in sequence, check
that the valve moves toward the closed position.
HINT:
w Keep the terminal marked with an asterisk (*) grounded
while proceeding to the next grounding.
w Perform this operation after opening the valve by
performing step (b) above.
If operation is not as specified, replace the EGR valve assem-
bly.
(d) Reinstall the stepping motor to the housing with the three bolts.
7. REINSTALL EGR VALVE (a) Place a new gasket on the EGR valve adaptor.
NOTICE:
w Do not touch the adaptor and EGR valve surfaces of the
gasket with your hand.
w Align the port holes of the gasket and adaptor. Be careful
of the installation direction.
±
EMISSION CONTROL SYSTEMS Exhaust Gas Recirculation (EGR) SystemEC±23
WhereEverybodyKnowsYourName
Page 1364 of 4087

(b) Install the EGR valve with the two nuts.
Torque: 18 NVm (185 kgf Vcm, 13 ft Vlbf)
(c) Connect the following hoses:
(1) Water by±pass hose (from ISC valve) to the EGR valve
(2) Water by±pass hose (from rear water by±pass joint) to the EGR valve
8. RECONNECT EGR VALVE CONNECTOR
9. RECONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
10. REFILL WITH ENGINE COOLANT (See page CO±7)
INSPECTION OF EGR VALVE
(Exc. USA Spec.)
1. DRAIN ENGINE COOLANT (See page CO±6)
2. REMOVE EGR VALVE (a) Disconnect the following hoses:(1) Vacuum hose (from VSV) from EGR valve
(2) Vacuum hose (from VSV) from EGR vacuum
modulator
(3) Vacuum hose (from EGR vacuum modulator) f rom EGR valve
(4) Water by±pass hose (from ISC valve) from the
EGR valve
(5) Water by±pass hose (from rear water by±pass joint) from the EGR valve
(b) Disconnect the vacuum modulator bracket from the
EGR valve.
(c) Remove the two nuts, EGR valve and gasket.
EC±24
±
EMISSION CONTROL SYSTEMS Exhaust Gas Recirculation (EGR) System
WhereEverybodyKnowsYourName
Page 1365 of 4087
3. INSPECT EGR VALVECheck for sticking and heavy carbon deposits.
If a problem is found, replace the EGR valve assembly.
4. REINSTALL EGR VALVE (a) Place a new gasket on the EGR valve adaptor.
NOTICE:
w Do not touch the adaptor and EGR valve surfaces of the
gasket with your hand.
w Align the port holes of the gasket and adaptor.
Be careful of the installation direction.
(b) Install the EGR valve with the two nuts.
Torque: 18 N Vm (185 kgf Vcm, 13 ft Vlbf)
(c) Install the vacuum modulator bracket to the EGR valve.
(d) Connect the following hoses:
(1) Vacuum hose (from VSV) to EGR valve
(2) Vacuum hose (from VSV) to EGR vacuum modula- tor
(3) Vacuum hose (from EGR vacuum modulator) to EGR valve
(4) Water by±pass hose (from ISC valve) to the EGR
valve
(5) Water by±pass hose (from rear water by±pass joint) to the EGR valve
5. REFILL WITH ENGINE COOLANT (See page CO±7)
±
EMISSION CONTROL SYSTEMS Exhaust Gas Recirculation (EGR) SystemEC±25
WhereEverybodyKnowsYourName
Page 1366 of 4087

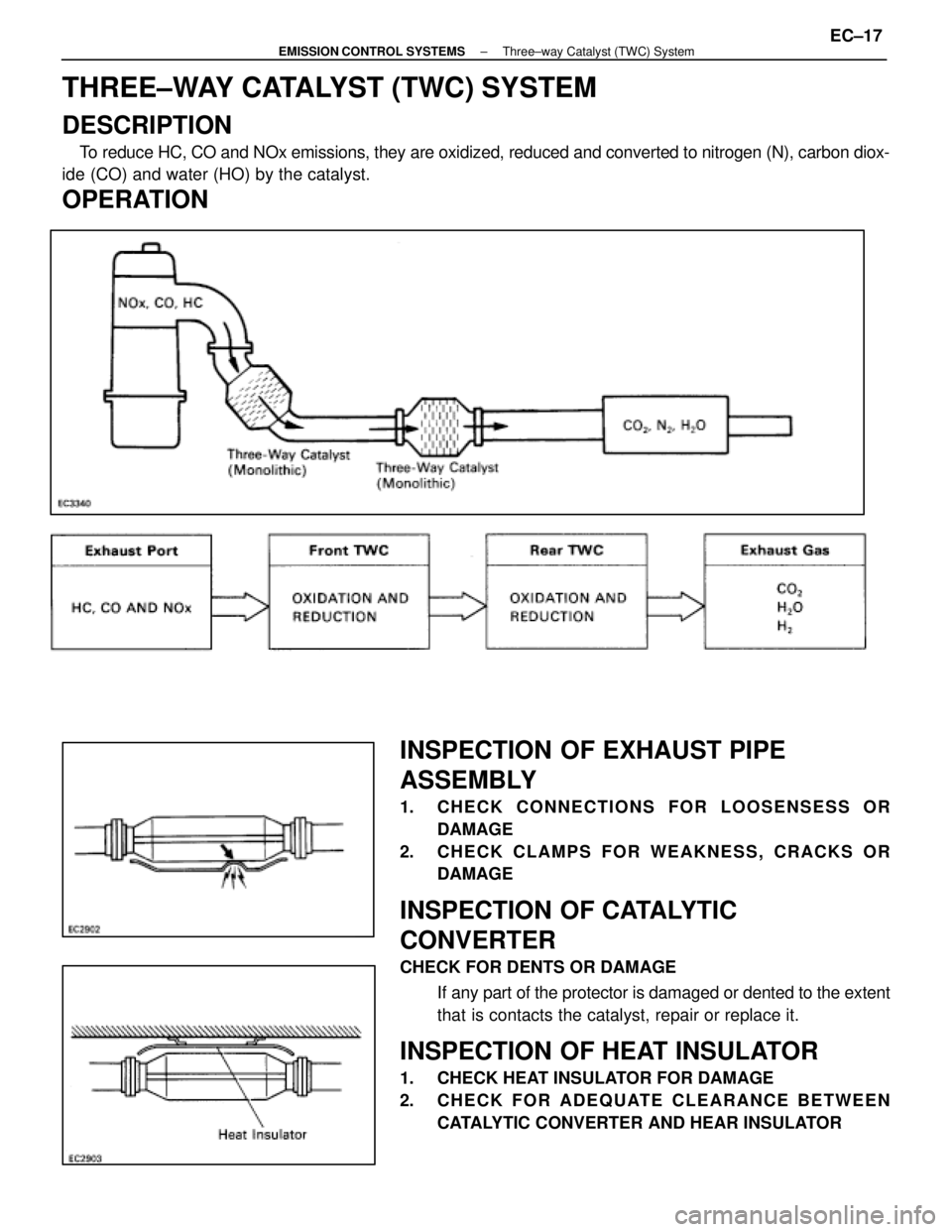

THREE±WAY CATALYST (TWC) SYSTEM
DESCRIPTION
To reduce HC, CO and NOx emissions, they are oxidized, reduced and convert\
ed to nitrogen (N), carbon diox-
ide (CO) and water (HO) by the catalyst.
OPERATION
INSPECTION OF EXHAUST PIPE
ASSEMBLY
1. CHECK CONNECTIONS FOR LOOSENSESS ORDAMAGE
2. CHECK CLAMPS FOR WEAKNESS, C RACKS OR
DAMAGE
INSPECTION OF CATALYTIC
CONVERTER
CHECK FOR DENTS OR DAMAGE
If any part of the protector is damaged or dented to the extent
that is contacts the catalyst, repair or replace it.
INSPECTION OF HEAT INSULATOR
1. CHECK HEAT INSULATOR FOR DAMAGE
2. CHECK FOR ADEQUATE CLEARANCE BETWEENCATALYTIC CONVERTER AND HEAR INSULATOR
±
EMISSION CONTROL SYSTEMS Three±way Catalyst (TWC) SystemEC±17
WhereEverybodyKnowsYourName
Page 1367 of 4087

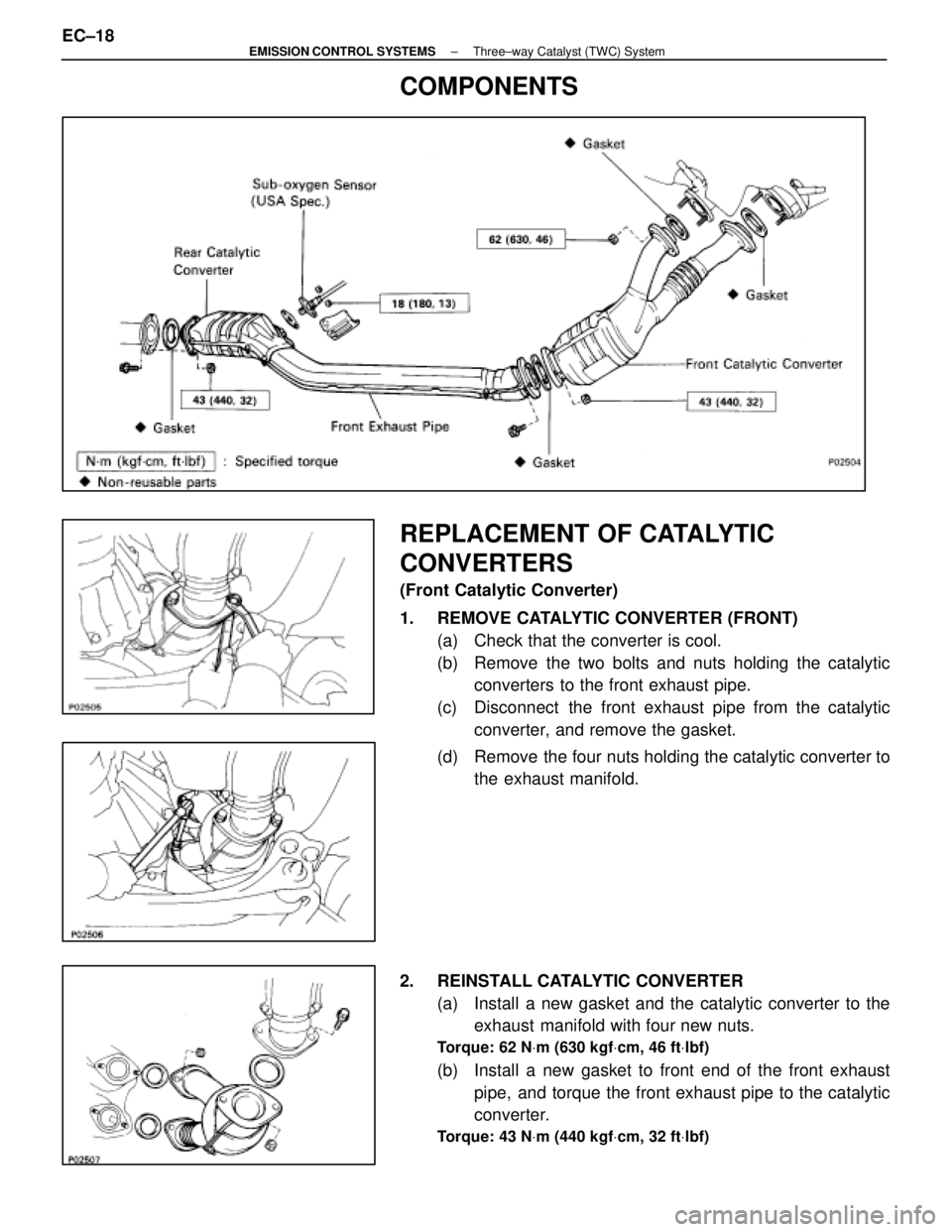

COMPONENTS
REPLACEMENT OF CATALYTIC
CONVERTERS
(Front Catalytic Converter)
1. REMOVE CATALYTIC CONVERTER (FRONT)(a) Check that the converter is cool.
(b) Remove the two bolts and nuts holding the catalyticconverters to the front exhaust pipe.
(c) Disconnect the front exhaust pipe from the catalytic converter, and remove the gasket.
(d) Remove the four nuts holding the catalytic converter to the exhaust manifold.
2. REINSTALL CATALYTIC CONVERTER (a) Install a new gasket and the catalytic converter to theexhaust manifold with four new nuts.
Torque: 62 N Vm (630 kgf Vcm, 46 ft Vlbf)
(b) Install a new gasket to front end of the front exhaust
pipe, and torque the front exhaust pipe to the catalytic
converter.
Torque: 43 N Vm (440 kgf Vcm, 32 ft Vlbf)
EC±18±
EMISSION CONTROL SYSTEMS Three±way Catalyst (TWC) System
WhereEverybodyKnowsYourName
Page 1368 of 4087
(Rear Catalytic Converter)
1. (USA Spec.)REMOVE SUB±OXYGEN SENSOR
Remove the two nuts and sub±oxygen sensor from the front
exhaust pipe.
2. REMOVE REAR CATALYTIC CONVERTER (FRONT EXHAUST PIPE)
(a) Remove the two bolts and nuts holding the front exhaust
pipe to the center exhaust pipe.
(b) Remove the two bolts and nuts holding the front exhaust
pipe to the front catalytic converter, and remove the front
exhaust pipe and two gaskets.
3. REINSTALL REAR CATALYTIC CONVERTER (FRONT EXHAUST PIPE)
Install the two new gaskets, the front exhaust pipe with the
four bolts and new nuts.
Torque: 43 N Vm (440 kgf Vcm, 32 ft Vlbf)
4. (USA Spec.)
REINSTALL SUB±OXYGEN SENSOR
Install the new gasket, the sub±oxygen sensor to the front ex-
haust pipe with the two nuts.
Torque: 18 N Vm (180 kgf Vcm, 13 ft Vlbf)
±
EMISSION CONTROL SYSTEMS Three±way Catalyst (TWC) SystemEC±19
