LEXUS SC400 1991 Service Repair Manual (1) Turn ignition switch LOCK. (2) Disconnect negative (±) terminal cable frombattery. (3) Connect connector to center airbag sensor assembly. (4) Using a service wire, Connect D + and D± on spir

Page 266 of 4087

LEXUS SC400 1991 Service Repair Manual (1) Turn ignition switch LOCK. (2) Disconnect battery negative (±) terminal cable,and wait at least 20 seconds. (3) Connect steering wheel pad (squib) connector. (4) Connect negative (±) termina

Page 267 of 4087

LEXUS SC400 1991 Service Repair Manual MEMOAB±53 SRS AIRBAG ± Troubleshooting WhereEverybodyKnowsYourName

Page 268 of 4087

LEXUS SC400 1991 Service Repair Manual Diag. Code 13Short in Squib Circuit (Between D+ Wire Harness and D± Wire Harness) CIRCUIT DESCRIPTION The squib circuit consists of the center airbag sensor assembly, spiral cable and the steering w

Page 269 of 4087

LEXUS SC400 1991 Service Repair Manual DIAGNOSTIC CHART (Contd) Check spiral cable.Repair or replace spiral cable. Check harness between center airbag sensor assembly and spiral cable.Repair or replace harness or connector between center

Page 270 of 4087

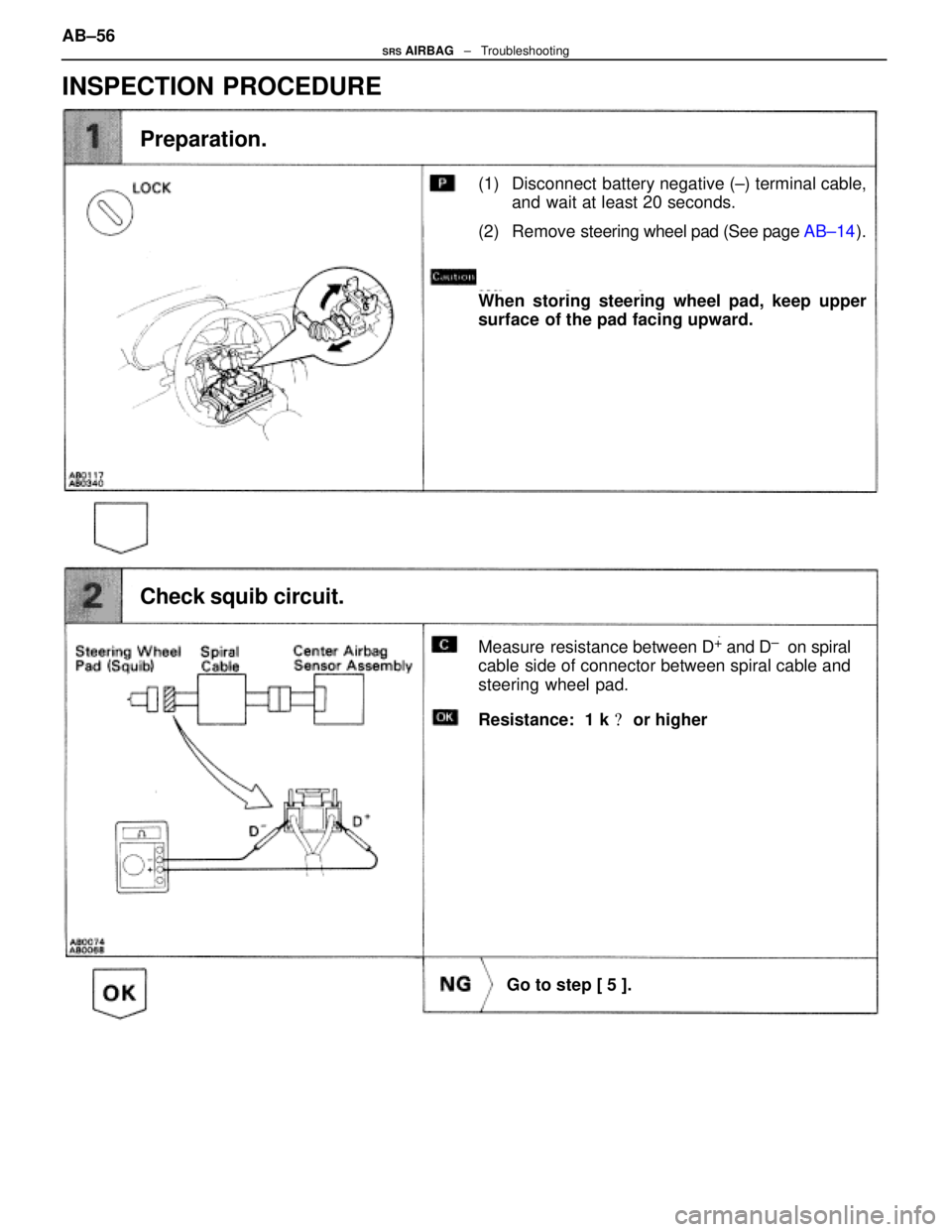

LEXUS SC400 1991 Service Repair Manual INSPECTION PROCEDURE (1) Disconnect battery negative (±) terminal cable,and wait at least 20 seconds. (2) Remove steering wheel pad (See page AB±14). Preparation. Measure resistance between D+ an

Page 271 of 4087

LEXUS SC400 1991 Service Repair Manual (1) Connect negative (±) terminal cable to battery. (2) Clear malfunction code 41 stored in memory(See page AB±32). Check center airbag sensor assembly. Replace center airbag sensor assembly. (1)

Page 272 of 4087

LEXUS SC400 1991 Service Repair Manual (1) Disconnect connector between center airbagsensor assembly and spiral cable. (2) Release airbag activation prevention mecha- nism on center airbag sensor assembly side of spiral cable connector (
