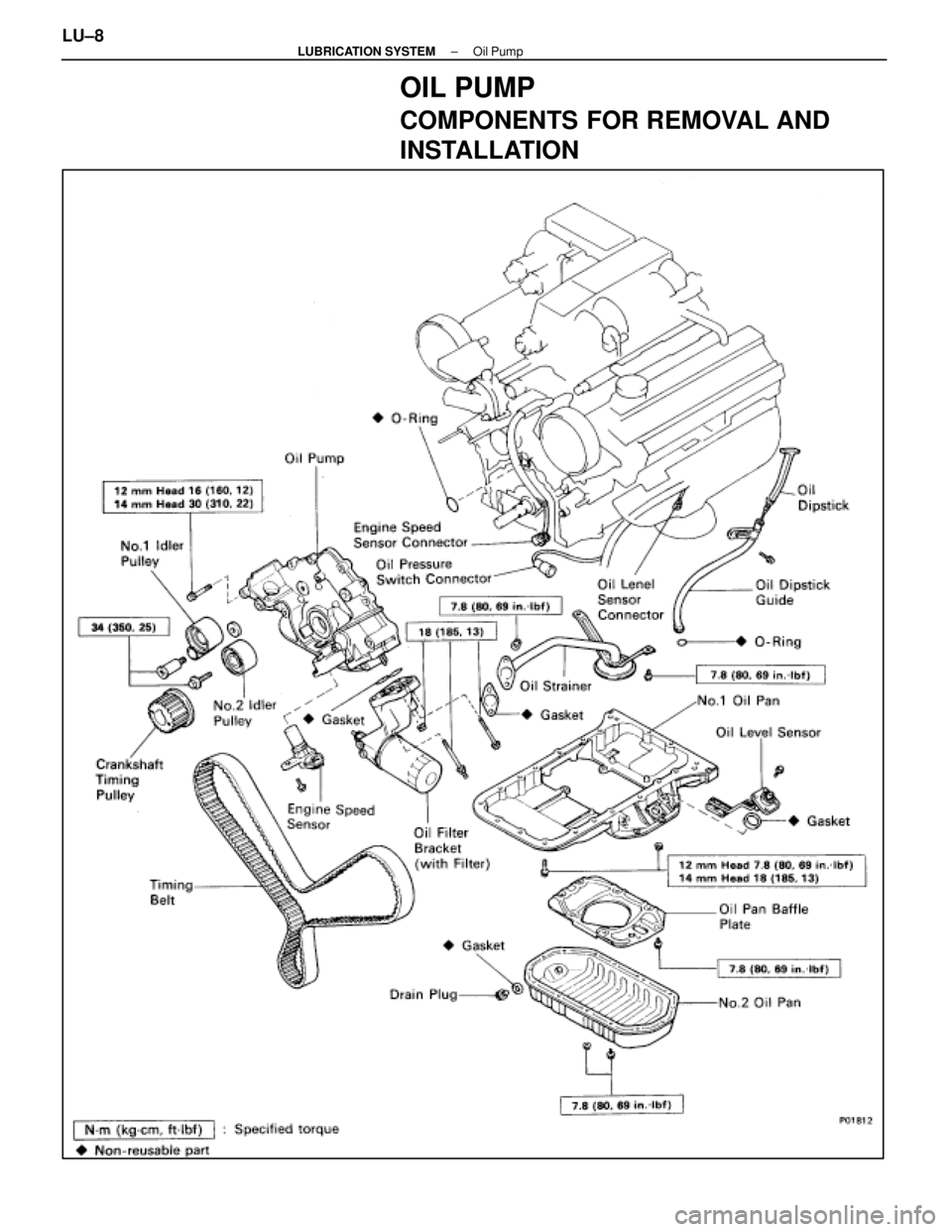

LEXUS SC400 1991 Service Repair Manual OIL PUMP COMPONENTS FOR REMOVAL AND INSTALLATION LU±8± LUBRICATION SYSTEM Oil Pump WhereEverybodyKnowsYourName

Page 2130 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF OIL PUMP (See Components on page LU±8) HINT: When repairing the oil pump, the oil pan and strainer should be removed and cleaned. 1. REMOVE ENGINE WITH TRANSMISSION (See pages EM±118 t

Page 2131 of 4087

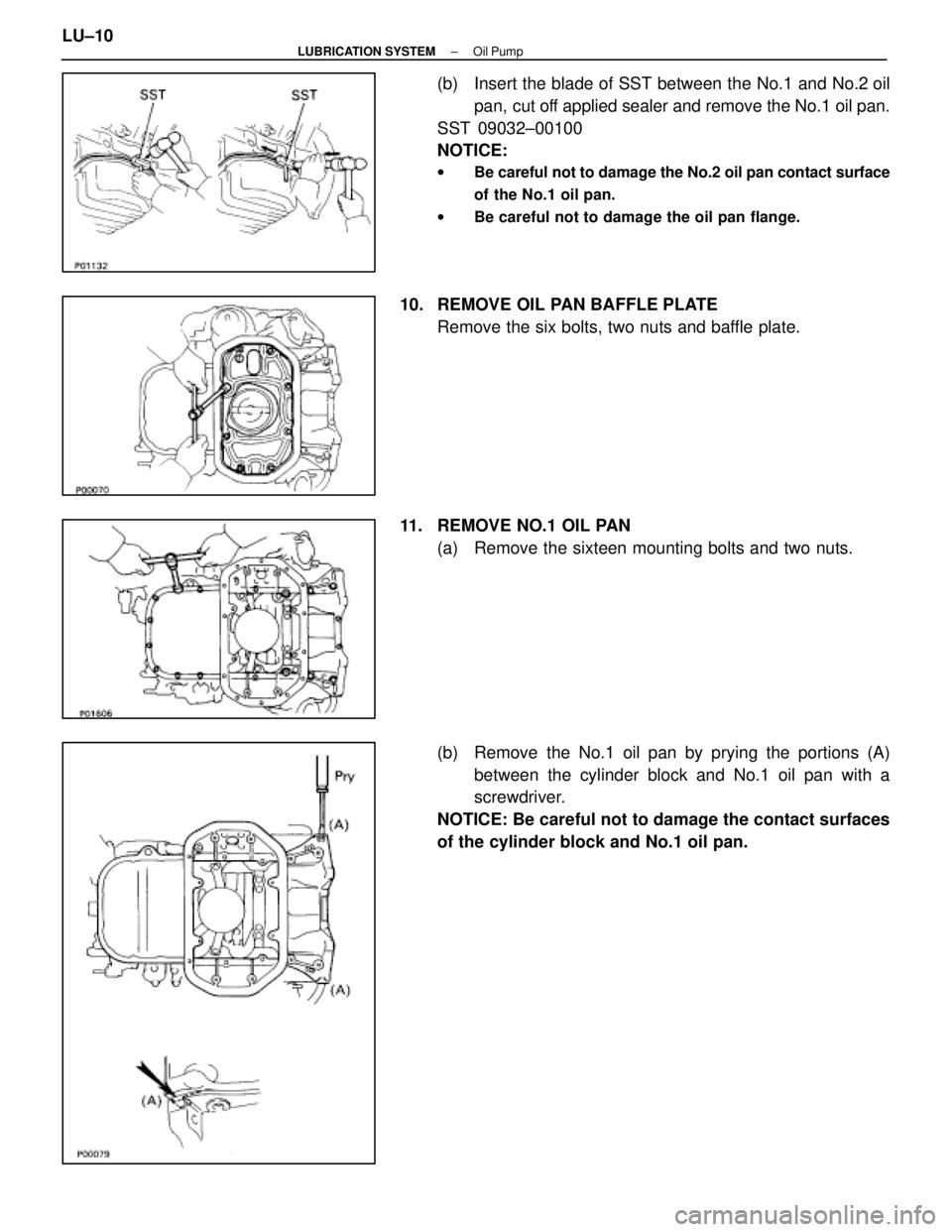

LEXUS SC400 1991 Service Repair Manual (b) Insert the blade of SST between the No.1 and No.2 oilpan, cut off applied sealer and remove the No.1 oil pan. SST 09032±00100 NOTICE: w Be careful not to damage the No.2 oil pan contact surfac

Page 2132 of 4087

LEXUS SC400 1991 Service Repair Manual 12. REMOVE OIL STRAINERRemove the two bolts, two nuts, oil strainer and gasket. 13. REMOVE OIL FILTER BRACKET (a) Disconnect the oil pressure switch connector. (b) Remove the two bo lts, stud bol

Page 2133 of 4087

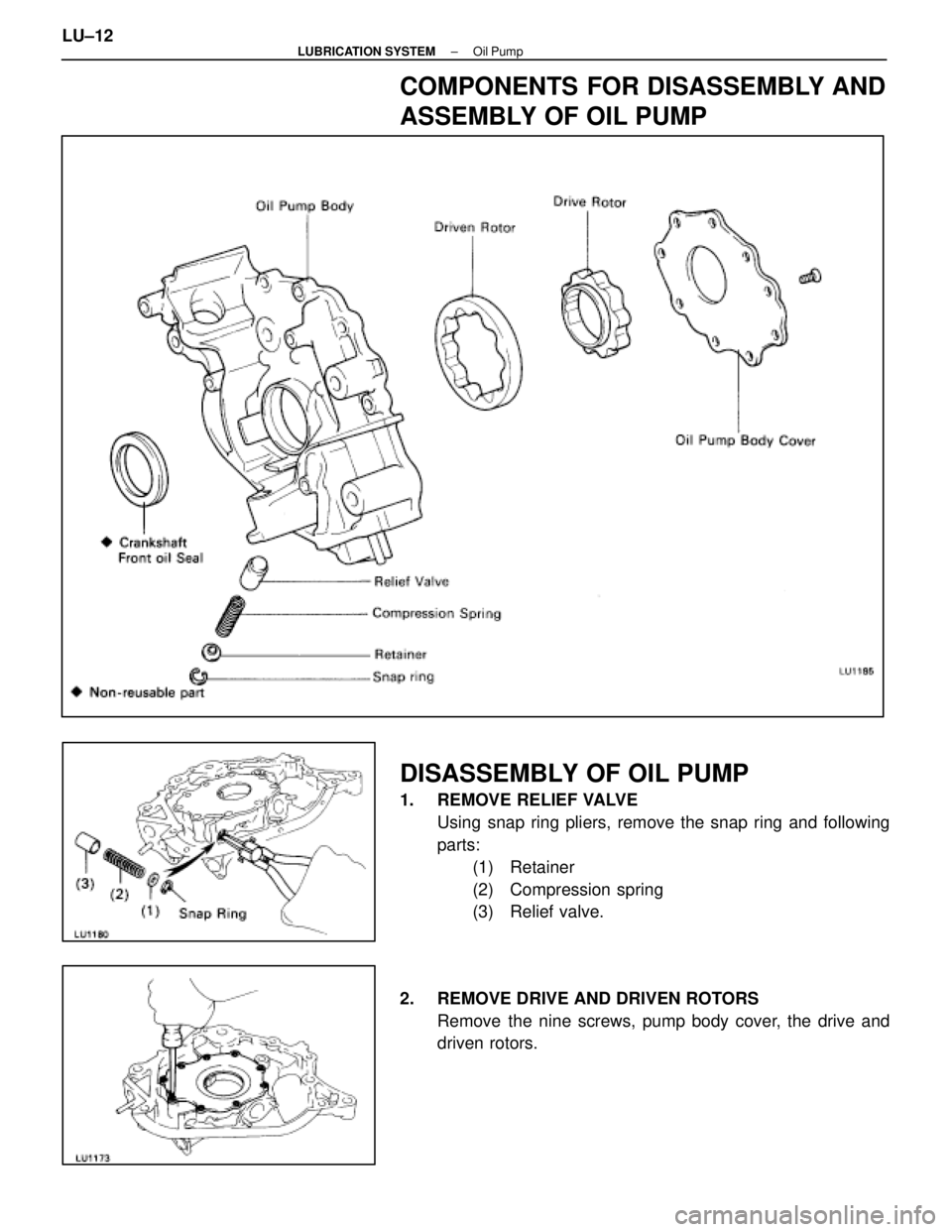

LEXUS SC400 1991 Service Repair Manual COMPONENTS FOR DISASSEMBLY AND ASSEMBLY OF OIL PUMP DISASSEMBLY OF OIL PUMP 1. REMOVE RELIEF VALVEUsing snap ring pliers, remove the snap ring and following parts:(1) Retainer (2) Compression spring

Page 2134 of 4087

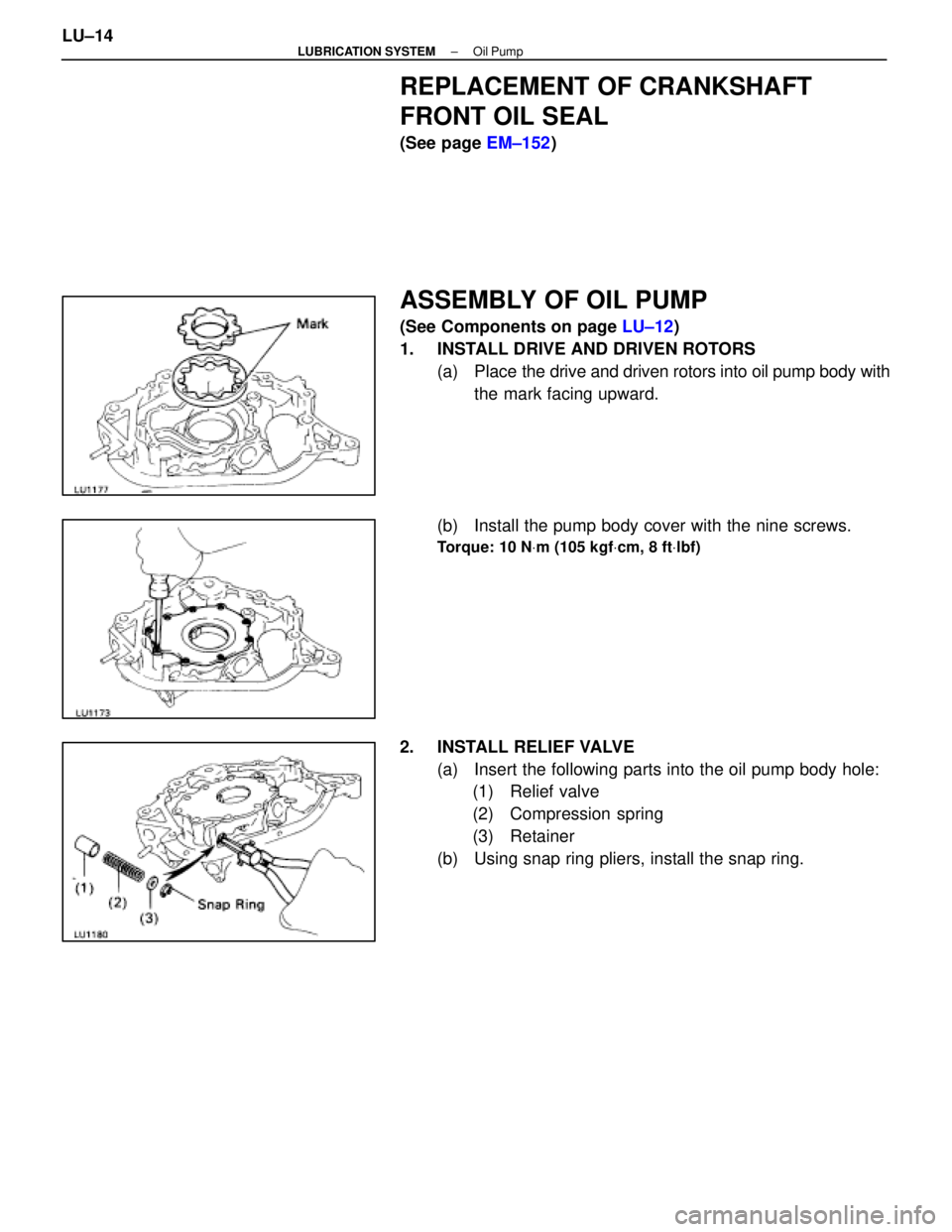

LEXUS SC400 1991 Service Repair Manual INSPECTION OF OIL PUMP 1. INSPECT RELIEF VALVECoat the valve with engine oil and check that it falls smoothly into the valve hole by its own weight. If it doesnt, replace the relief valve. If neces

Page 2135 of 4087

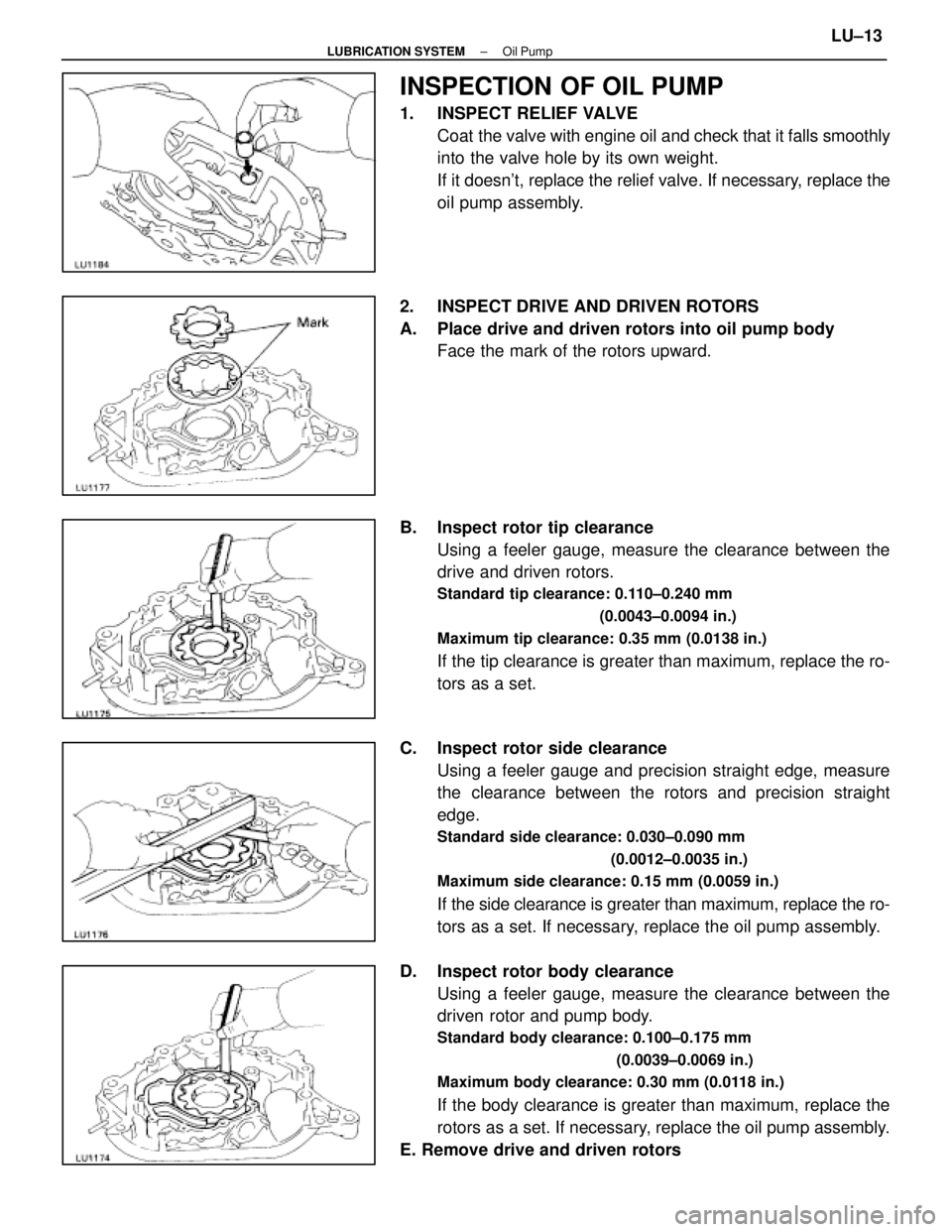

LEXUS SC400 1991 Service Repair Manual REPLACEMENT OF CRANKSHAFT FRONT OIL SEAL (See page EM±152) ASSEMBLY OF OIL PUMP (See Components on page LU±12) 1. INSTALL DRIVE AND DRIVEN ROTORS (a) Place the drive and driven rotors into oil p

Page 2136 of 4087

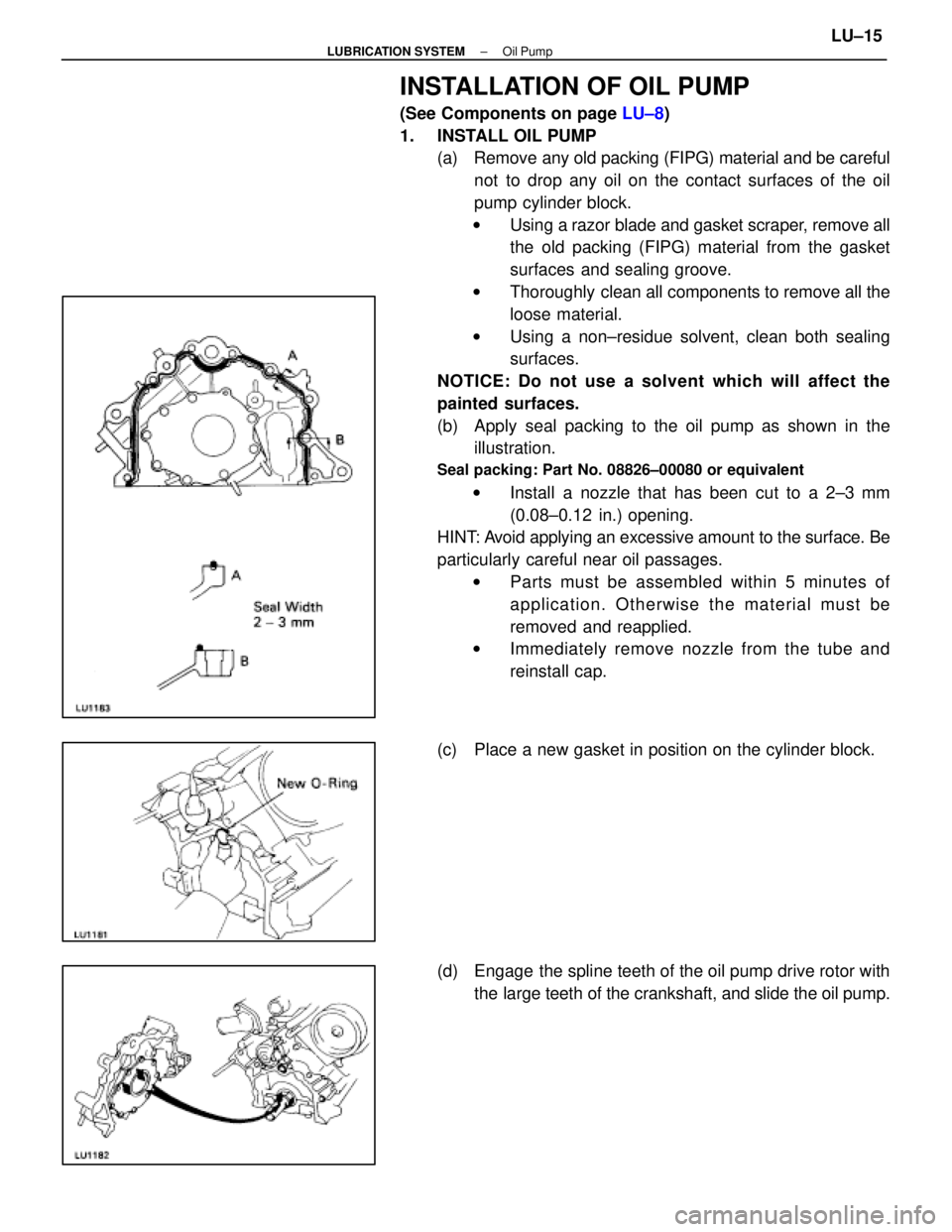

LEXUS SC400 1991 Service Repair Manual INSTALLATION OF OIL PUMP (See Components on page LU±8) 1. INSTALL OIL PUMP (a) Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the oil pump cyl
