Page 129 of 4087

Check voltage between terminal WV of A/C control assembly connec-
tor body ground.
(1) Remove console upper panel.(See page
BO-111).
(2) Remove A/C control assembly with connec±
tors still connected.
(3) Start the engine.
Measure voltage between terminals WV of A/C con-
trol assembly connector and body ground
when the set temp. is not set to MAX COLD and
MAX HOT.
Proceed to next circuit inspection shown on
matrix chart. ( See page AC-36).
Check water valve VSV.
Water valve VSV connector.
Measure resistance between terminals of VSV con-
nector.
Resistance: 37 ± 47 at 20°C (68°F)
Check operation of water valve VSV when battery
voltage is applied to terminals of VSV connector or
not.
Battery voltage is applied:
The air from A is flowing out through B.
Battery voltage is not applied:
The air from A is flowing out through air filter.
Replace water valve VSV.
Check for open and short in harness and connector between VSV
and A/C control assembly (See page IN-27).
Repair or replace harness or connector.
Check and replace A/C control assembly.
INSPECTION PROCEDURE
±
AIR CONDITIONING SYSTEM TroubleshootingAC±91
WhereEverybodyKnowsYourName
Page 130 of 4087

\
\
\
\
\

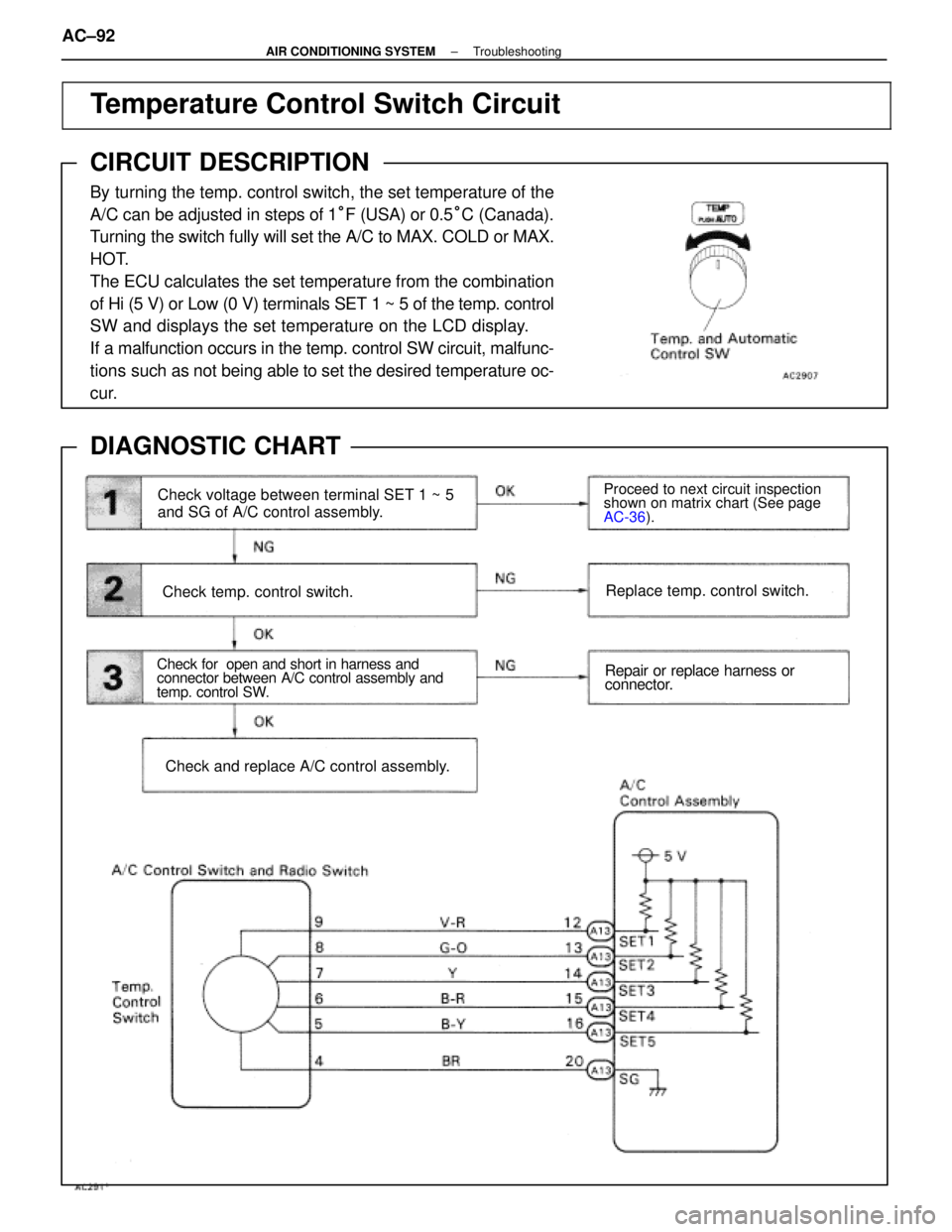

Temperature Control Switch Circuit
CIRCUIT DESCRIPTION
By turning the temp. control switch, the set temperature of the
A/C can be adjusted in steps of 1
°F (USA) or 0.5 °C (Canada).
Turning the switch fully will set the A/C to MAX. COLD or MAX.
HOT.
The ECU calculates the set temperature from the combination
of Hi (5 V) or Low (0 V) terminals SET 1 ~ 5 of the temp. control
SW and displays the set temperature on the LCD display.
If a malfunction occurs in the temp. control SW circuit, malfunc-
tions such as not being able to set the desired temperature oc-
cur.
DIAGNOSTIC CHART
WIRING DIAGRAM
Check for open and short in harness and
connector between A/C control assembly and
temp. control SW.
Check temp. control switch.
Proceed to next circuit inspection
shown on matrix chart (See page
AC-36 ).
Replace temp. control switch.
Repair or replace harness or
connector.
Check and replace A/C control assembly.
Check voltage between terminal SET 1 ~ 5
and SG of A/C control assembly.
AC±92±
AIR CONDITIONING SYSTEM Troubleshooting
WhereEverybodyKnowsYourName
Page 131 of 4087

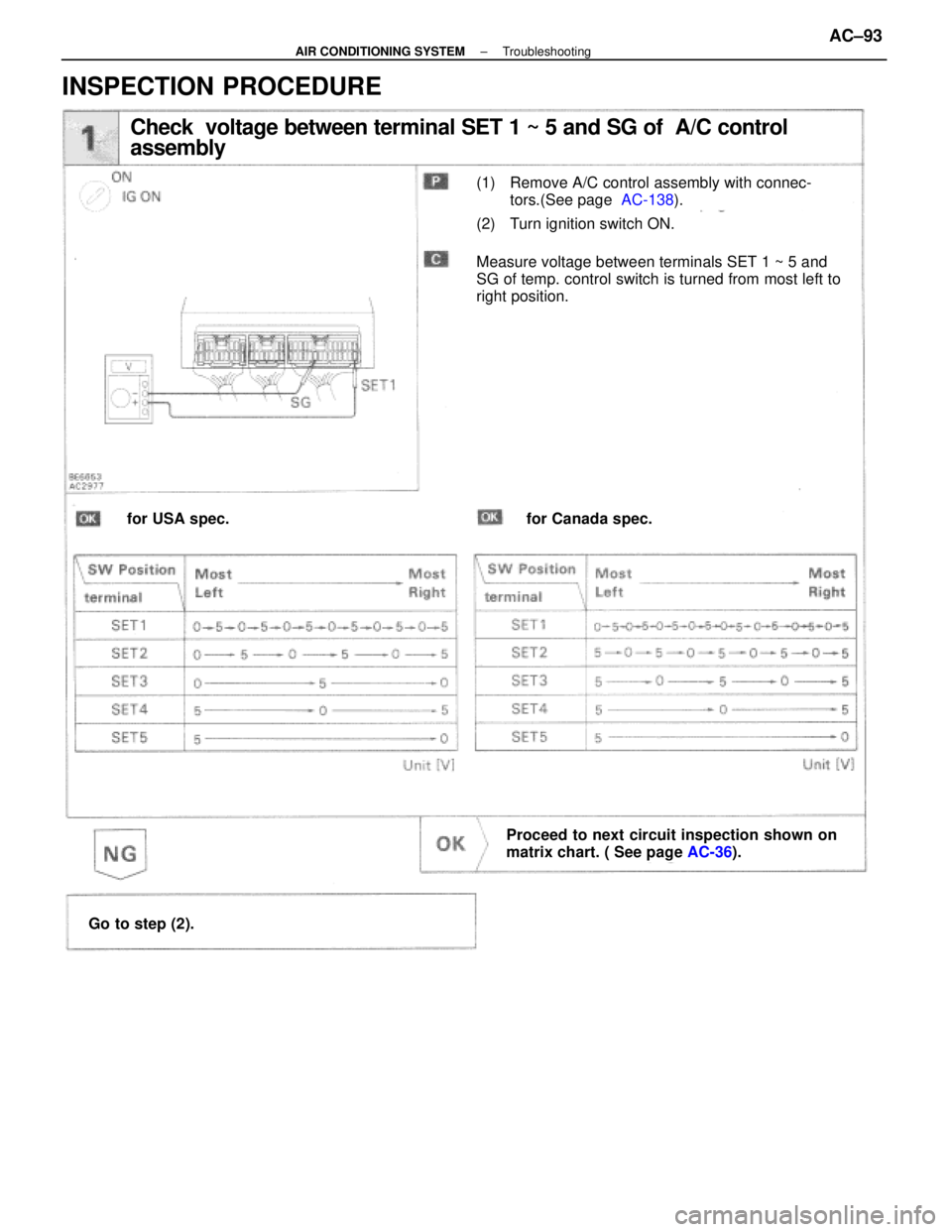

Check voltage between terminal SET 1 ~ 5 and SG of A/C control
assembly
(1) Remove A/C control assembly with connec-tors.(See page AC-138).
(2) Turn ignition switch ON.
Measure voltage between terminals SET 1 ~ 5 and
SG of temp. control switch is turned from most left to
right position.
for USA spec.for Canada spec.
Proceed to next circuit inspection shown on
matrix chart. ( See page AC-36).
Go to step (2).
INSPECTION PROCEDURE
±
AIR CONDITIONING SYSTEM TroubleshootingAC±93
WhereEverybodyKnowsYourName
Page 132 of 4087

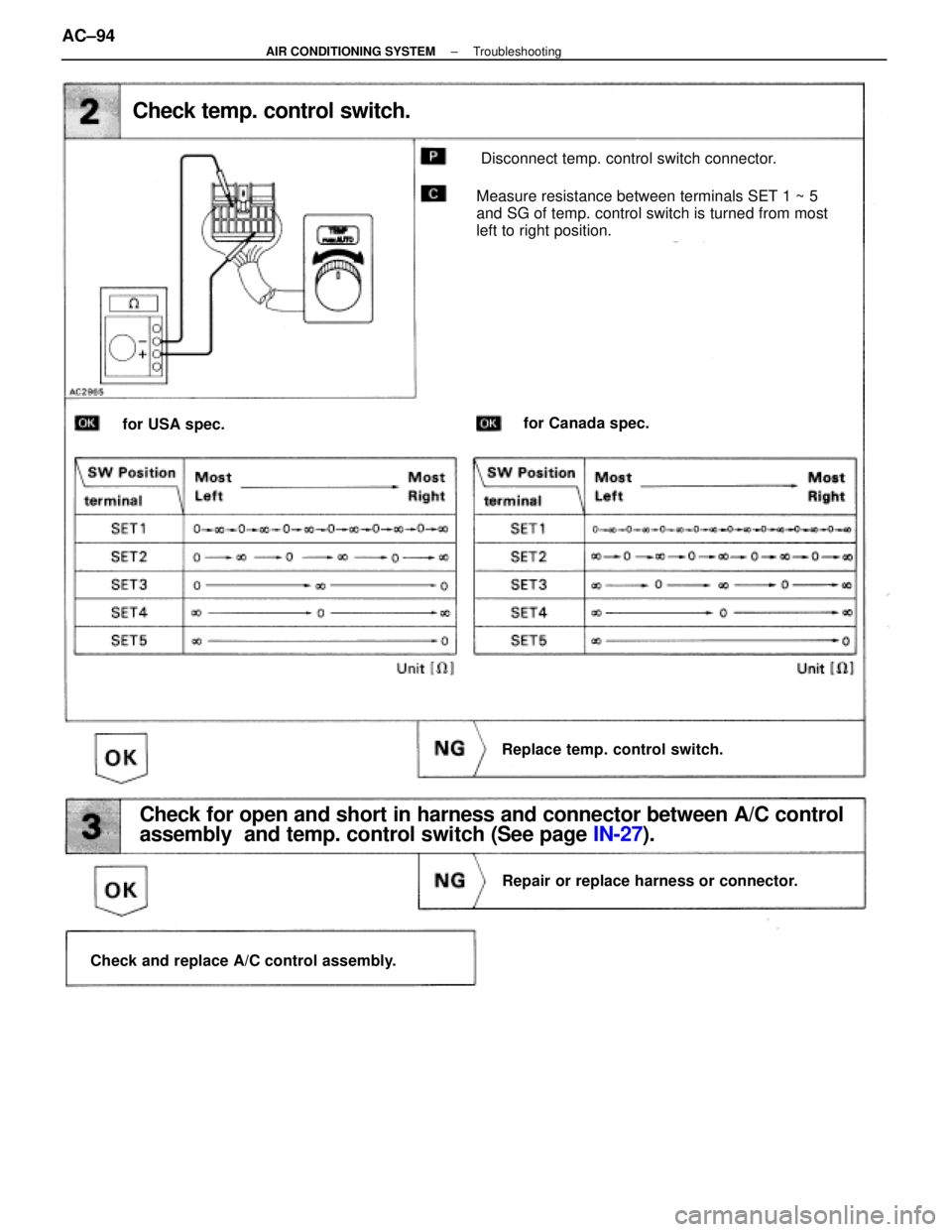

Check temp. control switch.
Disconnect temp. control switch connector.
Measure resistance between terminals SET 1 ~ 5
and SG of temp. control switch is turned from most
left to right position.
for USA spec.for Canada spec.
Replace temp. control switch.
Check for open and short in harness and connector between A/C control
assembly and temp. control switch (See page IN-27).
Repair or replace harness or connector.
Check and replace A/C control assembly.
AC±94±
AIR CONDITIONING SYSTEM Troubleshooting
WhereEverybodyKnowsYourName
Page 133 of 4087
\
\
\
\
\

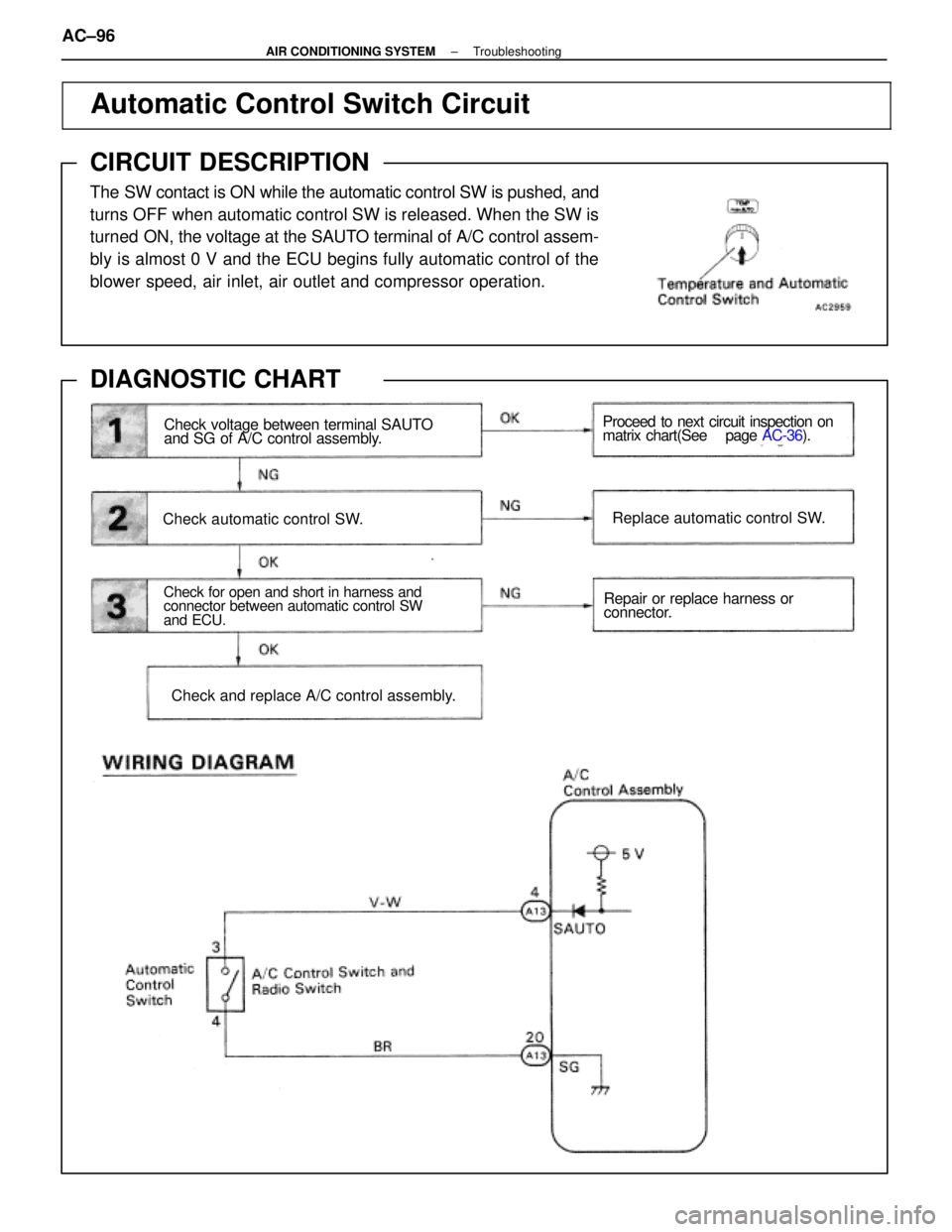

Automatic Control Switch Circuit
CIRCUIT DESCRIPTION
The SW contact is ON while the automatic control SW is pushed, and
turns OFF when automatic control SW is released. When the SW is
turned
ON, the voltage at the SAUTO terminal of A/C control assem-
bly is almost 0 V and the ECU begins fully automatic control of the
blower speed, air inlet, air outlet and compressor operation.
DIAGNOSTIC CHART
Check voltage between terminal SAUTO
and SG of A/C control assembly.
Check automatic control SW.
Check for open and short in harness and
connector between automatic control SW
and ECU.
Check and replace A/C control assembly.
Proceed to next circuit inspection on
matrix chart(See page AC-36).
Replace automatic control SW.
Repair or replace harness or
connector.
AC±96±
AIR CONDITIONING SYSTEM Troubleshooting
WhereEverybodyKnowsYourName
Page 134 of 4087

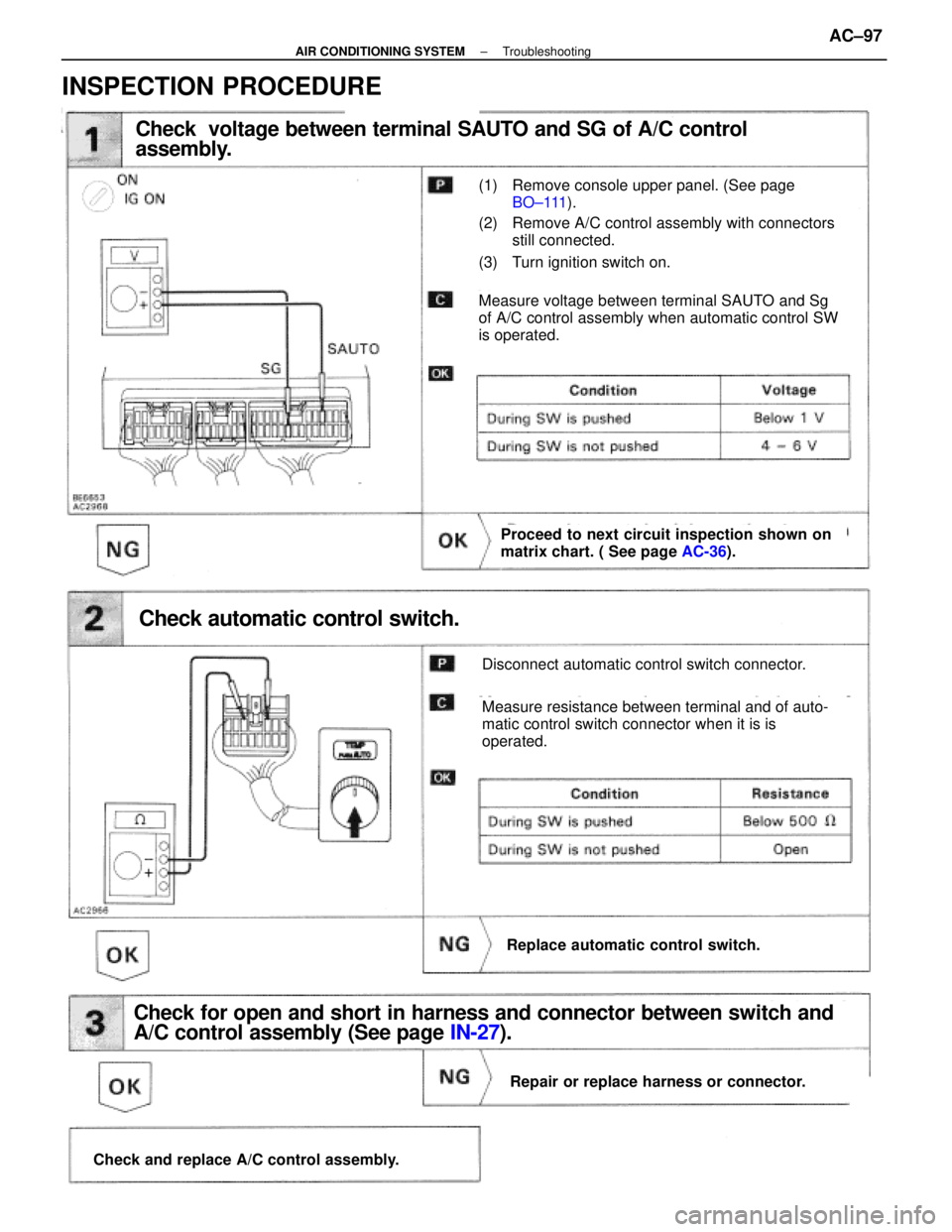

Check voltage between terminal SAUTO and SG of A/C control
assembly.
(2) Remove A/C control assembly with connectorsstill connected.
Proceed to next circuit inspection shown on
matrix chart. ( See page AC-36).
(3) Turn ignition switch on.
(1) Remove console upper panel. (See page
BO±111 ).
Measure voltage between terminal SAUTO and Sg
of A/C control assembly when automatic control SW
is operated.
Disconnect automatic control switch connector.
Measure resistance between terminal and of auto-
matic control switch connector when it is is
operated.
Replace automatic control switch.
Check automatic control switch.
Check for open and short in harness and connector between switch and
A/C control assembly (See page IN-27).
Repair or replace harness or connector.
Check and replace A/C control assembly.
INSPECTION PROCEDURE
±
AIR CONDITIONING SYSTEM TroubleshootingAC±97
WhereEverybodyKnowsYourName
Page 135 of 4087
\
\
\
\
\

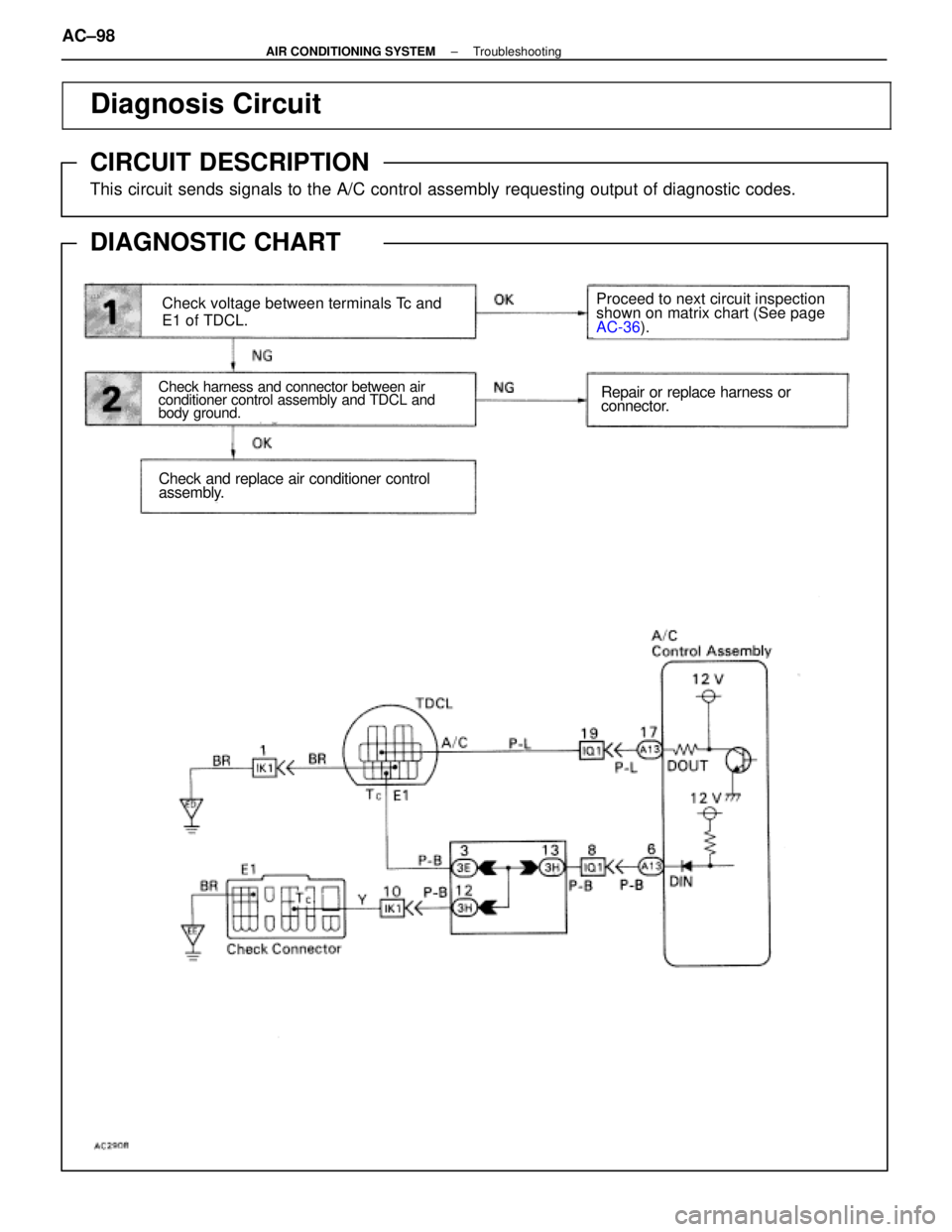

Diagnosis Circuit
CIRCUIT DESCRIPTION
This circuit sends signals to the A/C control assembly requesting output of \
diagnostic codes.
DIAGNOSTIC CHART
WIRING DIAGRAM
Check voltage between terminals Tc and
E1 of TDCL.
Check harness and connector between air
conditioner control assembly and TDCL and
body ground.
Proceed to next circuit inspection
shown on matrix chart (See page
AC-36
).
Repair or replace harness or
connector.
Check and replace air conditioner control
assembly.
AC±98±
AIR CONDITIONING SYSTEM Troubleshooting
WhereEverybodyKnowsYourName
Page 136 of 4087

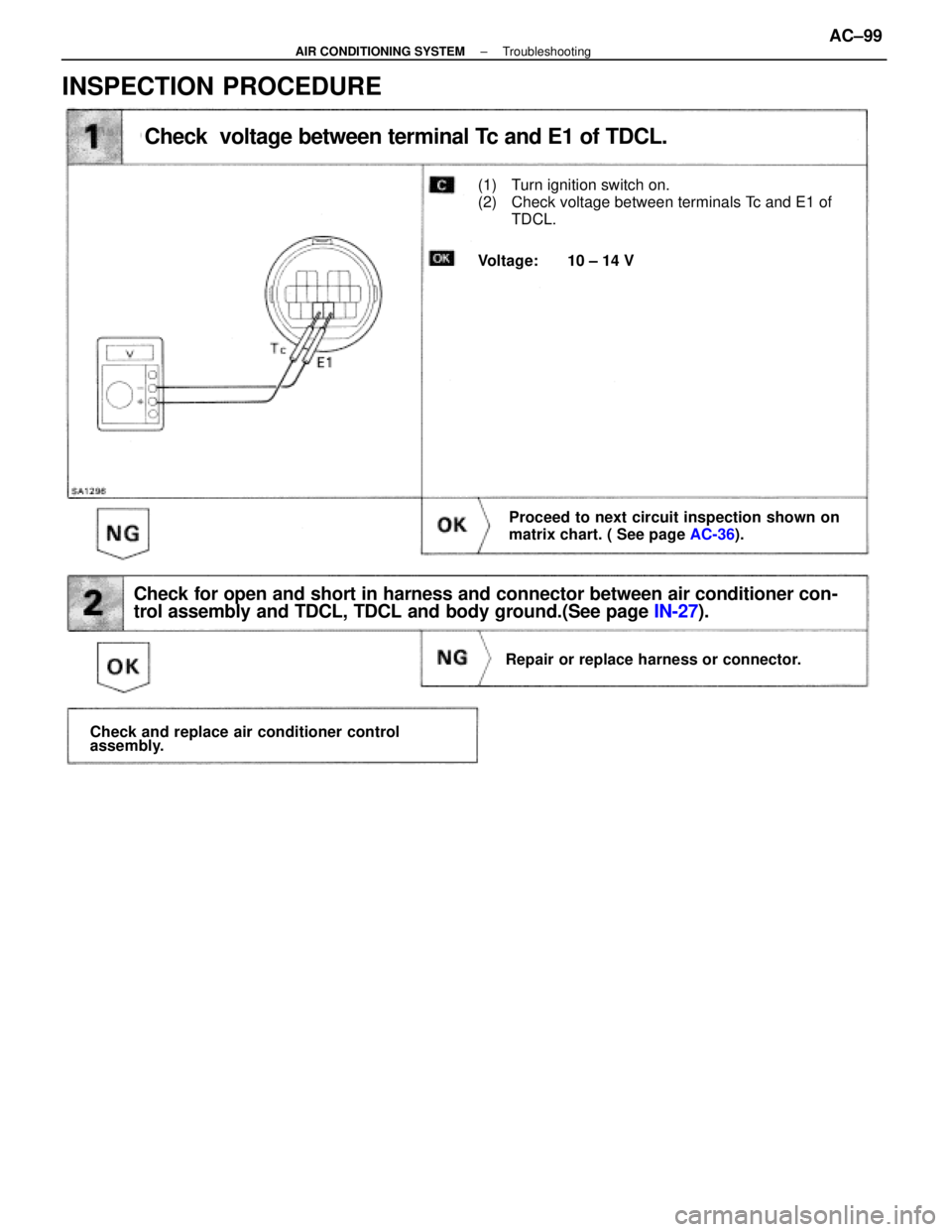

Check voltage between terminal Tc and E1 of TDCL.
(2) Check voltage between terminals Tc and E1 of TDCL.
Voltage: 10 ± 14 V
(1) Turn ignition switch on.
Proceed to next circuit inspection shown on
matrix chart. ( See page AC-36).
Check for open and short in harness and connector between air conditioner con-
trol assembly and TDCL, TDCL and body ground.(See page IN-27).
Repair or replace harness or connector.
Check and replace air conditioner control
assembly.
INSPECTION PROCEDURE
±
AIR CONDITIONING SYSTEM TroubleshootingAC±99
