Page 3641 of 4087

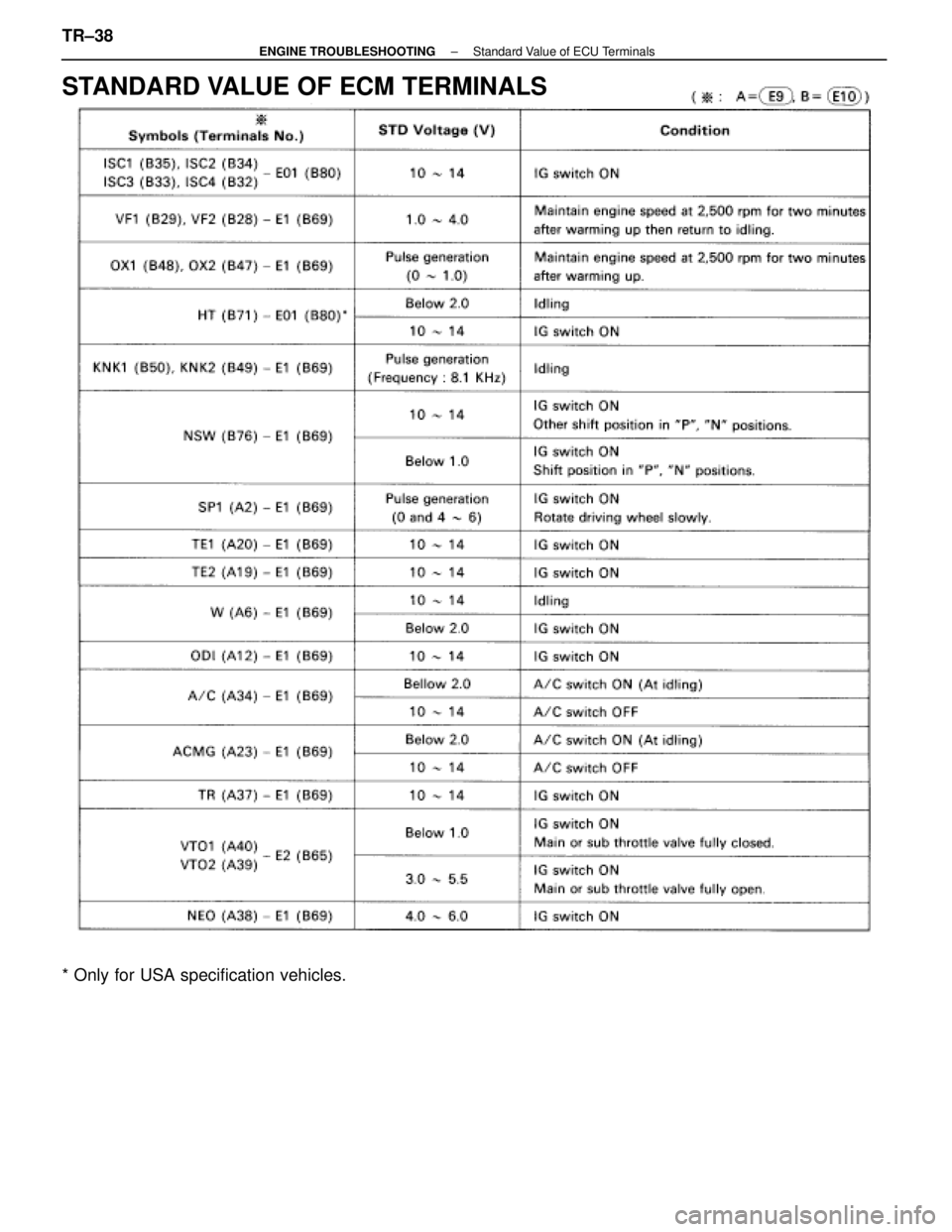

LEXUS SC400 1991 Service Repair Manual STANDARD VALUE OF ECM TERMINALS * Only for USA specification vehicles. TR±38 ± ENGINE TROUBLESHOOTING Standard Value of ECU Terminals WhereEverybodyKnowsYourName

Page 3642 of 4087

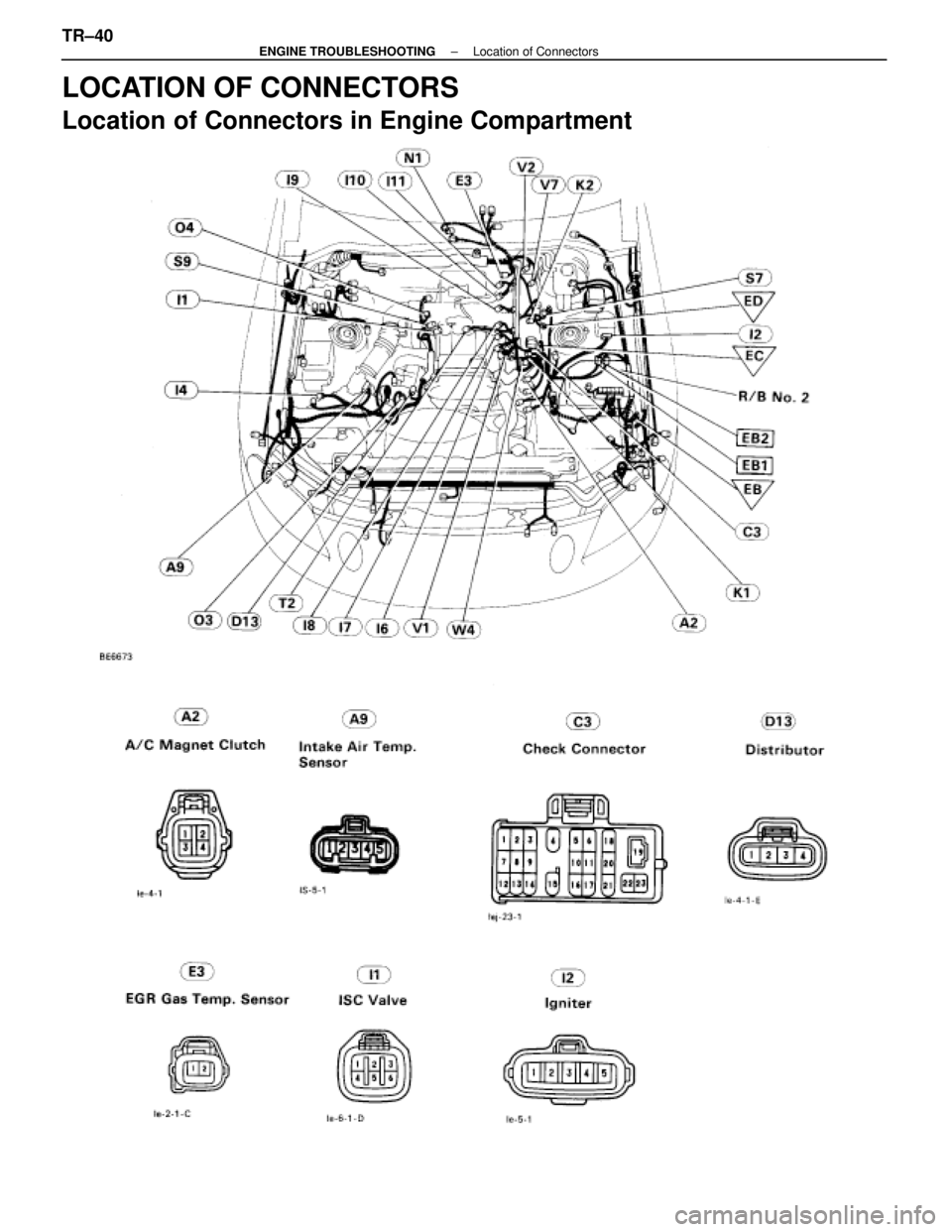

LEXUS SC400 1991 Service Repair Manual TR±82 TR±96 TR±104 TR±114 TR±118 TR±120 TR±126 TR±128 TR±132 TR±110 AC±68 ST±13 14 IG±6 IG±7 IG±10 IG±10 EM±22 AT±68 BE±398 IN±32 MATRIX CHART OF PROBLEM SYMPTOMS When the malfunc

Page 3643 of 4087

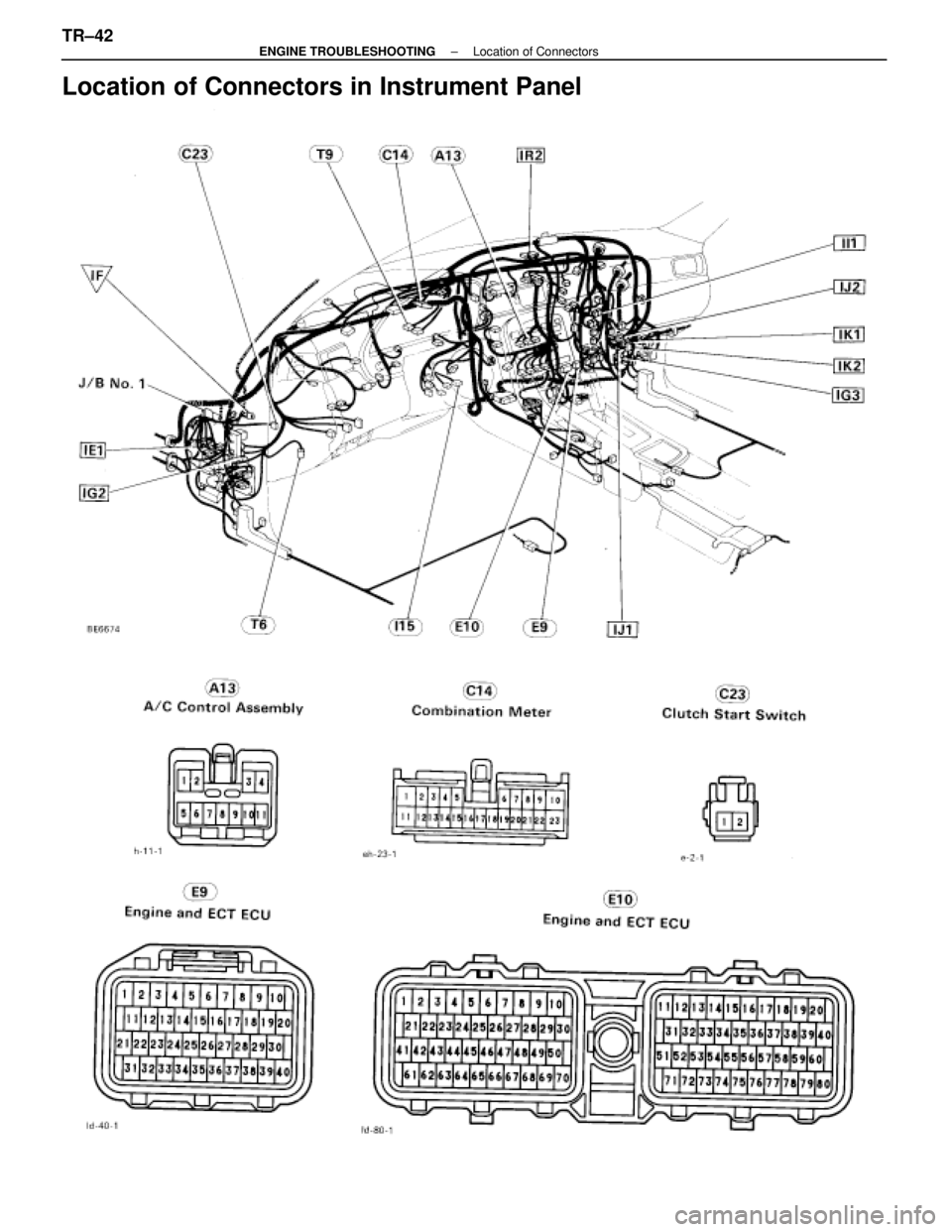

LEXUS SC400 1991 Service Repair Manual LOCATION OF CONNECTORS Location of Connectors in Engine Compartment TR±40± ENGINE TROUBLESHOOTING Location of Connectors WhereEverybodyKnowsYourName

Page 3644 of 4087

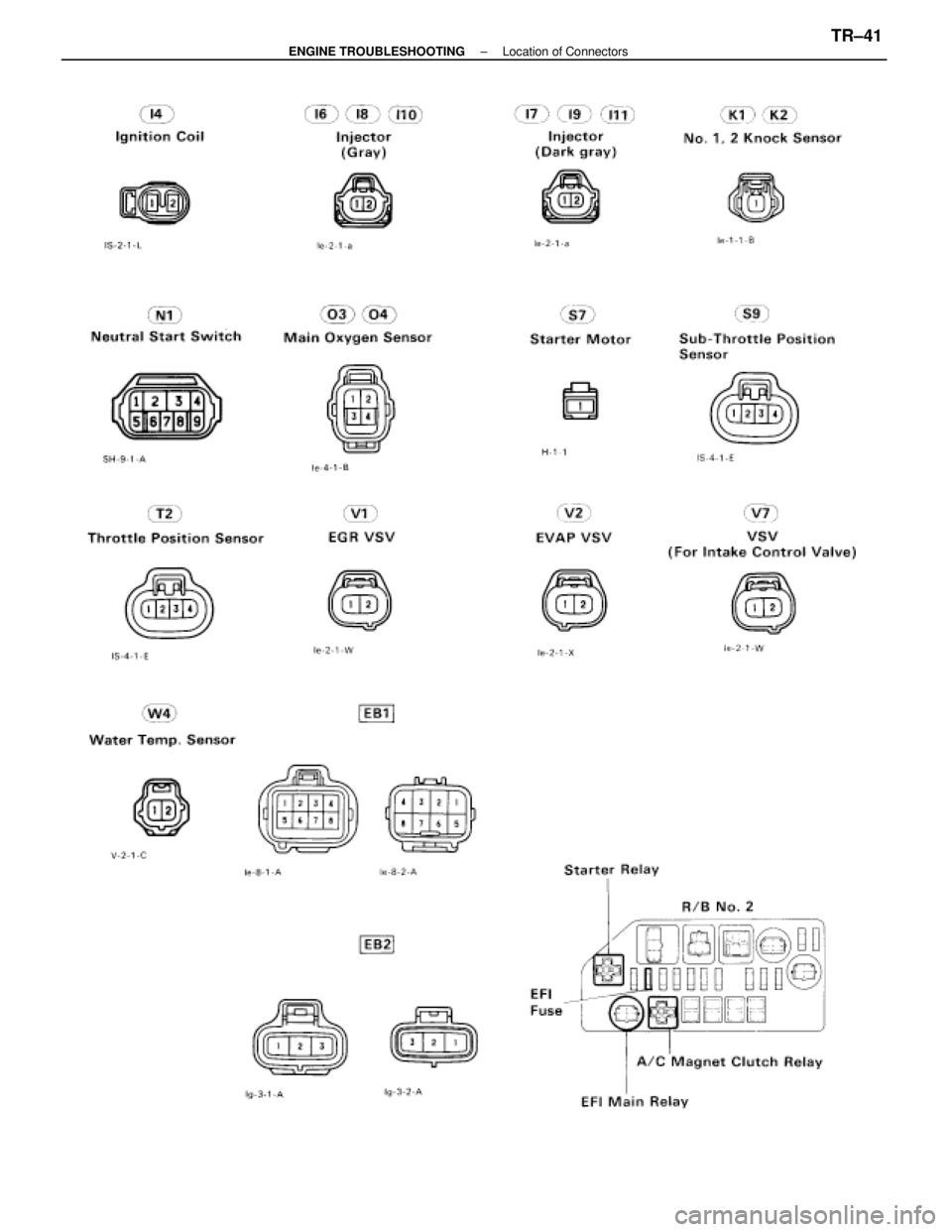

LEXUS SC400 1991 Service Repair Manual ± ENGINE TROUBLESHOOTING Location of ConnectorsTR±41 WhereEverybodyKnowsYourName

Page 3645 of 4087

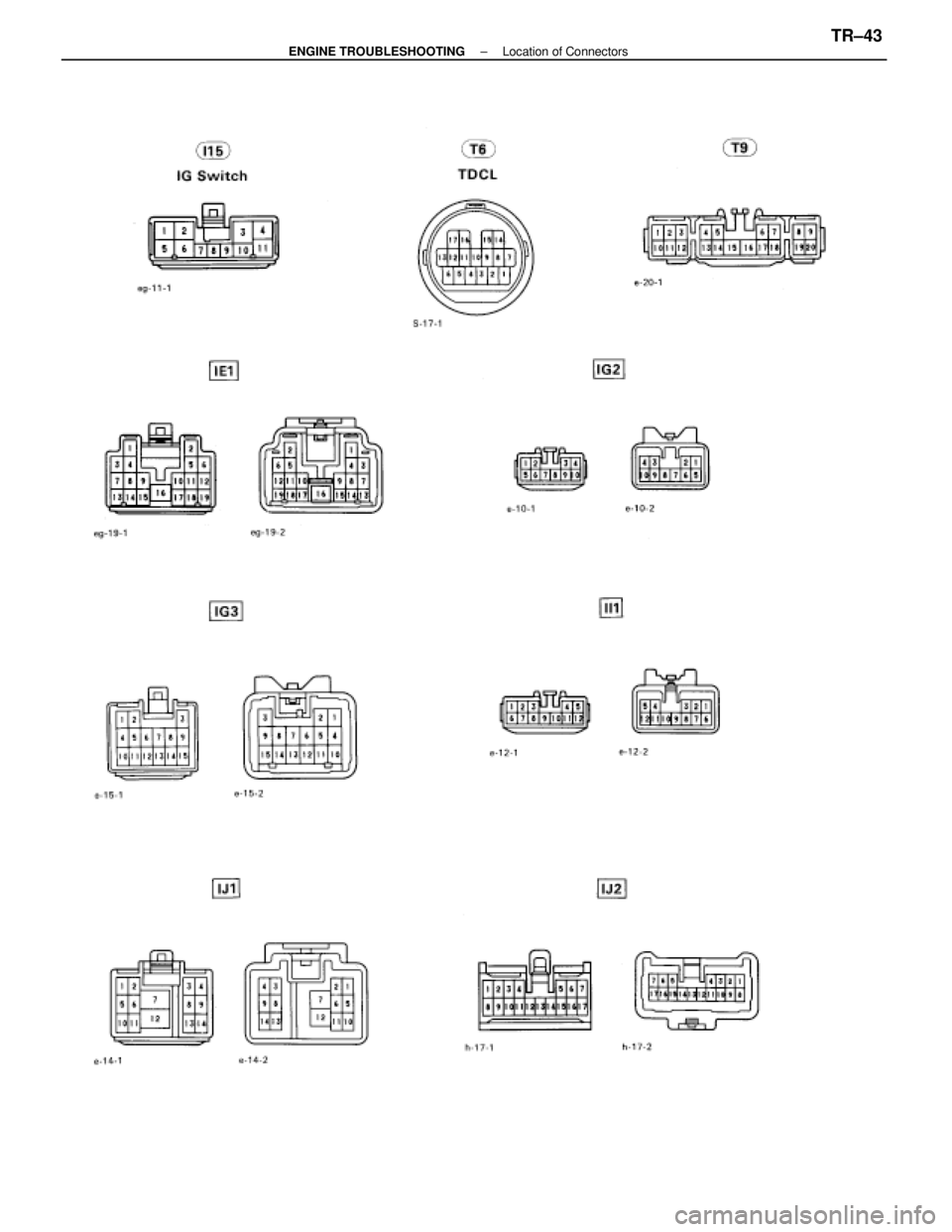

LEXUS SC400 1991 Service Repair Manual Location of Connectors in Instrument Panel TR±42± ENGINE TROUBLESHOOTING Location of Connectors WhereEverybodyKnowsYourName

Page 3646 of 4087

LEXUS SC400 1991 Service Repair Manual ± ENGINE TROUBLESHOOTING Location of ConnectorsTR±43 WhereEverybodyKnowsYourName

Page 3647 of 4087

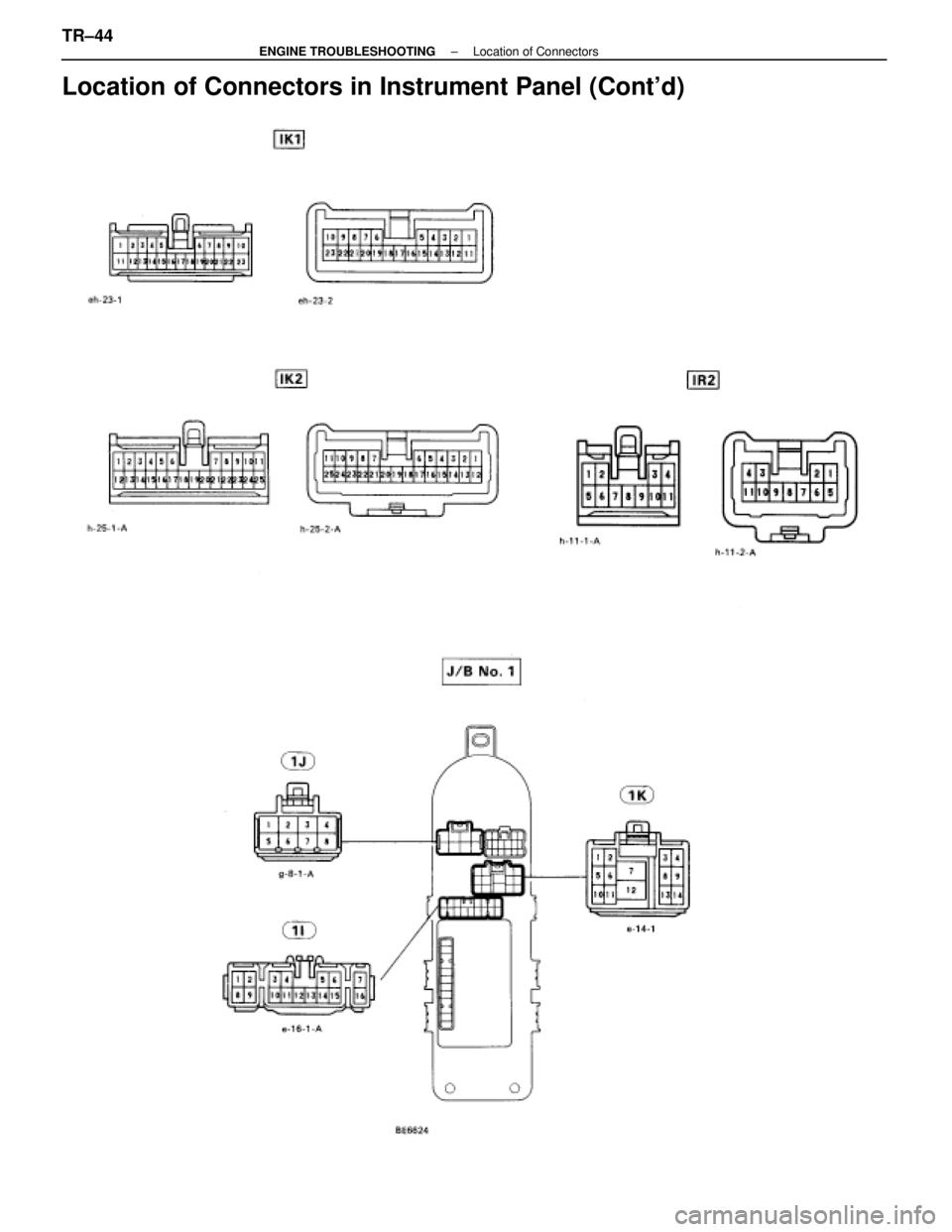

LEXUS SC400 1991 Service Repair Manual Location of Connectors in Instrument Panel (Contd) TR±44± ENGINE TROUBLESHOOTING Location of Connectors WhereEverybodyKnowsYourName

Page 3648 of 4087

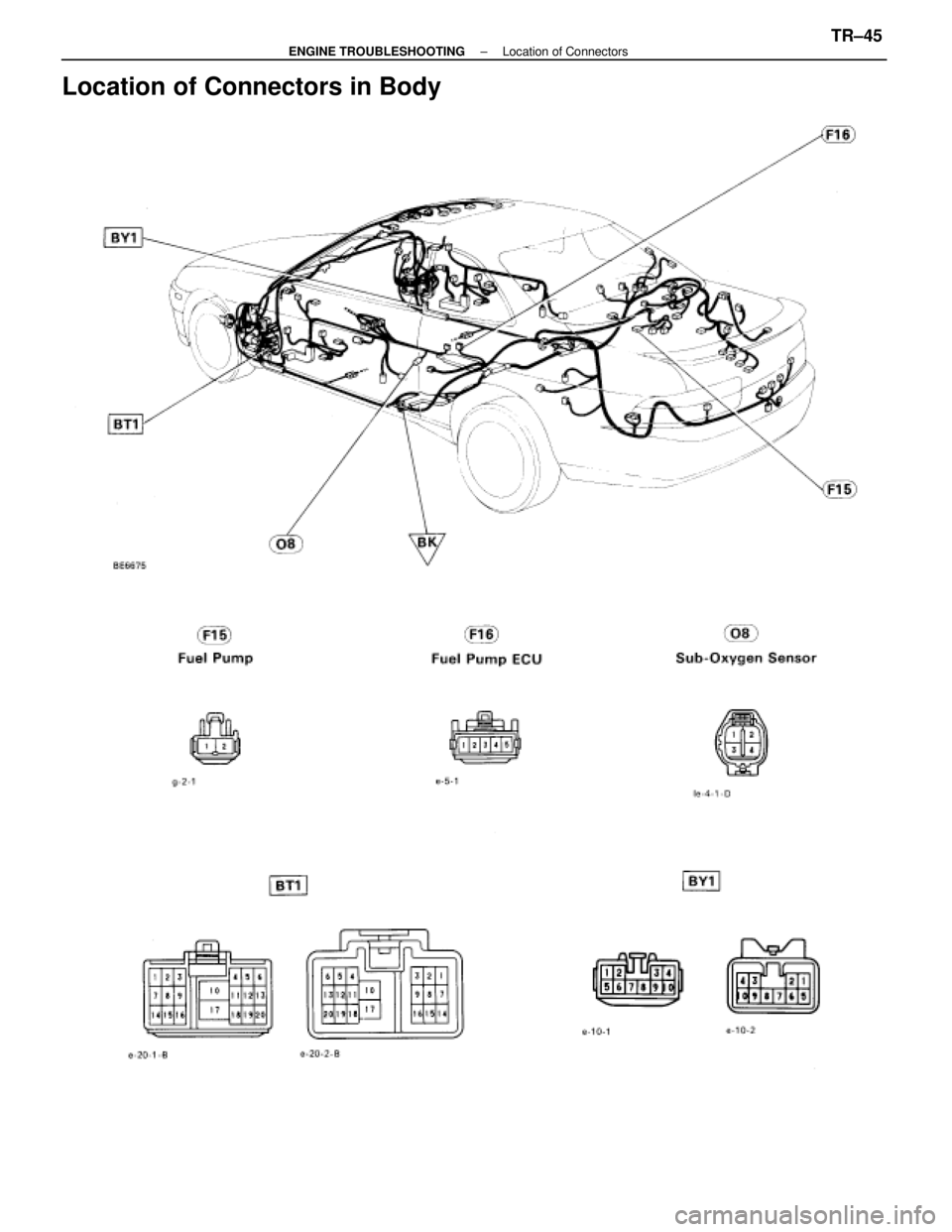

LEXUS SC400 1991 Service Repair Manual Location of Connectors in Body ± ENGINE TROUBLESHOOTING Location of ConnectorsTR±45 WhereEverybodyKnowsYourName
