Page 3625 of 4087

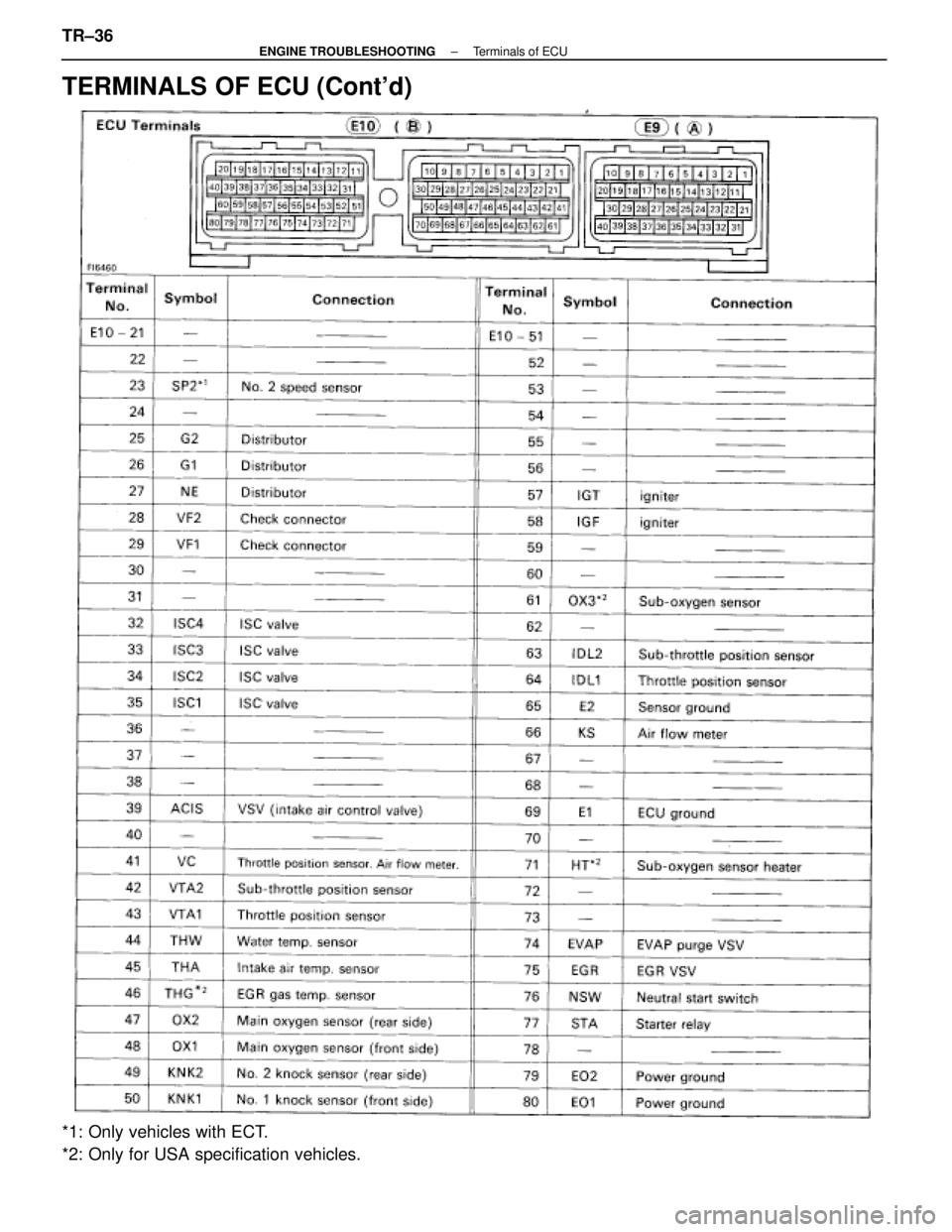

LEXUS SC400 1991 Service Repair Manual TERMINALS OF ECU *1: Only vehicles with ECT. ± ENGINE TROUBLESHOOTING Terminals of ECUTR±35 WhereEverybodyKnowsYourName

Page 3626 of 4087

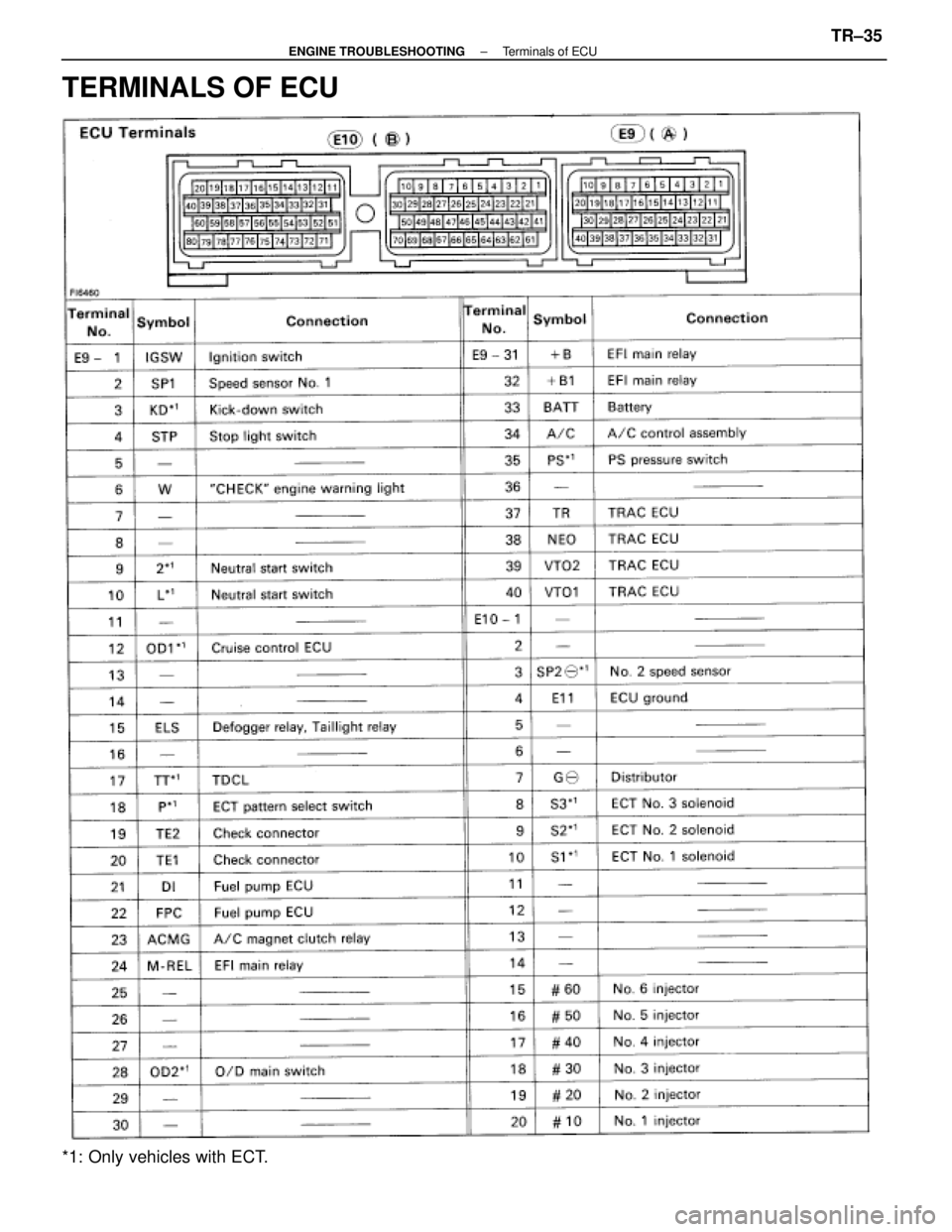

LEXUS SC400 1991 Service Repair Manual TERMINALS OF ECU (Contd) *1: Only vehicles with ECT. *2: Only for USA specification vehicles. TR±36 ± ENGINE TROUBLESHOOTING Terminals of ECU WhereEverybodyKnowsYourName

Page 3627 of 4087

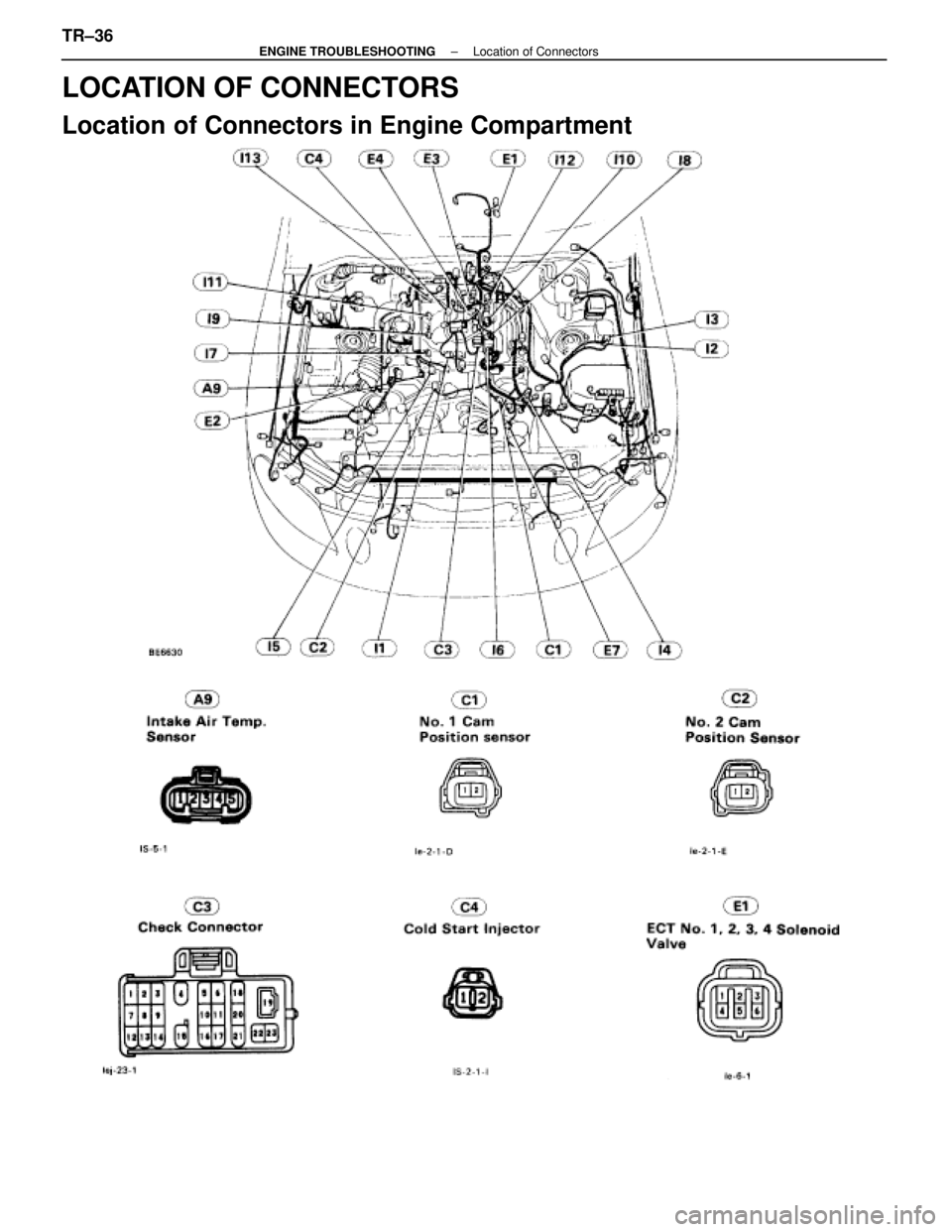

LEXUS SC400 1991 Service Repair Manual TR±88 TR±10 0 TR±12 2 TR±13 0 TR±13 6 TR±14 0 TR±11 4 TR±14 2 TR±108 TR±11 8 TR±12 4 TR±13 2 AC±84 ST±24 IG±24 IG±6 EM±30 AT±66 IN±32BE±381IG±7 IG±9 MATRIX CHART OF PROBLEM SYMP

Page 3628 of 4087

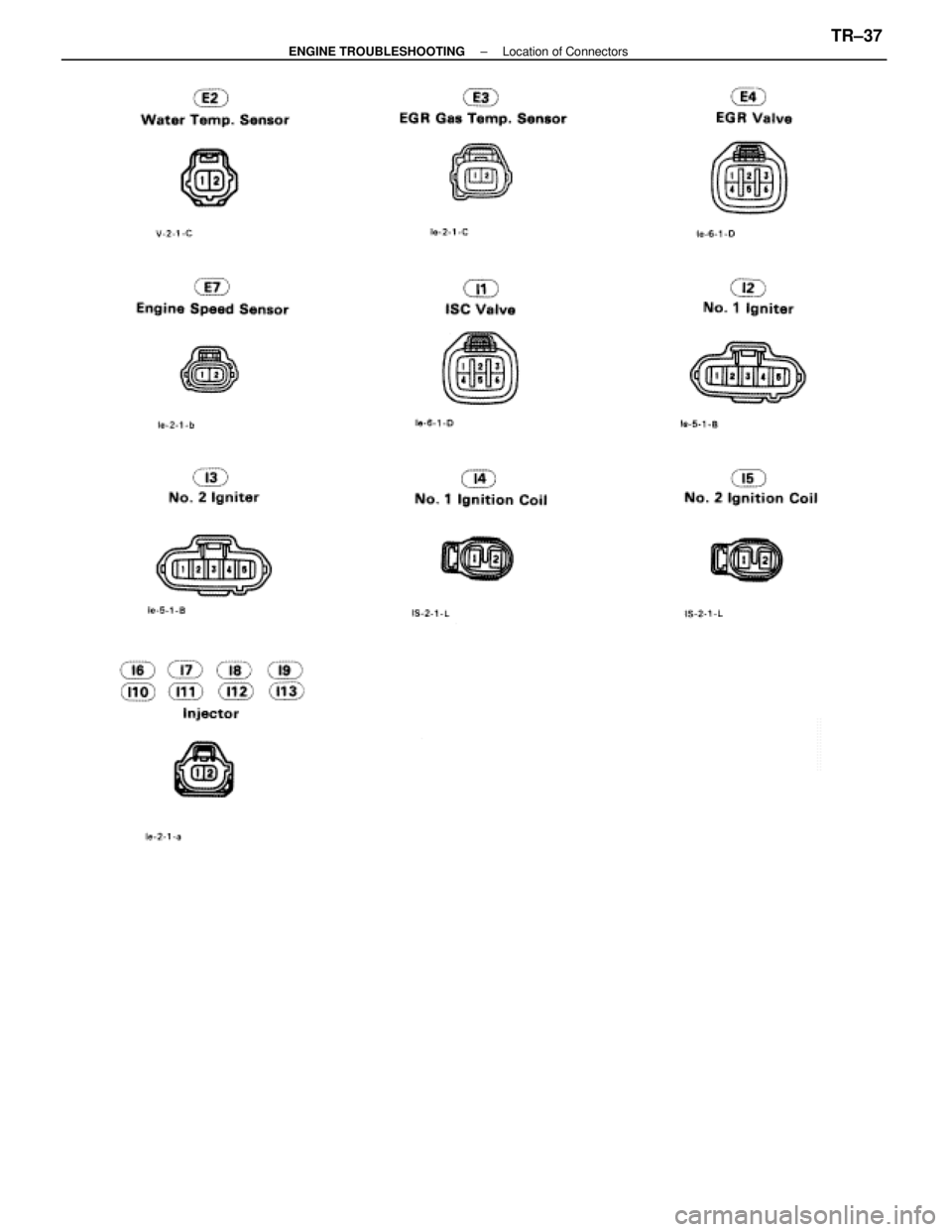

LEXUS SC400 1991 Service Repair Manual LOCATION OF CONNECTORS Location of Connectors in Engine Compartment TR±36± ENGINE TROUBLESHOOTING Location of Connectors WhereEverybodyKnowsYourName

Page 3629 of 4087

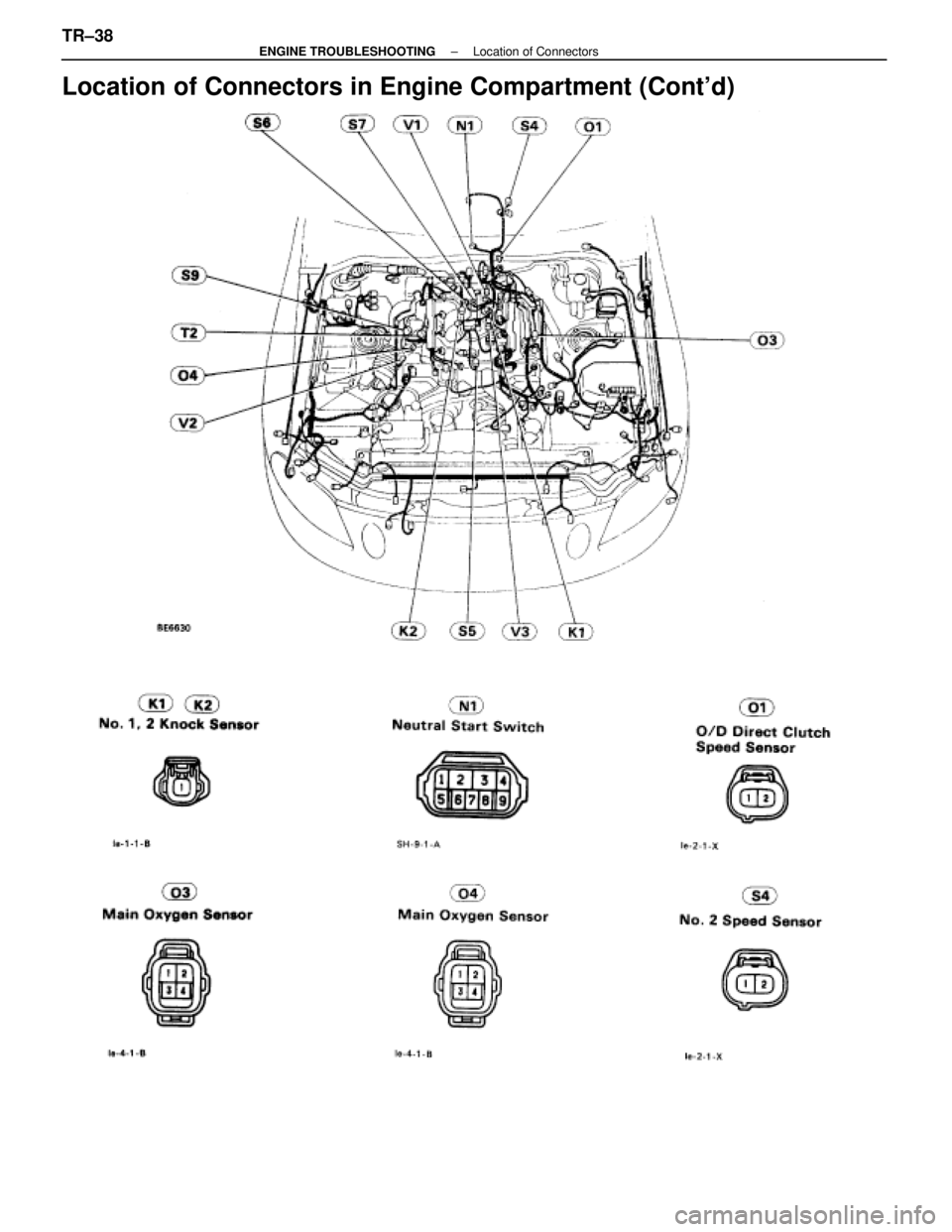

LEXUS SC400 1991 Service Repair Manual ± ENGINE TROUBLESHOOTING Location of ConnectorsTR±37 WhereEverybodyKnowsYourName

Page 3630 of 4087

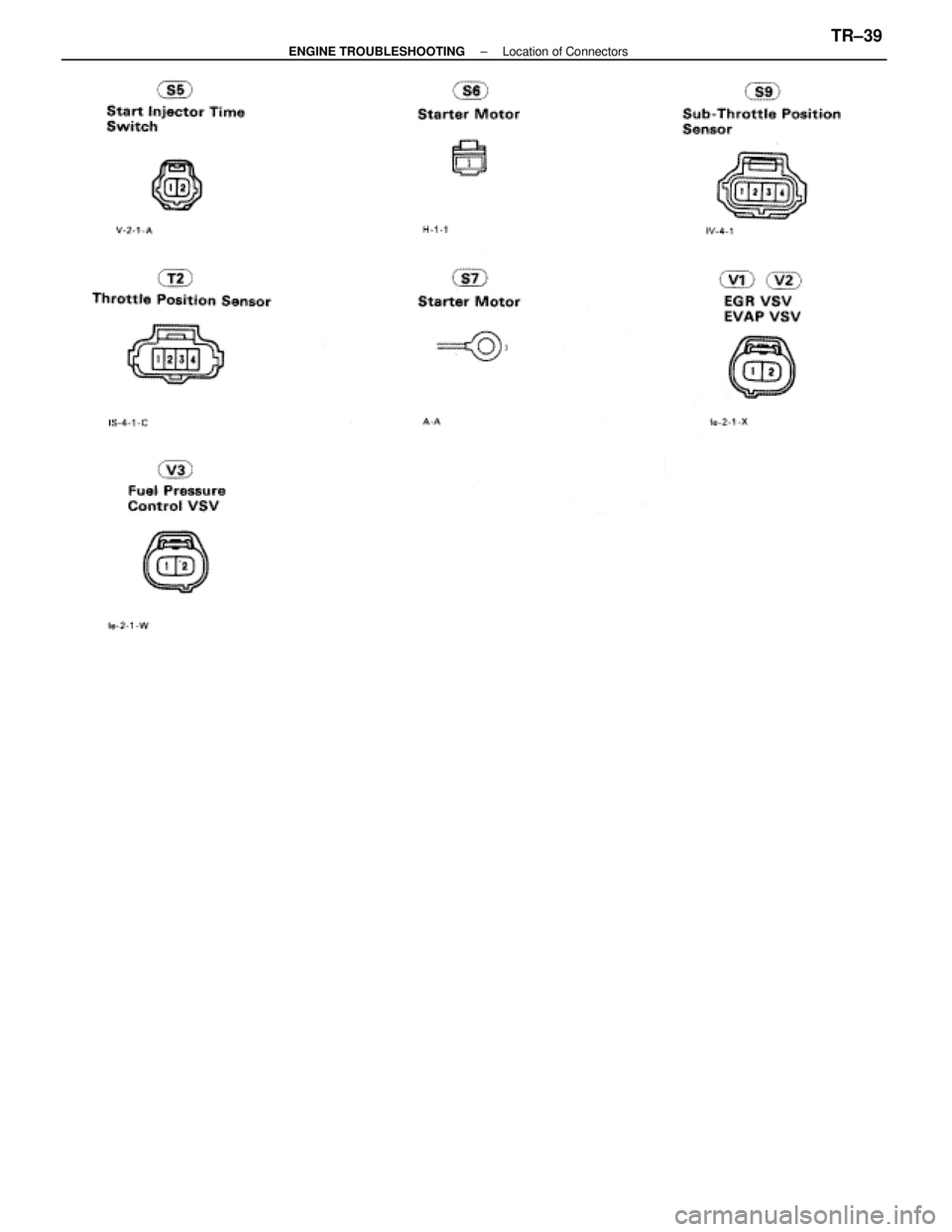

LEXUS SC400 1991 Service Repair Manual Location of Connectors in Engine Compartment (Contd) TR±38± ENGINE TROUBLESHOOTING Location of Connectors WhereEverybodyKnowsYourName

Page 3631 of 4087

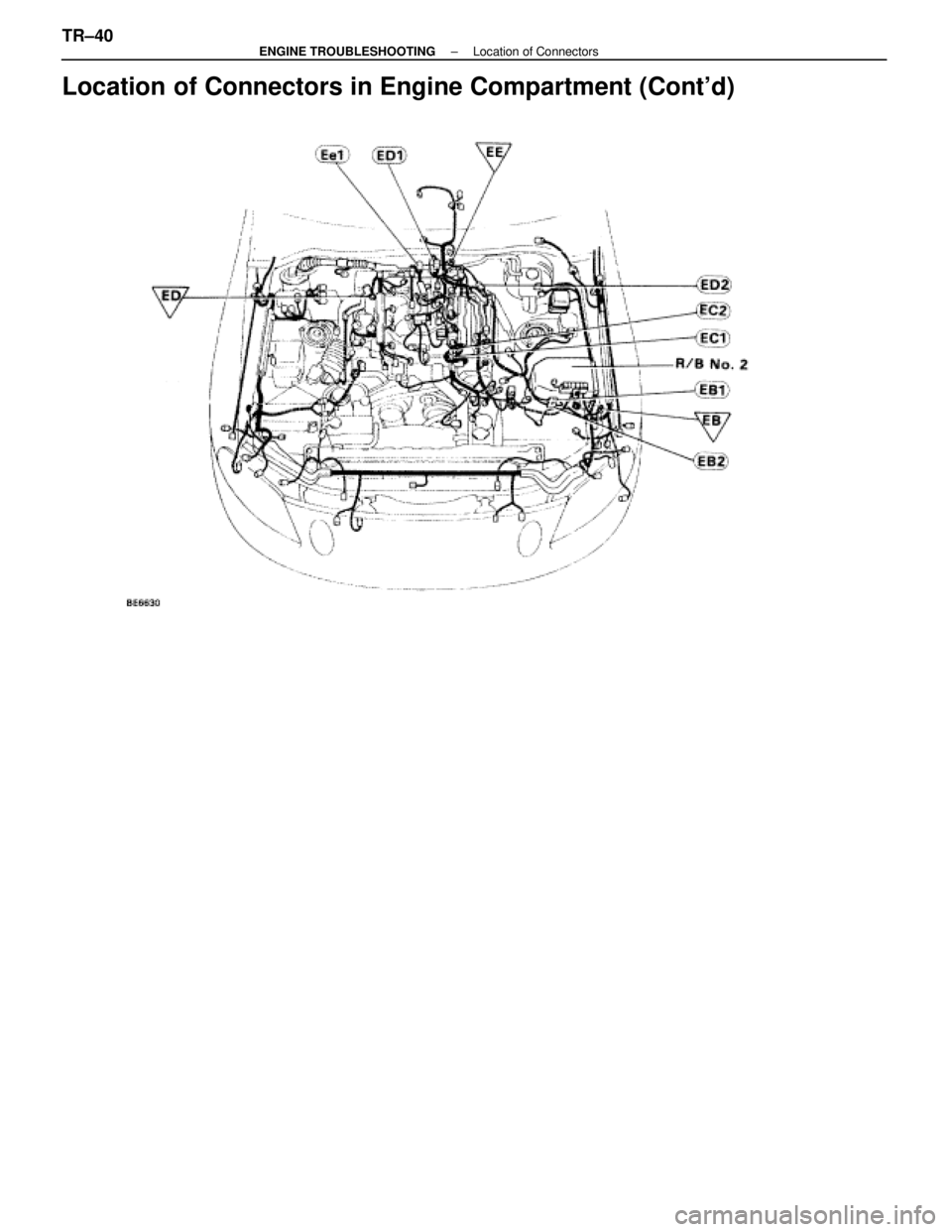

LEXUS SC400 1991 Service Repair Manual ± ENGINE TROUBLESHOOTING Location of ConnectorsTR±39 WhereEverybodyKnowsYourName

Page 3632 of 4087

LEXUS SC400 1991 Service Repair Manual Location of Connectors in Engine Compartment (Contd) TR±40± ENGINE TROUBLESHOOTING Location of Connectors WhereEverybodyKnowsYourName
