Page 897 of 4087

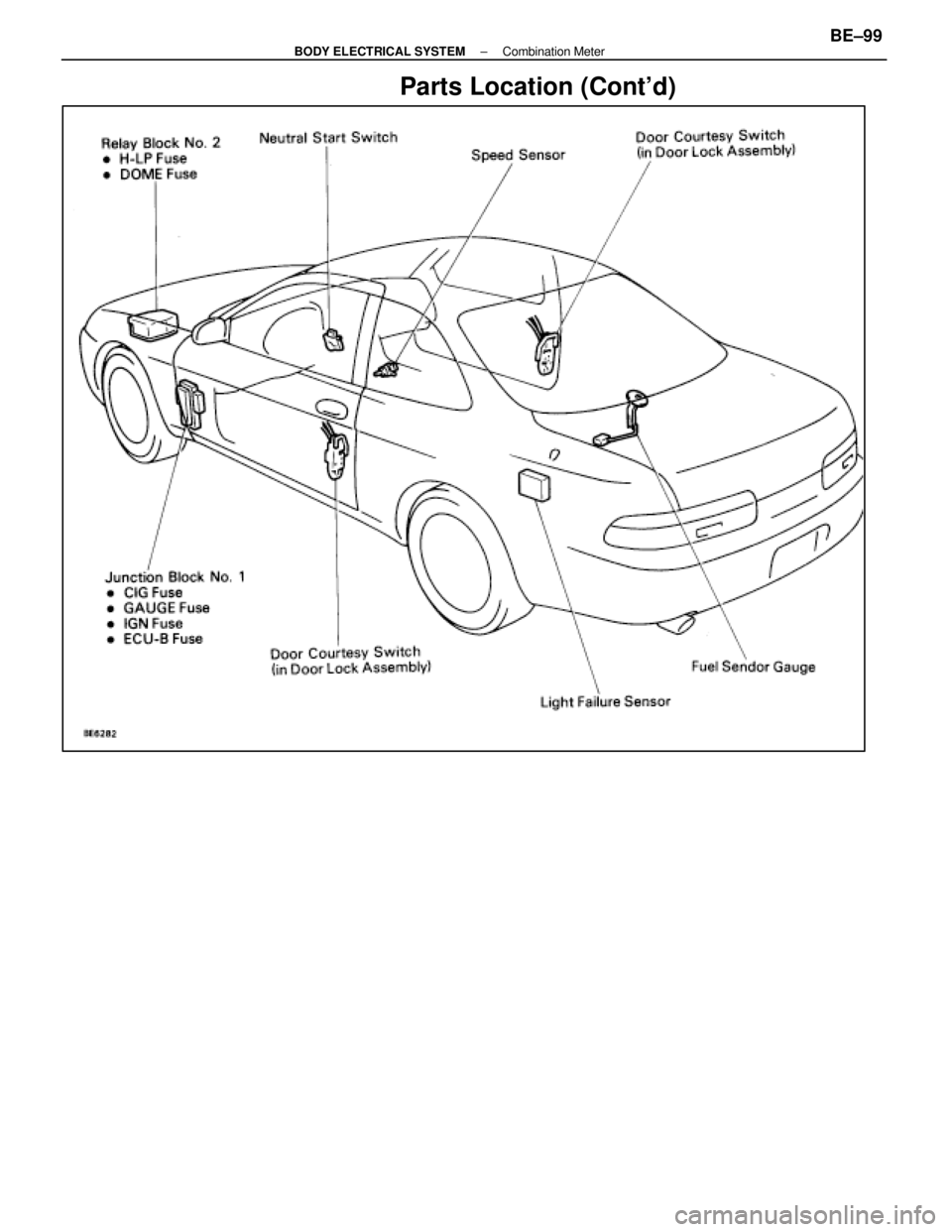

LEXUS SC400 1991 Service Repair Manual Parts Location BE±98± BODY ELECTRICAL SYSTEM Combination Meter WhereEverybodyKnowsYourName

Page 898 of 4087

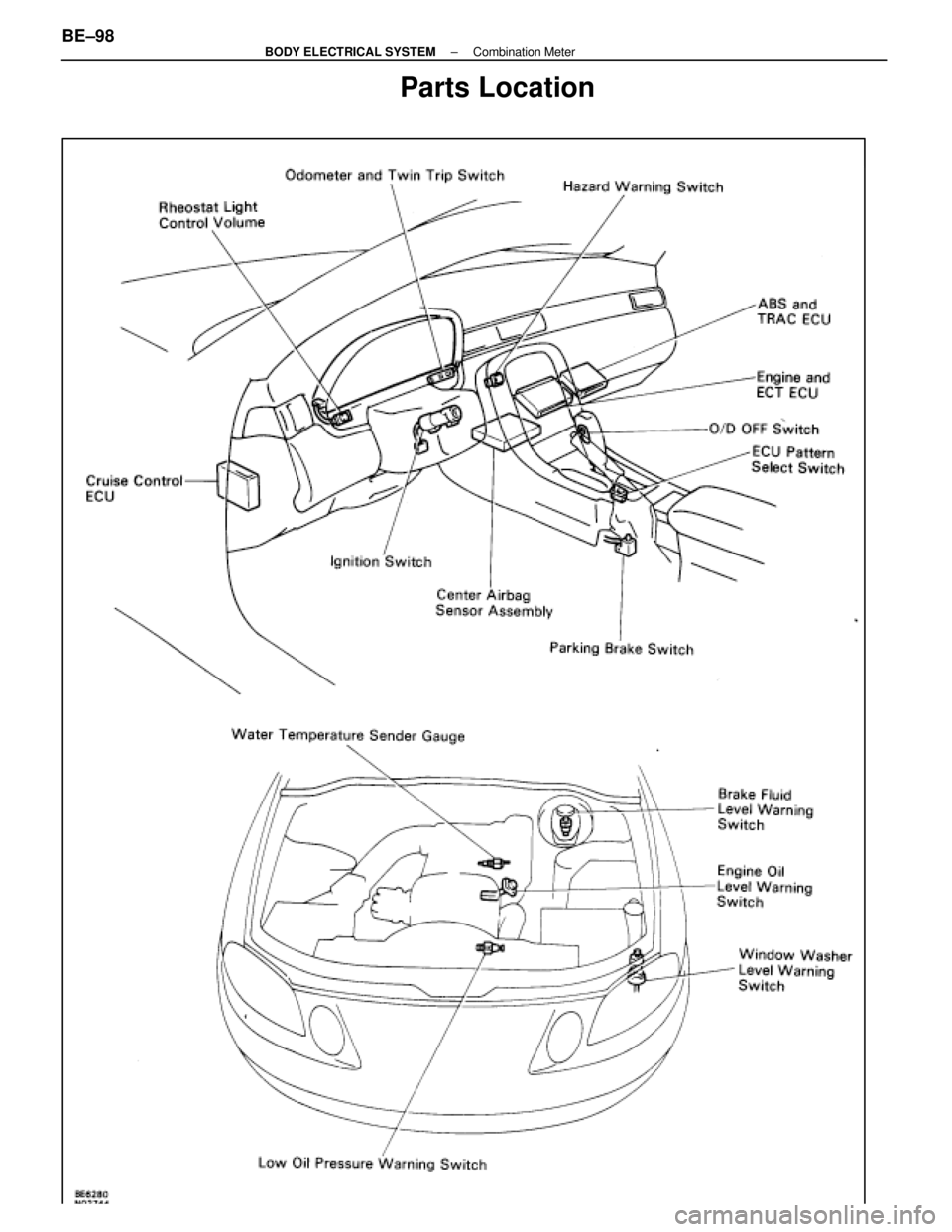

LEXUS SC400 1991 Service Repair Manual Parts Location (Contd) ± BODY ELECTRICAL SYSTEM Combination MeterBE±99 WhereEverybodyKnowsYourName

Page 899 of 4087

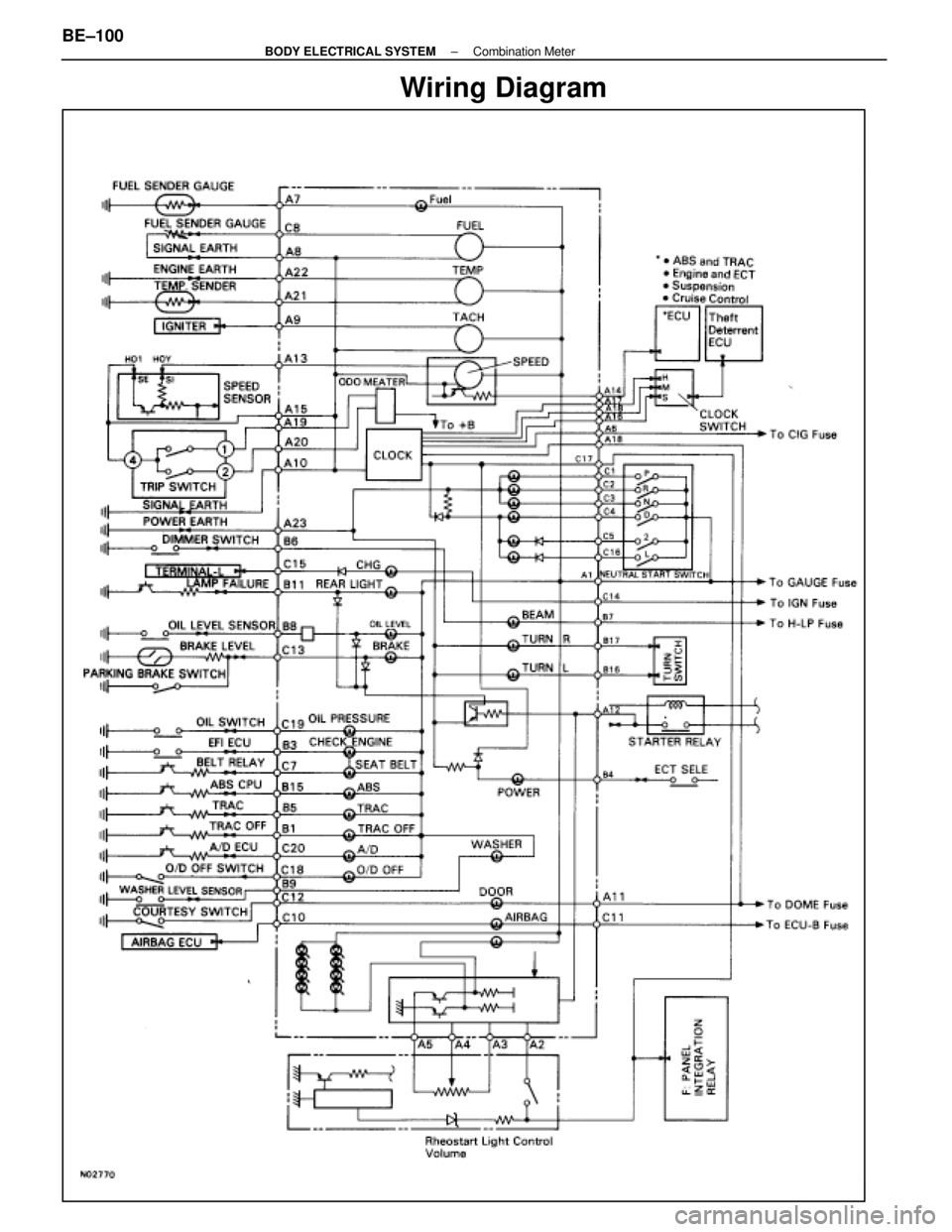

LEXUS SC400 1991 Service Repair Manual Wiring Diagram BE±100± BODY ELECTRICAL SYSTEM Combination Meter WhereEverybodyKnowsYourName

Page 900 of 4087

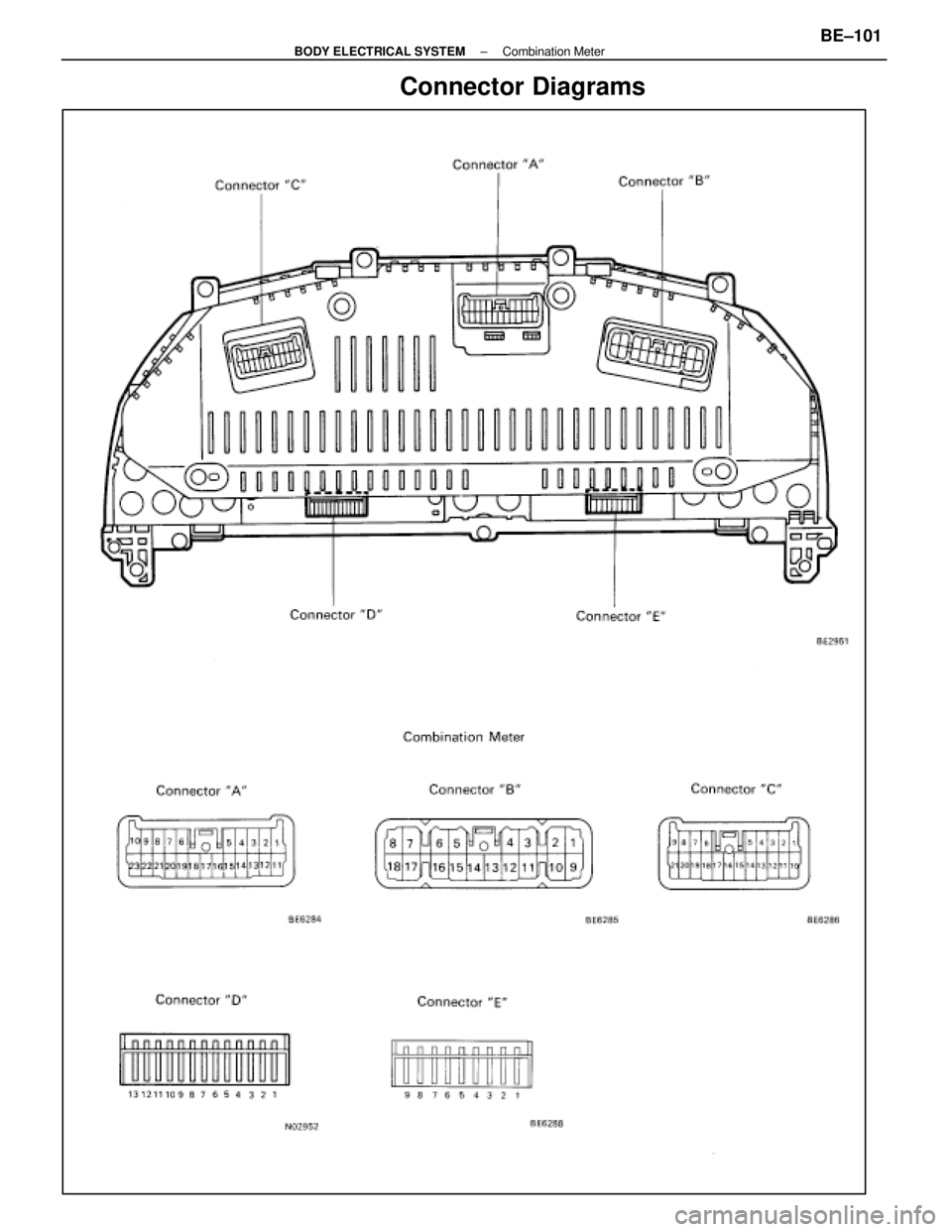

LEXUS SC400 1991 Service Repair Manual Connector Diagrams ± BODY ELECTRICAL SYSTEM Combination MeterBE±101 WhereEverybodyKnowsYourName

Page 901 of 4087

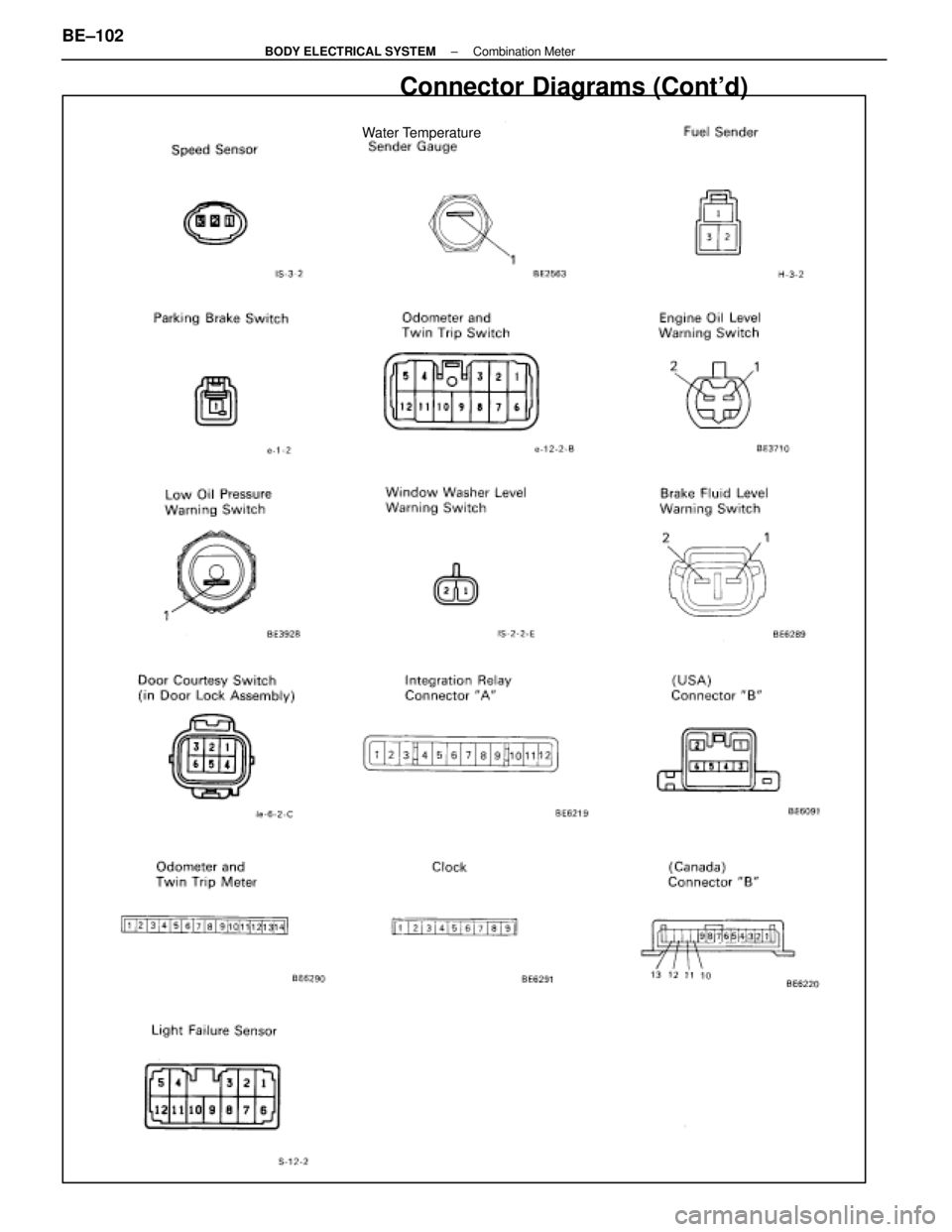

LEXUS SC400 1991 Service Repair Manual Water Temperature Connector Diagrams (Contd) BE±102± BODY ELECTRICAL SYSTEM Combination Meter WhereEverybodyKnowsYourName

Page 902 of 4087

LEXUS SC400 1991 Service Repair Manual Parts Inspection (Combination Meter Assembly) REMOVAL AND INSTALLATION OF COMBINATION METER ASSEMBLY 1. REMOVE COMBINATION METER ASSEMBLY(a) Lower the steering wheel fully and set it in the far pos

Page 903 of 4087

LEXUS SC400 1991 Service Repair Manual DISASSEMBLY OF COMBINATION METER ASSEMBLY (Components) BE±104± BODY ELECTRICAL SYSTEM Combination Meter WhereEverybodyKnowsYourName

Page 904 of 4087

LEXUS SC400 1991 Service Repair Manual 1. REMOVE COVER(a) Remove the seven screws. (b) Remove the cover from the meter case. 2. REMOVE METER GLASS (a) Remove the twelve screws. (b) Remove the character plate from the meter plate. 3.
