BODY OPENING AREAS (Rear View)
(Three±Dimensional Distance)
BO±134
±
BODY Body Dimensions (Body Dimension Drawings)
WhereEverybodyKnowsYourName
Page 490 of 4087

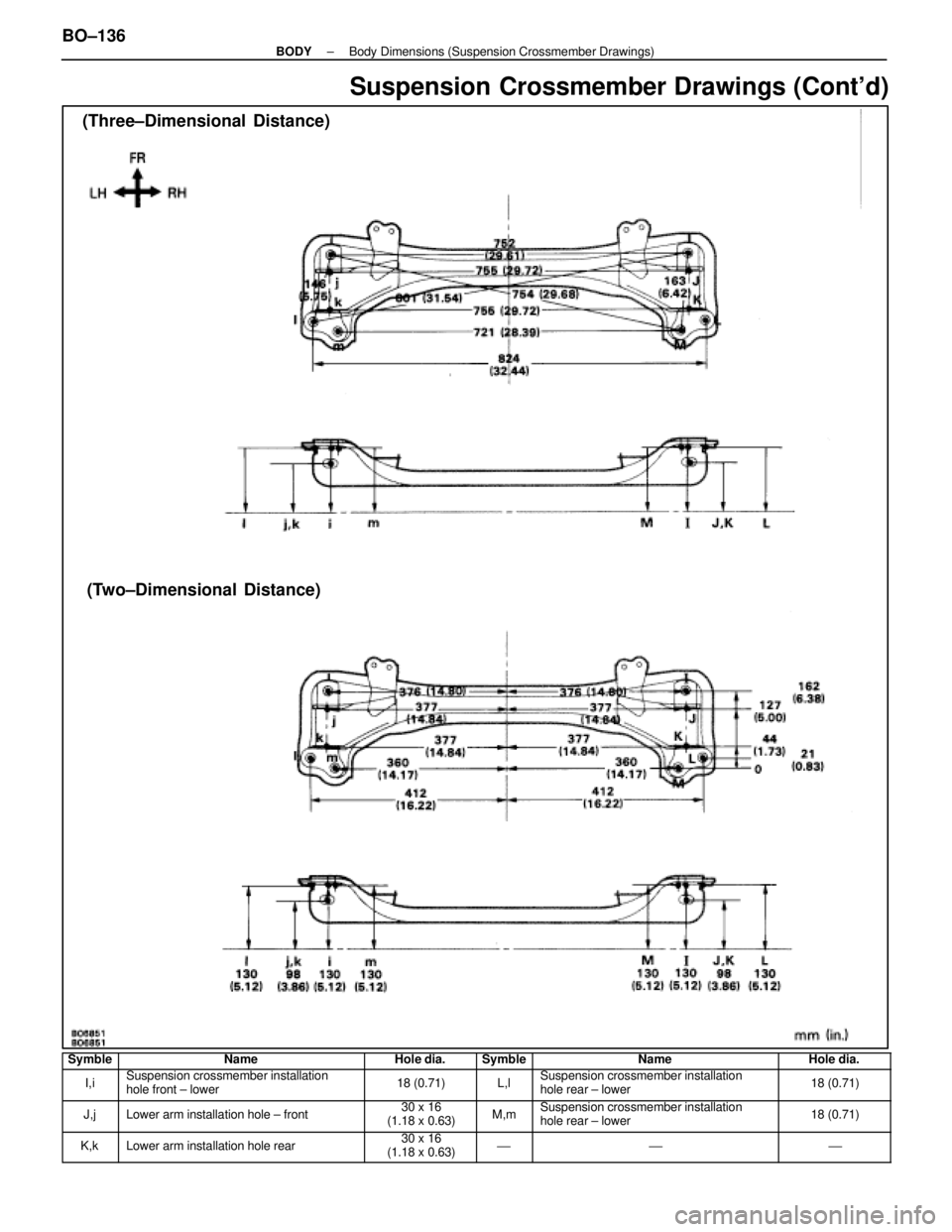

Suspension Crossmember Drawings
(Three±Dimensional Distance)
(Two±Dimensional Distance)
SymbleNameHole dia.SymbleNameHole dia.
A,aSteering gear box installation hole front12 (0.47)E,eLower arm installation hole ± front25 x 16
(0.98 x 0.63)
B,bUpper arm installation hole front14 (0.55)F, fLower arm installation hole rear25 x 16
(0.98 x 0.63)
C,cSuspension crossmember installation
hole front ± lower15 (0.59)G,gLower arm installation hole rear14 (0.55)
D,dSteering gear box installation
hole ± lower12 (0.47)H,hSuspension crossmember installation
hole rear ± lowerRH 15 x 13
(0.59 x 0.51)
LH 13 x (0.51)
±
BODY Body Dimensions (Suspension Crossmember Drawings)BO±135
WhereEverybodyKnowsYourName
Page 491 of 4087

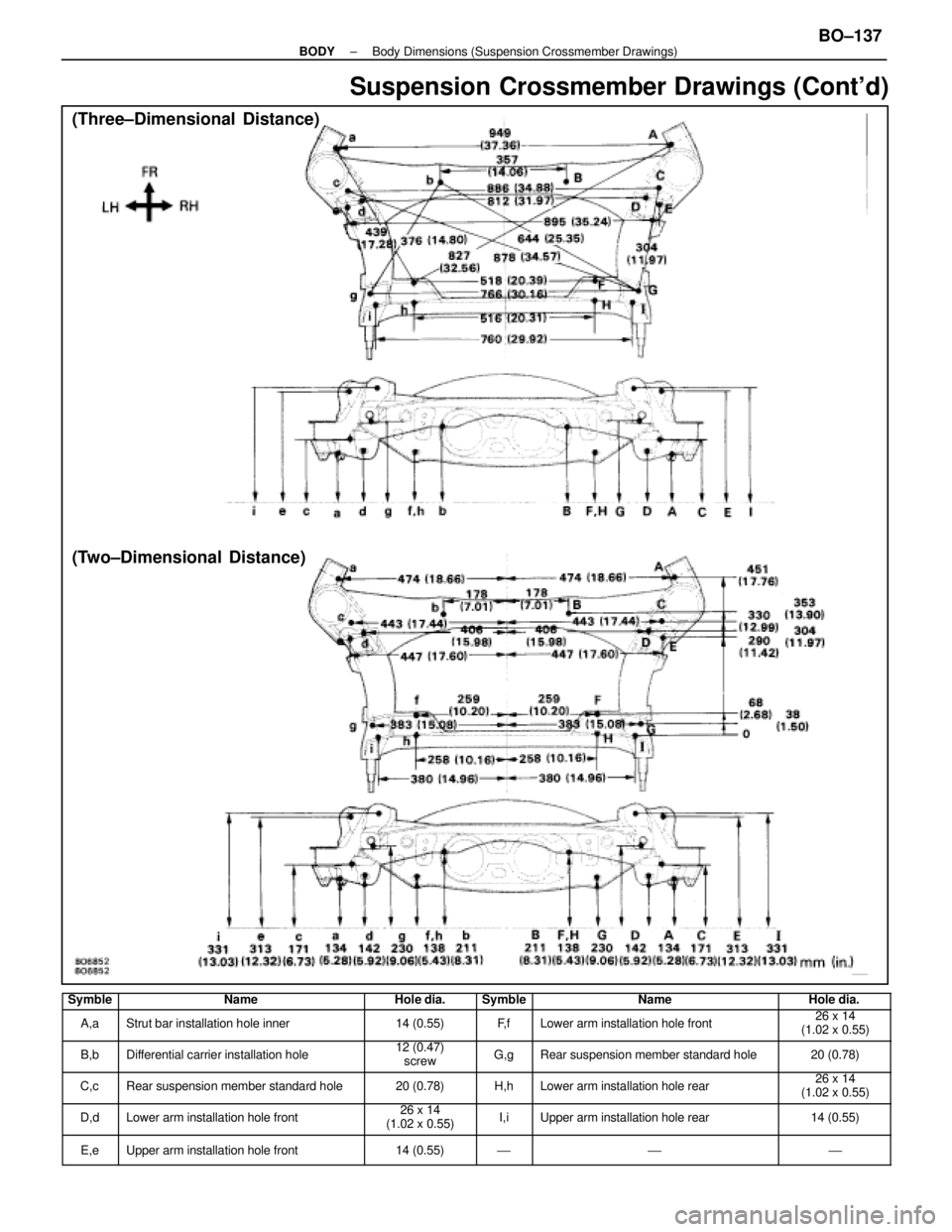

Suspension Crossmember Drawings (Cont'd)
(Three±Dimensional Distance)(Two±Dimensional Distance)
SymbleNameHole dia.SymbleNameHole dia.
I,iSuspension crossmember installation
hole front ± lower18 (0.71)L,lSuspension crossmember installation
hole rear ± lower18 (0.71)
J,jLower arm installation hole ± front30 x 16
(1.18 x 0.63)M,mSuspension crossmember installation
hole rear ± lower18 (0.71)
K,kLower arm installation hole rear30 x 16
(1.18 x 0.63)'''
BO±136±
BODY Body Dimensions (Suspension Crossmember Drawings)
WhereEverybodyKnowsYourName
Page 492 of 4087
Suspension Crossmember Drawings (Cont'd)
(Three±Dimensional Distance)
(Two±Dimensional Distance)
SymbleNameHole dia.SymbleNameHole dia.
A,aStrut bar installation hole inner14 (0.55)F, fLower arm installation hole front26 x 14
(1.02 x 0.55)
B,bDifferential carrier installation hole12 (0.47) screwG,gRear suspension member standard hole20 (0.78)
C,cRear suspension member standard hole20 (0.78)H,hLower arm installation hole rear26 x 14
(1.02 x 0.55)
D,dLower arm installation hole front26 x 14
(1.02 x 0.55)I,iUpper arm installation hole rear14 (0.55)
E,eUpper arm installation hole front14 (0.55)'''
±
BODY Body Dimensions (Suspension Crossmember Drawings)BO±137
WhereEverybodyKnowsYourName
Page 493 of 4087
SERVICE SPECIFICATIONS
TORQUE SPECIFICATIONS
Part tightenedNVmkgf Vcmft Vlbf
HOOD
Hood support X Hood22225 16
Hood support X Body22225 16
TRANSPORT HOOK
Front Transport Hook
Front transport hook X Body64650 47
Rear Transport Hook
Rear transport hook X Body64650 47
SEAT
Front seat
Power seat regulator X Body37375 27
Seat back assembly X Seat cushion assembly26260 19
Power seat regulator X Seat cushion assembly26260 19
Rear seat
Rear seat back X Body18185 13
SEAT BELT
Front Seat Belt
Front seat outer belt anchor X Body43440 32
Front seat outer belt lower side X Body43440 32
ELR X Body43440 32
Front seat inner belt X Power seat regulator43440 32
Rear Seat Belt
Rear seat outer belt anchor X Body43440 32
ELR X Body43440 32
Rear seat inner belt X Body43440 32
BUMPER
Front Bumper
Front bumper reinforcement X Body13130 9.4
Rear Bumper
Rear bumper reinforcement X Body131309.4
BO±138±
BODY Service Specifications
WhereEverybodyKnowsYourName
Page 494 of 4087
Specifications

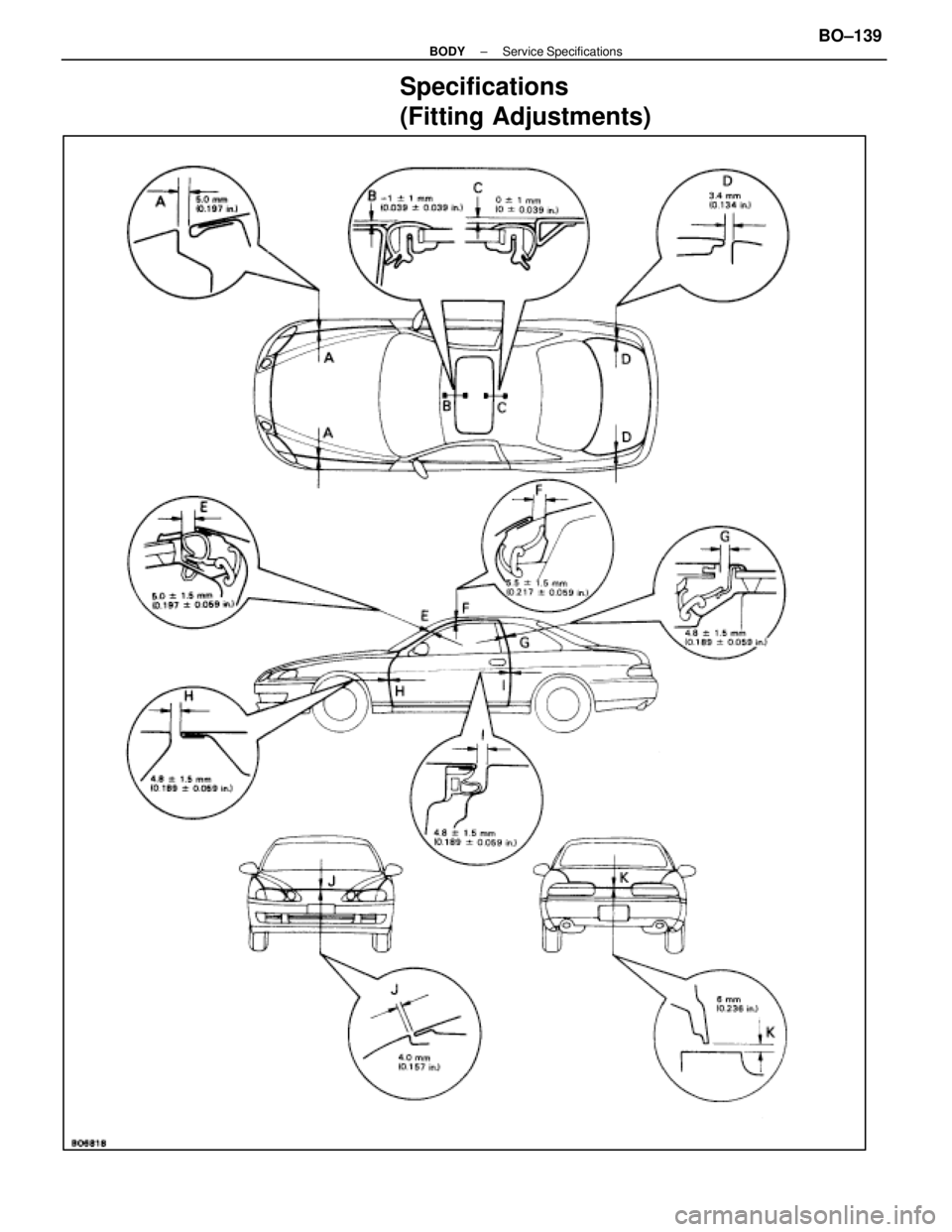

(Fitting Adjustments)
±
BODY Service SpecificationsBO±139
WhereEverybodyKnowsYourName
Page 495 of 4087
BODY
BO±1
WhereEverybodyKnowsYourName
Page 496 of 4087

ExampleGENERAL INFORMATION
HANDLING PRECAUTIONS
Taping

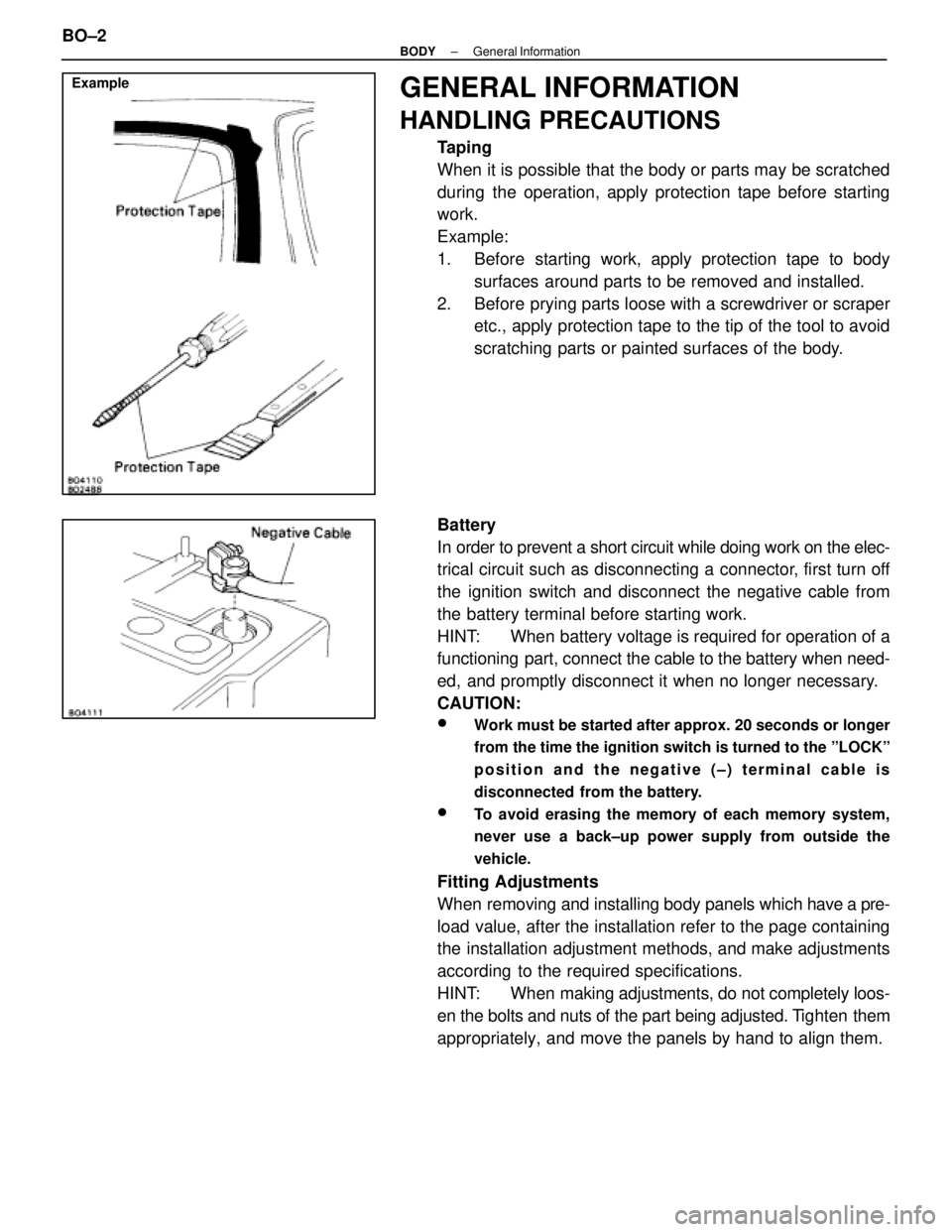

When it is possible that the body or parts may be scratched
during the operation, apply protection tape before starting
work.
Example:
1. Before starting work, apply protection tape to bodysurfaces around parts to be removed and installed.
2. Before prying parts loose with a screwdriver or scraper etc., apply protection tape to the tip of the tool to avoid
scratching parts or painted surfaces of the body.
Battery
In order to prevent a short circuit while doing work on the elec-
trical circuit such as disconnecting a connector, first turn off
the ignition switch and disconnect the negative cable from
the battery terminal before starting work.
HINT: When battery voltage is required for operation of a
functioning part, connect the cable to the battery when need-
ed, and promptly disconnect it when no longer necessary.
CAUTION:
wWork must be started after approx. 20 seconds or longer
from the time the ignition switch is turned to the ºLOCKº
position and the negative (±) terminal cable is
disconnected from the battery.
wTo avoid erasing the memory of each memory system,
never use a back±up power supply from outside the
vehicle.
Fitting Adjustments
When removing and installing body panels which have a pre-
load value, after the installation refer to the page containing
the installation adjustment methods, and make adjustments
according to the required specifications.
HINT: When making adjustments, do not completely loos-
en the bolts and nuts of the part being adjusted. T ighten them
appropriately, and move the panels by hand to align them.
BO±2
±
