Page 2329 of 4087
COMPONENTS FOR SEPARATION AND
ASSEMBLY OF ENGINE AND
TRANSMISSION
SEPARATION OF ENGINE AND
TRANSMISSION
1. REMOVE OIL DIPSTICK GUIDE FOR TRANSMISSION(a) Remove the mounting bolt.
(b) P u ll ou t th e dip stick gu id e an d dip stick fro m th etransmission.
(c) Remove the O±ring from the dipstick guide.
2. REMOVE OIL COOLER PIPES FOR TRANSMISSION (a) Remove the two mounting bolts.
(b) Loosen the two union nuts, and remove the oil coolerpipes.
±
ENGINE MECHANICAL Cylinder BlockEM±129
WhereEverybodyKnowsYourName
Page 2330 of 4087
3. DISCONNECT ENGINE WIRE FROM TRANSMISSION(a) Disconnect the following connectors:(1) O/D direct clutch speed sensor connector
(2) No.1 speed sensor connector
(3) No.2 speed sensor connector
(4) Neutral start switch connector
(b) Disconnect the five wire clamps from the brackets on the
transmission.
4. SEPARATE ENGINE AND TRANSMISSION (See AT section)
EM±130
±
ENGINE MECHANICAL Cylinder Block
WhereEverybodyKnowsYourName
Page 2331 of 4087

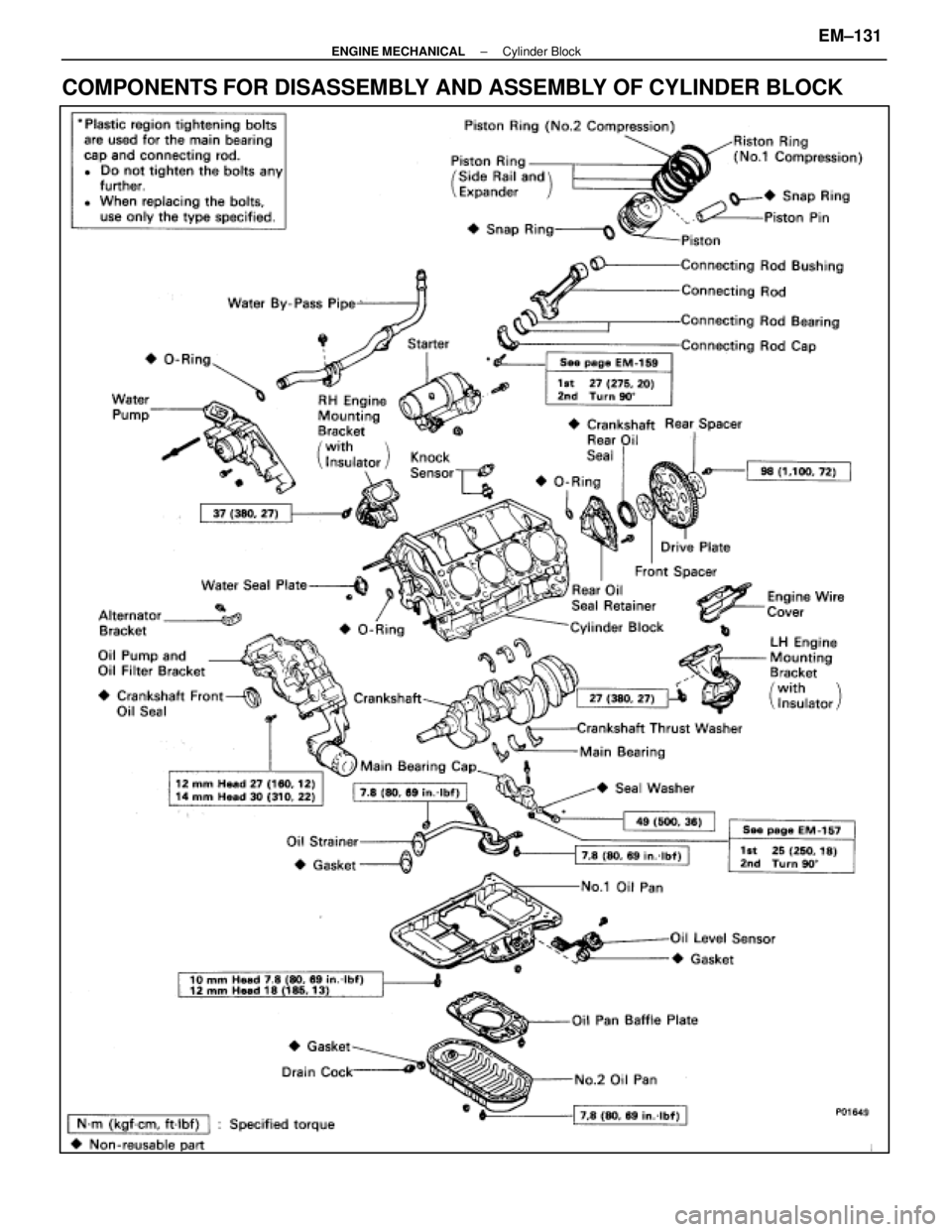

COMPONENTS FOR DISASSEMBLY AND ASSEMBLY OF CYLINDER BLOCK
±
ENGINE MECHANICAL Cylinder BlockEM±131
WhereEverybodyKnowsYourName
Page 2332 of 4087
PREPARATION FOR DISASSEMBLY
(See Components on page EM±131)
1. REMOVE DRIVE PLATE Remove the eight bolts, two spacers and drive plate.
2. INSTALL ENGINE TO ENGINE STAND FOR DISASSEMBLY
3. REMOVE TIMING BELT AND PULLEYS (See pages EM±36 to 44)
4. REMOVE Cylinder Block (See pages EM±61 to 75)
5. REMOVE RH ENGINE MOUNTING BRACKET Remove the four bolts and mounting bracket.
6. REMOVE LH ENGINE MOUNTING BRACKET (a) Remove the clamp bolt, and disconnect the engine wirefrom the engine mounting bracket.
(b) Remove the four bolts and mounting bracket.
7. REMOVE STARTER (a) Remove the two bolts, and disconnect the starter fromthe cylinder block.
EM±132
±
ENGINE MECHANICAL Cylinder Block
WhereEverybodyKnowsYourName
Page 2333 of 4087
(b) Disconnect the wire clamp from the bracket on thestarter.
(c) Remove the nut, and disconnect the wire.
(d) Disconnect the connector, and remove the starter.
8. REMOVE KNOCK SENSORS (a) Disconnect the two knock sensor connectors.
(b) Using SST, remove the two knock sensors.
SST 09816±30010
9. REMOVE WATER BY±PASS PIPE (a) Remove the two bolts.
(b) Pull out the by±pass pipe from the water pump.
(c) Remove the O±ring from the by±pass pipe.
10. REMOVE ENGINE WIRE (a) Disconnect the following connectors:(1) Oil level sensor connector
(2) Oil pressure switch connector
(b) Remove the three bolts and wire cover from the LH side
of the cylinder block.
(c) Remove the two bolts and engine wire.
±
ENGINE MECHANICAL Cylinder BlockEM±133
WhereEverybodyKnowsYourName
Page 2334 of 4087
11. REMOVE WATER PUMP(a) Remove the five mounting bolt, two mounting stud boltsand mounting nut.
(b) Remove the water pump by prying the portions between
the water pump and cylinder block with a screwdriver.
12. REMOVE NO.2 AND NO.1 OIL PANS (See steps 7 to 12 on pages LU±9 to 11)
13. REMOVE OIL PUMP (a) Remove the eight mounting bolts.
(b) Remove the oil pump by prying the portions between the
oil pump and cylinder block with a screwdriver.
(c) Remove the O±ring from the cylinder block.
14. REMOVE ALTERNATOR BRACKET Remove the bolt and bracket.
15. REMOVE WATER SEAL PLATE
Remove the two nuts and seal plate.
EM±134
±
ENGINE MECHANICAL Cylinder Block
WhereEverybodyKnowsYourName
Page 2335 of 4087

DISASSEMBLY OF CYLINDER BLOCK
(See Components on page EM±131)
1. REMOVE REAR OIL SEAL RETAINER (a) Remove the seven bolts.
(b) Remove the oil seal retainer by prying the portions
between the oil seal retainer and main bearing cap with
a screwdriver.
(c) Remove the O±ring.
2. CHECK CONNECTING ROD THRUST CLEARANCE Using a dial indicator, measure the thrust clearance while
moving the two connecting rods back and forth.
Standard thrust clearance: 0.160±0.290 mm
(0.0063±0.0114 in.)
Maximum thrust clearance: 0.35 mm (0.0138 in.)
If the thrust clearance is greater than maximum, replace the
connecting rod assembly(s). If necessary, replace the crank-
shaft.
Connecting rod thickness: 22.880±22.920 mm (0.9008±0.9024 in.)
3. REMOVE CONNECTING ROD CAPS AND CHECK OILCLEARANCE
(a) Using a punch or numbering stamp, place thematchmarks on the connecting rod and cap to ensure
correct reassembly.
(b) Using SST, remove the two connecting rod bolts.
SST 09011±38121
(c) Using the two removed connecting rod bolts, remove the connecting rod cap and lower bearing by wiggling
the connecting rod cap right and left.
HINT: Keep the lower bearing inserted with the connecting rod cap.
±
ENGINE MECHANICAL Cylinder BlockEM±135
WhereEverybodyKnowsYourName
Page 2336 of 4087
(d) Clean the crank pin and bearings.
(e) C h e c k t h e c r a n k p i n a n d b e a r i n g f o r p i t t i n g a n dscratches.
If the crank pin or bearing are damaged, replace the bear-
ings. If necessary, replace the crankshaft.
(f) Lay a strip of Plastigage across the crank pin.
(g) Install the connecting rod cap with the two bolts.
(See step 6 on pages EM±159 and 160)
Torque: 1st 25 N Vm (250 kgf Vcm, 18 ft Vlbf)
2nd Turn 90 5
NOTICE: Do not turn the crankshaft.
(h) Remove the two bolts, connecting rod cap and lower
bearing. (See procedure (b) and (c) above)
(i) Measure the Plastigage at widest point.
Standard oil clearance: 0.027±0.053 mm (0.0011±0.0021 in.)
Maximum oil clearance: 0.065 mm (0.0026 in.)
If the oil clearance is greater than maximum, replace the
bearings. If necessary, replace the crankshaft.
EM±136
±
ENGINE MECHANICAL Cylinder Block
