Page 33 of 4087

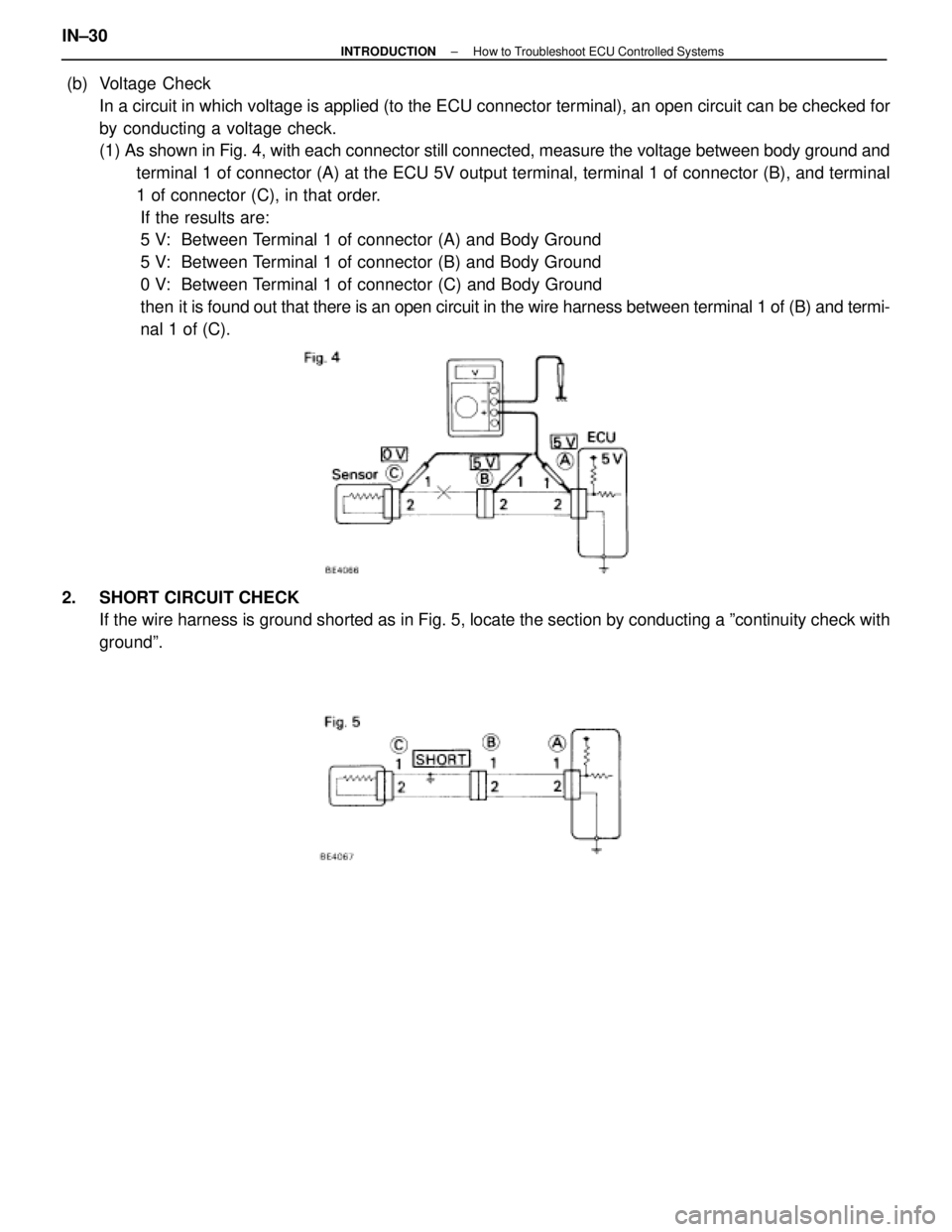

$LEXUS SC400 1991 Service Repair Manual (b) Voltage CheckIn a circuit in which voltage is applied (to the ECU connector terminal)\ , an open circuit can be checked for by conducting a voltage check. (1) As shown in Fig. 4, with each con$

Page 34 of 4087

LEXUS SC400 1991 Service Repair Manual

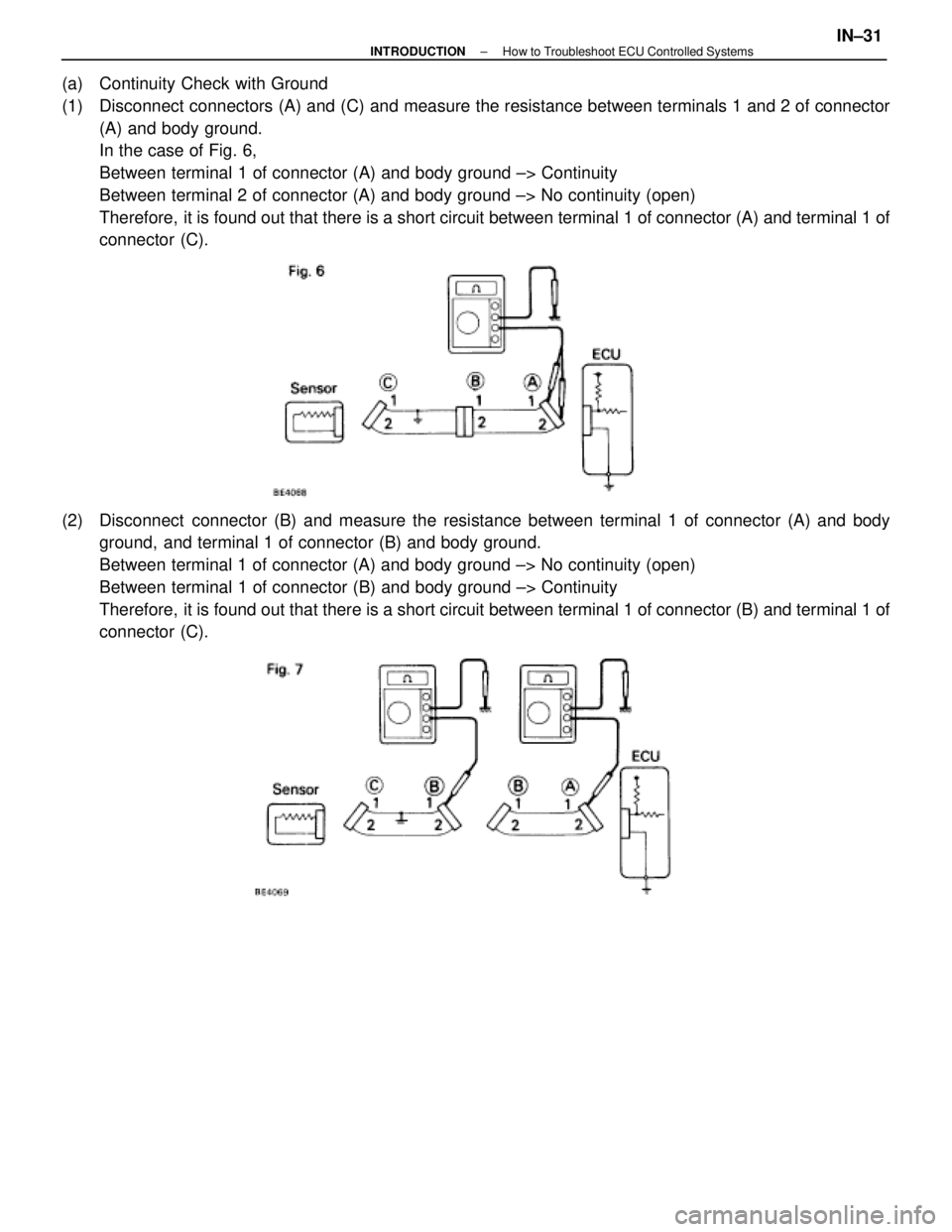

(a) Continuity Check with Ground
(1) Disconnect connectors (A) and (C) and measure the resistance between terminals 1 and 2 of connector(A) and body ground.
In the case of Fig. 6,
Between terminal 1

Page 35 of 4087

LEXUS SC400 1991 Service Repair Manual

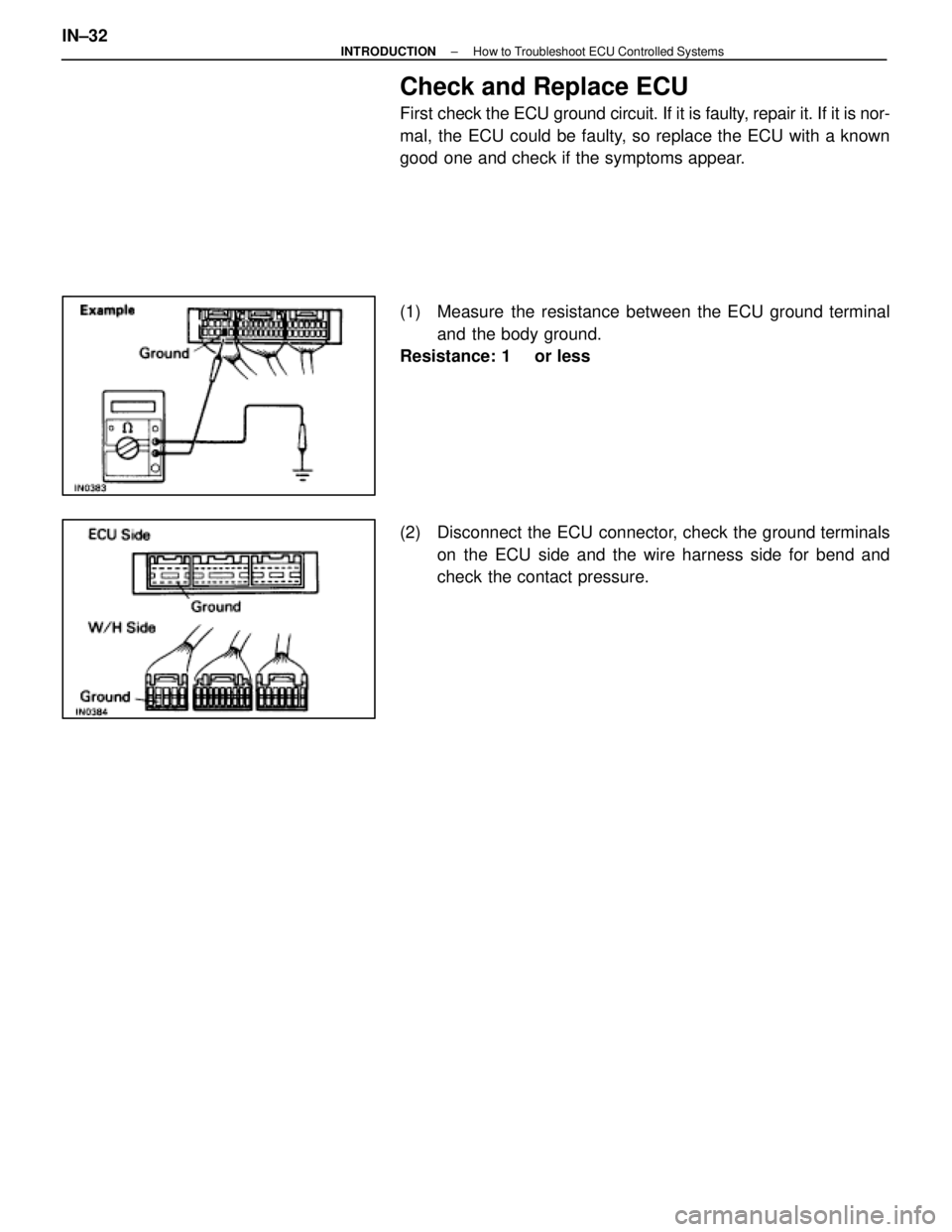

Check and Replace ECU
First check the ECU ground circuit. If it is faulty, repair it. If it is nor-
mal, the ECU could be faulty, so replace the ECU with a known
good one and check if the symptoms ap

Page 36 of 4087

LEXUS SC400 1991 Service Repair Manual

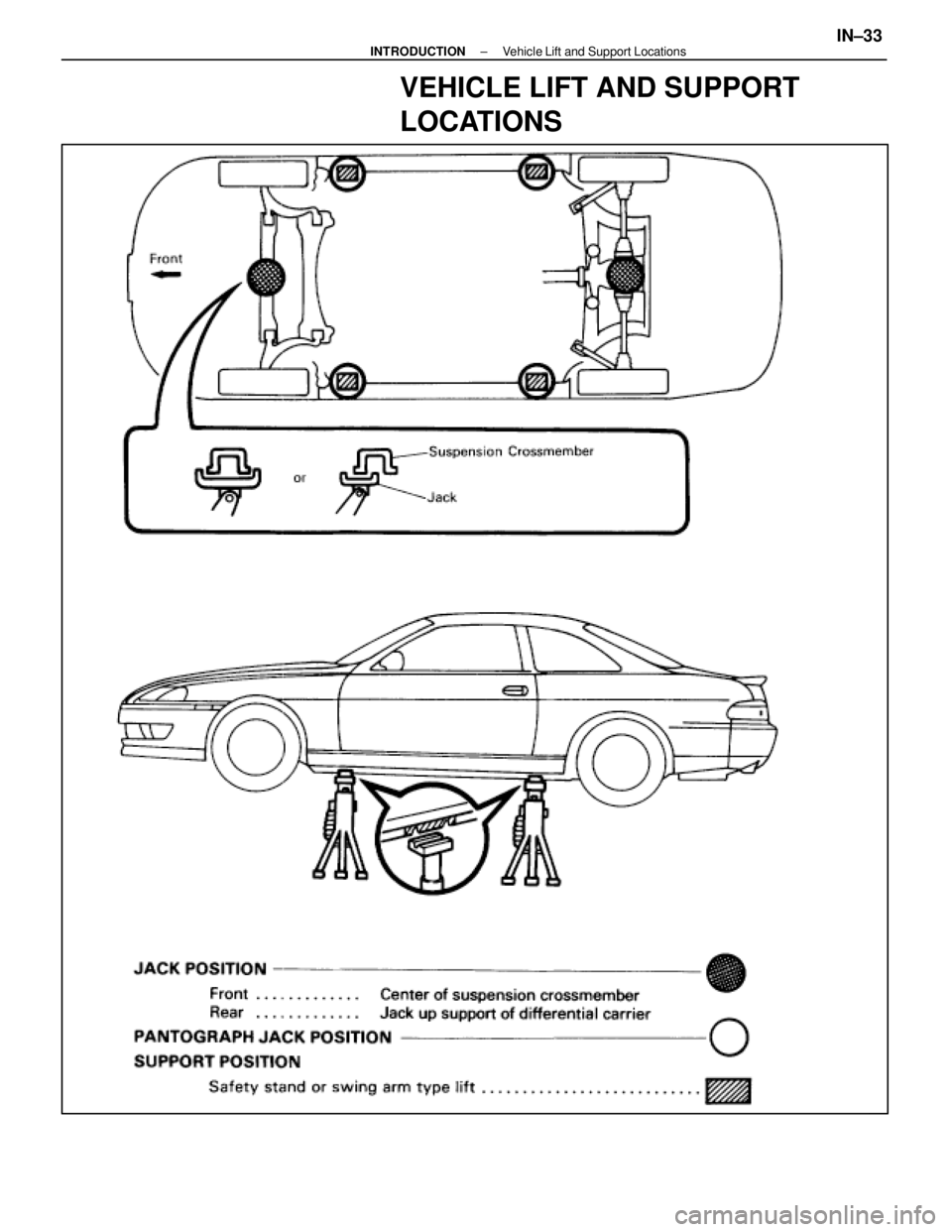

VEHICLE LIFT AND SUPPORT
LOCATIONS
±
INTRODUCTION Vehicle Lift and Support LocationsIN±33
WhereEverybodyKnowsYourName

Page 37 of 4087

LEXUS SC400 1991 Service Repair Manual
SERVICE SPECIFICATIONS
SERVICE DATA
Idle speedMagnetic clutch no engagedApprox. 700 rpm
Magnetic clutch engaged Approx. 700 rpm
Magnetic clutch clearance0.5 + 0.15 mm0.020 + 0.006 in.
TORQUE SPECIFI

Page 38 of 4087

LEXUS SC400 1991 Service Repair Manual
Lexus Supports ASE CertificationPage 1 of 4
Title:
R-12 AIR CONDITIONER SYSTEM
RETROFIT
Models:
90±93 ES 250/300, SC 400/300, LS 400
Technical Service
Information Bulletin
April 3, 1998
AC001±98

Lexus Supports ASE CertificationPage 1 of 4
Title:
R-12 AIR CONDITIONER SYSTEM
RETROFIT
Models:
'90±'93 ES 250/300, SC 400/300, LS 400
Technical Service
Information Bulletin
April 3, 1998
AC001±98
The following information should be used for guidance when retrofitting veh\
icle air
conditioning systems from R±12 to R134a refrigerant.
1990±1992 model year LS 400, 1990±1991 model year ES 250, 1992±1993 model
year ES 300, 1992±1993 model year SC 300, 1992±1993 model year SC 400
All parts required for retrofit are available through the normal parts s\
ystem:
IDENTIFICATIONREQUIRED PARTS & MATERIALS
MODELCOMPRESSORRETROFIT SETRECEIVERND OIL 8CHARGE
LS 40010PA2088471±16050170 cc1000 g
ES 25010PA17V88840±33020 (1)
l
88471±12040100 cc650 g
ES 300plus
90099±14044 (2)SC 30010PA1790099±14044 (2)
90099±14045 (1)88471±16050150 cc900 g
SC400
90099 14045 (1)g
NOTE:
Retrofit Set 88840±33020 includes: 88374±33010 Low pressure side service fitting adaptor (7/16±20 UNF)
88374±33020 High pressure side service fitting adaptor (3/8±20 UNF)
88723±20040 R134a ªUSE ONLYº label (ND Oil 8 for 10P, 10PA compressor)
88723±33050 Retrofit Caution Label
90099±14046 Piping O±rings for discharge hose (quantity 2)
Required for all models (not included in set): 90099±14044 Receiver O±rings (quantity 2)
08885±09107 ND±Oil 8
Also available as needed: 88374±33040 L±shaped low pressure side service fitting adaptor
88374±33050 L±shaped high pressure side service fitting adaptor
OP CODENWCDESCRIPTIONTIMEOPNT1T2
Not Applicable to Warranty
Affected Vehicles page 1 . . . . . . . . . .
Service Precautions page 3 . . . . . . . .
Retrofit Kit Parts page 1 . . . . . . . . . . .
Required Parts page 2 . . . . . . . . . . . . . Required Tools & Materials page 2
. . .
Retrofitting Overview page 2 . . . . . . . . .
Repair Procedures page 3 . . . . . . . . . . .
Warranty Information page 1 . . . . . . . . .
HEATING & AIR CONDITIONING
Introduction
Affected
Vehicles
Parts
Information
Warranty
Information
Table of
Contents
WhereEverybodyKnowsYourName

Page 39 of 4087

LEXUS SC400 1991 Service Repair Manual
R±12 AIR CONDITIONER SYSTEM RETROFIT ± AC001±98 April 3, 1998
Page 2 of 4
A. Required Equipment:
1. R±12 recovery/recycling/recharging equipment
2. R134a recovery/recycling/recharging equipment
3

R±12 AIR CONDITIONER SYSTEM RETROFIT ± AC001±98 April 3, 1998
Page 2 of 4
A. Required Equipment:
1. R±12 recovery/recycling/recharging equipment
2. R134a recovery/recycling/recharging equipment
3. Measuring cylinder (for compressor oil)
4. Valve core remover for service valves
5. Air conditioner service tool set
6. Torque Wrench Set, P/N 00002±50284±01, includes the following*: 14 mm 00002±51410±01
17 mm 00002±51710±01
22 mm 00002±52216±01
27 mm 00002±52724±01
B. Required Parts & Materials: **
1. R134a Refrigerant
2. Service Fitting Adaptors
3. Caution Labels
4. ND±OIL 8 compressor oil (PAG type oil)
5. Receiver
6. O±Rings for compressor, line & hose connections ***
7. Loctite 262 or equivalent
* required size dependent upon model.
** see parts information section of this bulletin on page 1.
*** it is not necessary to replace any O±rings on ES 300, SC 300 and SC 400 models\
.
A. Refrigerant and Oil Charges
Oil and refrigerant charge amounts are different after the R±12 system has been
retrofitted to R134a. Refrigerant charge amounts are less, while oil ch\
arge
amounts are greater, compared to R±12 system requirements. Refer to the
ND OIL
8
and CHARGE columns in ªParts Informationº table on page 1 for proper amounts\
.
B. System Performance A slight decrease in system performance may be noticed on some vehicles \
under
certain operating conditions.
C. Refrigerant Pressures
R134a high side pressures are greater than that of R±12 above ambient\
temperatures of 68 °F.
D. Flushing Requirements There is no need to remove or flush R±12 mineral oil from the system.\
Simply
charge the system with the specified amount of ND±Oil 8 to provide pr\
oper
lubrication.
E. Use of Sight Glass Mineral based R±12 oil remains and circulates in the A/C system and d\
oes not
dissolve in R134a refrigerant. This results in a cloudy appearance at th\
e sight
glass making it impossible to judge the refrigerant charge amount by us\
ing the
sight glass method. To prevent misdiagnosis on retrofit vehicles, apply black
paint to the sight glass on block±joint (FF) type Receivers. Union\
±nut joint (BAG)
type retrofit Receivers are manufactured without a sight glass.
Required
Tools &
Materials
Retrofitting Overview
WhereEverybodyKnowsYourName

Page 40 of 4087

LEXUS SC400 1991 Service Repair Manual
R±12 AIR CONDITIONER SYSTEM RETROFIT ± AC001±98 April 3, 1998
Page 3 of 4
A. Refrigerant handling
1. Do not handle refrigerant in an enclosed area or near an open flame.
2. Always wear eye protec

R±12 AIR CONDITIONER SYSTEM RETROFIT ± AC001±98 April 3, 1998
Page 3 of 4
A. Refrigerant handling
1. Do not handle refrigerant in an enclosed area or near an open flame.
2. Always wear eye protection.
3. Avoid getting liquid refrigerant in your eyes or on your skin.
4. Never heat a container with an open flame.
5. Keep containers below 104 °F.
6. When heating a refrigerant can with water, keep the valve above water.
7. Never reuse empty service cans.
B. Replacing parts 1. Plug off any open connections to prevent the entry of moisture and dust.
2. Do not remove plugs from Receiver ports until it is ready for installati\
on.
C. Tightening connecting parts
1. Apply a few drops of ND±Oil 8 compressor oil to O±ring fittings be\
fore tightening.
2. Avoid twisting refrigerant piping when installing R134a service fitting a\
dapters.
3. Tighten all fittings to specified torque.
D. Recharging with A/C ªonº
1. Never open the high side valve with the engine running.
2. Never run the A/C system when low on refrigerant as compressor damage ma\
yoccur.
3. Never charge the system with liquid refrigerant with the engine running.\
4. Be careful not to overcharge the system.
NOTE:
Oil removed during R±12 evacuation should not be used with an R134a Syst\
em.
A. Vehicle Inspection:
Ensure the integrity of the A/C system before proceeding with retrofit.
B. Recover R±12 using R±12 recovery/recycling/recharging equipment: Follow Lexus recommended procedure.
C. Install R134a service fitting adapters: 1. Remove valve cores from R±12 service fittings and discard.
2. Clean external threads of the R±12 service fittings.
3. Apply adhesive to threads (Loctite 262 or equivalent), screw on R134a \
adapterfittings, and tighten to 13 ft±lb.
NOTE:
Vehicles with more than 2 service fittings will require the installation \
of additional
adaptors. All service fittings must have R134a adaptors installed.
D. Replace piping and hose O±rings:
1. Disconnect discharge hose from compressor.
2. Remove and discard old O±rings.
3. Lubricate with ND±Oil 8 and install new O±rings.
4. Disconnect discharge hose from condenser.
5. Lubricate and install retrofit O±rings with ND±Oil 8.
6. Reconnect hoses and torque to specification. (Specifications can be fou\
nd in applicable manuals/guides.)
Service
Precautions
Repair
Procedure
WhereEverybodyKnowsYourName
