Page 521 of 4087

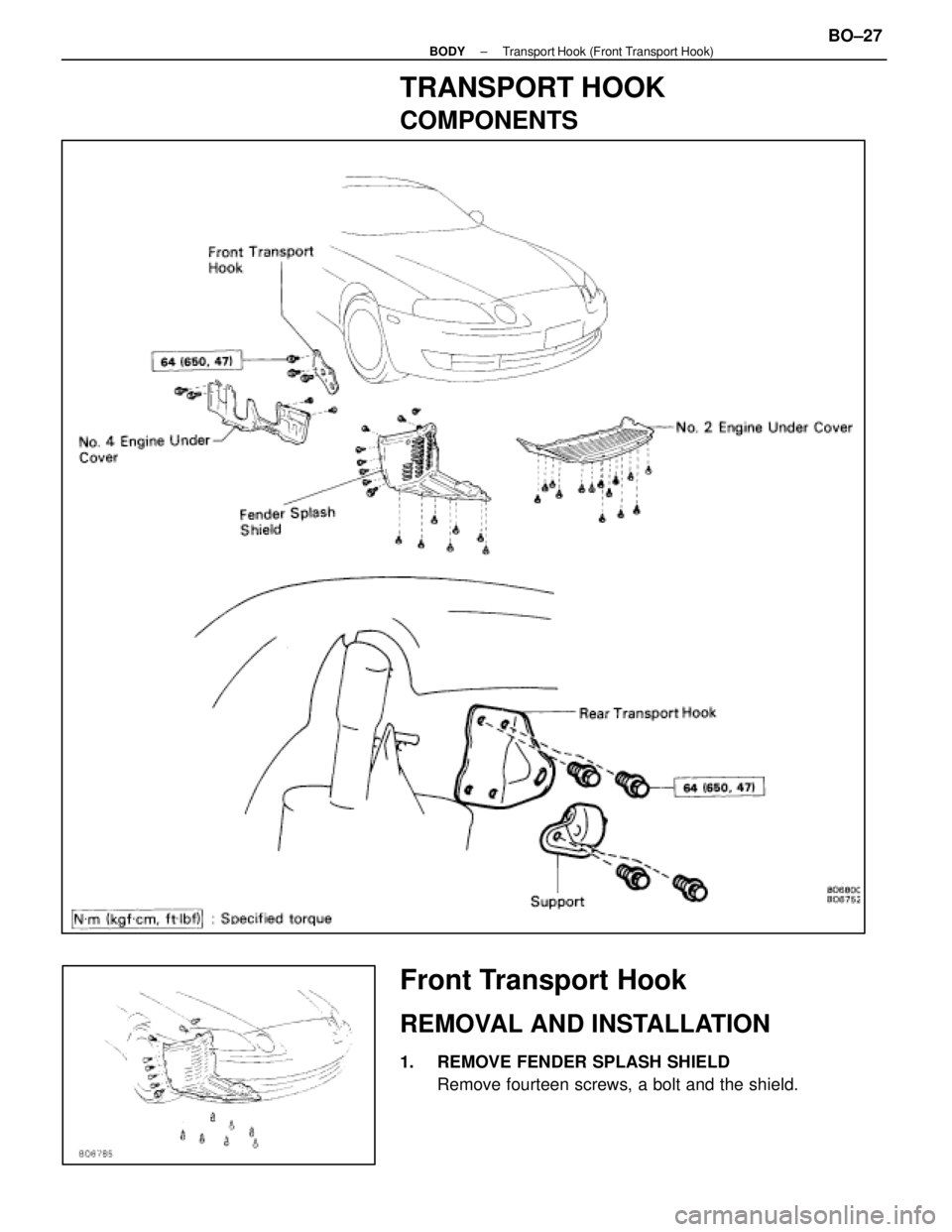

LEXUS SC400 1991 Service Repair Manual TRANSPORT HOOK COMPONENTS Front Transport Hook REMOVAL AND INSTALLATION 1. REMOVE FENDER SPLASH SHIELDRemove fourteen screws, a bolt and the shield. ± BODY Transport Hook (Front Transport Hook)BO±

Page 522 of 4087

LEXUS SC400 1991 Service Repair Manual 2. REMOVE NO. 4 ENGINE UNDER COVER 3. REMOVE FRONT TRANSPORT HOOKRemove three bolts and the hook. 4. INSTALL FRONT TRANSPORT HOOK Install the hook with three bolts. Torque: 64 N Vm (650 kgf Vcm, 4

Page 523 of 4087

LEXUS SC400 1991 Service Repair Manual 2. REMOVE NO. 4 ENGINE UNDER COVER 3. REMOVE FRONT TRANSPORT HOOKRemove three bolts and the hook. 4. INSTALL FRONT TRANSPORT HOOK Install the hook with three bolts. Torque: 64 N Vm (650 kgf Vcm, 4

Page 524 of 4087

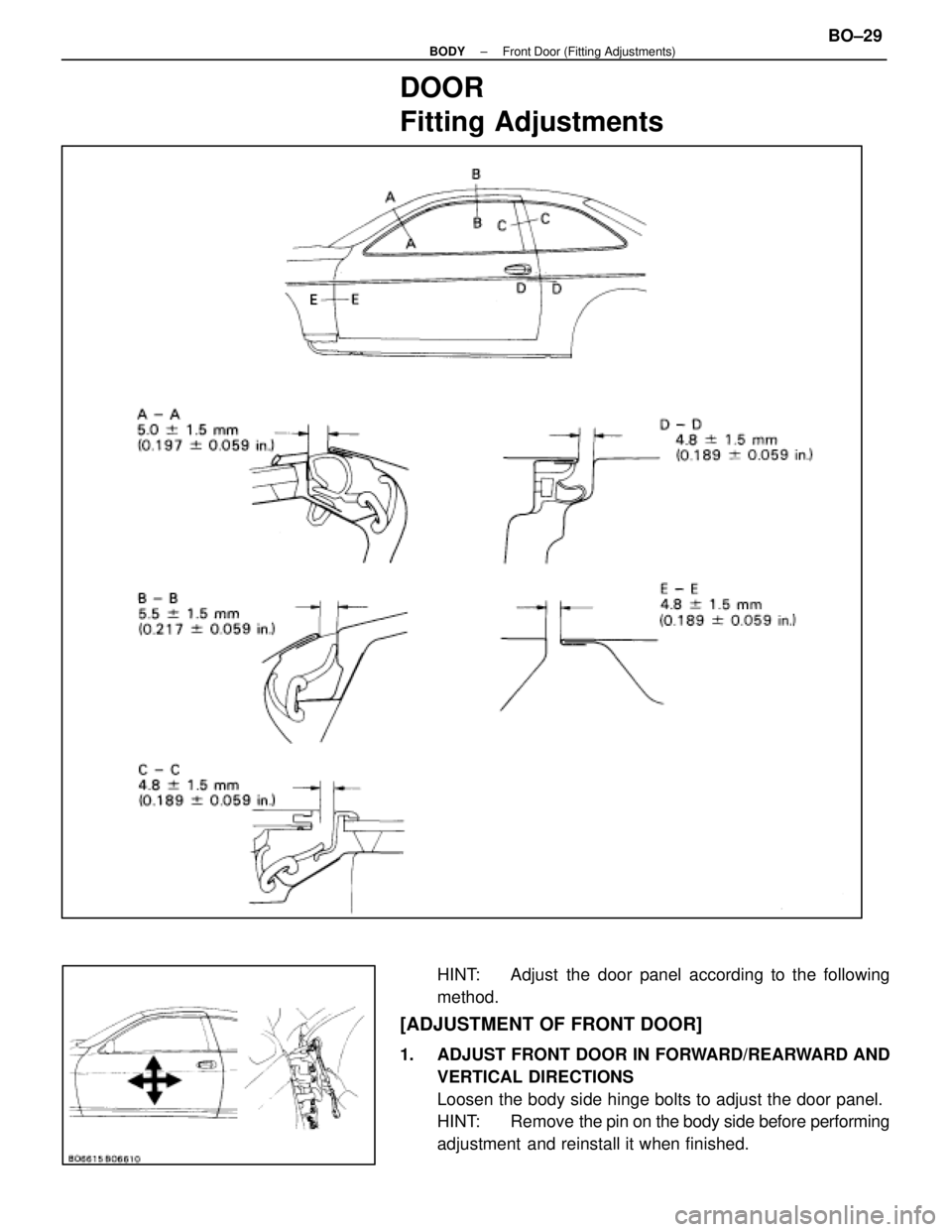

LEXUS SC400 1991 Service Repair Manual DOOR Fitting Adjustments HINT: Adjust the door panel according to the following method. [ADJUSTMENT OF FRONT DOOR] 1. ADJUST FRONT DOOR IN FORWARD/REARWARD ANDVERTICAL DIRECTIONS Loosen the body sid

Page 525 of 4087

LEXUS SC400 1991 Service Repair Manual 2. ADJUST FRONT DOOR IN LEFT/RIGHT AND VERTICALDIRECTIONS Loosen the door side hinge bolts to adjust. 3. ADJUST FRONT DOOR LOCK STRIKER (a) Check that the door fit and door lock link ages are adj

Page 526 of 4087

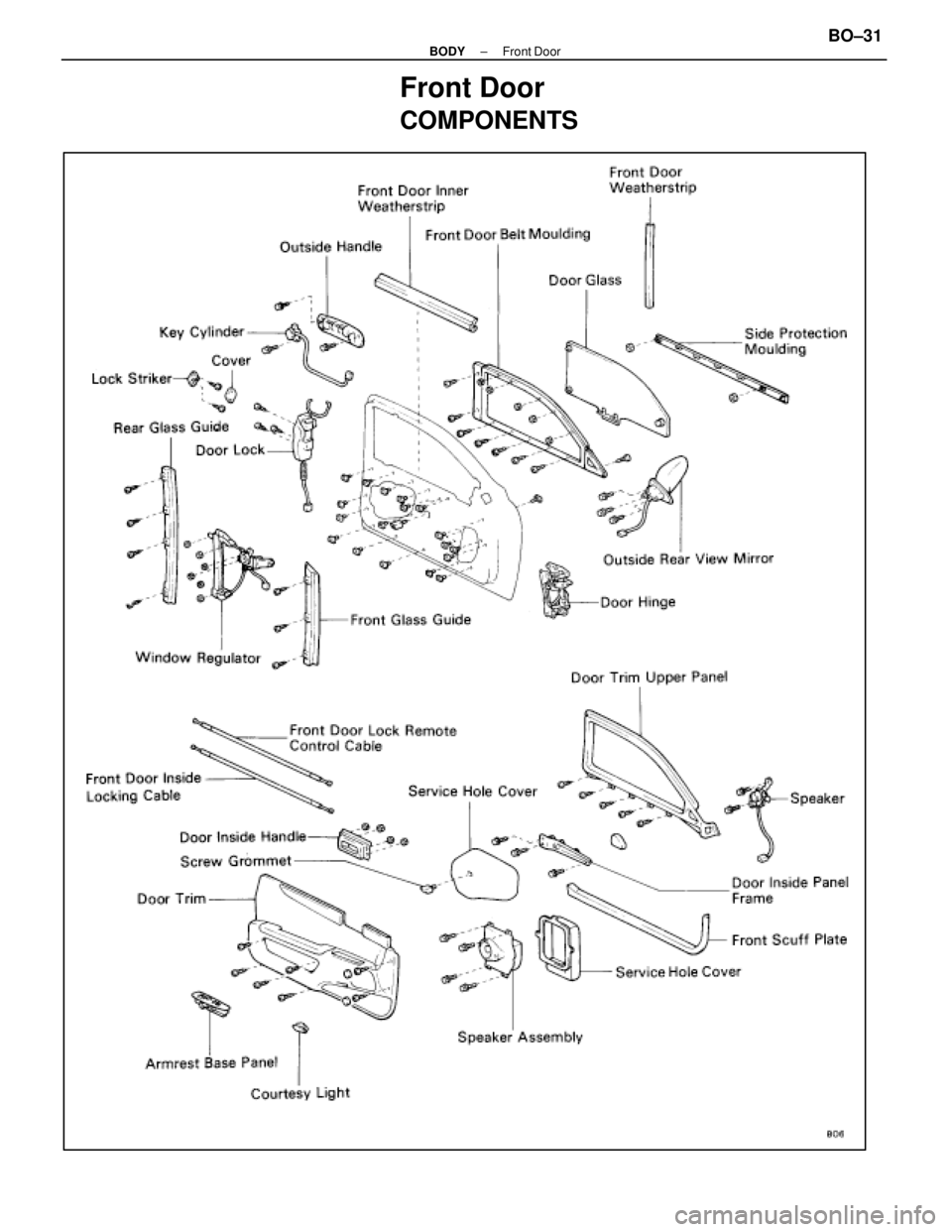

LEXUS SC400 1991 Service Repair Manual Front Door COMPONENTS ± BODY Front DoorBO±31 WhereEverybodyKnowsYourName

Page 527 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF FRONT DOOR (See page BO±31) 1. REMOVE FRONT SCUFF PLATE Using the screwdriver, remove the plate. HINT: Tape the screwdriver tip before use. 2. DISCONNECT CONNECTORS (a) Disconnect the f

Page 528 of 4087

LEXUS SC400 1991 Service Repair Manual DISASSEMBLY OF FRONT DOOR (See page BO±31) 1. REMOVE ARMREST BASE PANEL (a) Using the screwdriver, remove the clip. (b) Pull the panel forward and disconnect the connector. 2. REMOVE DOOR INSIDE
