Page 2473 of 4087

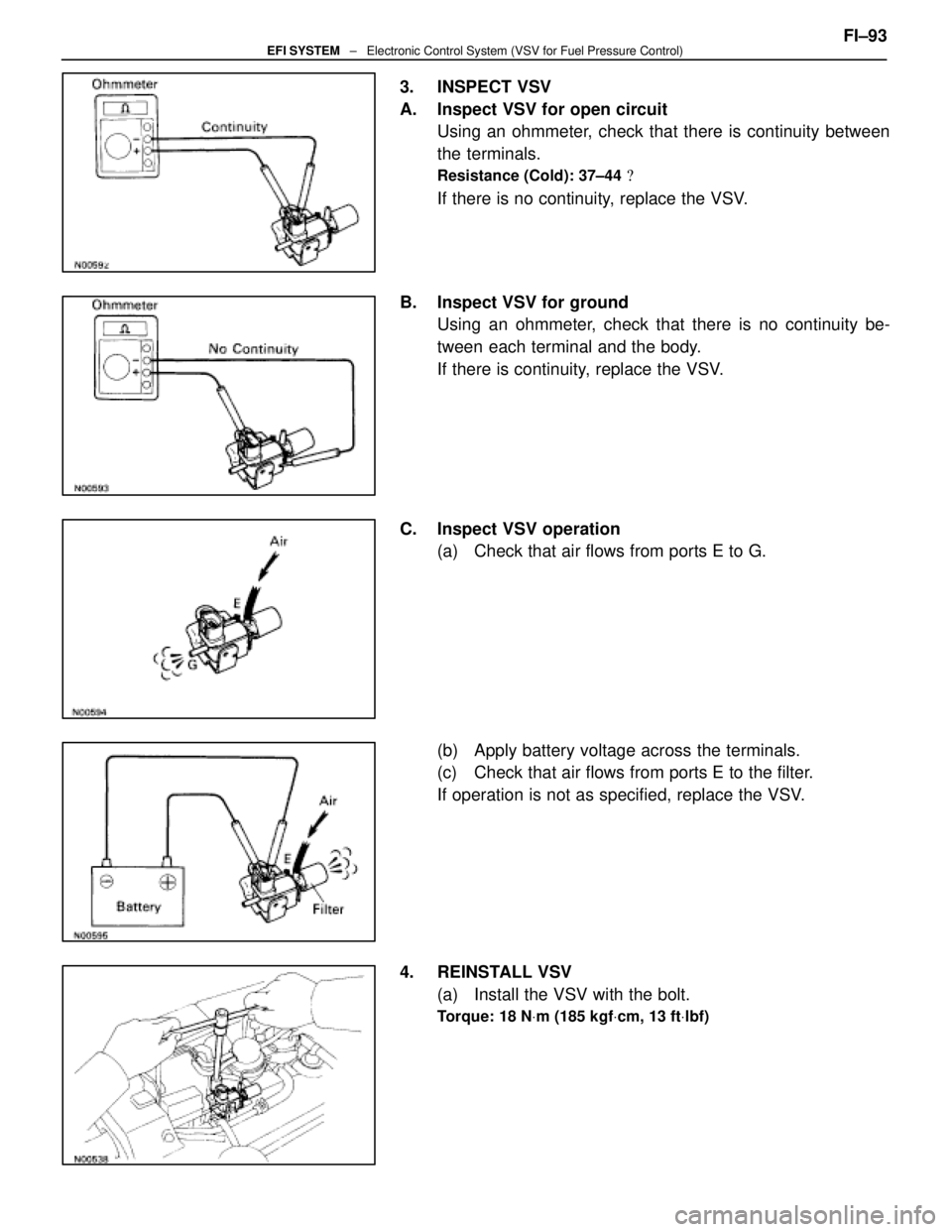

LEXUS SC400 1991 Service Repair Manual 3. INSPECT VSV A. Inspect VSV for open circuitUsing an ohmmeter, check that there is continuity between the terminals. Resistance (Cold): 37±44  If there is no continuity, replace the VSV. B. Ins

Page 2474 of 4087

LEXUS SC400 1991 Service Repair Manual (b) (Exc. USA Spec.)Install the water by±pass pipe to the VSV with the bolt. (c) Connect the following hoses to VSV: (1) Vacuum hose (from fuel pressure regulator) (2) Vacuum hose (from air inta

Page 2475 of 4087

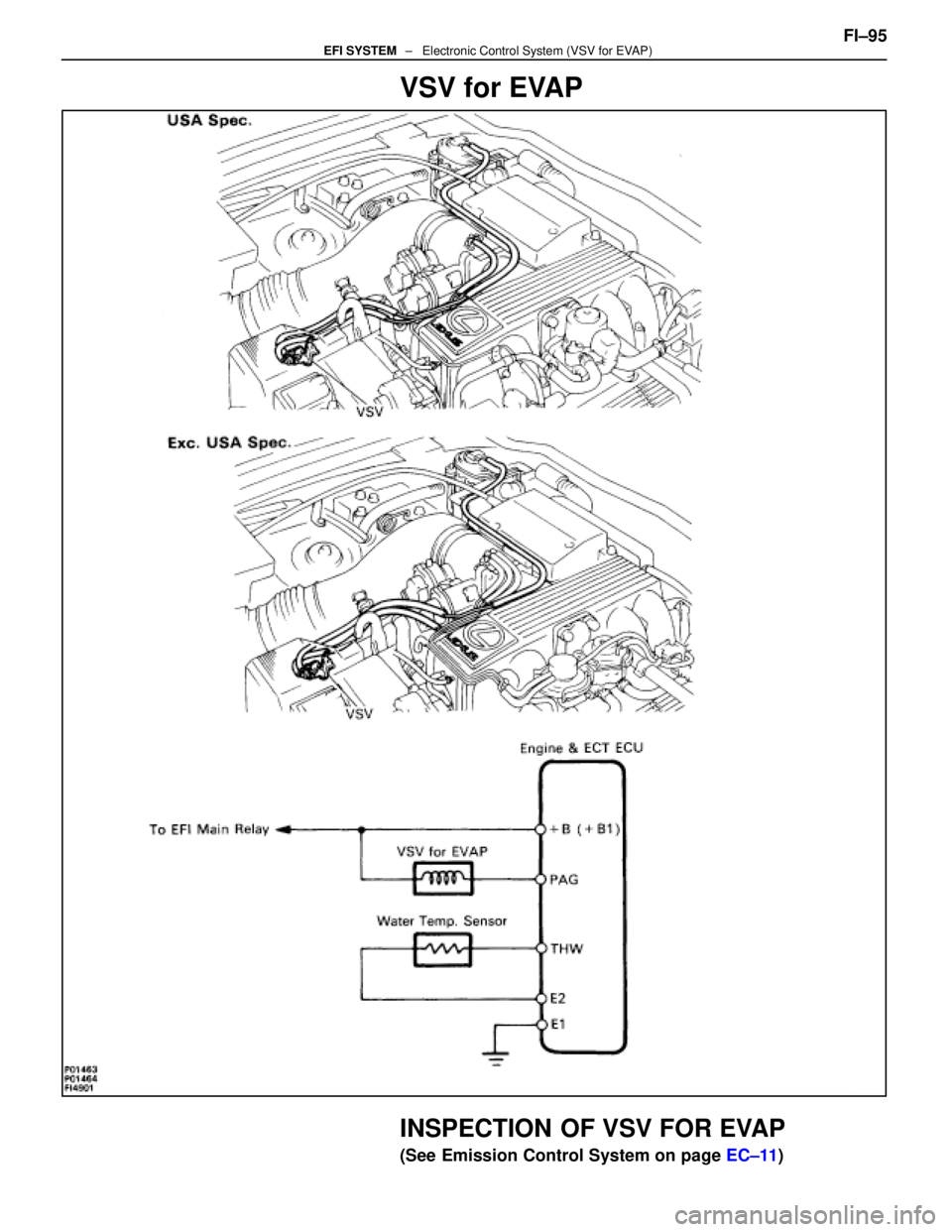

LEXUS SC400 1991 Service Repair Manual VSV for EVAP INSPECTION OF VSV FOR EVAP (See Emission Control System on page EC±11) FI±95 ± Electronic Control System (VSV f\ or EVAP)EFI SYSTEM WhereEverybodyKn

Page 2476 of 4087

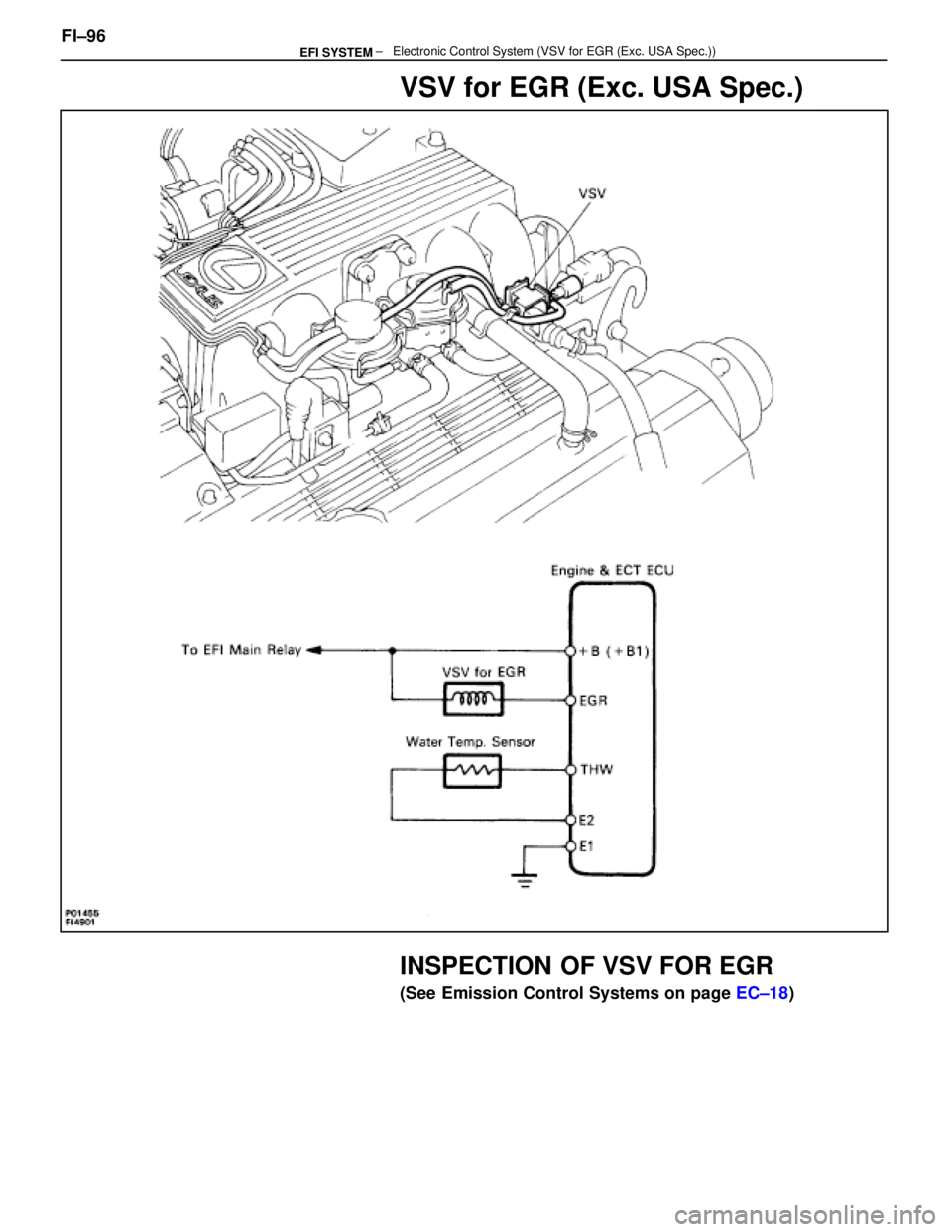

LEXUS SC400 1991 Service Repair Manual VSV for EGR (Exc. USA Spec.) INSPECTION OF VSV FOR EGR (See Emission Control Systems on page EC±18) FI±96 ± Electronic Control Syst\ em (VSV for EGR (Ex

Page 2477 of 4087

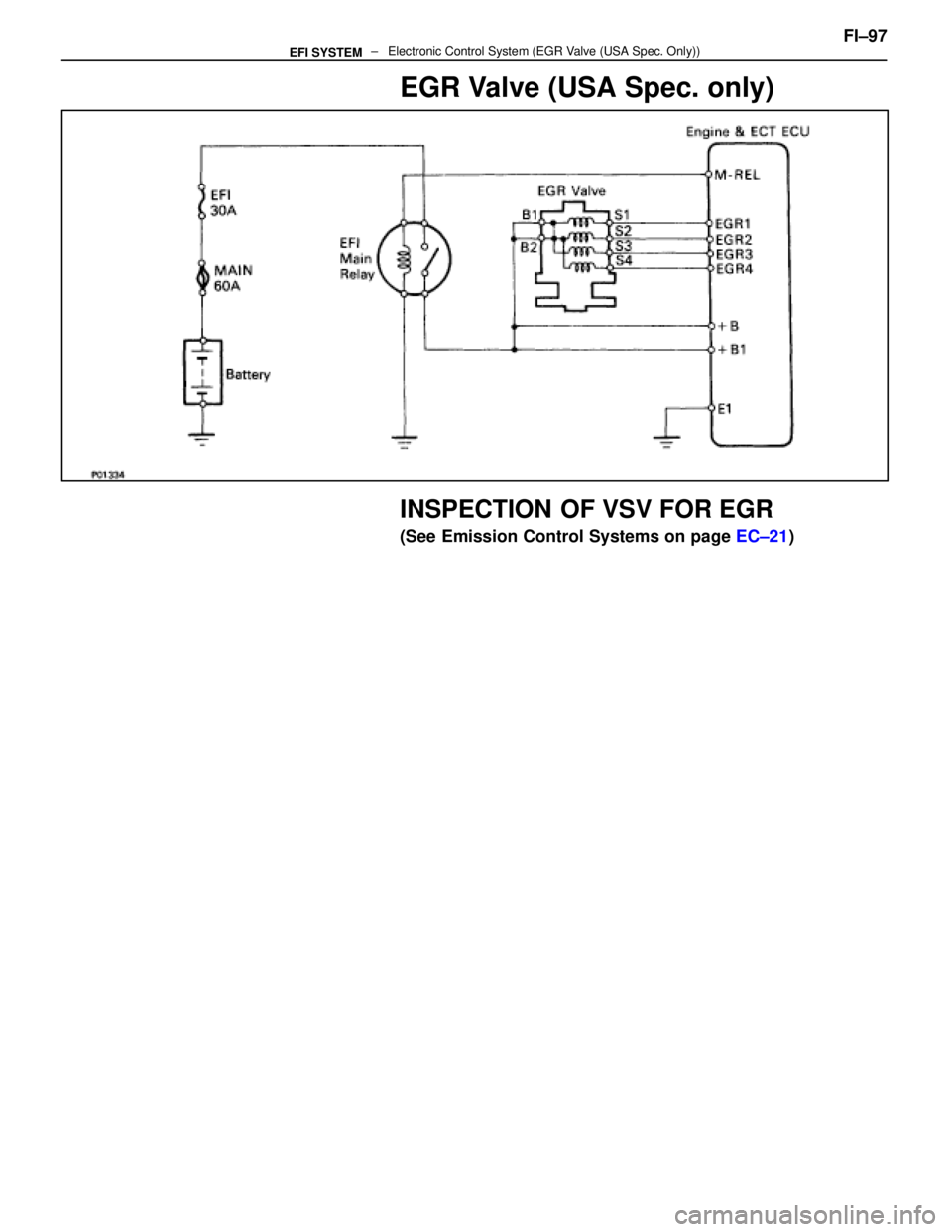

LEXUS SC400 1991 Service Repair Manual EGR Valve (USA Spec. only) INSPECTION OF VSV FOR EGR (See Emission Control Systems on page EC±21) FI±97 ± Electronic Control System (E\ GR Valve (USA Spec. On

Page 2478 of 4087

LEXUS SC400 1991 Service Repair Manual Water Temperature Sensor COMPONENTS FOR REMOVAL AND INSTALLATION FI±98 ± Electronic Control Sys\ tem (Water Temperature Sensor)EFI SYSTEM WhereEverybody

Page 2479 of 4087

LEXUS SC400 1991 Service Repair Manual INSPECTION OF WATER TEMPERATURE SENSOR 1. REMOVE LOWER HIGH±TENSION CORD COVER(See steps 1, 2 and 5 to 12 on pages FI±27 to 29) 2. REMOVE RH IGNITION COIL (a) Disconnect the ignition coil conne

Page 2480 of 4087

LEXUS SC400 1991 Service Repair Manual 6. INSPECT WATER TEMPERATURE SENSORUsing an ohmmeter, measure the resistance between the ter- minals. Resistance: Refer to the chart graph If the resistance is not as specified, replace the sensor.
