LEXUS SC400 1991 Service Repair Manual BUMPER Front Bumper COMPONENTS ± BODY Bumper (Front Bumper)BO±11 WhereEverybodyKnowsYourName

Page 506 of 4087

LEXUS SC400 1991 Service Repair Manual REMOVAL OF FRONT BUMPER (See page BO±11) 1. REMOVE FENDER SPLASH SHIELD Remove fourteen screws, a bolt and the shield. 2. REMOVE NO. 2 ENGINE UNDER COVER Remove seven screws, five bolts and the co

Page 507 of 4087

LEXUS SC400 1991 Service Repair Manual (b) Remove four clips. (c) Remove the clip and ambient temperature sensor. (d) Remove four nuts. (e) Remove ten clips. (f) Remove two bolts. (g) Disconnect the connectors. (h) Remove the bumpe

Page 508 of 4087

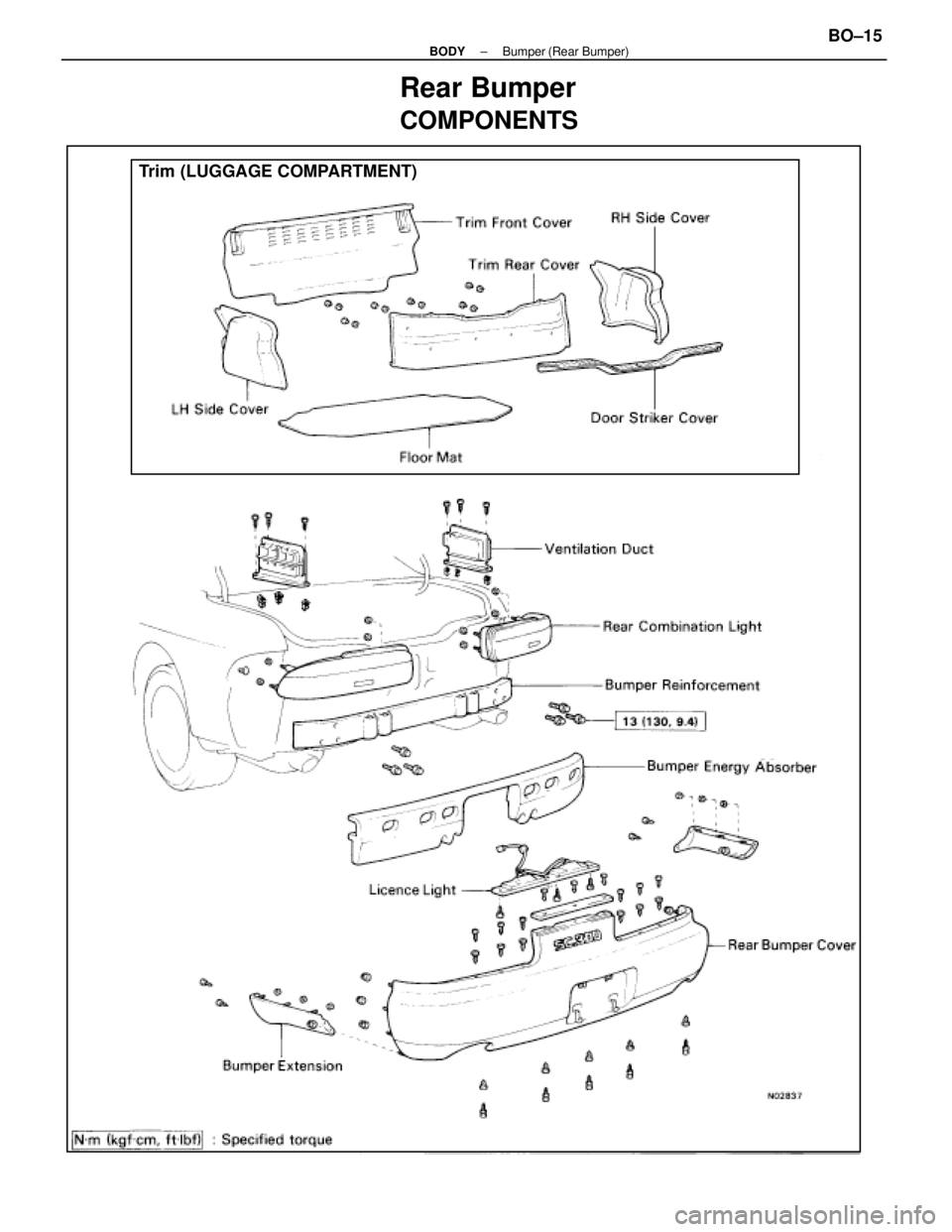

LEXUS SC400 1991 Service Repair Manual INSTALLATION OF FRONT BUMPER (See page BO±11) INSTALL FRONT BUMPER PARTS BY FOLLOWING RE- MOVAL SEQUENCE IN REVERSE HINT: wWhen installing the bumper on the body, be careful not to damage the serrat

Page 509 of 4087

LEXUS SC400 1991 Service Repair Manual Rear Bumper COMPONENTS Trim (LUGGAGE COMPARTMENT) ± BODY Bumper (Rear Bumper)BO±15 WhereEverybodyKnowsYourName

Page 510 of 4087

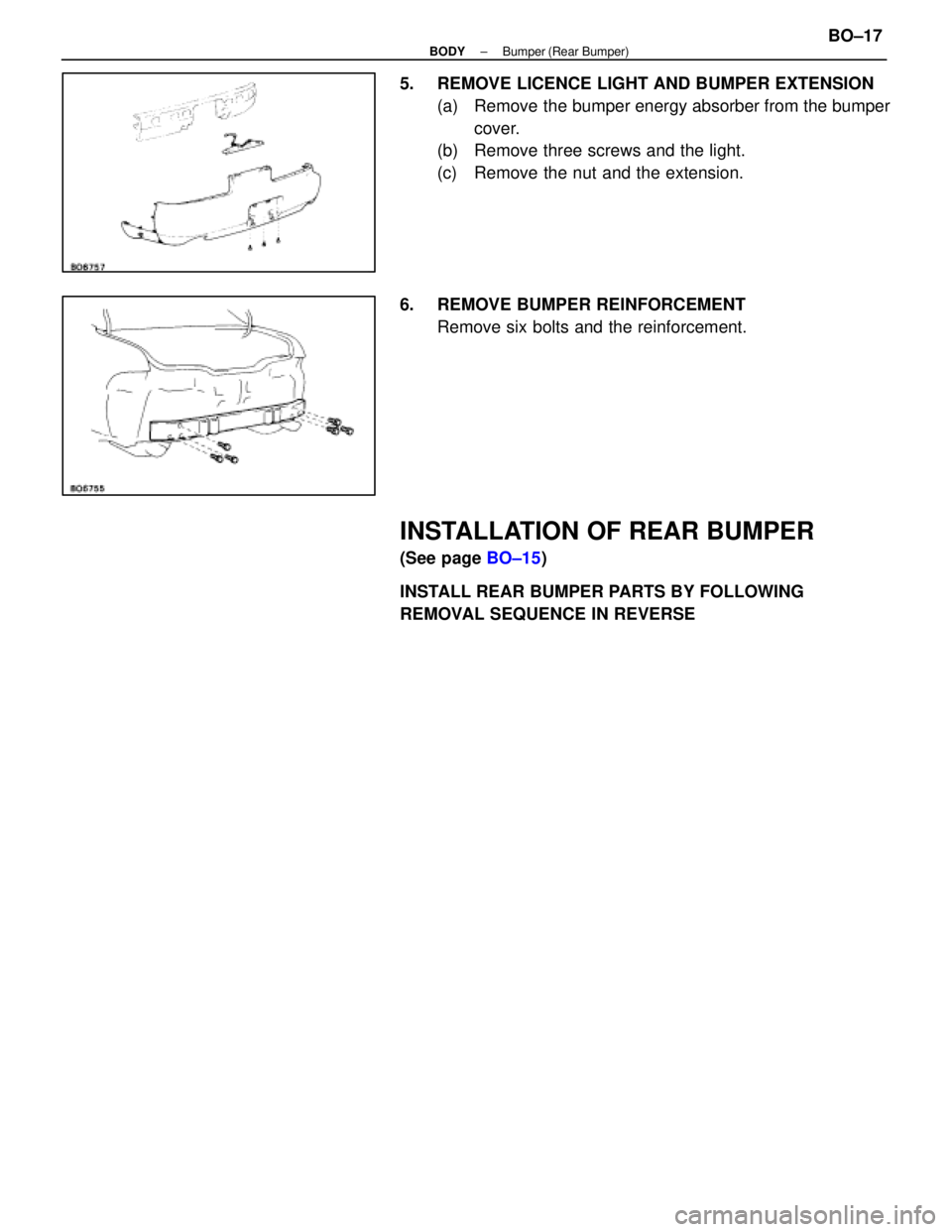

LEXUS SC400 1991 Service Repair Manual REMOVAL OF REAR BUMPER (See page BO±15) 1. REMOVE FOLLOWING PARTS: (See steps 1 to 6 on pages BO±79 to 80) (a) Floor mat (b) Door striker cover (c) Trim rear cover (d) Trim front cover (e) LH

Page 511 of 4087

LEXUS SC400 1991 Service Repair Manual 5. REMOVE LICENCE LIGHT AND BUMPER EXTENSION(a) Remove the bumper energy absorber from the bumpercover. (b) Remove three screws and the light. (c) Remove the nut and the extension. 6. REMOVE BUM

Page 512 of 4087

LEXUS SC400 1991 Service Repair Manual HOOD Fitting Adjustments 1. SUBSTITUTE BOLT WITH WASHER FOR CENTERINGBOLT Since the centering bolt is used as the hood hinge set bolt, the hood cannot be adjusted with it on. Substitute the bolt wit
