Page 409 of 4087

LEXUS SC400 1991 Service Repair Manual (c) Push the piano wire through from the interior. (d) Cut loose the adhesive and remove the glass. HINT: Do not damage the body. INSTALLATION OF QUARTER WINDOW GLASS (See page BO±52) 1. CLEAN B

Page 410 of 4087

LEXUS SC400 1991 Service Repair Manual BACK WINDOW GLASS COMPONENTS REMOVAL OF BACK WINDOW GLASS 1. REMOVE FOLLOWING PARTS:(a) Rear seat back and cushion (b) Roof side inner garnish (c) Package tray trim (d) Back window lower mouldin

Page 411 of 4087

LEXUS SC400 1991 Service Repair Manual 3. DISCONNECT CONNECTORS ON BACK WINDOWGLASS Disconnect three connectors on the glass. 4. REMOVE BACK WINDOW GLASS (a) Push the piano wire through from the interior. (b) Tie both wire ends to a w

Page 412 of 4087

LEXUS SC400 1991 Service Repair Manual 3. CLEAN REMOVED GLASS(a) Using a scraper, cut away any adhesive remaining onthe glass. HINT: Do not damage the spacers. (b) Clean the glass with a cleaner. NOTICE: Do not touch the glass after c

Page 413 of 4087

LEXUS SC400 1991 Service Repair Manual 10. INSTALL GLASS(a) Position the glass so that the reference marks are linedup, and press in gently along the rim. (b) U s e a s p a t u l a t o r e m o v e a n y e x c e s s p r o t r u d i n g a

Page 414 of 4087

LEXUS SC400 1991 Service Repair Manual SEAT Front Seat REMOVAL OF FRONT SEAT 1. REMOVE HEADRESTWhile pushing the lock button, pull up the headrest to remove it. 2. REMOVE SEAT TRACK COVERS Using a screwdriver, pry out three covers. HINT

Page 415 of 4087

LEXUS SC400 1991 Service Repair Manual 4. REMOVE FRONT SEAT(a) Remove five bolts. (b) Disconnect the connector. INSTALLATION OF FRONT SEAT (See page BO±58) 1. INSTALL HEADREST TO SEAT 2. INSTALL FRONT SEAT (a) Connect the connecto

Page 416 of 4087

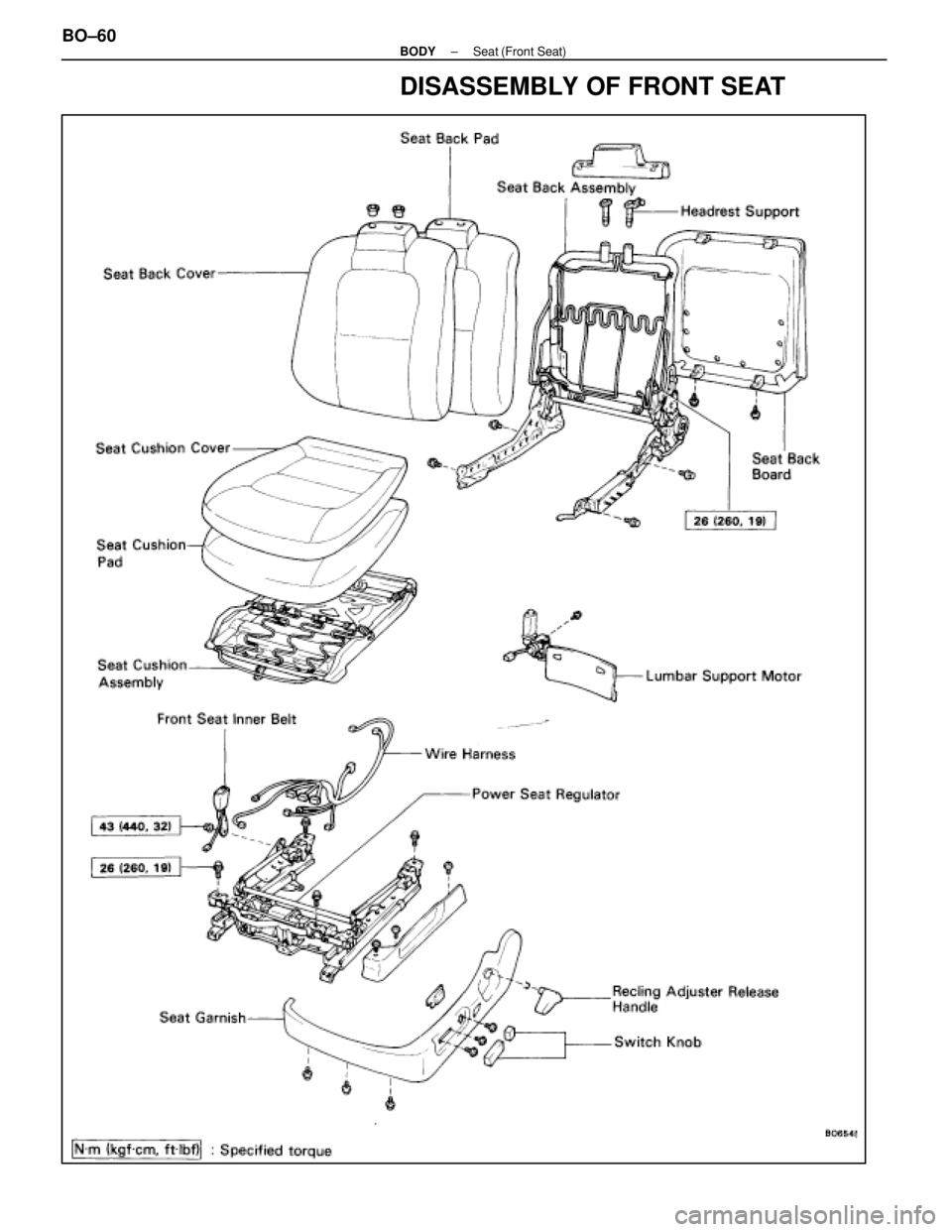

LEXUS SC400 1991 Service Repair Manual DISASSEMBLY OF FRONT SEAT BO±60± BODY Seat (Front Seat) WhereEverybodyKnowsYourName
