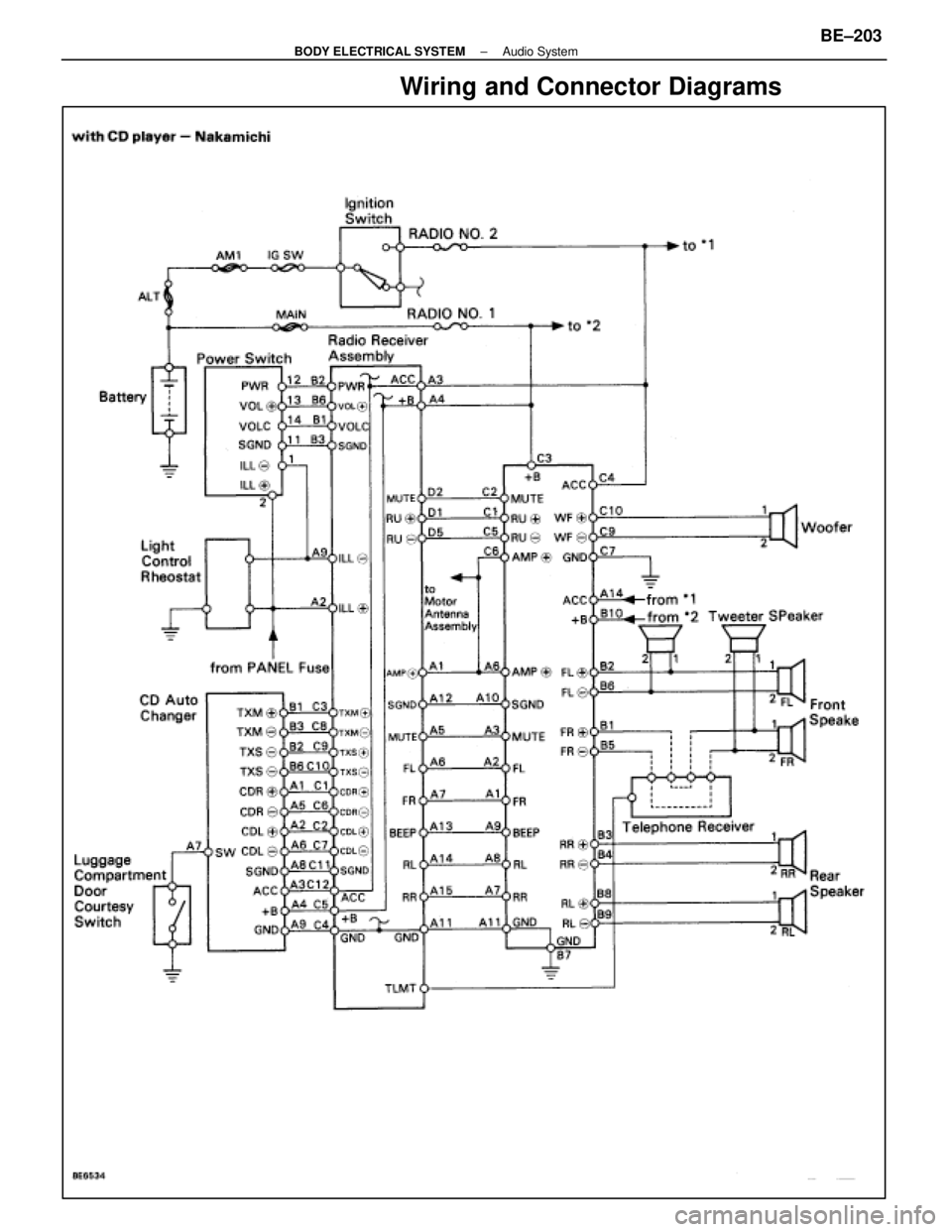

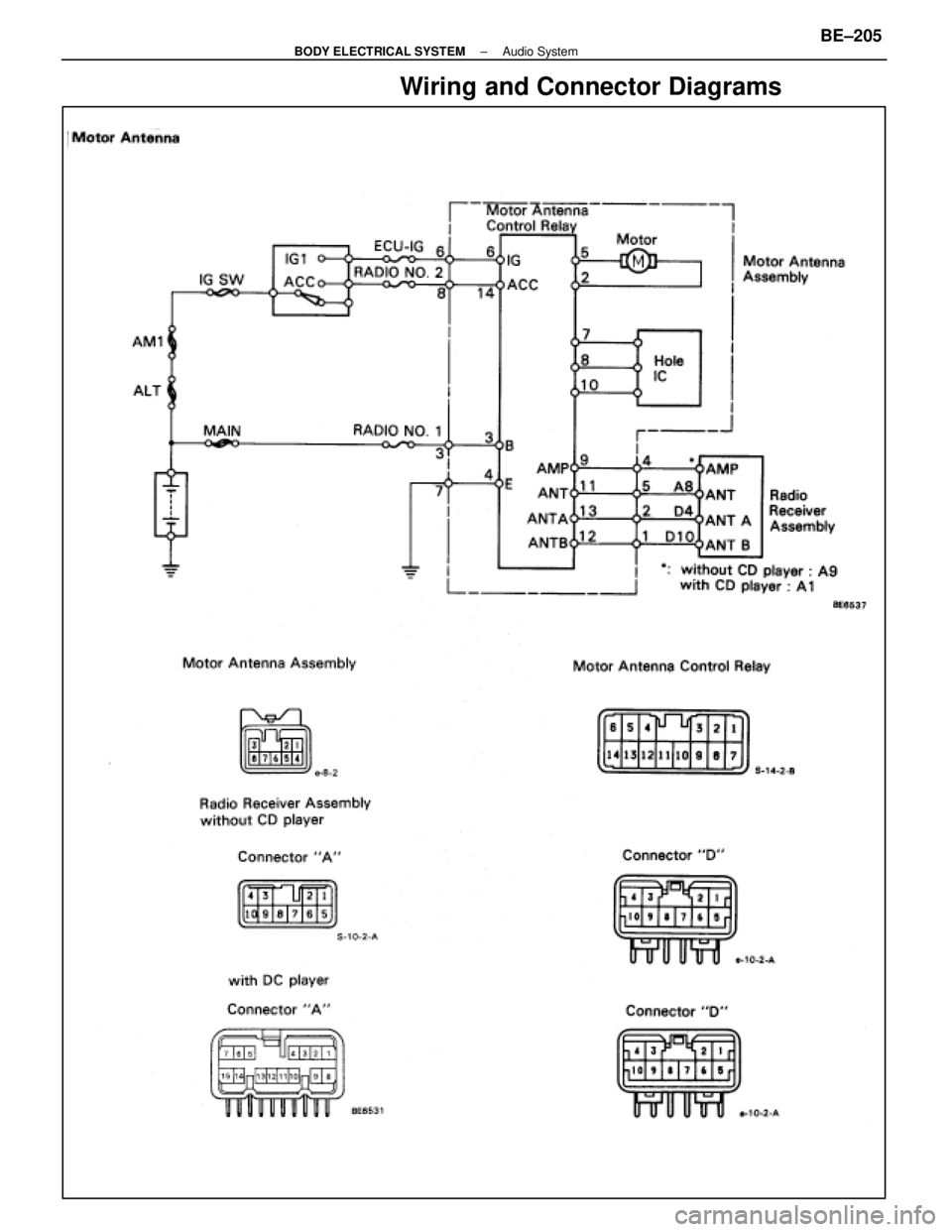

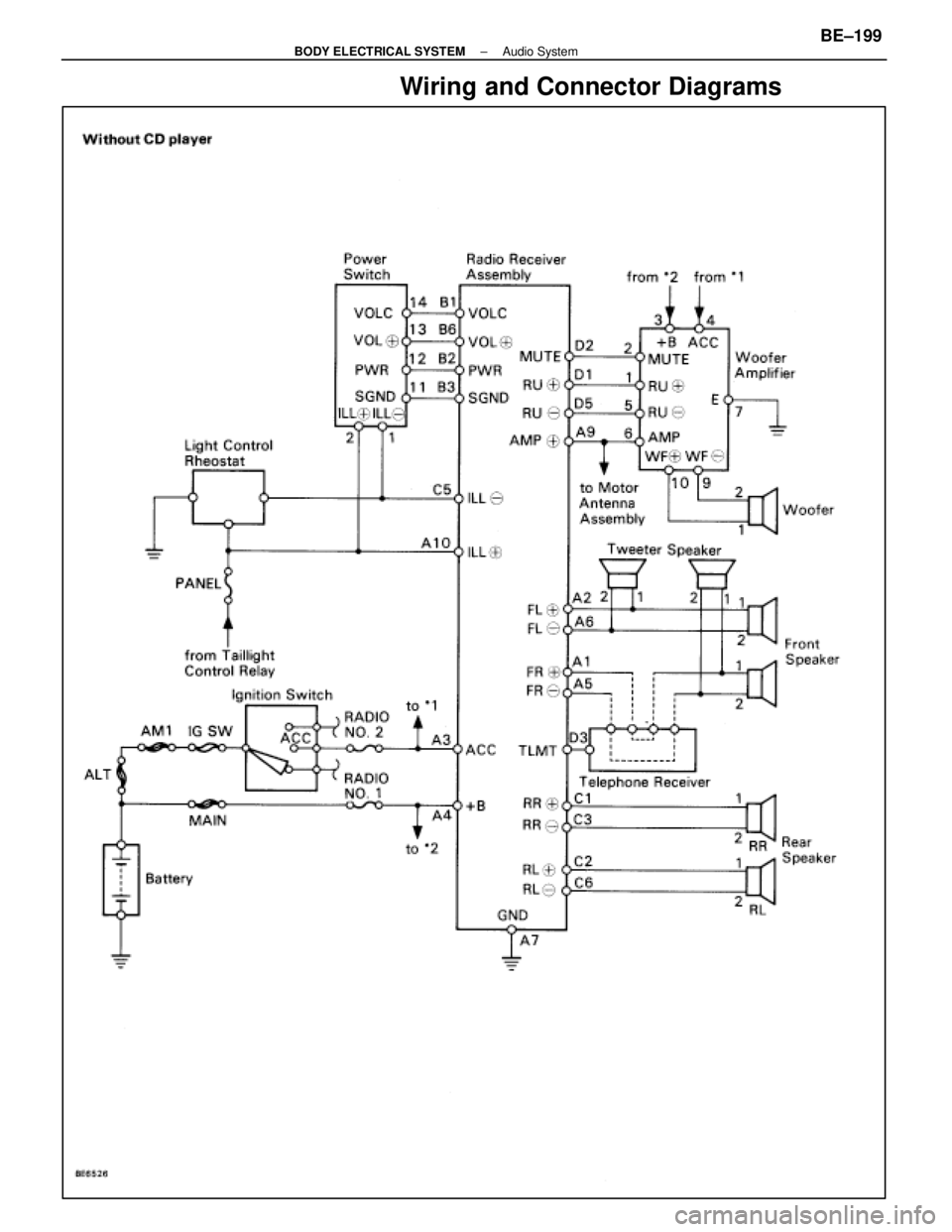

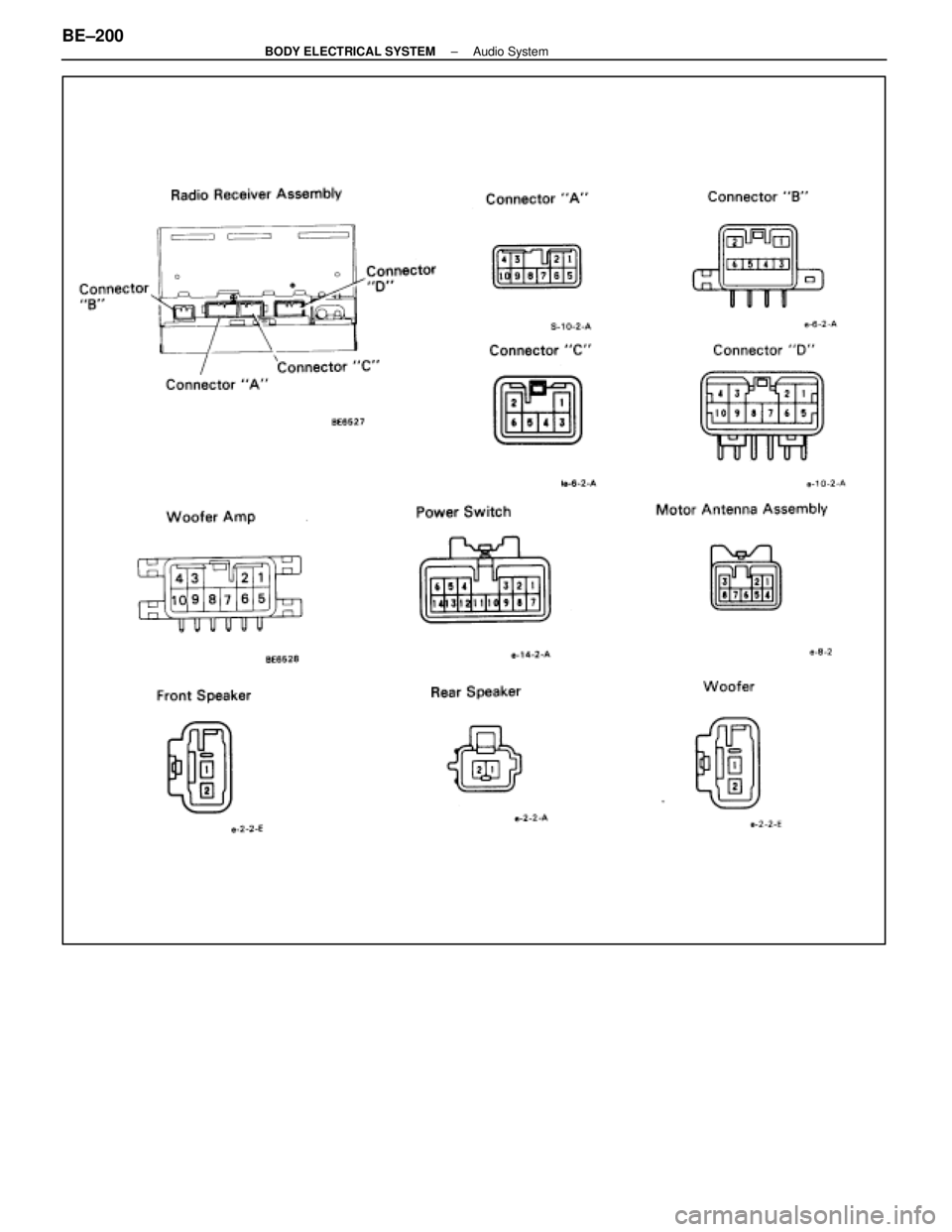

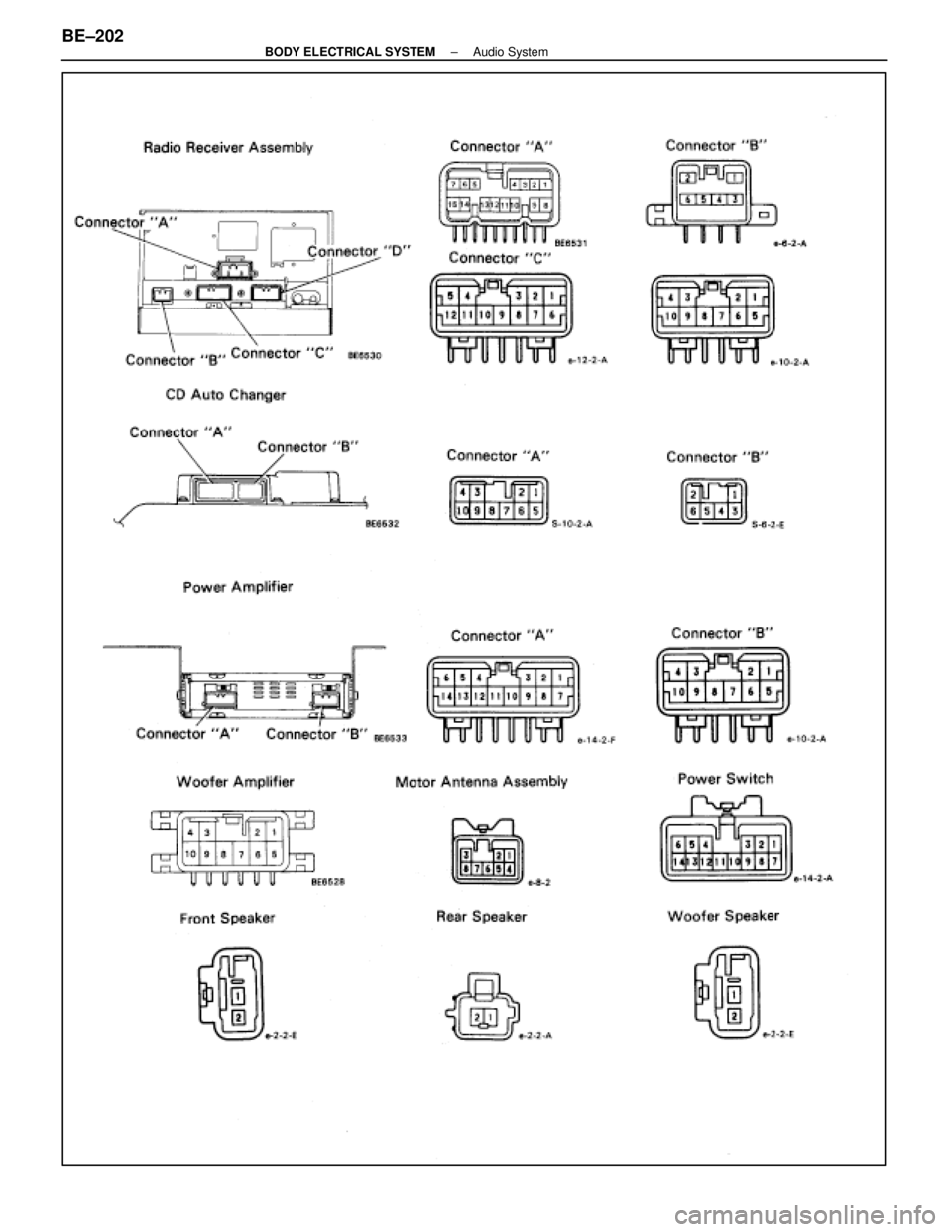

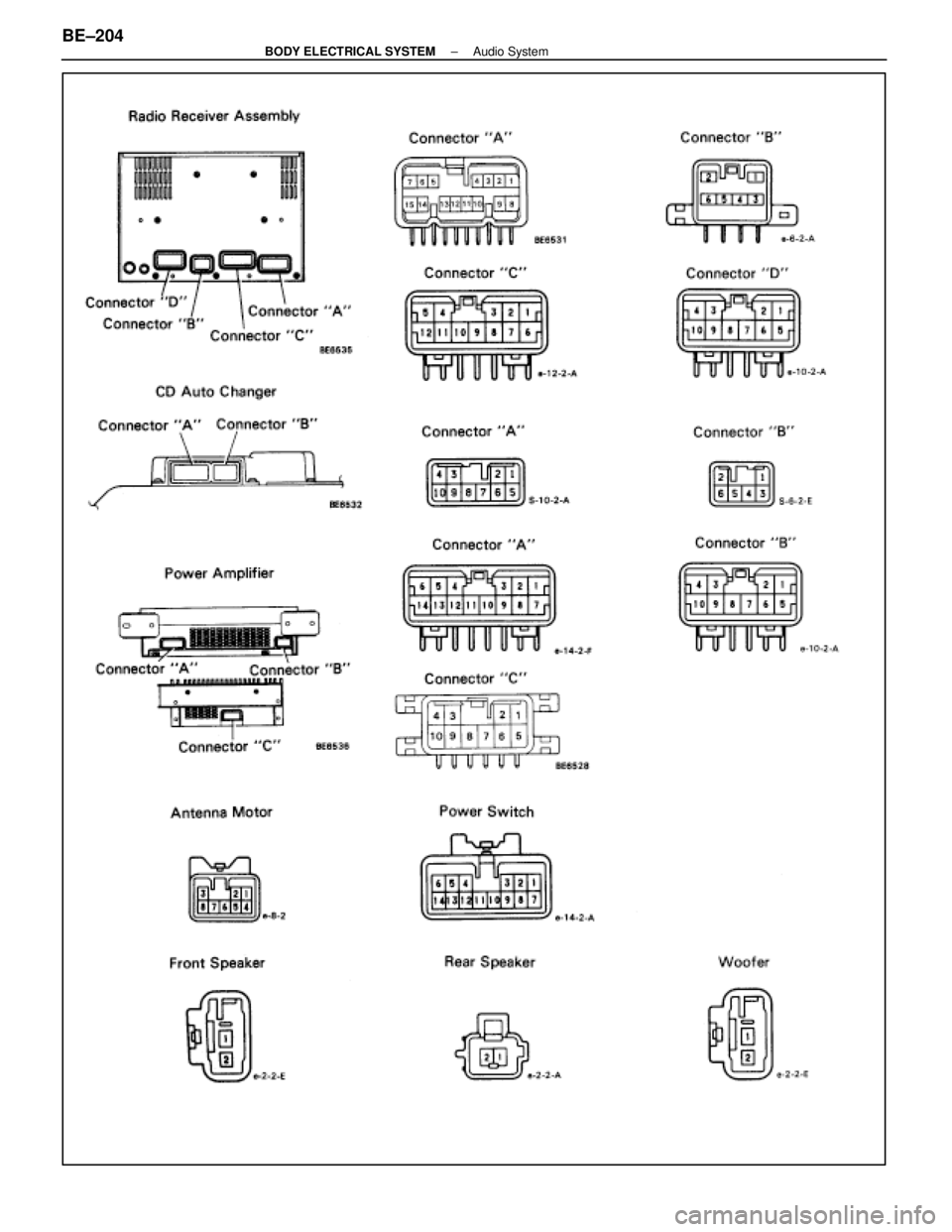

Wiring and Connector Diagrams
±
BODY ELECTRICAL SYSTEM Audio SystemBE±199
WhereEverybodyKnowsYourName
Page 586 of 4087
BE±200±
BODY ELECTRICAL SYSTEM Audio System
WhereEverybodyKnowsYourName
Page 587 of 4087
Wiring and Connector Diagrams
±
BODY ELECTRICAL SYSTEM Audio SystemBE±201
WhereEverybodyKnowsYourName
Page 588 of 4087
BE±202±
BODY ELECTRICAL SYSTEM Audio System
WhereEverybodyKnowsYourName
Page 589 of 4087
Wiring and Connector Diagrams
±
BODY ELECTRICAL SYSTEM Audio SystemBE±203
WhereEverybodyKnowsYourName
Page 590 of 4087
BE±204±
BODY ELECTRICAL SYSTEM Audio System
WhereEverybodyKnowsYourName
Page 591 of 4087
Wiring and Connector Diagrams
±
BODY ELECTRICAL SYSTEM Audio SystemBE±205
WhereEverybodyKnowsYourName
Page 592 of 4087

Parts Inspection
(Power Switch)
REMOVAL AND INSTALLATION OF
POWER SWITCH
1. REMOVAL CONTROL PANEL(a) Remove the console upper panel.(See BO section)
(b) Remove three screws and the control panel.
2. INSTALL CONTROL PANEL For installation, follow the removal procedure in reverse.
INSPECTION OF POWER SWITCH
INSPECT POWER SWITCH
(Continuity)
Inspect continuity between terminals.
Terminal
Switch position
OFF (Power switch released) ON (Power switch pushed in)
If continuity is not as specified, replace the control panel.
(Resistance)
Inspect resistance between terminals.
Tester connectionConditionSpecified value
11±13ConstantApprox. 50 k
11±14Switch knob
A BApprox. 0 50 k
If resistance is not as specified, replace the control panel.
(Illumination)
Connect the positive (+) lead from the battery to terminal 2
and the negative (±) lead to terminal 1, check that the illu-
mination light lights up.
If the illumination light does not light up, replace the control
panel.
BE±206
±
BODY ELECTRICAL SYSTEM Audio System
WhereEverybodyKnowsYourName
