DTC P0550 PSP SENSOREC-1001
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

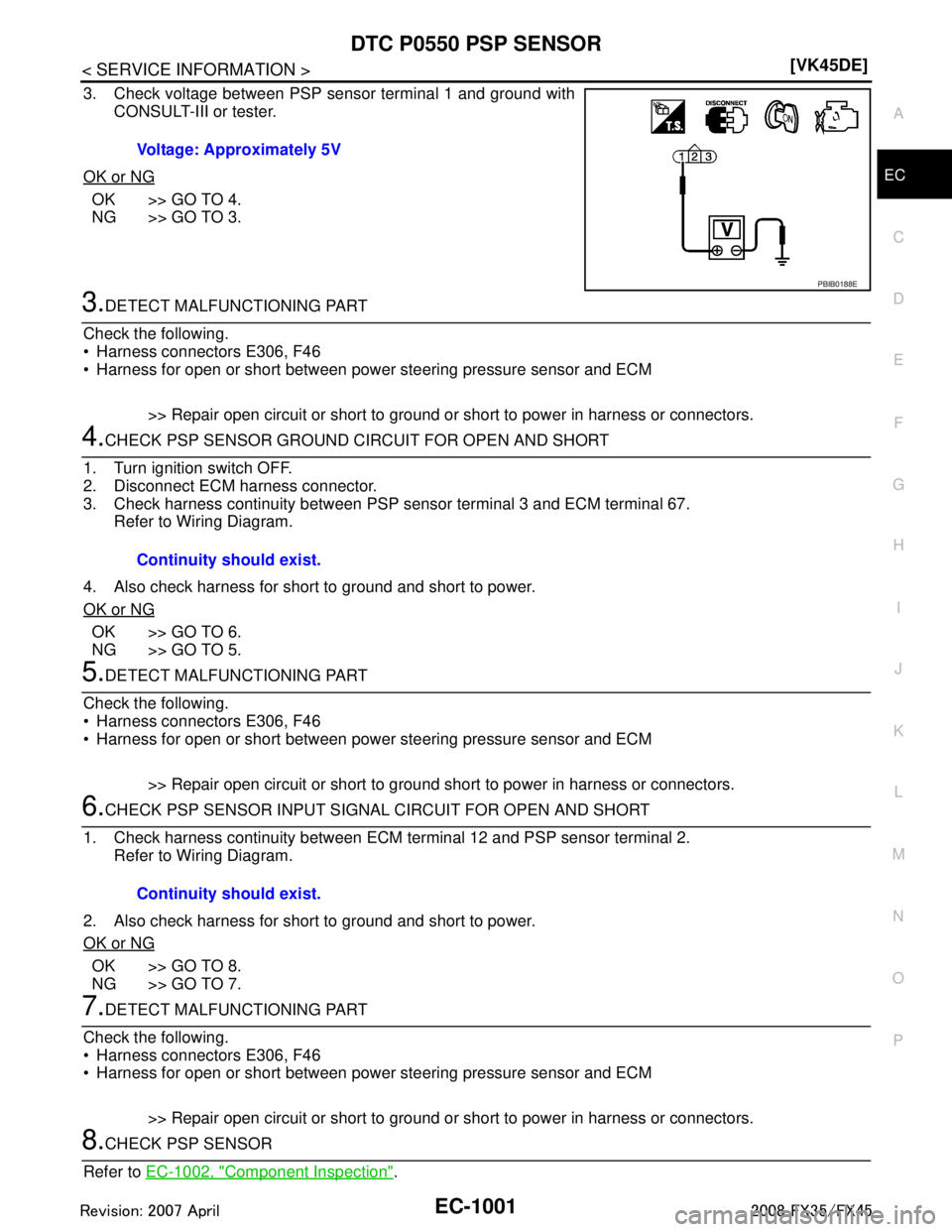

3. Check voltage between PSP sensor terminal 1 and ground with
CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E306, F46
Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK PSP SENSOR GROUND CI RCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between PSP sensor terminal 3 and ECM terminal 67. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E306, F46
Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to ground s hort to power in harness or connectors.
6.CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 12 and PSP sensor terminal 2. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E306, F46
Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK PSP SENSOR
Refer to EC-1002, "
Component Inspection".
Voltage: Approximately 5V
PBIB0188E
Continuity should exist.
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2242 of 3924
EC-1002
< SERVICE INFORMATION >[VK45DE]
DTC P0550 PSP SENSOR
OK or NG
OK >> GO TO 9.
NG >> Replace PSP sensor.
9.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
Component InspectionINFOID:0000000001326857
POWER STEERING PRESSURE SENSOR
1. Reconnect all harness connectors disconnected.
2. Start engine and let it idle.
3. Check voltage between ECM terminal 12 and ground under the
following conditions.
Removal and InstallationINFOID:0000000001326858
POWER STEERING PRESSURE SENSOR
Refer to PS-37.
Condition Voltage
Steering wheel: Being turned 0.5 - 4.5V
Steering wheel: Not being turned 0.4 - 0.8V
MBIB0126E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2243 of 3924
![INFINITI FX35 2008 Service Manual
DTC P0603 ECM POWER SUPPLYEC-1003
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0603 ECM POWER SUPPLY
Component DescriptionINFOID:0000000001326859
Battery voltage is supplied INFINITI FX35 2008 Service Manual
DTC P0603 ECM POWER SUPPLYEC-1003
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0603 ECM POWER SUPPLY
Component DescriptionINFOID:0000000001326859
Battery voltage is supplied](/manual-img/42/57017/w960_57017-2242.png)
DTC P0603 ECM POWER SUPPLYEC-1003
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0603 ECM POWER SUPPLY
Component DescriptionINFOID:0000000001326859

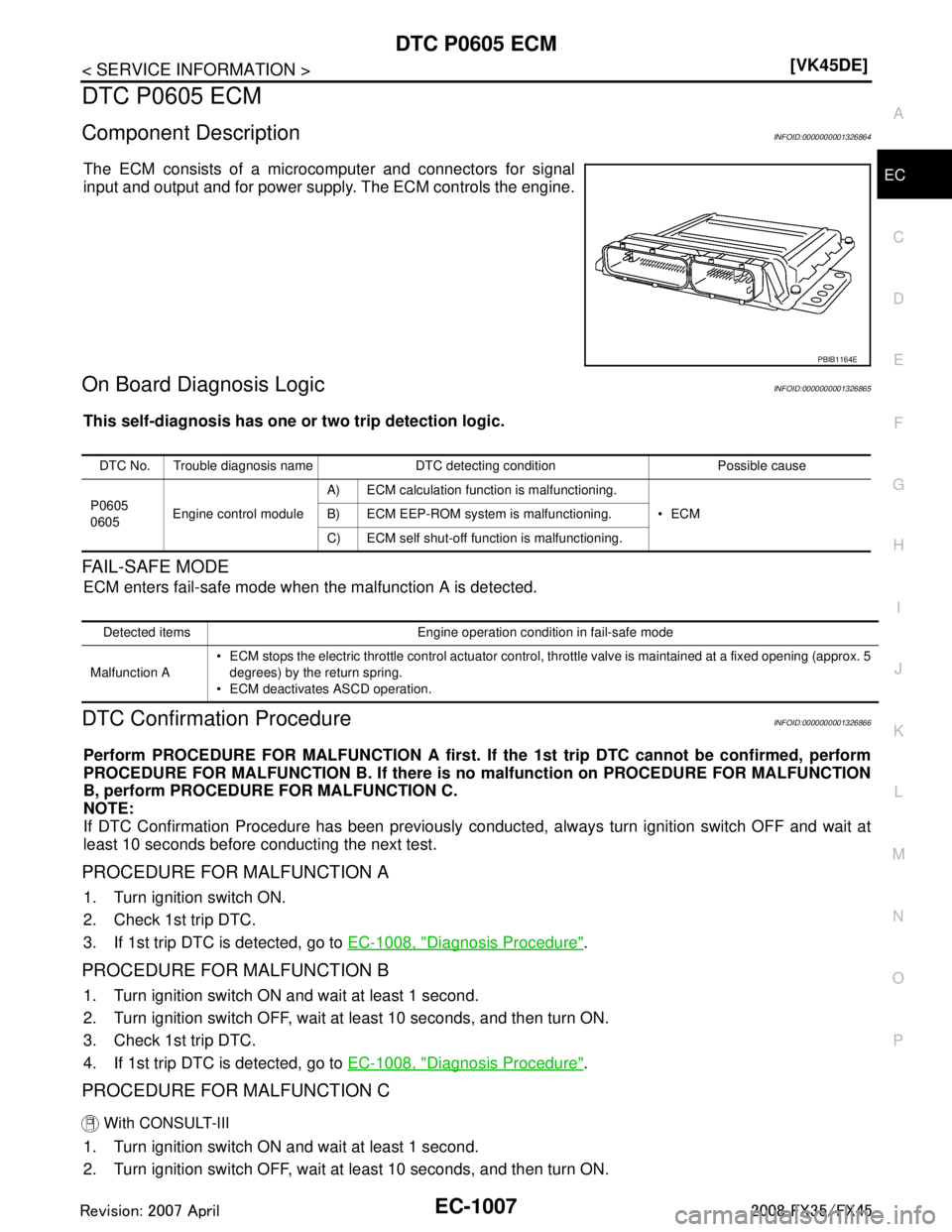

Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air-fuel ratio feedback compensation value memory, the idle air vol-
ume learning value memory, etc.
On Board Diagnosis LogicINFOID:0000000001326860
DTC Confirmation ProcedureINFOID:0000000001326861
NOTE:
If DTC Confirmation Procedure has been previously conduc
ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Turn ignition switch ON and wait at least 1 second.
2. Start engine and let it idle for 1 second.
3. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
4. Repeat steps 2 and 3 for four times.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-1005, "
Diagnosis Procedure".
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0603
0603 ECM power supply cir-
cuit ECM back-up RAM system does not function
properly. Harness or connectors
[ECM power supply (b ack-up) circuit is
open or shorted.]
ECM
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2244 of 3924
EC-1004
< SERVICE INFORMATION >[VK45DE]
DTC P0603 ECM POWER SUPPLY

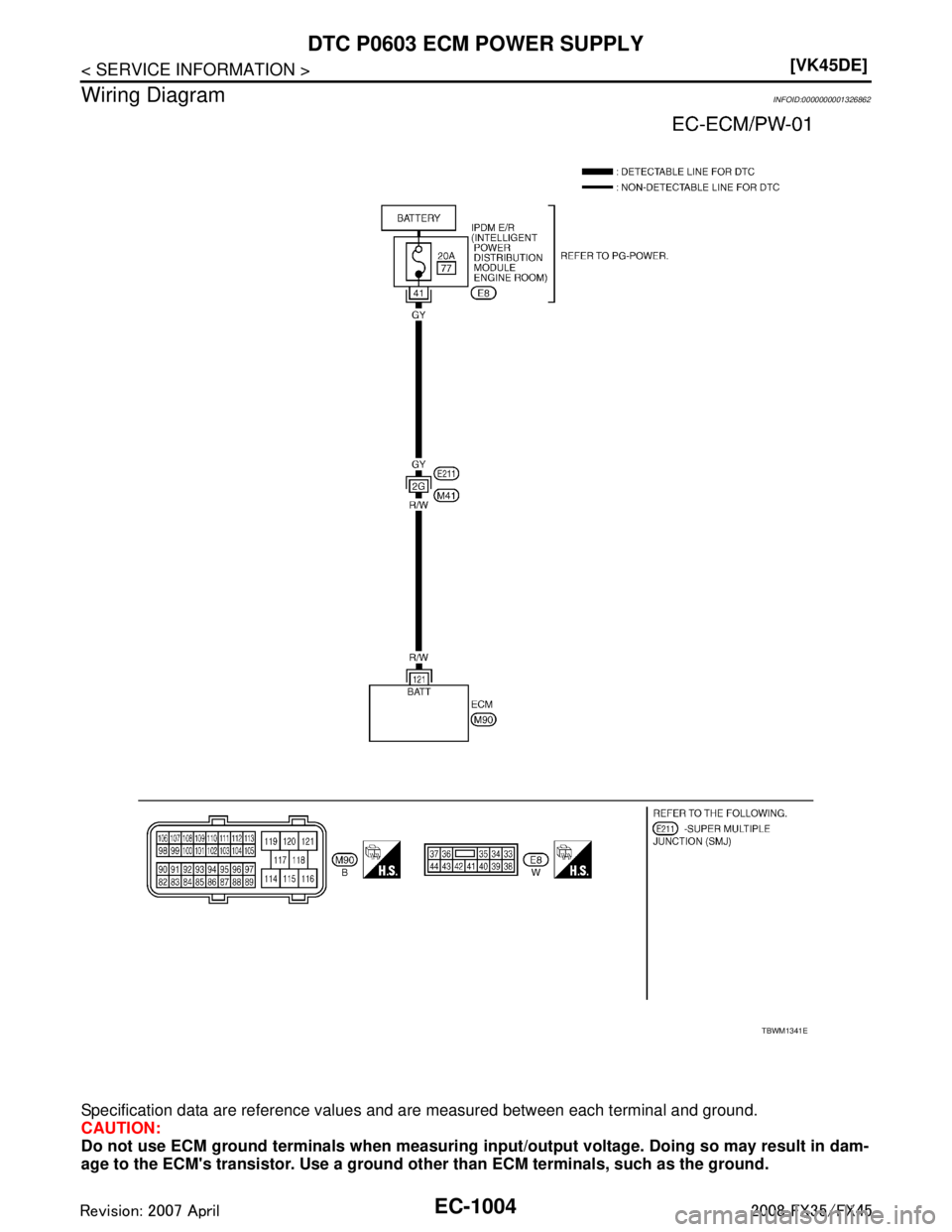

Wiring Diagram

INFOID:0000000001326862
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM1341E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2245 of 3924
![INFINITI FX35 2008 Service Manual
DTC P0603 ECM POWER SUPPLYEC-1005
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000001326863
1.CHECK ECM POWER SUPPLY
1. Turn ignition switch OFF.
2. INFINITI FX35 2008 Service Manual
DTC P0603 ECM POWER SUPPLYEC-1005
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000001326863
1.CHECK ECM POWER SUPPLY
1. Turn ignition switch OFF.
2.](/manual-img/42/57017/w960_57017-2244.png)
DTC P0603 ECM POWER SUPPLYEC-1005
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000001326863
1.CHECK ECM POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check voltage between ECM terminal 121 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
20A fuse
IPDM E/R harness connector E8
Harness for open or short between ECM and battery
>> Repair or replace harness or connectors.
3.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connectors.
4.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Turn ignition switch ON.
2. Select “SELF-DIAG RESU LTS” mode with CONSULT-III.
3. Touch “ERASE”.
4. Perform DTC Confirmation Procedure.
See EC-1003, "
DTC Confirmation Procedure".
5. Is the 1st trip DTC P0603 displayed again?
With GST
1. Turn ignition switch ON.
2. Select “Service $04” with GST.
3. Perform DTC Confirmation Procedure.
See EC-1003, "
DTC Confirmation Procedure".
4. Is the 1st trip DTC P0603 displayed again?
Ye s o r N o
Yes >> GO TO 5.
No >> INSPECTION END
TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
121 R/W Power supply for ECM
(Back-up) [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
MBIB0026E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2246 of 3924
EC-1006
< SERVICE INFORMATION >[VK45DE]
DTC P0603 ECM POWER SUPPLY
5.REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS (NATS) system and regist ration of all IVIS (NATS) ignition key IDs. Refer to
BL-187, "
ECM Re-Communicating Function".
3. Perform EC-662, "
VIN Registration".
4. Perform EC-662, "
Accelerator Pedal Released Position Learning".
5. Perform EC-663, "
Throttle Valve Closed Position Learning".
6. Perform EC-663, "
Idle Air Volume Learning".
>> INSPECTION END
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2247 of 3924
![INFINITI FX35 2008 Service Manual
DTC P0605 ECMEC-1007
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0605 ECM
Component DescriptionINFOID:0000000001326864
The ECM consists of a microcomputer and connectors for INFINITI FX35 2008 Service Manual
DTC P0605 ECMEC-1007
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0605 ECM
Component DescriptionINFOID:0000000001326864
The ECM consists of a microcomputer and connectors for](/manual-img/42/57017/w960_57017-2246.png)
DTC P0605 ECMEC-1007
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0605 ECM
Component DescriptionINFOID:0000000001326864
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.
On Board Diagnosis LogicINFOID:0000000001326865
This self-diagnosis has one or two trip detection logic.
FAIL-SAFE MODE
ECM enters fail-safe mode when the malfunction A is detected.
DTC Confirmation ProcedureINFOID:0000000001326866
Perform PROCEDURE FOR MALFUNCTION A first. If th
e 1st trip DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION B. If there is no malfunction on PROCEDURE FOR MALFUNCTION
B, perform PROCEDURE FOR MALFUNCTION C.
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
1. Turn ignition switch ON.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-1008, "
Diagnosis Procedure".
PROCEDURE FOR MALFUNCTION B
1. Turn ignition switch ON and wait at least 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
3. Check 1st trip DTC.
4. If 1st trip DTC is detected, go to EC-1008, "
Diagnosis Procedure".
PROCEDURE FOR MALFUNCTION C
With CONSULT-III
1. Turn ignition switch ON and wait at least 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0605
0605 Engine control module A) ECM calculation function is malfunctioning.
ECM
B) ECM EEP-ROM system is malfunctioning.
C) ECM self shut-off function is malfunctioning.
Detected items Engine operation condition in fail-safe mode
Malfunction A ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5
degrees) by the return spring.
ECM deactivates ASCD operation.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2248 of 3924
![INFINITI FX35 2008 Service Manual
EC-1008
< SERVICE INFORMATION >[VK45DE]
DTC P0605 ECM
3. Repeat step 2 for 32 times.
4. Check 1st trip DTC.
5. If 1st trip DTC is detected, go to
EC-1008, "
Diagnosis Procedure".
Diagnosis Procedure INFINITI FX35 2008 Service Manual
EC-1008
< SERVICE INFORMATION >[VK45DE]
DTC P0605 ECM
3. Repeat step 2 for 32 times.
4. Check 1st trip DTC.
5. If 1st trip DTC is detected, go to
EC-1008, "
Diagnosis Procedure".
Diagnosis Procedure](/manual-img/42/57017/w960_57017-2247.png)
EC-1008
< SERVICE INFORMATION >[VK45DE]
DTC P0605 ECM
3. Repeat step 2 for 32 times.
4. Check 1st trip DTC.
5. If 1st trip DTC is detected, go to
EC-1008, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001326867
1.INSPECTION START
With CONSULT-III
1. Turn ignition switch ON.
2. Select “SELF-DIAG RESULTS” mode with CONSULT-III.
3. Touch “ERASE”.
4. Perform DTC Confirmation Procedure.
See EC-1007, "
DTC Confirmation Procedure".
5. Is the 1st trip DTC P0605 displayed again?
With GST
1. Turn ignition switch ON.
2. Select “Service $04” with GST.
3. Perform DTC Confirmation Procedure.
See EC-1007, "
DTC Confirmation Procedure".
4. Is the 1st trip DTC P0605 displayed again?
Ye s o r N o
Ye s > > G O T O 2 .
No >> INSPECTION END
2.REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS (NATS) system and regist ration of all IVIS (NATS) ignition key IDs. Refer to
BL-187, "
ECM Re-Communicating Function".
3. Perform EC-662, "
VIN Registration".
4. Perform EC-662, "
Accelerator Pedal Released Position Learning".
5. Perform EC-663, "
Throttle Valve Closed Position Learning".
6. Perform EC-663, "
Idle Air Volume Learning".
>> INSPECTION END
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
