Page 2113 of 3924
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-873
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

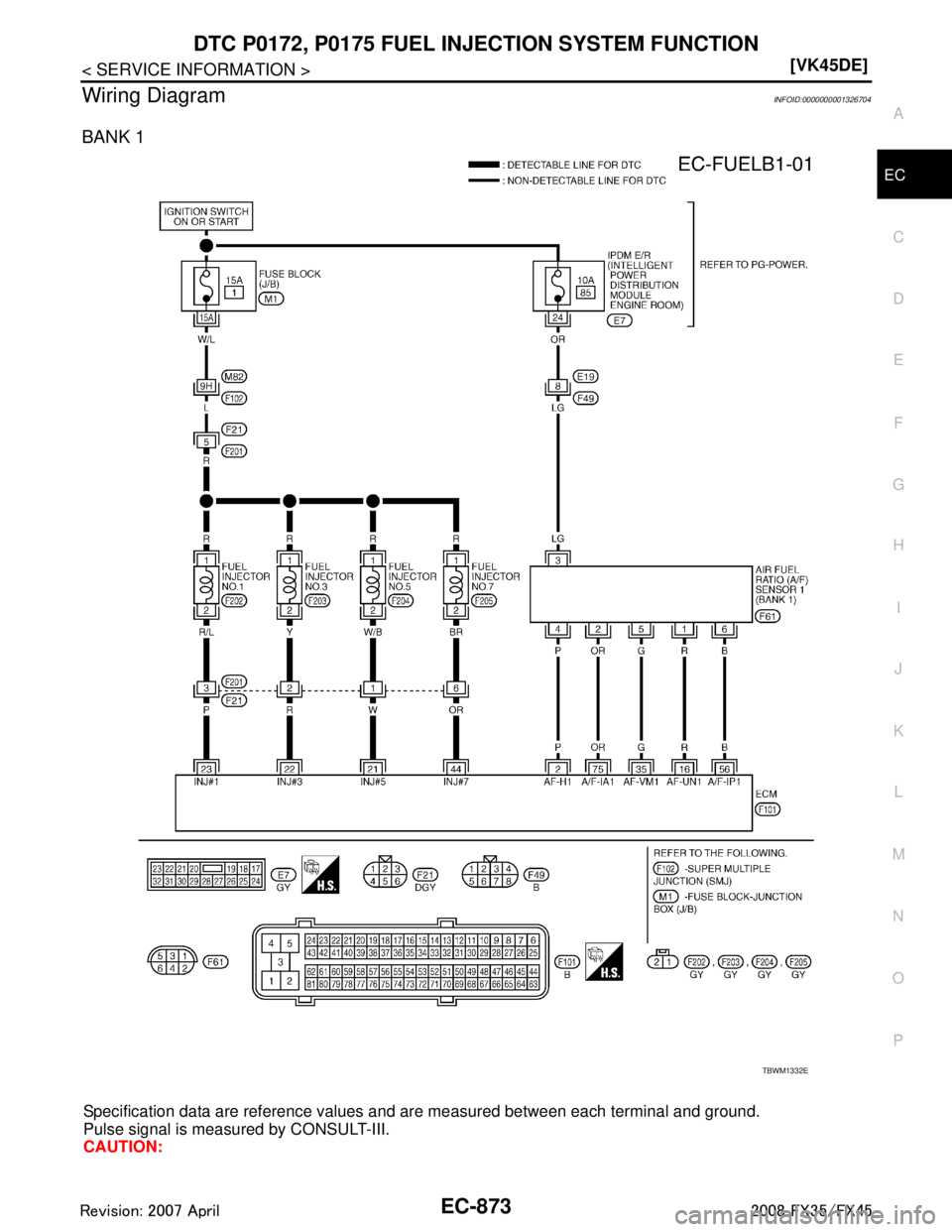

Wiring DiagramINFOID:0000000001326704
BANK 1
Specification data are reference values
and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
TBWM1332E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2114 of 3924
![INFINITI FX35 2008 Service Manual
EC-874
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the EC INFINITI FX35 2008 Service Manual
EC-874
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the EC](/manual-img/42/57017/w960_57017-2113.png)
EC-874
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MI-
NAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
2P A/F sensor 1 heater
(Bank 1) [Engine is running]
Warm-up condition
Idle speed Approximately 5V
16 R A/F sensor 1 (Bank 1) [Engine is running]
Warm-up condition
Idle speed Approximately 3.1V
35 G Approximately 2.6V
56 B Approximately 2.3V
75 OR Approximately 2.3V
21
22
23
44 W
R
P
OR Fuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 7 [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14V)
PBIB1584E
PBIB0042E
PBIB0043E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2115 of 3924
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-875
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

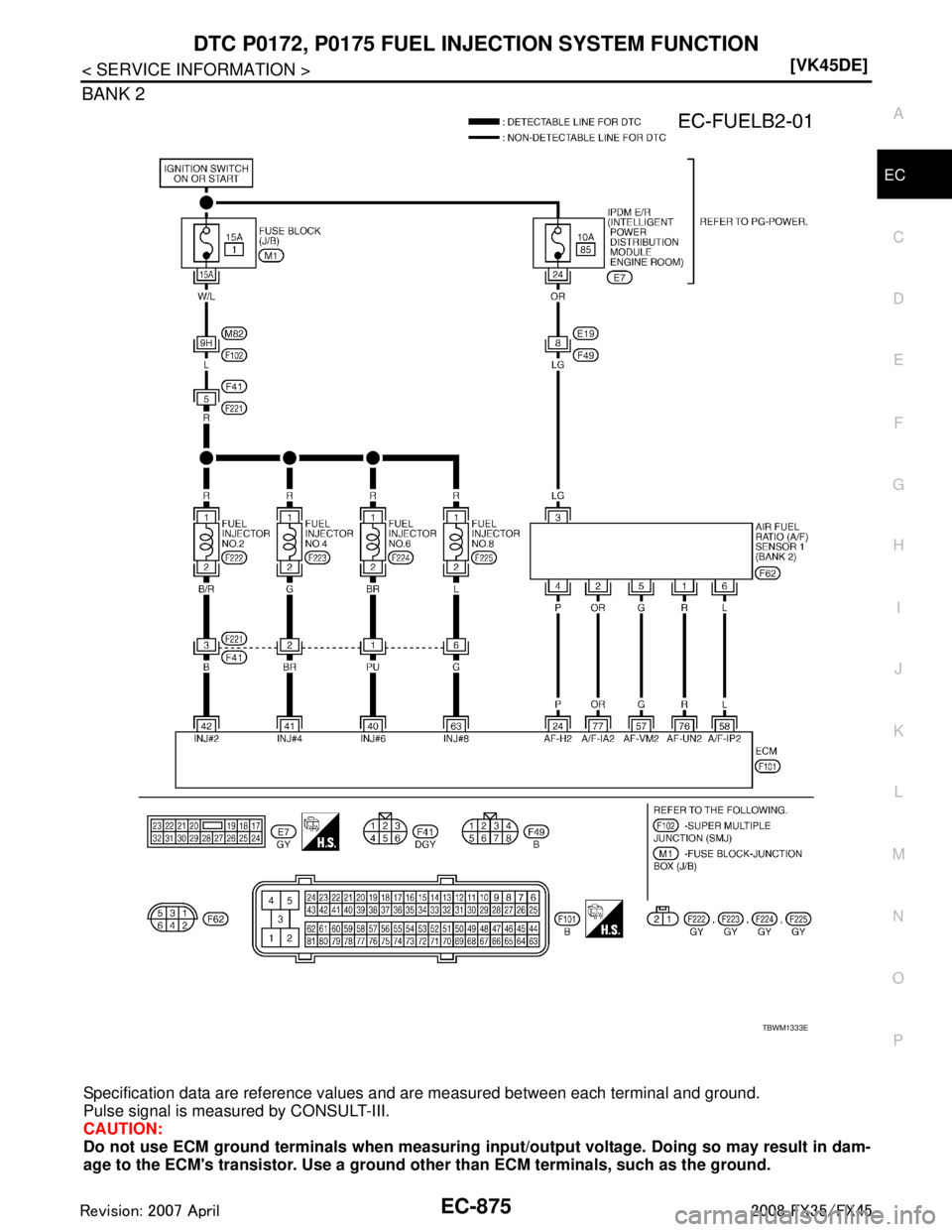

BANK 2
Specification data are reference values
and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM1333E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2116 of 3924
![INFINITI FX35 2008 Service Manual
EC-876
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureI INFINITI FX35 2008 Service Manual
EC-876
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureI](/manual-img/42/57017/w960_57017-2115.png)
EC-876
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureINFOID:0000000001326705
1.CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Listen for an exhaust gas leak before three way catalyst (manifold).
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2.CHECK FOR INTAKE AIR LEAK
TER- MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
24 P A/F sensor 1 heater
(Bank 2) [Engine is running]
Warm-up condition
Idle speed Approximately 5V
40
41
42
63 PU
BR
B
G Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2
Fuel injector No. 8 [Engine is running]
Warm-up condition
Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14V)
57 G A/F sensor 1 (Bank 2) [Engine is running]
Warm-up condition
Idle speed Approximately 2.6V
58 L Approximately 2.3V
76 R Approximately 3.1V
77 OR Approximately 2.3V
PBIB1584E
PBIB0042E
PBIB0043E
PBIB1216E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2117 of 3924
![INFINITI FX35 2008 Service Manual
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-877
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO INFINITI FX35 2008 Service Manual
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-877
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO](/manual-img/42/57017/w960_57017-2116.png)
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-877
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3.CHECK AIR FUEL RATIO (A/F)
SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect air fuel ratio (A /F) sensor 1 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals. Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
6. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.

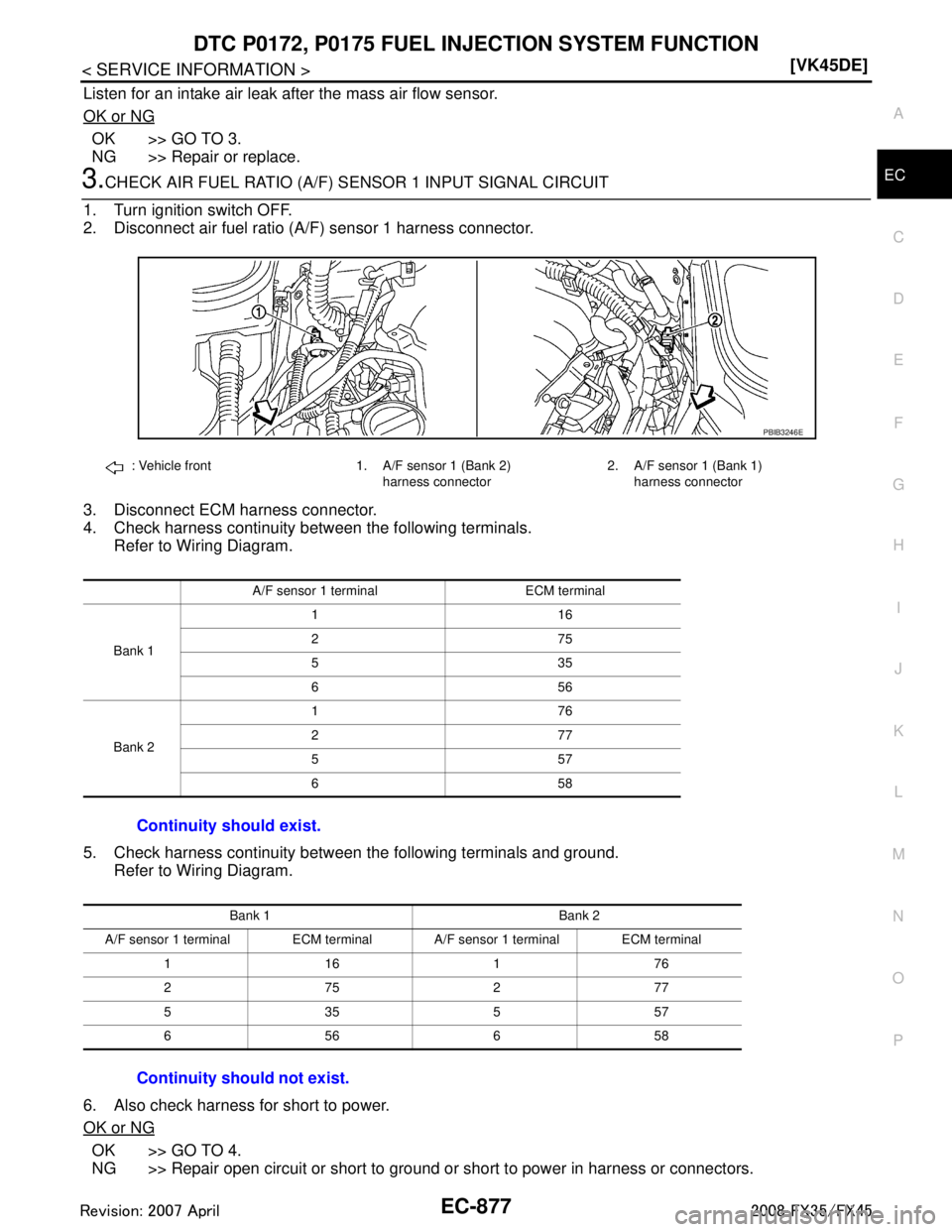

: Vehicle front 1. A/F sensor 1 (Bank 2) harness connector2. A/F sensor 1 (Bank 1)
harness connector
A/F sensor 1 terminal ECM terminal
Bank 1 116
275
535
656
Bank 2 176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 116176
275277
535557
656658
Continuity should not exist.
PBIB3246E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2118 of 3924
![INFINITI FX35 2008 Service Manual
EC-878
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
4.CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-665, "
Fuel Pressure Check".
2. Install fu INFINITI FX35 2008 Service Manual
EC-878
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
4.CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-665, "
Fuel Pressure Check".
2. Install fu](/manual-img/42/57017/w960_57017-2117.png)
EC-878
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
4.CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-665, "
Fuel Pressure Check".
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-665, "
Fuel Pressure Check".
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
Fuel pump and circuit (Refer to EC-1155
.)
Fuel pressure regulator (Refer to EC-665, "
Fuel Pressure Check".)
>> Repair or replace.
6.CHECK MASS AIR FLOW SENSOR
With CONSULT-III
1. Install all removed parts.
2. Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-III.
With GST
1. Install all removed parts.
2. Check mass air flow sensor signal in “Service $01” with GST.
OK or NG
OK (With CONSULT-III)>>GO TO 7.
OK (Without CONSULT-III)>>GO TO 8.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or
grounds. Refer to EC-768
.
7.CHECK FUNCTION OF FUEL INJECTOR-I
With CONSULT-III
1. Start engine.
2. Perform “POWER BALANCE” in “A CTIVE TEST” mode with CONSULT-III.
3. Make sure that each circuit produces a momentary engine speed drop.
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for EC-1149
.
8.CHECK FUNCTION OF FUEL INJECTOR-I
Without CONSULT-III
1. Turn ignition switch OFF.
2. Disconnect harness connectors F21, F 201 (Bank 1) and F41, F221 (Bank 2).
At idling: Approximately 350 kPa (3.57 kg/cm
2, 51 psi)
2.0 - 6.0 g·m/sec: at idling
7.0 - 20.0 g·m/sec: at 2,500 rpm
2.0 - 6.0 g·m/sec: at idling
7.0 - 20.0 g·m/sec: at 2,500 rpm
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2119 of 3924
![INFINITI FX35 2008 Service Manual
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-879
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Turn ignition switch ON.
4. Check voltage between the following;
harness con INFINITI FX35 2008 Service Manual
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-879
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Turn ignition switch ON.
4. Check voltage between the following;
harness con](/manual-img/42/57017/w960_57017-2118.png)
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-879
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Turn ignition switch ON.
4. Check voltage between the following;
harness connector F21 terminal 5 and ground,
harness connector F41 terminal 5 and ground.
5. Turn ignition switch OFF.
6. Disconnect ECM harness connector.
7. Check harness continuity between the following terminals.
8. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Perform trouble diagnosis for EC-1149
.
9.CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery voltage between the following terminals, and then
interrupt it. Listen to each fuel injector operating sound.

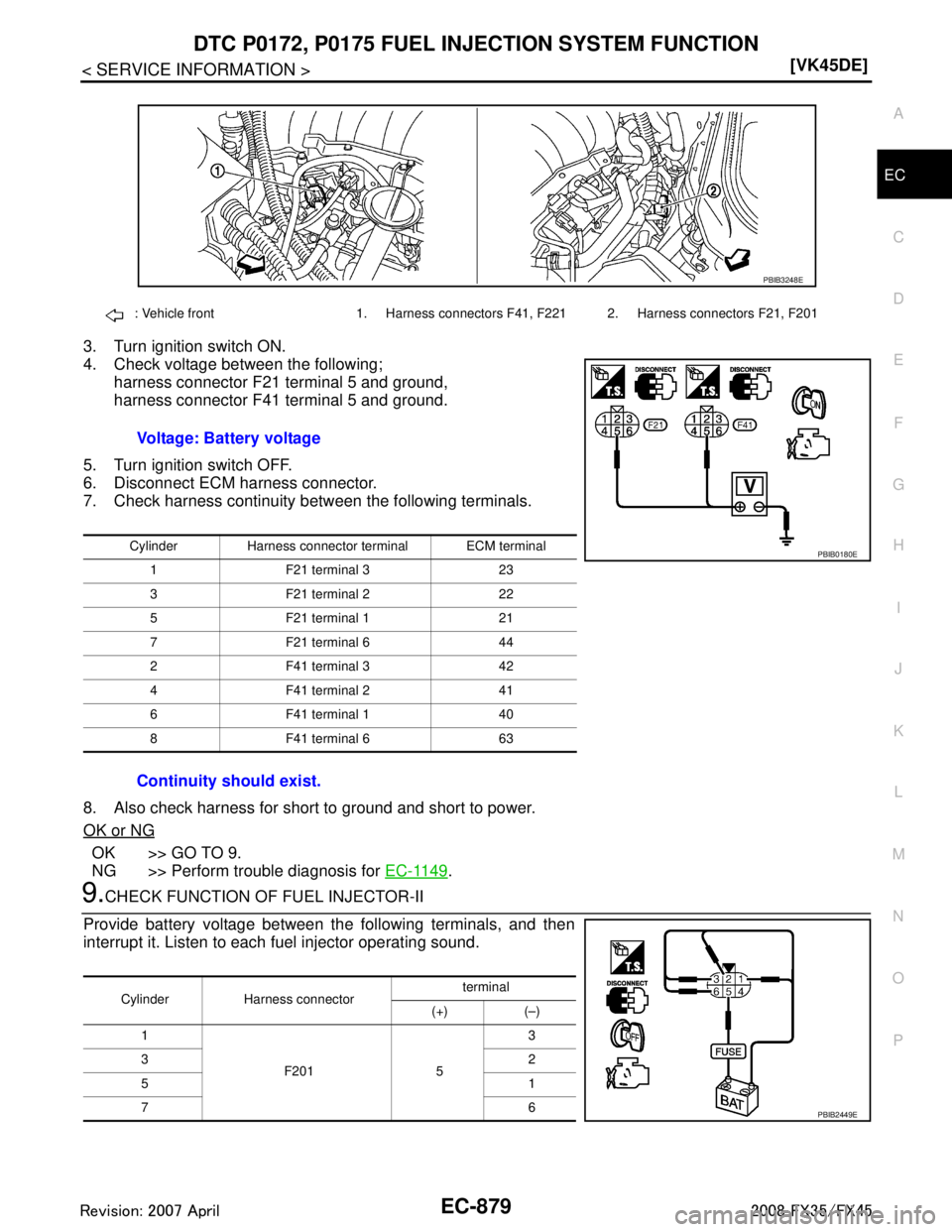

: Vehicle front 1. Harness connectors F41, F221 2. Harness connectors F21, F201
Voltage: Battery voltage
Cylinder Harness connector terminal ECM terminal
1 F21 terminal 3 23
3 F21 terminal 2 22
5 F21 terminal 1 21
7 F21 terminal 6 44
2 F41 terminal 3 42
4 F41 terminal 2 41
6 F41 terminal 1 40
8 F41 terminal 6 63
Continuity should exist.
PBIB3248E
PBIB0180E
Cylinder Harness connector terminal
(+) (–)
1
F201 5 3
32
51
76
PBIB2449E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2120 of 3924
![INFINITI FX35 2008 Service Manual
EC-880
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for EC-1149
.
10.CHECK FUEL INJECTOR
1. Turn ignition INFINITI FX35 2008 Service Manual
EC-880
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for EC-1149
.
10.CHECK FUEL INJECTOR
1. Turn ignition](/manual-img/42/57017/w960_57017-2119.png)
EC-880
< SERVICE INFORMATION >[VK45DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for EC-1149
.
10.CHECK FUEL INJECTOR
1. Turn ignition switch OFF.
2. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
3. Remove fuel tube assembly. Refer to EM-190
.
Keep fuel hose and all fuel inje ctors connected to fuel tube.
4. Disconnect all fuel injector harness connectors.
5. Disconnect all ignition coil harness connectors.
6. Prepare pans or saucers under each fuel injectors.
7. Crank engine for about 3 seconds. Make sure fuel does not drip from fuel injector.
OK or NG
OK (Does not drip.)>>GO TO 11.
NG (Drips.)>>Replace the fuel injectors from which fuel is dripping. Always replace O-ring with new one.
11 .CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
2
F221 5 3
42
61
86
Operating sound should exist.
Cylinder Harness connector terminal
(+) (–)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
