Page 3361 of 3924

INFINITI FX35 2008 Service Manual
PB-6
< SERVICE INFORMATION >
PARKING BRAKE SHOE
PARKING BRAKE SHOE
ComponentINFOID:0000000001327649
Removal and InstallationINFOID:0000000001327650
REMOVAL
WARNING:
Clean brakes with a vacuum dust co

Page 3362 of 3924

INFINITI FX35 2008 Service Manual
PARKING BRAKE SHOEPB-7
< SERVICE INFORMATION >
C
DE
G H
I
J
K L
M A
B
PB
N
O P
b. Using flat-bladed screwdriver, rotate adjuster in direction “B” to retract and loosen brake shoe.
4. Remove anti

Page 3363 of 3924

INFINITI FX35 2008 Service Manual
PB-8
< SERVICE INFORMATION >
PARKING BRAKE SHOE
Assemble adjuster so that threaded part expands when rotating itin the direction shown by the arrow.
Shorten adjuster by rotating it.
When disass

Page 3364 of 3924

INFINITI FX35 2008 Service Manual
SERVICE DATA AND SPECIFICATIONS (SDS)
PB-9
< SERVICE INFORMATION >
C
D E
G H
I
J
K L
M A
B
PB
N
O P
SERVICE DATA AND SPECIFICATIONS (SDS)
Parking Drum BrakeINFOID:0000000001327651
Parking Brake Contr

Page 3365 of 3924

INFINITI FX35 2008 Service Manual
PG-1
ELECTRICAL
C
DE
F
G H
I
J
L
M
SECTION PG
A
B
PG
N
O P
CONTENTS
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
SERVICE INFORMATION .. ..........................2
DTC INDEX .............................

PG-1
ELECTRICAL
C
DE
F
G H
I
J
L
M
SECTION PG
A
B
PG
N
O P
CONTENTS
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
SERVICE INFORMATION .. ..........................2
DTC INDEX ..................................................... .....2
U1000 .................................................................. ......2
POWER SUPPLY ROUTING CIRCUIT ...............3
Schematic ........................................................... ......3
Wiring Diagram - POWER - ......................................4
Fuse ........................................................................16
Fusible Link .............................................................16
Circuit Breaker ........................................................16
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................
17
System Description ............................................. ....17
CAN Communication System Description ...............18
CAN Communication Unit .......................................18
Function of Detecting Ignition Relay Malfunction ....18
CONSULT-III Function (IPDM E/R) ..................... ....18
Auto Active Test ......................................................20
Schematic ...............................................................22
IPDM E/R Terminal Arrangement ...........................23
IPDM E/R Power/Ground Circuit Inspection ...........23
U1000 CAN COMM CIRCUIT .................................24
Removal and Installation of IPDM E/R ....................24
GROUND ...........................................................26
Ground Distribution .............................................. ....26
HARNESS .........................................................40
Harness Layout ................................................... ....40
Wiring Diagram Codes (Cell Codes) .......................60
ELECTRICAL UNITS LOCATION ....................64
Electrical Units Location ..........................................64
HARNESS CONNECTOR .................................68
Description ...............................................................68
ELECTRICAL UNITS ........................................71
Terminal Arrangement .............................................71
SMJ (SUPER MULTIPLE JUNCTION) .............73
Terminal Arrangement .............................................73
STANDARDIZED RELAY .................................75
Description ...............................................................75
FUSE BLOCK - JUNCTION BOX (J/B) ............77
Terminal Arrangement .............................................77
FUSE, FUSIBLE LINK AND RELAY BOX ........78
Terminal Arrangement .............................................78
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 3366 of 3924

INFINITI FX35 2008 Service Manual
PG-2
< SERVICE INFORMATION >
DTC INDEX
SERVICE INFORMATION
DTC INDEX
U1000INFOID:0000000001351918
DTC Items (CONSULT screen terms) Reference
U1000 CAN COMM CIRCUIT PG-24, "
U1000 CAN COMM CIRCUIT"
3A

Page 3367 of 3924

INFINITI FX35 2008 Service Manual
POWER SUPPLY ROUTING CIRCUITPG-3
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
POWER SUPPLY ROUTING CIRCUIT
SchematicINFOID:0000000001328865

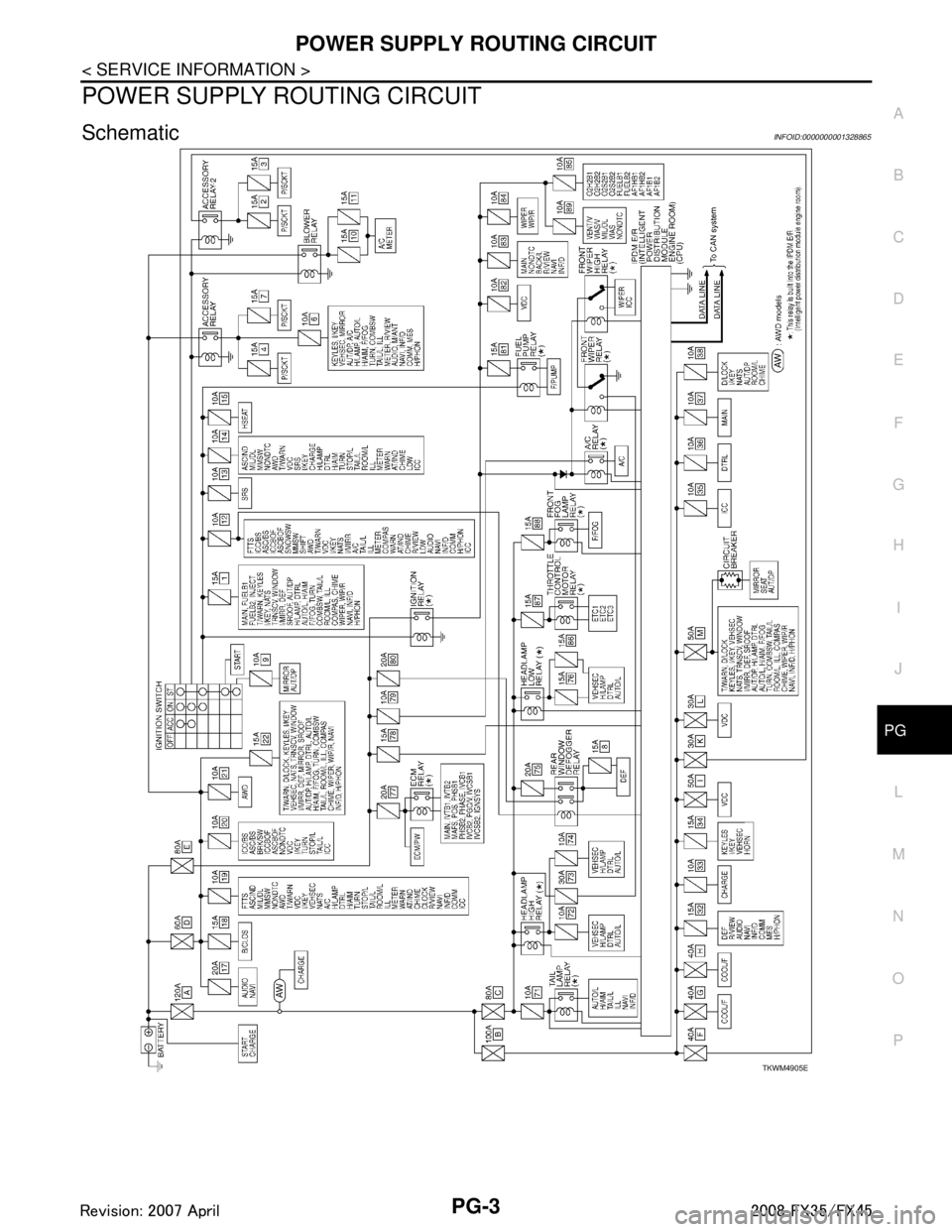

TKWM4905E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A

Page 3368 of 3924

INFINITI FX35 2008 Service Manual
PG-4
< SERVICE INFORMATION >
POWER SUPPLY ROUTING CIRCUIT
Wiring Diagram - POWER -
INFOID:0000000001328866
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
TKWM4458E
3AA93ABC3ACD3AC03ACA3AC03AC6
