SNOW MODE SWITCHEC-1185
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-723, "
Ground Inspection".
OK or NG
OK >> GO TO 8.
NG >> Repair or replace ground connections.
8.CHECK SNOW MODE INDICATOR LAMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between snow mode switch terminal 2 and ground. Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to power in harness or connectors.
9.CHECK SNOW MODE SWITCH
Refer to EC-1185, "
Component Inspection".
OK or NG
OK >> GO TO 10.
NG >> Replace snow mode switch.
10.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
Component InspectionINFOID:0000000001327081
SNOW MODE SWITCH
PBIB2195E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2426 of 3924
EC-1186
< SERVICE INFORMATION >[VK45DE]
SNOW MODE SWITCH
1. Check continuity between snow mode switch terminals 1 and 4
under the following conditions.
2. If NG, replace snow mode switch. If OK, go to following step.
3. Check continuity between snow mode switch terminals 2 and 4 under the following conditions.
4. If NG, replace snow mode switch.
CONDITION CONTINUITY
Snow mode switch: ON Should exist
Snow mode switch: OFF Should not exist
PBIB2563E
CONDITION CONTINUITY 1 Should exist
2 Should not exist
PBIB2564E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2427 of 3924
![INFINITI FX35 2008 Service Manual
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1187
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
VARIABLE INDUCTION AI
R CONTROL SYSTEM (VIAS)
DescriptionINFOID:0000000001327082
INFINITI FX35 2008 Service Manual
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1187
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
VARIABLE INDUCTION AI
R CONTROL SYSTEM (VIAS)
DescriptionINFOID:0000000001327082](/manual-img/42/57017/w960_57017-2426.png)
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1187
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
VARIABLE INDUCTION AI
R CONTROL SYSTEM (VIAS)
DescriptionINFOID:0000000001327082
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of engine speed and battery voltage.
When the engine is running at low or medium speed, the power valve isfully closed. Under this condition, the
effective suction port length is equivalentto the total lengt h of the intake manifold collector's suction port includ-
ingthe intake valve. This long suction port provides incr eased air intake whichresults in improved suction effi-
ciency and higher torque generation.
The surge tank and one-way valve are provided. When engine is runningat high speed, the ECM sends the
signal to the VIAS control solenoid valve.This signal introduces the intake manifold vacuum into the power
valve actuatorand therefore opens the power valve to two suction passages together in thecollector.
Under this condition, the effective port length is equi valent to thelength of the suction port provided indepen-
dently for each cylinder. Thisshortened port length results in enhanced engine output with reduced suctionre-
sistance under high speeds.
The power valve is always open regardless of the engine speed when gear position is in N or P.
COMPONENT DESCRIPTION
Power Valve
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
VIAS control VIAS control solenoid valve
Mass air flow sensor Amount of intake air
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
Engine coolant temperature sensor Engine coolant temperature
PBIB1876E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2428 of 3924
![INFINITI FX35 2008 Service Manual
EC-1188
< SERVICE INFORMATION >[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
The power valve is installed in intake manifold collector and used to
control the suction passage of the variable INFINITI FX35 2008 Service Manual
EC-1188
< SERVICE INFORMATION >[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
The power valve is installed in intake manifold collector and used to
control the suction passage of the variable](/manual-img/42/57017/w960_57017-2427.png)
EC-1188
< SERVICE INFORMATION >[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
The power valve is installed in intake manifold collector and used to
control the suction passage of the variable induction air control sys-
tem. It is set in the fully closed or fully opened position by the power
valve actuator (1) operated by the
vacuum stored in the surge tank.
The vacuum in the surge tank is controlled by the VIAS control sole-
noid valve.
: Vehicle front
VIAS Control Solenoid Valve
The VIAS control solenoid valve (1) cuts the intake manifold vacuum
signal for power valve control. It responds to ON/OFF signals from
the ECM. When the solenoid is off, the vacuum signal from the
intake manifold is cut. When the ECM sends an ON signal the coil
pulls the plunger downward and feeds the vacuum signal to the
power valve actuator.
Vacuum tank (2)
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001327083
PBIB3237E
PBIB3236E
MONITOR ITEM CONDITION SPECIFICATION
VIAS S/V Selector lever: P or N
ON
Engine speed: More than 5,000 rpm
Selector lever: Except P or N
Engine speed: Less than 5,000 rpm OFF
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2429 of 3924
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1189
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Wiring DiagramINFOID:0000000001327084
Specification data are reference values
and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM1370E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2430 of 3924
![INFINITI FX35 2008 Service Manual
EC-1190
< SERVICE INFORMATION >[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Diagnosis Procedure
INFOID:0000000001327085
1.CHECK OVERALL FUNCTION
With CONSULT-III
1. Start engine and warm i INFINITI FX35 2008 Service Manual
EC-1190
< SERVICE INFORMATION >[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Diagnosis Procedure
INFOID:0000000001327085
1.CHECK OVERALL FUNCTION
With CONSULT-III
1. Start engine and warm i](/manual-img/42/57017/w960_57017-2429.png)
EC-1190
< SERVICE INFORMATION >[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Diagnosis Procedure
INFOID:0000000001327085
1.CHECK OVERALL FUNCTION
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Perform “VIAS SOL VALVE” in “A CTIVE TEST” mode with CONSULT-III.
3. Turn VIAS control solenoid valve ON and OFF, and make sure that power valve actuator (1) rod moves.
Without CONSULT-III
1. Lift up the vehicle.
2. Start engine and warm it up to normal operating temperature.
3. Make sure that power valve actuator (1) rod moves when chang- ing the gear position to N and D alternately.
OK or NG
OK >> INSPECTION END
NG (With CONSULT-III)>>GO TO 2.
NG (Without CONSULT-III)>>GO TO 3.
2.CHECK VACUUM EXISTENCE
With CONSULT-III
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Start engine and let it idle.
3. Perform “VIAS SOL VALVE” in “A CTIVE TEST” mode with CONSULT-III.
4. Turn VIAS control solenoid valve “ON” and “OFF”, and check vacuum existence under the following condi-
tions.
TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
29 GY VIAS control solenoid valve [Engine is running]
Selector lever: P or N
0 - 1.0V
[Engine is running]
Selector lever: D
Engine speed: Below 5,000 rpm BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Engine speed: Above 5,000 rpm 0 - 1.0V
PBIB3249E
PBIB3249E
VIAS SOL VALVE Vacuum
ON Should exist.
OFF Should not exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2431 of 3924
![INFINITI FX35 2008 Service Manual
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1191
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
3.CHECK VAC INFINITI FX35 2008 Service Manual
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1191
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
3.CHECK VAC](/manual-img/42/57017/w960_57017-2430.png)
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1191
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.

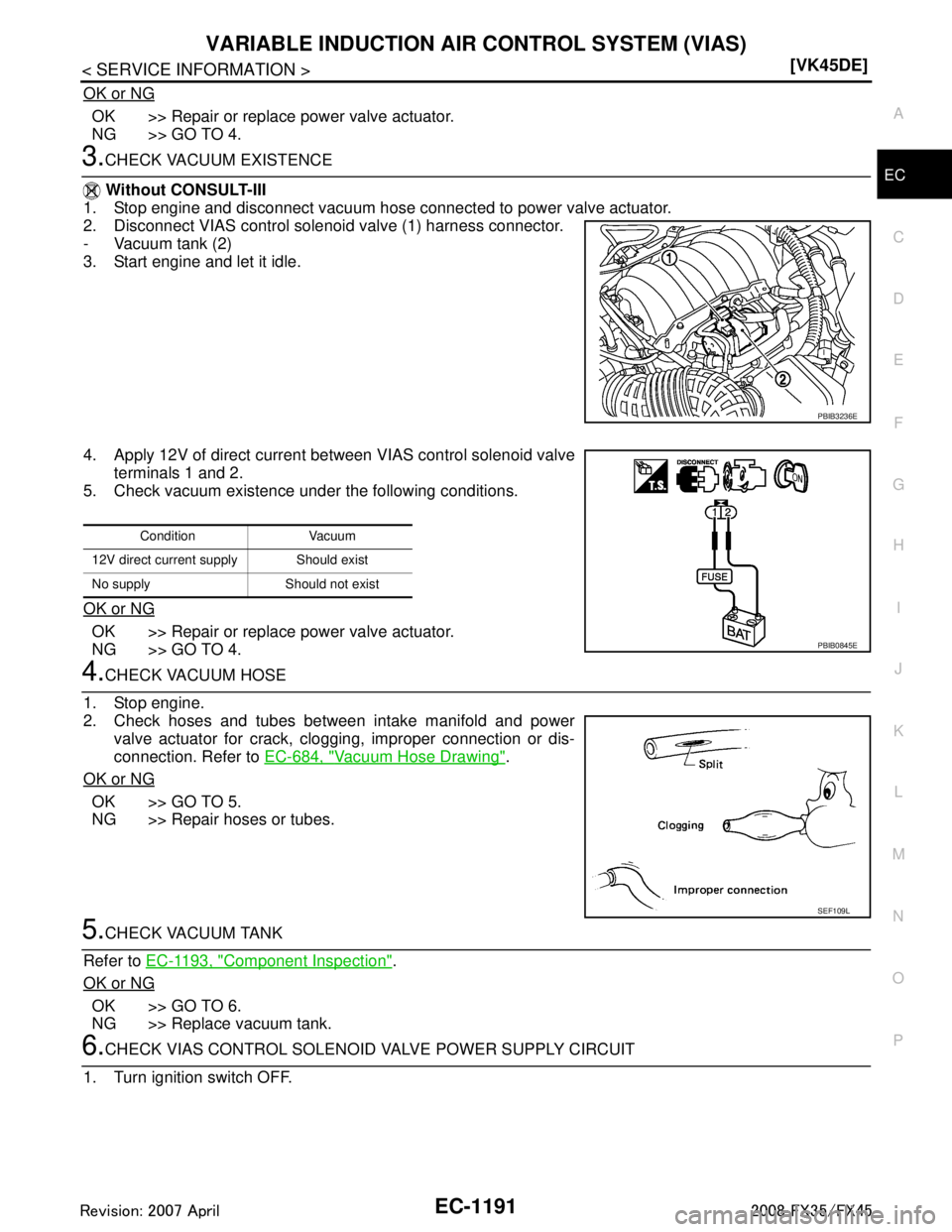

3.CHECK VACUUM EXISTENCE
Without CONSULT-III
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Disconnect VIAS control solenoid valve (1) harness connector.
- Vacuum tank (2)
3. Start engine and let it idle.
4. Apply 12V of direct current bet ween VIAS control solenoid valve
terminals 1 and 2.
5. Check vacuum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
4.CHECK VACUUM HOSE
1. Stop engine.
2. Check hoses and tubes between intake manifold and power valve actuator for crack, clogging, improper connection or dis-
connection. Refer to EC-684, "
Vacuum Hose Drawing".
OK or NG
OK >> GO TO 5.
NG >> Repair hoses or tubes.
5.CHECK VACUUM TANK
Refer to EC-1193, "
Component Inspection".
OK or NG
OK >> GO TO 6.
NG >> Replace vacuum tank.

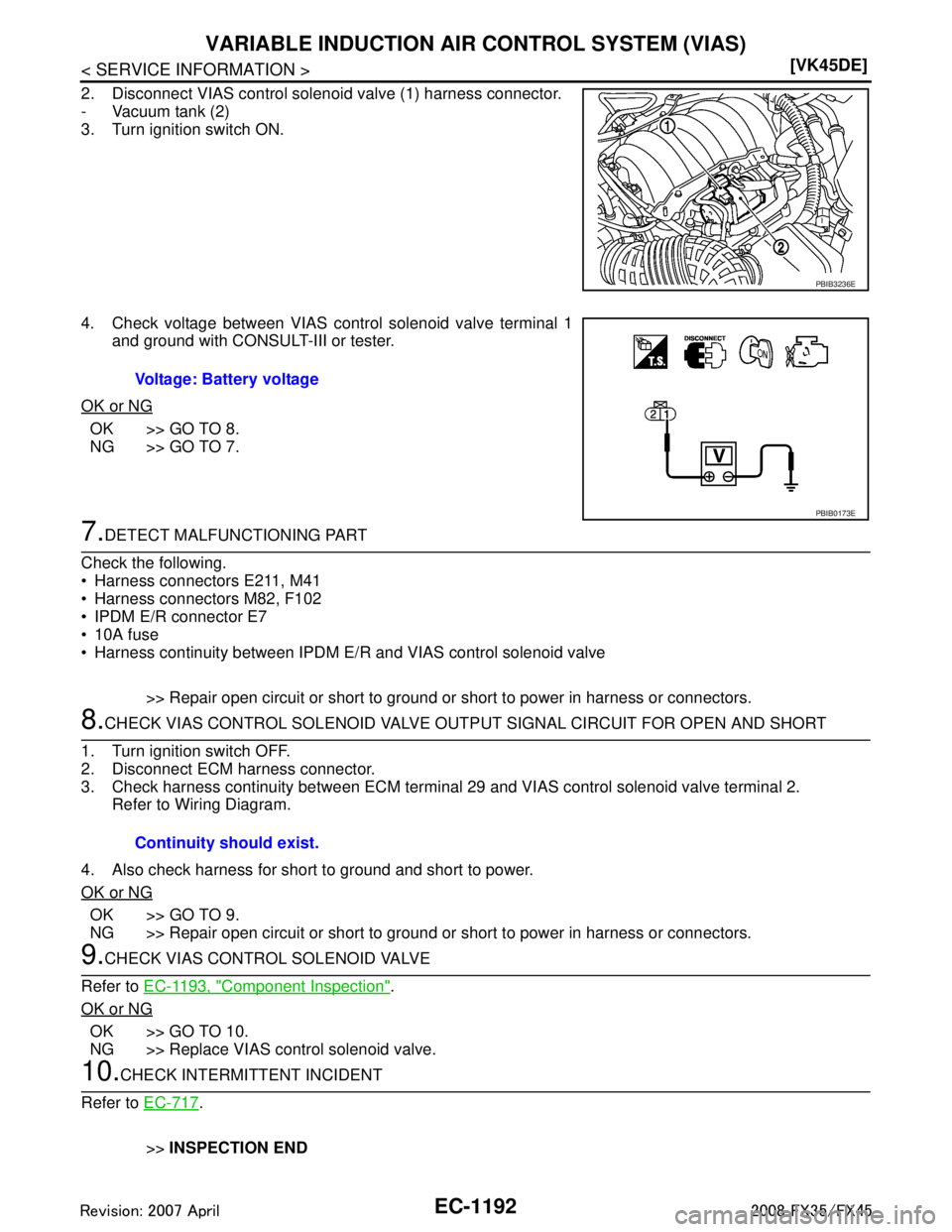

6.CHECK VIAS CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
PBIB3236E
Condition Vacuum
12V direct current supply Should exist
No supply Should not exist
PBIB0845E
SEF109L
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2432 of 3924
![INFINITI FX35 2008 Service Manual
EC-1192
< SERVICE INFORMATION >[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
2. Disconnect VIAS control sol
enoid valve (1) harness connector.
- Vacuum tank (2)
3. Turn ignition switch ON.
4. INFINITI FX35 2008 Service Manual
EC-1192
< SERVICE INFORMATION >[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
2. Disconnect VIAS control sol
enoid valve (1) harness connector.
- Vacuum tank (2)
3. Turn ignition switch ON.
4.](/manual-img/42/57017/w960_57017-2431.png)
EC-1192
< SERVICE INFORMATION >[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
2. Disconnect VIAS control sol
enoid valve (1) harness connector.
- Vacuum tank (2)
3. Turn ignition switch ON.
4. Check voltage between VIAS control solenoid valve terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness connectors M82, F102
IPDM E/R connector E7
10A fuse
Harness continuity between IPDM E/R and VIAS control solenoid valve
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK VIAS CONTROL SOLENOID VALVE OUTP UT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 29 and VIAS control solenoid valve terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK VIAS CONTROL SOLENOID VALVE
Refer to EC-1193, "
Component Inspection".
OK or NG
OK >> GO TO 10.
NG >> Replace VIAS control solenoid valve.
10.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
PBIB3236E
Voltage: Battery voltage
PBIB0173E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
