Page 337 of 3924

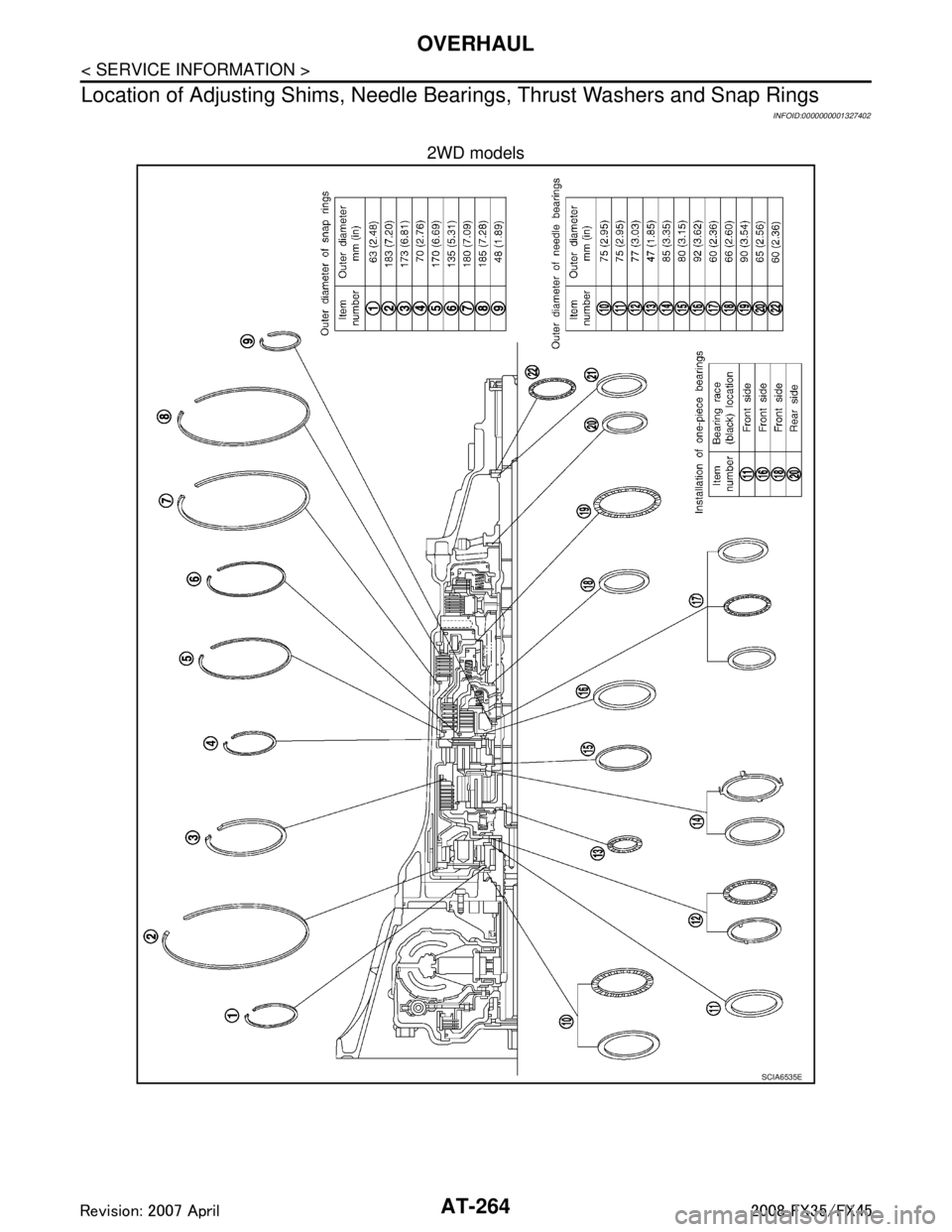

INFINITI FX35 2008 Service Manual AT-264 < SERVICE INFORMATION > OVERHAUL Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings INFOID:0000000001327402 2WD models SCIA6535E 3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913

Page 338 of 3924

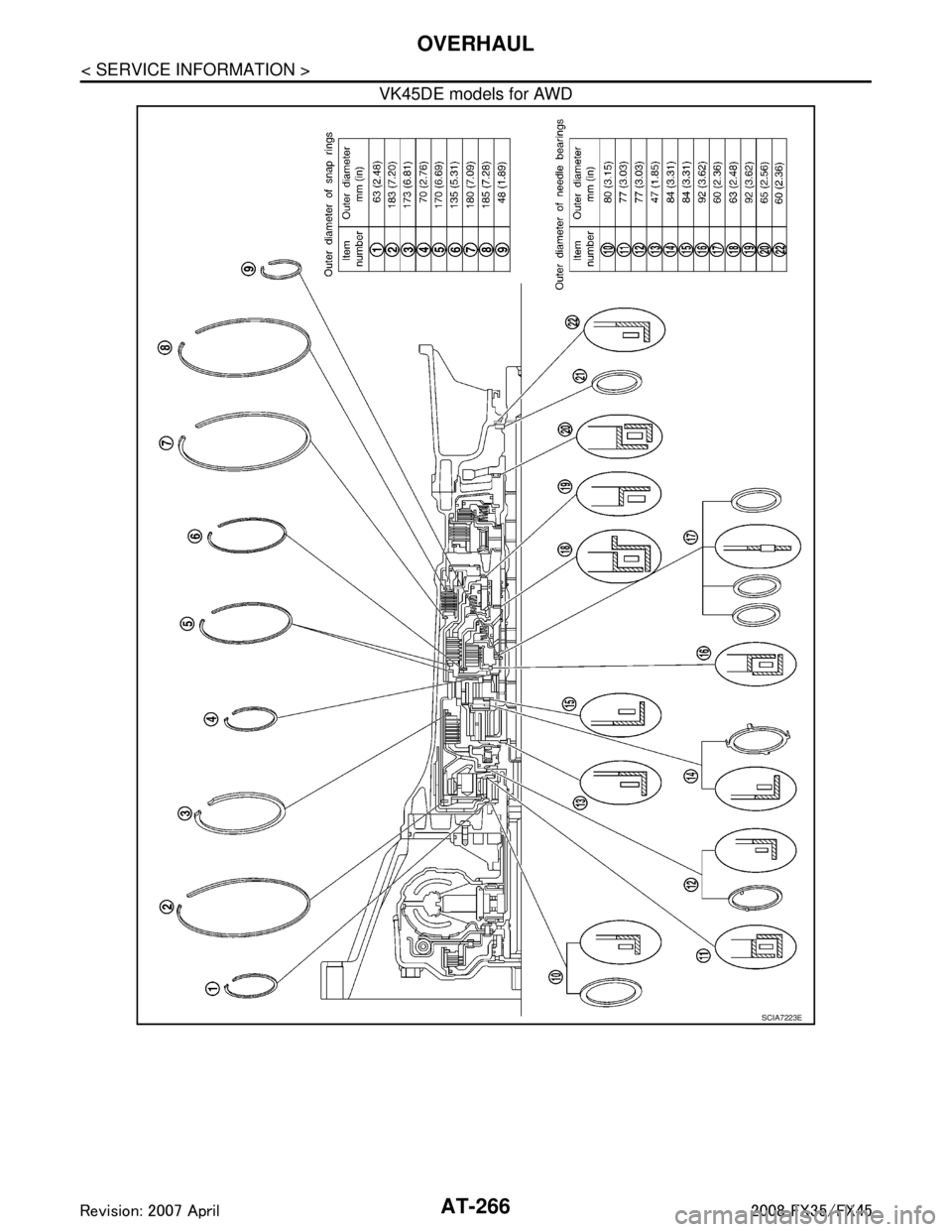

INFINITI FX35 2008 Service Manual OVERHAULAT-265 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P VQ35DE models for AWD SCIA6488E 3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3 3A893A873A873A

Page 339 of 3924

INFINITI FX35 2008 Service Manual AT-266 < SERVICE INFORMATION > OVERHAUL VK45DE models for AWD SCIA7223E 3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3 3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3

Page 340 of 3924

INFINITI FX35 2008 Service Manual DISASSEMBLYAT-267 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P DISASSEMBLY DisassemblyINFOID:0000000001327403 CAUTION: Do not disassemble parts behind drum support. Refer to AT-16, " Cros

Page 341 of 3924

INFINITI FX35 2008 Service Manual AT-268 < SERVICE INFORMATION > DISASSEMBLY 6. Remove O-ring from input clutch assembly. 7. Remove tightening bolts for oil pump assembly and transmis-sion case. 8. Attach the sliding hammers to oil p

Page 342 of 3924

INFINITI FX35 2008 Service Manual DISASSEMBLYAT-269 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P 10. Remove bearing race from oil pump assembly. 11. Remove needle bearing from front sun gear. 12. Remove front sun gear asse

Page 343 of 3924

INFINITI FX35 2008 Service Manual AT-270 < SERVICE INFORMATION > DISASSEMBLY 15. Loosen lock nut and remove band servo anchor end pin fromtransmission case. 16. Remove brake band from transmission case. To prevent brake linings from

Page 344 of 3924

INFINITI FX35 2008 Service Manual DISASSEMBLYAT-271 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P 19. Remove needle bearing (front side) from mid carrier assembly. 20. Remove needle bearing (rear side) from mid carrier asse
