DTC P1140, P1145 IVT CONTROL POSITION SENSOR
EC-1025
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-1025, "
Component Inspection".
OK or NG
OK >> GO TO 8.
NG >> Replace malfunctioning intake valve timing control position sensor.
8.CHECK CRANKSHAFT POSI TION SENSOR (POS)
Refer to EC-910, "
Component Inspection".
OK or NG
OK >> GO TO 9.
NG >> Replace crankshaft position sensor (POS).
9.CHECK CAMSHAFT POSITI ON SENSOR (PHASE)
Refer to EC-915, "
Component Inspection".
OK or NG
OK >> GO TO 10.
NG >> Replace camshaft position sensor (PHASE).
10.CHECK CAMSHAFT SPROCKET
Check accumulation of debris to the signal pick -up portion of the camshaft sprocket. Refer to EM-199
.
OK or NG
OK >> GO TO 11.
NG >> Remove debris and clean the signal pick-up cutout of camshaft sprocket.
11 .CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
Component InspectionINFOID:0000000001326885
INTAKE VALVE TIMING CONTROL POSITION SENSOR
1. Disconnect intake valve timing control position sensor harness connector.
2. Loosen the fixing bolt of the sensor.
3. Remove the sensor.
4. Visually check the sensor for chipping. Continuity should exist.
SEF362Z
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2266 of 3924
EC-1026
< SERVICE INFORMATION >[VK45DE]
DTC P1140, P1145 IVT CO
NTROL POSITION SENSOR
5. Check resistance as shown below.
6. If NG, replace intake valve timing control position sensor.
Removal and InstallationINFOID:0000000001326886
INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EM-199.
Terminal No. (Polarity) Resistance Ω [at 25 °C (77 °F)]
3 (+) - 1 (-) Except 0 or ∞
2 (+) - 1 (-)
3 (+) - 2 (-)
PBIB0194E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2267 of 3924
![INFINITI FX35 2008 Service Manual
DTC P1148, P1168 CLOSED LOOP CONTROL
EC-1027
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P1148, P1168 CLOSED LOOP CONTROL
On Board Diagnosis LogicINFOID:0000000001326887
Thes INFINITI FX35 2008 Service Manual
DTC P1148, P1168 CLOSED LOOP CONTROL
EC-1027
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P1148, P1168 CLOSED LOOP CONTROL
On Board Diagnosis LogicINFOID:0000000001326887
Thes](/manual-img/42/57017/w960_57017-2266.png)
DTC P1148, P1168 CLOSED LOOP CONTROL
EC-1027
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P1148, P1168 CLOSED LOOP CONTROL
On Board Diagnosis LogicINFOID:0000000001326887
These self-diagnoses have the on
e trip detection logic.
NOTE:
DTC P1148 or P1168 is displayed with another DTC for A/F sensor 1.
Perform the trouble diagnosis for the corresponding DTC.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1148
11 4 8
(Bank 1) Closed loop control
function The closed loop control function for bank 1 does
not operate even when vehicle is driving in the
specified condition.
Harness or connectors
(The A/F sensor 1 circuit is open or short-
ed.)
A/F sensor 1
A/F sensor 1 heater
P1168
11 6 8
(Bank 2) The closed loop control function for bank 2 does
not operate even when vehicle is driving in the
specified condition.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2268 of 3924
![INFINITI FX35 2008 Service Manual
EC-1028
< SERVICE INFORMATION >[VK45DE]
DTC P1211 TCS CONTROL UNIT
DTC P1211 TCS CONTROL UNIT
DescriptionINFOID:0000000001326888
The malfunction information related to TCS is trans
ferred through the INFINITI FX35 2008 Service Manual
EC-1028
< SERVICE INFORMATION >[VK45DE]
DTC P1211 TCS CONTROL UNIT
DTC P1211 TCS CONTROL UNIT
DescriptionINFOID:0000000001326888
The malfunction information related to TCS is trans
ferred through the](/manual-img/42/57017/w960_57017-2267.png)
EC-1028
< SERVICE INFORMATION >[VK45DE]
DTC P1211 TCS CONTROL UNIT
DTC P1211 TCS CONTROL UNIT
DescriptionINFOID:0000000001326888
The malfunction information related to TCS is trans
ferred through the CAN communication line from “ABS
actuator and electric unit (control unit)” to ECM.
Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
On Board Diagn osis LogicINFOID:0000000001326889
Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-
diagnosis.
DTC Confirmation ProcedureINFOID:0000000001326890
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-III
1. Start engine and let it idle for at least 60 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-1028, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001326891
Go to BRC-13.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1211
1211 TCS control unit
ECM receives a malfunction information from
“ABS actuator electric
unit (control unit)” ABS actuator and electric unit (control
unit)
TCS related parts
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2269 of 3924
![INFINITI FX35 2008 Service Manual
DTC P1212 TCS COMMUNICATION LINEEC-1029
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P1212 TCS COMMU
NICATION LINE
DescriptionINFOID:0000000001326892
NOTE:
If DTC P1212 is di INFINITI FX35 2008 Service Manual
DTC P1212 TCS COMMUNICATION LINEEC-1029
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P1212 TCS COMMU
NICATION LINE
DescriptionINFOID:0000000001326892
NOTE:
If DTC P1212 is di](/manual-img/42/57017/w960_57017-2268.png)
DTC P1212 TCS COMMUNICATION LINEEC-1029
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P1212 TCS COMMU
NICATION LINE
DescriptionINFOID:0000000001326892
NOTE:
If DTC P1212 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-724
.
If DTC P1212 is displayed with DTC U1010, first pe rform the trouble diagnosis for DTC U1010. Refer
to EC-726
.
This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and “ABS actuator and electric unit (control unit)”.
Be sure to erase the malfunction information such as DTC not only fo r “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
On Board Diagnosis LogicINFOID:0000000001326893
Freeze frame data is not stored in the ECM for this sel f-diagnosis. The MIL will not light up for this self-
diagnosis.
DTC Confirmation ProcedureINFOID:0000000001326894
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
1. Start engine and let it idle for at least 10 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-1029, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001326895
Go to BRC-13.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1212
1212 TCS communication line ECM can not receive the information from
“ABS actuator and electric unit (control
unit)” continuously. Harness or connectors
(The CAN communication line is open or short-
ed.)
ABS actuator and electric unit (control unit)
Dead (Weak) battery
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2270 of 3924
![INFINITI FX35 2008 Service Manual
EC-1030
< SERVICE INFORMATION >[VK45DE]
DTC P1217 ENGINE
OVER TEMPERATURE
DTC P1217 ENGINE OVER TEMPERATURE
DescriptionINFOID:0000000001326896
SYSTEM DESCRIPTION
NOTE:
If DTC P1217 is displayed wit INFINITI FX35 2008 Service Manual
EC-1030
< SERVICE INFORMATION >[VK45DE]
DTC P1217 ENGINE
OVER TEMPERATURE
DTC P1217 ENGINE OVER TEMPERATURE
DescriptionINFOID:0000000001326896
SYSTEM DESCRIPTION
NOTE:
If DTC P1217 is displayed wit](/manual-img/42/57017/w960_57017-2269.png)
EC-1030
< SERVICE INFORMATION >[VK45DE]
DTC P1217 ENGINE
OVER TEMPERATURE
DTC P1217 ENGINE OVER TEMPERATURE
DescriptionINFOID:0000000001326896
SYSTEM DESCRIPTION
NOTE:
If DTC P1217 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-724
.
If DTC P1217 is displayed with DTC U1010, first pe rform the trouble diagnosis for DTC U1010. Refer
to EC-726
.
Cooling Fan Control
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The contro l system has 3-step control [HIGH/MIDDLE/OFF].
Cooling Fan Operation
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
1
Cooling fan
controlIPDM E/R
(Cooling fan relay)
Battery
Battery voltage*
1
Wheel sensor
Vehicle speed*2
Engine coolant temperature sensor Engine coolant temperature
Air conditioner switchAir conditioner ON signal*
2
Refrigerant pressure sensor Refrigerant pressure
PBIB2560E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2271 of 3924
![INFINITI FX35 2008 Service Manual
DTC P1217 ENGINE OVER TEMPERATUREEC-1031
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
COMPONENT DESCRIPTION
Cooling Fan Motor
The cooling fan at each speed when the current
flows INFINITI FX35 2008 Service Manual
DTC P1217 ENGINE OVER TEMPERATUREEC-1031
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
COMPONENT DESCRIPTION
Cooling Fan Motor
The cooling fan at each speed when the current
flows](/manual-img/42/57017/w960_57017-2270.png)
DTC P1217 ENGINE OVER TEMPERATUREEC-1031
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
COMPONENT DESCRIPTION
Cooling Fan Motor
The cooling fan at each speed when the current
flows in the cooling fan motor as follows.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326897
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001326898
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnorma lly high temperature condition, a malfunction is
indicated.
This self-diagnosis has the on e trip detection logic.
CAUTION:
When a malfunction is in dicated, be sure to replace the coolant. Refer to CO-37, "
Changing Engine
Coolant". Also, replace the engine oil. Refer to LU-24, "Changing Engine Oil".
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-10, "
Anti-Freeze Coolant Mixture Ratio".
Cooling fan speed Cooling fan relay
13
Stop (OFF) OFF OFF
Middle (MID) OFF ON
High (HI) ON ON
Cooling fan speed Cooling fan motor terminals
(+) (-)
Middle (MID) 1 3 and 4
2 3 and 4
High (HI) 1 and 2 3 and 4
MONITOR ITEM CONDITION SPECIFICATION
COOLING FAN Engine: After warming up, idle the
engine
Air conditioner switch: OFF Engine coolant temperature is 94
°C
(201 °F) or less OFF
Engine coolant temperature is between
95 °C (203 °F) and 104 °C (219 °F) MID
Engine coolant temperature is 105 °C
(221 °F) or more HI
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217 Engine over tempera-
ture (Overheat) Cooling fan does not operate properly (Over-
heat).
Cooling fan system does not operate proper- ly (Overheat).
Engine coolant was not added to the system using the proper filling method.
Engine coolant is not within the specified
range. Harness or connectors
(The cooling fan circuit is open or short-
ed.)
IPDM E/R
Cooling fan
Radiator hose
Radiator
Radiator cap
Water pump
Thermostat
Water control valve
For more informat ion, refer to EC-1039,
"Main 13 Causes of Overheating".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2272 of 3924
![INFINITI FX35 2008 Service Manual
EC-1032
< SERVICE INFORMATION >[VK45DE]
DTC P1217 ENGINE
OVER TEMPERATURE
2. After refilling coolant, run engine to en sure that no water-flow noise is emitted.
Overall Function CheckINFOID:00000000 INFINITI FX35 2008 Service Manual
EC-1032
< SERVICE INFORMATION >[VK45DE]
DTC P1217 ENGINE
OVER TEMPERATURE
2. After refilling coolant, run engine to en sure that no water-flow noise is emitted.
Overall Function CheckINFOID:00000000](/manual-img/42/57017/w960_57017-2271.png)
EC-1032
< SERVICE INFORMATION >[VK45DE]
DTC P1217 ENGINE
OVER TEMPERATURE
2. After refilling coolant, run engine to en sure that no water-flow noise is emitted.
Overall Function CheckINFOID:0000000001326899
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-III

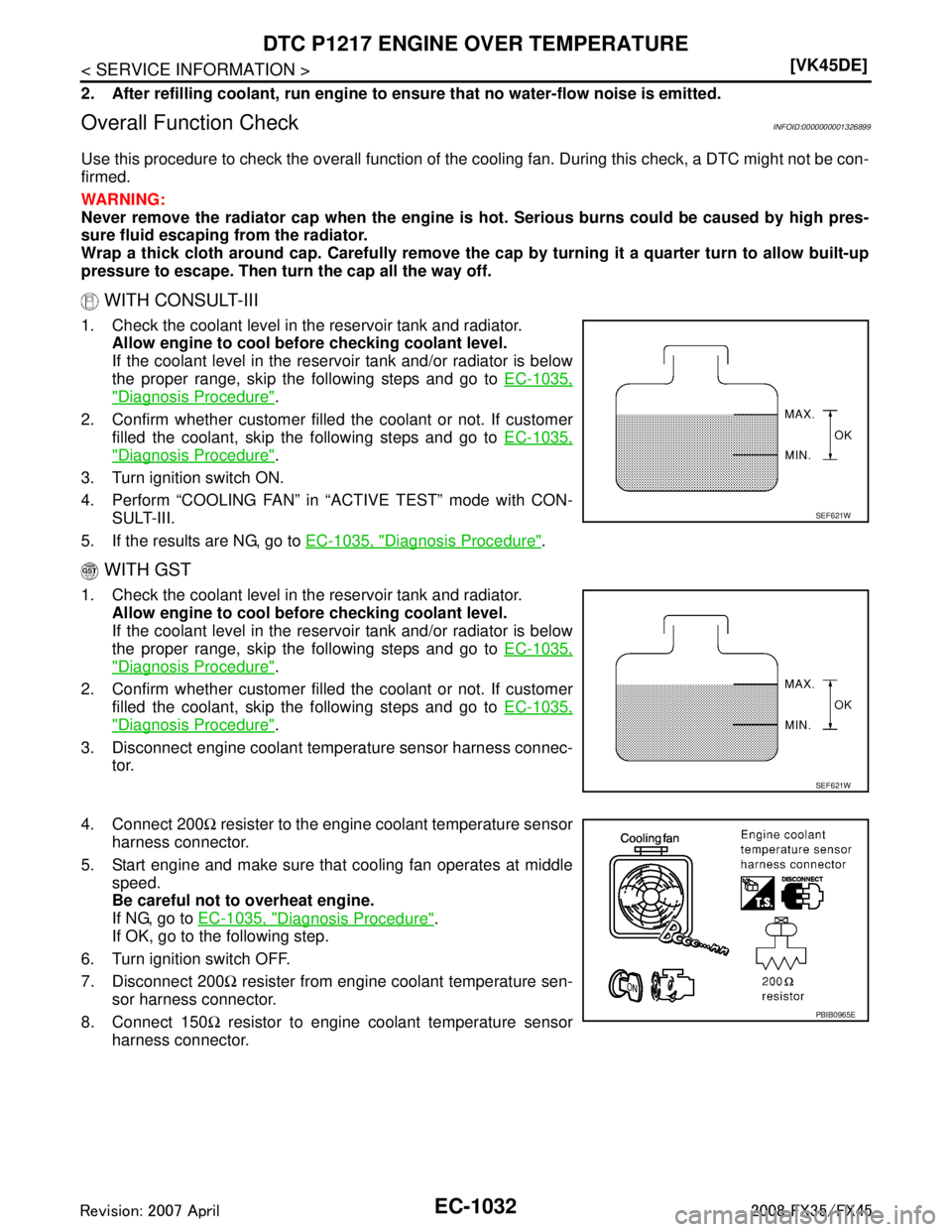

1. Check the coolant level in the reservoir tank and radiator. Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-1035,
"Diagnosis Procedure".
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-1035,
"Diagnosis Procedure".
3. Turn ignition switch ON.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON- SULT-III.
5. If the results are NG, go to EC-1035, "
Diagnosis Procedure".
WITH GST
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-1035,
"Diagnosis Procedure".
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-1035,
"Diagnosis Procedure".
3. Disconnect engine coolant temperature sensor harness connec- tor.
4. Connect 200 Ω resister to the engine coolant temperature sensor
harness connector.
5. Start engine and make sure that cooling fan operates at middle speed.
Be careful not to overheat engine.
If NG, go to EC-1035, "
Diagnosis Procedure".
If OK, go to the following step.
6. Turn ignition switch OFF.
7. Disconnect 200 Ω resister from engine coolant temperature sen-
sor harness connector.

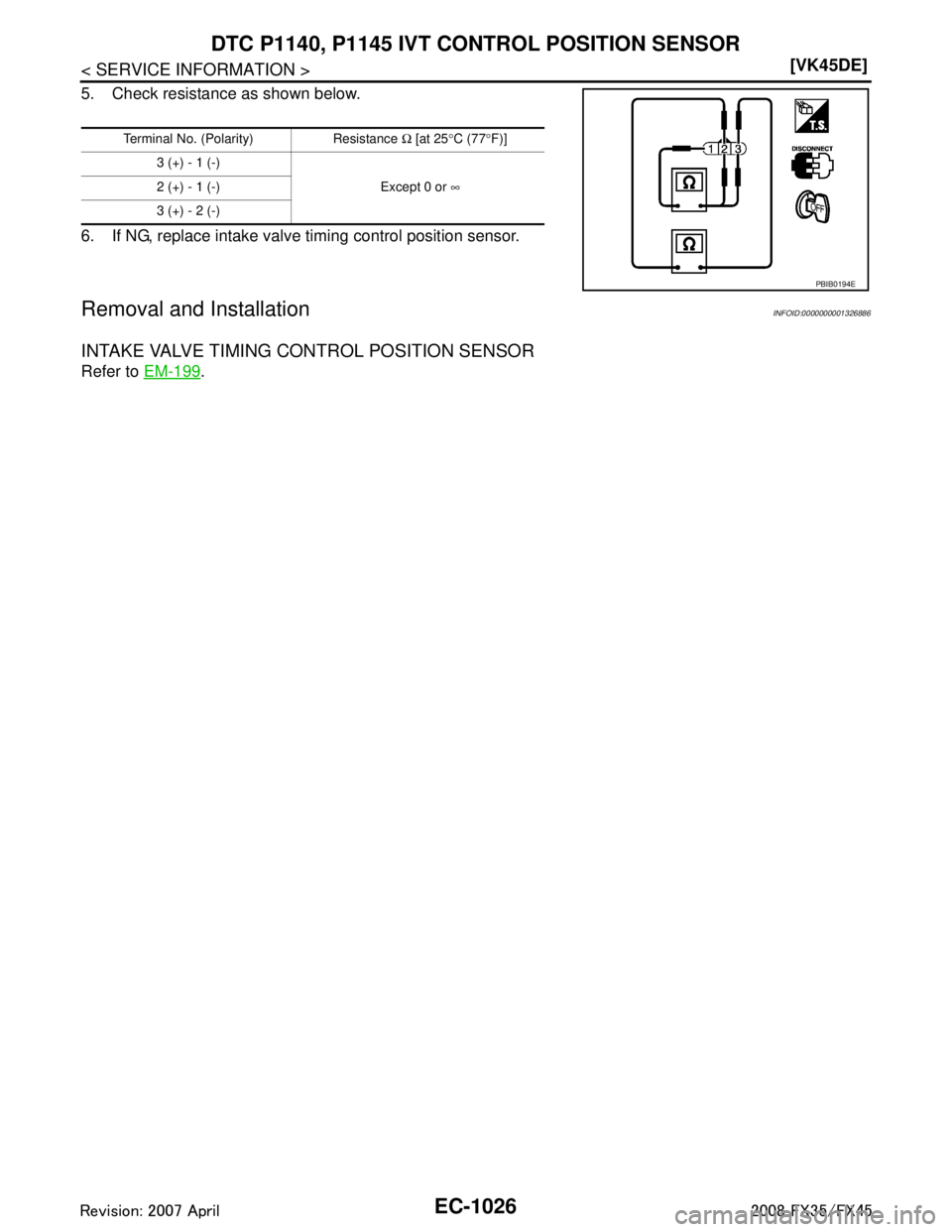

8. Connect 150 Ω resistor to engine coolant temperature sensor
harness connector.
SEF621W
SEF621W
PBIB0965E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
