Page 2657 of 3924
![INFINITI FX35 2008 Service Manual
AIR CLEANER AND AIR DUCTEM-173
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
AIR CLEANER AND AIR DUCT
ComponentINFOID:0000000001325771
Refer to
GI-8, "Component" for symbols in INFINITI FX35 2008 Service Manual
AIR CLEANER AND AIR DUCTEM-173
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
AIR CLEANER AND AIR DUCT
ComponentINFOID:0000000001325771
Refer to
GI-8, "Component" for symbols in](/manual-img/42/57017/w960_57017-2656.png)
AIR CLEANER AND AIR DUCTEM-173
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
AIR CLEANER AND AIR DUCT
ComponentINFOID:0000000001325771
Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325772
REMOVAL
1. Remove engine cover with power tool. Refer to EM-169, "Component".
2. Disconnect harness connector from mass air flow sensor.
3. Disconnect vacuum hose and PCV hose.
4. Remove air duct (inlet), power duct, air cleaner case and mass air flow sensor assembly, air duct and res-
onator assembly disconnecting their joints.
Add marks as necessary for easier installation.
5. Remove mass air flow sensor from air cleaner case. CAUTION:
Handle mass air flow sen sor with following cares.
Do not shock it.
Do not disassemble it.
Do not touch its sensor.
1. Power duct 2. Blind plug 3. Clip
4. Air duct (inlet) 5. Air cleaner case 6. Mounting rubber
7. Resonator 8. Air cleaner filter 9. Air cleaner case
10. O-ring 11. Mass air flow sensor 12. Air duct and resonator assembly
13. Vacuum hose 14. PCV hose
A. To VIAS control solenoid valve B. To rocker cover (left bank)
PBIC4551E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2658 of 3924
EM-174
< SERVICE INFORMATION >[VK45DE]
AIR CLEANER AND AIR DUCT
INSPECTION AFTER REMOVAL
Inspect air duct and resonator assembly for crack or tear.
If anything found, replace air duct and resonator assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.
Align marks. Attach each joint. Screw clamps firmly.
Changing Air Cleaner FilterINFOID:0000000001325773
REMOVAL
1. Remove air duct (inlet), power duct, air cleaner case and mass air flow sensor assembly.
2. Remove air cleaner filter from air cleaner case.
INSTALLATION
Install in the reverse order of removal.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2659 of 3924
INTAKE MANIFOLDEM-175
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

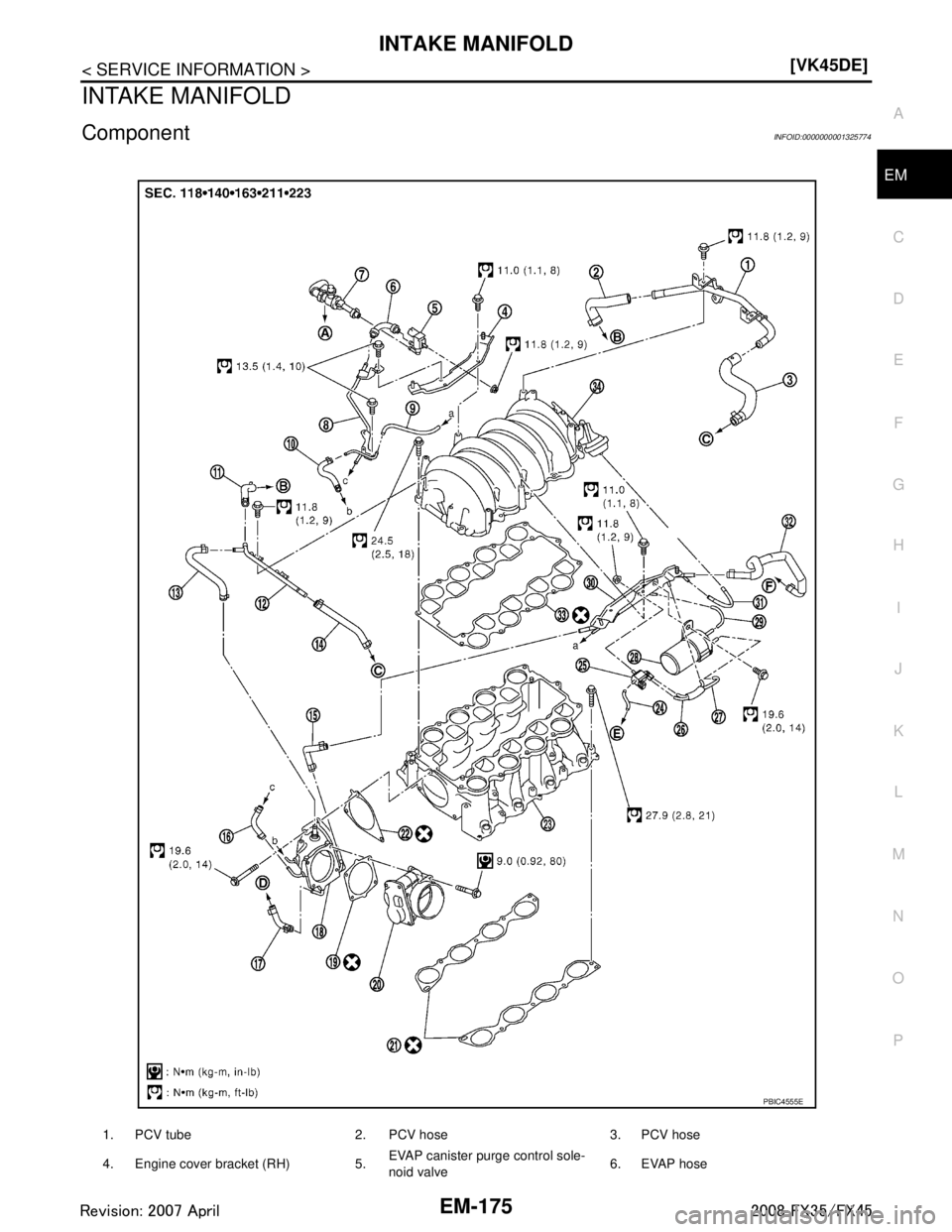

INTAKE MANIFOLD
ComponentINFOID:0000000001325774
1. PCV tube 2. PCV hose 3. PCV hose
4. Engine cover bracket (RH) 5.
EVAP canister purge control sole-
noid valve
6. EVAP hose
PBIC4555E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2660 of 3924
![INFINITI FX35 2008 Service Manual
EM-176
< SERVICE INFORMATION >[VK45DE]
INTAKE MANIFOLD
Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325775
REMOVAL
WARNING:
To avoid the danger of INFINITI FX35 2008 Service Manual
EM-176
< SERVICE INFORMATION >[VK45DE]
INTAKE MANIFOLD
Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325775
REMOVAL
WARNING:
To avoid the danger of](/manual-img/42/57017/w960_57017-2659.png)
EM-176
< SERVICE INFORMATION >[VK45DE]
INTAKE MANIFOLD
Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325775
REMOVAL
WARNING:
To avoid the danger of being scalded, never drai n the engine coolant when the engine is hot.
1. Remove engine cover with power tool.
2. Release fuel pressure. Refer to EC-665, "
Fuel Pressure Check".
3. Remove air duct (inlet), power duct, air cleaner case and air duct and resonator assembly. Refer to EM-
173, "Component".
4. Drain engine coolant from radiator. Refer to CO-37, "
Changing Engine Coolant".
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
7. EVAP service port 8. EVAP tube 9. Vacuum hose
10. Vacuum hose 11. PCV hose 12. PCV tube
13. PCV hose 14. PCV hose 15. Water hose
16. EVAP hose 17. Water hose 18. Intake manifold adapter
19. Gasket 20. Electric throttle control actuator 21. Gasket
22. Gasket 23. Intake manifold (lower) 24. Vacuum hose
25. VIAS control solenoid valve 26. Vacuum hose 27. Vacuum hose
28. Vacuum tank 29. Vacuum hose 30. Engine cover bracket (LH)
31. Vacuum hose 32. Water hose 33. Gasket
34. Intake manifold (upper)
A. To centralized under-floor piping B. To rocker cover (right bank) C. To rocker cover (left bank)
D. To thermostat housing E. To air duct and resonator assembly F. To heater pipe
PBIC4553E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2661 of 3924
![INFINITI FX35 2008 Service Manual
INTAKE MANIFOLDEM-177
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
5. Disconnect fuel feed hose quick connector on engine side.
Refer to EM-190, "
Component".
6. Remove fuel damp INFINITI FX35 2008 Service Manual
INTAKE MANIFOLDEM-177
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
5. Disconnect fuel feed hose quick connector on engine side.
Refer to EM-190, "
Component".
6. Remove fuel damp](/manual-img/42/57017/w960_57017-2660.png)
INTAKE MANIFOLDEM-177
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
5. Disconnect fuel feed hose quick connector on engine side.
Refer to EM-190, "
Component".
6. Remove fuel damper and fuel hose assembly. Refer to EM-190, "
Component".
CAUTION:
While hoses are disconnected, plug th em to prevent fuel from draining.
Do not separate fuel damper and fuel hose.
7. Remove or disconnect harnesses, engine cover bra cket (RH and LH), vacuum hose, EVAP tube and hose
and PCV hose and tube from intake manifold (upper).
8. Loosen mounting bolts in reverse order as shown in the figure to remove intake manifold (upper) with power tool.
9. Remove electric throttle control actuator as follows:
a. Disconnect harness connector.
b. Loosen mounting bolts diagonally. CAUTION:
Handle carefully to avoid any shock to electric throttle control actuator.
Do not disassemble.
10. Remove fuel injector and fuel tube assembly. Refer to EM-190, "
Component".
11. Disconnect water hoses from intake manifold adaptor.
12. Loosen mounting bolts in reverse order as shown in the figure to remove intake manifold (lower) with power tool.
13. Remove intake manifold adaptor from intake manifold (lower).
14. Remove intake manifold gaskets. CAUTION:
Cover engine openings to avoid entry of foreign materials.
INSPECTION AFTER REMOVAL
Surface Distortion
PBIC4552E
: Engine front
PBIC3297E
: Engine front
PBIC3298E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2662 of 3924
![INFINITI FX35 2008 Service Manual
EM-178
< SERVICE INFORMATION >[VK45DE]
INTAKE MANIFOLD
Check the surface distortion of both the intake manifold (upper and
lower) mating surfaces with straightedge and feeler gauge.
If it exceeds INFINITI FX35 2008 Service Manual
EM-178
< SERVICE INFORMATION >[VK45DE]
INTAKE MANIFOLD
Check the surface distortion of both the intake manifold (upper and
lower) mating surfaces with straightedge and feeler gauge.
If it exceeds](/manual-img/42/57017/w960_57017-2661.png)
EM-178
< SERVICE INFORMATION >[VK45DE]
INTAKE MANIFOLD
Check the surface distortion of both the intake manifold (upper and
lower) mating surfaces with straightedge and feeler gauge.
If it exceeds the limit, replac e intake manifolds (lower and/or
upper).
INSTALLATION
Note the following, and install in the reverse order of removal.
Intake Manifold (Lower)
Tighten in numerical order as shown in the figure.
There are two types of mounting bolts. Refer to the following for locating bolts.
Intake Manifold (Upper)
Tighten in numerical order as shown in the figure.
Electric Throttle Control Actuator
Install gasket with its directional protrusion set up/downward.
Tighten mounting bolts of electric throttle cont rol actuator equally and diagonally in several steps.
After installation perform procedure in "INSPECTION AFTER INSTALLATION".
Water Hose
Insert hose by 27 to 32 mm (1.06 to 1.26 in) from connector end.
Va c u u m H o s e
Refer to EC-684, "Vacuum Hose Drawing".
INSPECTION AFTER INSTALLATION
Perform the “Throttle Valve Closed Position Learning” when harness connector of electric throttle control
actuator is disconnected. Refer to EC-663, "
Throttle Valve Closed Position Learning".
Perform the “Idle Air Volume Learning” and “Throttle Valve Closed Position Learning” when electric throttle
control actuator is replaced. Refer to EC-663, "
Idle Air Volume Learning".
Limit : 0.1 mm (0.004 in)
PBIC0016E
: Engine front
M8
× 90 mm (3.54 in) : 7, 8
M8 × 35 mm (1.38 in) : Except the above
PBIC3298E
: Engine front
PBIC3297E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2663 of 3924
![INFINITI FX35 2008 Service Manual
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-179
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
EXHAUST MANIFOLD AND THREE WAY CATALYST
ComponentINFOID:0000000001325776
Refer to
GI INFINITI FX35 2008 Service Manual
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-179
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
EXHAUST MANIFOLD AND THREE WAY CATALYST
ComponentINFOID:0000000001325776
Refer to
GI](/manual-img/42/57017/w960_57017-2662.png)
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-179
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
EXHAUST MANIFOLD AND THREE WAY CATALYST
ComponentINFOID:0000000001325776
Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325777
REMOVAL
WARNING:
Perform the work, when the exhaust and cooling system h ave completely cooled down.
1. Remove engine cover with power tool. Refer to EM-169, "
Component".
2. Remove front and rear engine undercovers with power tool.
3. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly, air duct and resonator assembly. Refer to EM-173, "
Component".
4. Remove front cross bar. Refer to FSU-5, "
On-Vehicle Inspection and Service".
5. Drain engine coolant from radiator. Refer to CO-37, "
Changing Engine Coolant".
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belts.
1. Air fuel ratio sensor 1 (bank 2) 2. Exhaust manifold cover (right bank) 3. Exhaust manifold (right bank)
4. Gasket 5. Exhaust manifold (left bank) 6. Exhaust manifold cover (left bank)
7. Air fuel ratio sensor 1 (bank 1) 8. Three way catalyst cover (right bank) 9. Three way catalyst (right bank)
10. Heated oxygen sensor 2 (bank 2) 11. Gasket 12. Three way catalyst cover (left bank)
13. Heated oxygen sensor 2 (bank 1) 14. Three way catalyst (left bank) 15. Mounting bracket
16. Mounting bracket
A. Protrusion for installation confirma-
tion.
: Above
PBIC4549E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2664 of 3924
![INFINITI FX35 2008 Service Manual
EM-180
< SERVICE INFORMATION >[VK45DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
6. Remove radiator. Refer to
CO-40, "Component".
7. Remove drive belts. Refer to EM-170, "
Component".
8. Remove air f INFINITI FX35 2008 Service Manual
EM-180
< SERVICE INFORMATION >[VK45DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
6. Remove radiator. Refer to
CO-40, "Component".
7. Remove drive belts. Refer to EM-170, "
Component".
8. Remove air f](/manual-img/42/57017/w960_57017-2663.png)
EM-180
< SERVICE INFORMATION >[VK45DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
6. Remove radiator. Refer to
CO-40, "Component".
7. Remove drive belts. Refer to EM-170, "
Component".
8. Remove air fuel ratio sensor 1 and heated oxygen sensor 2 as follows:
a. Disconnect air fuel ratio sensor 1 and heated oxygen sensor 2 harness connectors.
b. Remove air fuel ratio sensor 1 and heated oxygen sensor 2 on both bank with heated oxy gen sensor wrench (SST).
CAUTION:
Be careful not to damage air fuel ratio sensor 1 and heated oxygen sensor 2.
Discard any air fuel ratio sen sor 1 and heated oxygen sen-
sor 2 which have been dropped onto a hard surface such
as a concrete floor: replace with a new one.
9. Remove exhaust mounting bracket between three way catalysts (right and left bank) and transmission. Refer to EX-3, "
Checking Exhaust System".
10. Disconnect A/C piping from A/C compressor, then re move A/C compressor with power tool. Refer to AT C -
121, "Component".
11. Remove alternator and bracket. Refer to SC-19, "
System Description".
12. Remove exhaust front tube with power tool. Refer to EX-3, "
Checking Exhaust System".
13. Remove steering lower joint at power steering gear assembly side, and release steering lower shaft. Refer to PS-17, "
Removal and Installation".
14. Remove three way catalysts (right and left bank).
15. Remove exhaust manifold covers. (right and left bank)
PBIC2333E
PBIC2334E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
