Page 2129 of 3924

INFINITI FX35 2008 Service Manual
DTC P0222, P0223 TP SENSOREC-889
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0222, P0223 TP SENSOR
Component DescriptionINFOID:0000000001326720
Electric throttle control act

DTC P0222, P0223 TP SENSOREC-889
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0222, P0223 TP SENSOR
Component DescriptionINFOID:0000000001326720
Electric throttle control actuator
consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has t he two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect t he opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000001326721
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicINFOID:0000000001326722
These self-diagnoses have the on e trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM ent ers fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326723
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-891, "
Diagnosis Procedure".
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
TP SEN 1-B1
TP SEN 2-B1* Ignition switch: ON
(Engine stopped)
Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222
0222 Throttle position sensor
1 circuit low input An excessively low voltage from the TP sensor
1 is sent to ECM. Harness or connectors
(TP sensor 1 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
Electric throttle control actuator (TP sensor 1)
Accelerator pedal position sensor (APP sensor 2)
P0223
0223
Throttle position sensor
1 circuit high input An excessively high voltage from the TP sensor
1 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2130 of 3924

INFINITI FX35 2008 Service Manual
EC-890
< SERVICE INFORMATION >[VK45DE]
DTC P0222, P0223 TP SENSOR

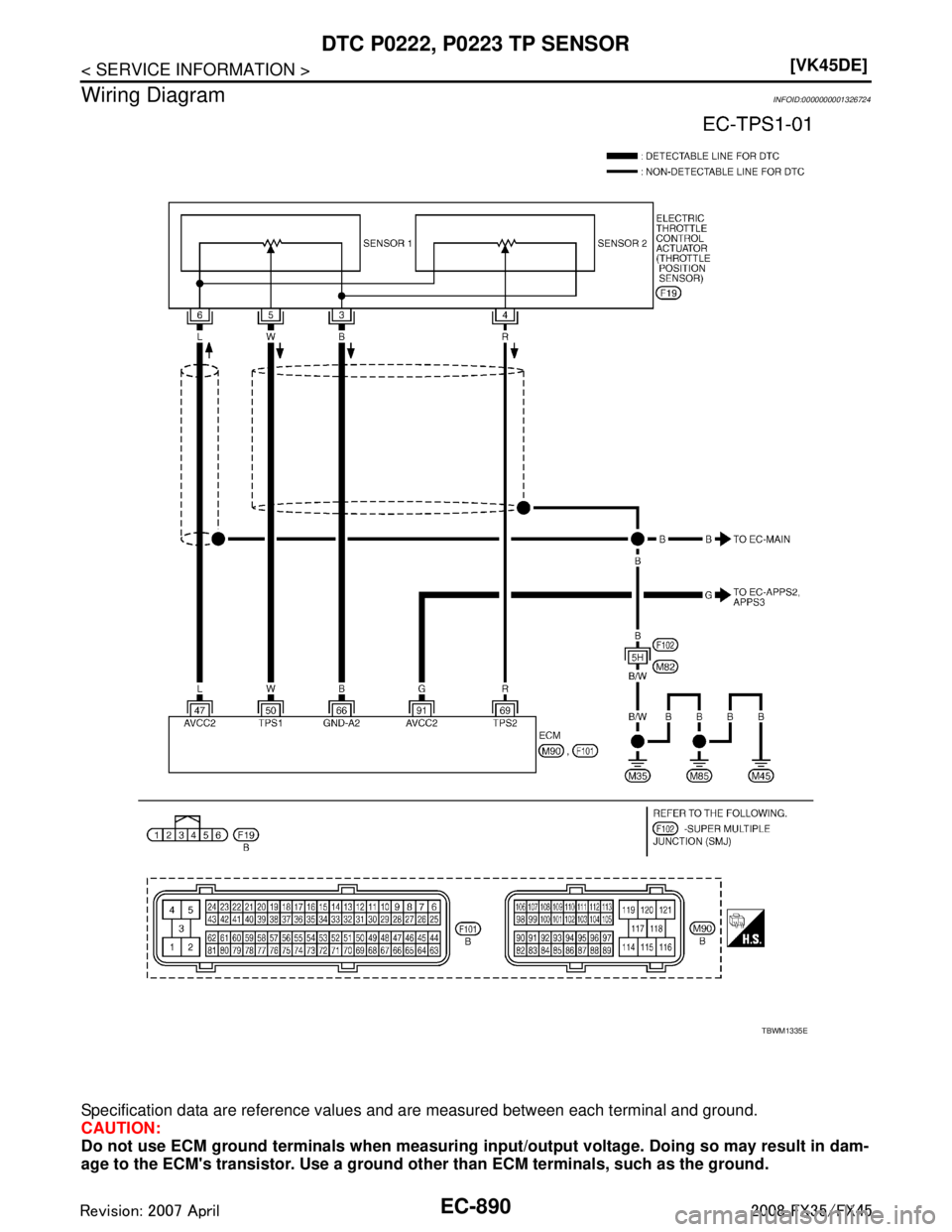

Wiring Diagram
INFOID:0000000001326724
Specification data are reference values and are measured between each terminal and ground.
CAU

Page 2131 of 3924

INFINITI FX35 2008 Service Manual
DTC P0222, P0223 TP SENSOREC-891
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

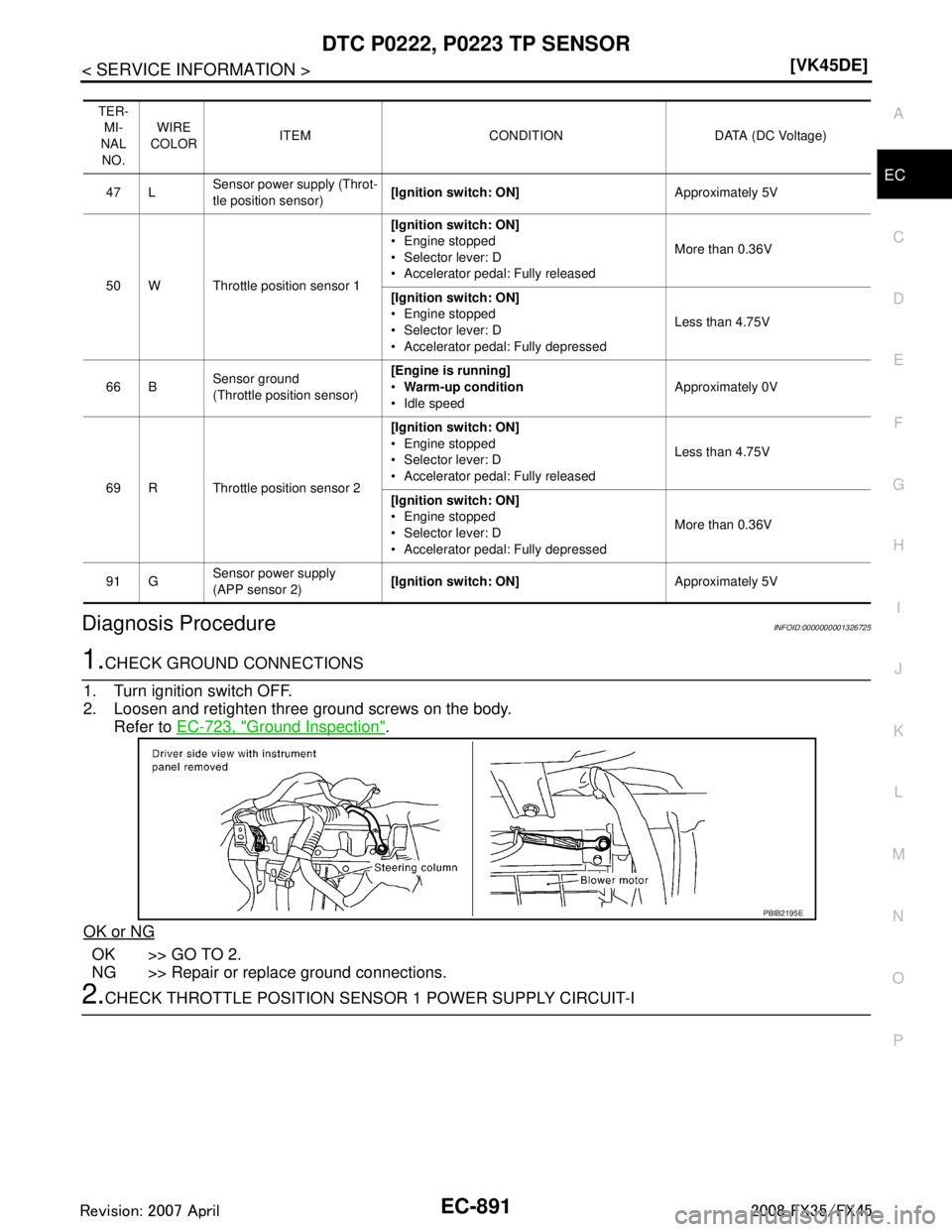

Diagnosis ProcedureINFOID:0000000001326725
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2.

Page 2132 of 3924

INFINITI FX35 2008 Service Manual
EC-892
< SERVICE INFORMATION >[VK45DE]
DTC P0222, P0223 TP SENSOR

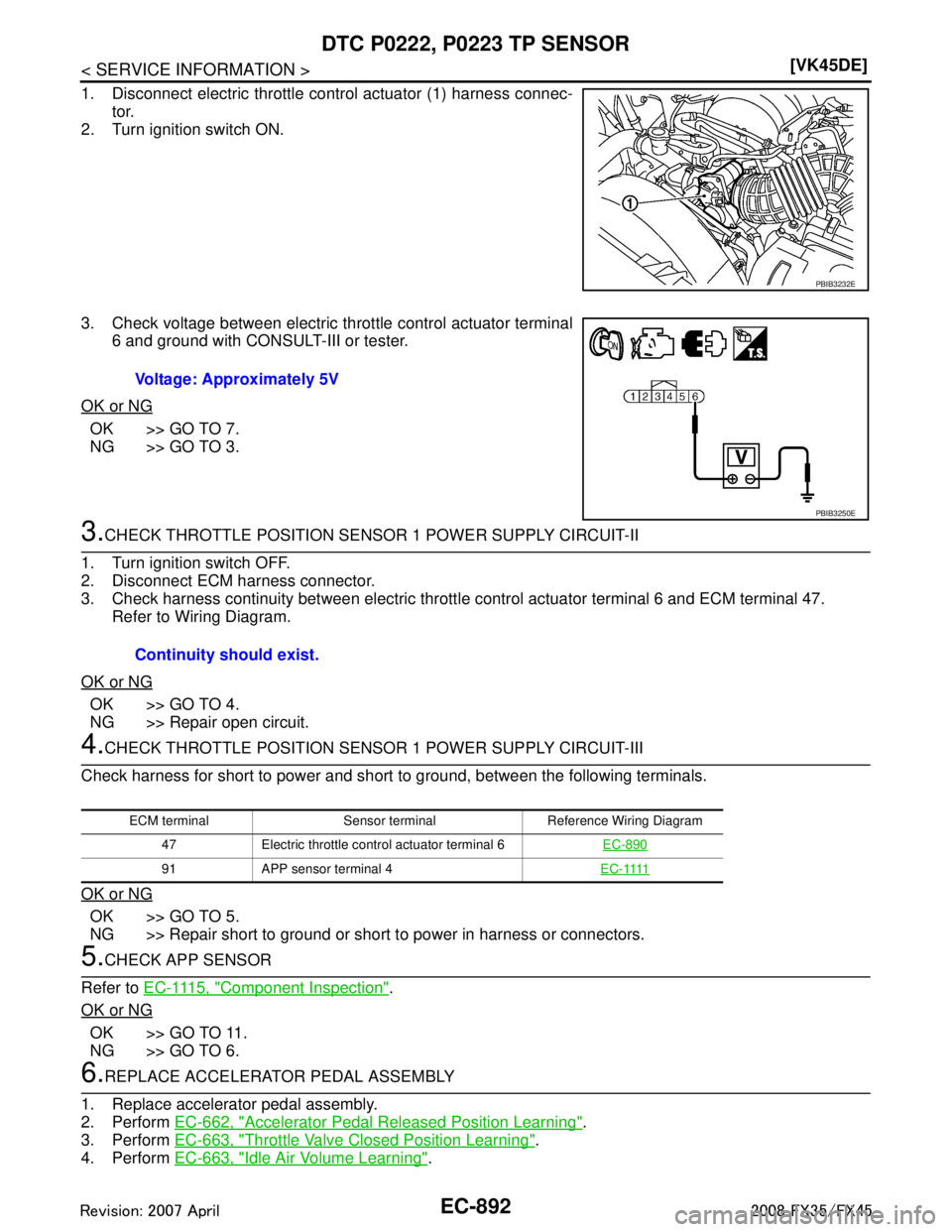

1. Disconnect electric throttle control actuator (1) harness connec-
tor.
2. Turn ignition switch ON.
3. Check voltage between electr

Page 2133 of 3924

INFINITI FX35 2008 Service Manual
DTC P0222, P0223 TP SENSOREC-893
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
>>
INSPECTION END
7.CHECK THROTTLE POSITI ON SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignit

Page 2134 of 3924

INFINITI FX35 2008 Service Manual
EC-894
< SERVICE INFORMATION >[VK45DE]
DTC P0222, P0223 TP SENSOR
5. Check voltage between ECM terminals 50 (TP sensor 1 signal),
69 (TP sensor 2 signal) and ground under the following condi-
tions.

Page 2135 of 3924

INFINITI FX35 2008 Service Manual
DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
EC-895
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0300 - P0308 MULTIPLE CYLINDER
MISFIRE, NO. 1 -

DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
EC-895
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0300 - P0308 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 8 CYLINDER
MISFIRE
On Board Diagnosis LogicINFOID:0000000001326728
When a misfire occurs, engine speed will fluctuate. If the engine speed fluctuates enough to cause the crank-
shaft position (CKP) sensor (POS) signal to vary , ECM can determine that a misfire is occurring.
The misfire detection logic consists of the following two conditions.
1. One Trip Detection Logic (Three Way Catalyst Damage) On the first trip that a misfire condition occurs t hat can damage the three way catalyst (TWC) due to over-
heating, the MIL will blink.
When a misfire condition occurs, the ECM monitors the CKP sensor signal every 200 engine revolutions
for a change.
When the misfire condition decreases to a level t hat will not damage the TWC, the MIL will turn off.
If another misfire condition occurs that can damage the TWC on a second trip, the MIL will blink.
When the misfire condition decreases to a level t hat will not damage the TWC, the MIL will remain on.
If another misfire condition occurs that can damage the TWC, the MIL will begin to blink again.
2. Two Trip Detection Logic (Exhaust quality deterioration) For misfire conditions that will not damage the TWC (but will affect vehicle emissions), the MIL will only
light when the misfire is detected on a second trip. Du ring this condition, the ECM monitors the CKP sen-
sor signal every 1,000 engine revolutions.
A misfire malfunction can be detected on any one cylinder or on multiple cylinders.
DTC Confirmation ProcedureINFOID:0000000001326729
CAUTION:
Always drive vehicle in safe manner according to traf fic conditions and obey all traffic laws when driv-
ing.
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
Sensor Input Signal to ECM ECM function
Crankshaft position sensor (POS) Engine speed On board diagnosis of misfire
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0300
0300 Multiple cylinder misfire
detected
Multiple cylinder misfire.
Improper spark plug
Insufficient compression
Incorrect fuel pressure
The fuel injector circuit is open or shorted
Fuel injector
Intake air leak
The ignition signal circuit is open or short-ed
Lack of fuel
Drive plate
A/F sensor 1
Incorrect PCV hose connection
P0301
0301
No.1 cylinder misfire de-
tected
No. 1 cylinder misfires.
P0302
0302 No. 2 cylinder misfire
detected
No. 2 cylinder misfires.
P0303
0303 No. 3 cylinder misfire
detected
No. 3 cylinder misfires.
P0304
0304 No. 4 cylinder misfire
detected
No. 4 cylinder misfires.
P0305
0305 No. 5 cylinder misfire
detected
No. 5 cylinder misfires.
P0306
0306 No. 6 cylinder misfire
detected
No. 6 cylinder misfires.
P0307
0307 No. 7 cylinder misfire
detected
No. 7 cylinder misfires.
P0308
0308 No. 8 cylinder misfire
detected
No. 8 cylinder misfires.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2136 of 3924

INFINITI FX35 2008 Service Manual
EC-896
< SERVICE INFORMATION >[VK45DE]
DTC P0300 - P0308 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
3. Restart engine and let it idle for about 15 minutes.
4. Check 1st trip DTC.
5. If

EC-896
< SERVICE INFORMATION >[VK45DE]
DTC P0300 - P0308 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
3. Restart engine and let it idle for about 15 minutes.
4. Check 1st trip DTC.
5. If 1st trip DTC is detected, go to EC-896, "
Diagnosis Procedure".
If 1st trip DTC is not detected, per forming the following procedure is advised.
a. Turn ignition switch OFF and wait at least 10 seconds.
b. Start engine and drive the vehicle under the similar conditi ons to (1st trip) Freeze Frame Data for a certain
time. Refer to the table below.
Hold the accelerator pedal as steady as possible.
The similar conditions to (1st trip) Freeze Frame Da ta means the vehicle operation that the following con-
ditions should be satisfied at the same time.
The time to driving varies according to the engine speed in the freeze frame data.
Diagnosis ProcedureINFOID:0000000001326730
1.CHECK FOR INTAKE AIR LEAK
1. Start engine and run it at idle speed.
2. Listen for the sound of the intake air leak.
3. Check PCV hose connection.
OK or NG
OK >> GO TO 2.
NG >> Discover air leak location and repair.
2.CHECK FOR EXHAUST SYSTEM CLOGGING
1. Stop engine
2. Turn ignition switch OFF
3. Visually check exhaust tube, three way catalyst (manifold) and muffler for dents.
OK or NG
OK (With CONSULT-III)>>GO TO 3.
OK (Without CONSULT-III)>>GO TO 4.
NG >> Repair or replace it.
3.PERFORM POWER BALANCE TEST
With CONSULT-III
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode.
2. Is there any cylinder which does not produce a momentary engine speed drop?
Ye s o r N o
Ye s > > G O T O 4 .
No >> GO TO 10.
Engine speed Engine speed in the freeze frame data ± 400 rpm
Vehicle speed Vehicle speed in the freeze frame data ± 10 km/h (6 MPH)
Engine coolant temperature (T)
condition When the freeze frame data shows lower than 70
°C (158 °F),
T should be lower than 70 °C (158 °F).
When the freeze frame data shows higher than or equal to 70 °C (158 °F),
T should be higher than or equal to 70 °C (158 °F).
Engine speed Time
Around 1,000 rpm Approximately 10 minutes
Around 2,000 rpm Approximately 5 minutes
More than 3,000 rpm Approximately 3.5 minutes
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
