2008 INFINITI FX35 Service Manual

wiper size child lock steering wheel tailgate trunk release tires

Load previous 8 pages

Page 1329 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISEC-89
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
TROUBLE DIAGNOSIS
Trouble Diagnosis IntroductionINFOID:0000000001325927
INTRODUCTION
The engine has an ECM to c

Page 1330 of 3924

INFINITI FX35 2008 Service Manual
EC-90
< SERVICE INFORMATION >[VQ35DE]
TROUBLE DIAGNOSIS

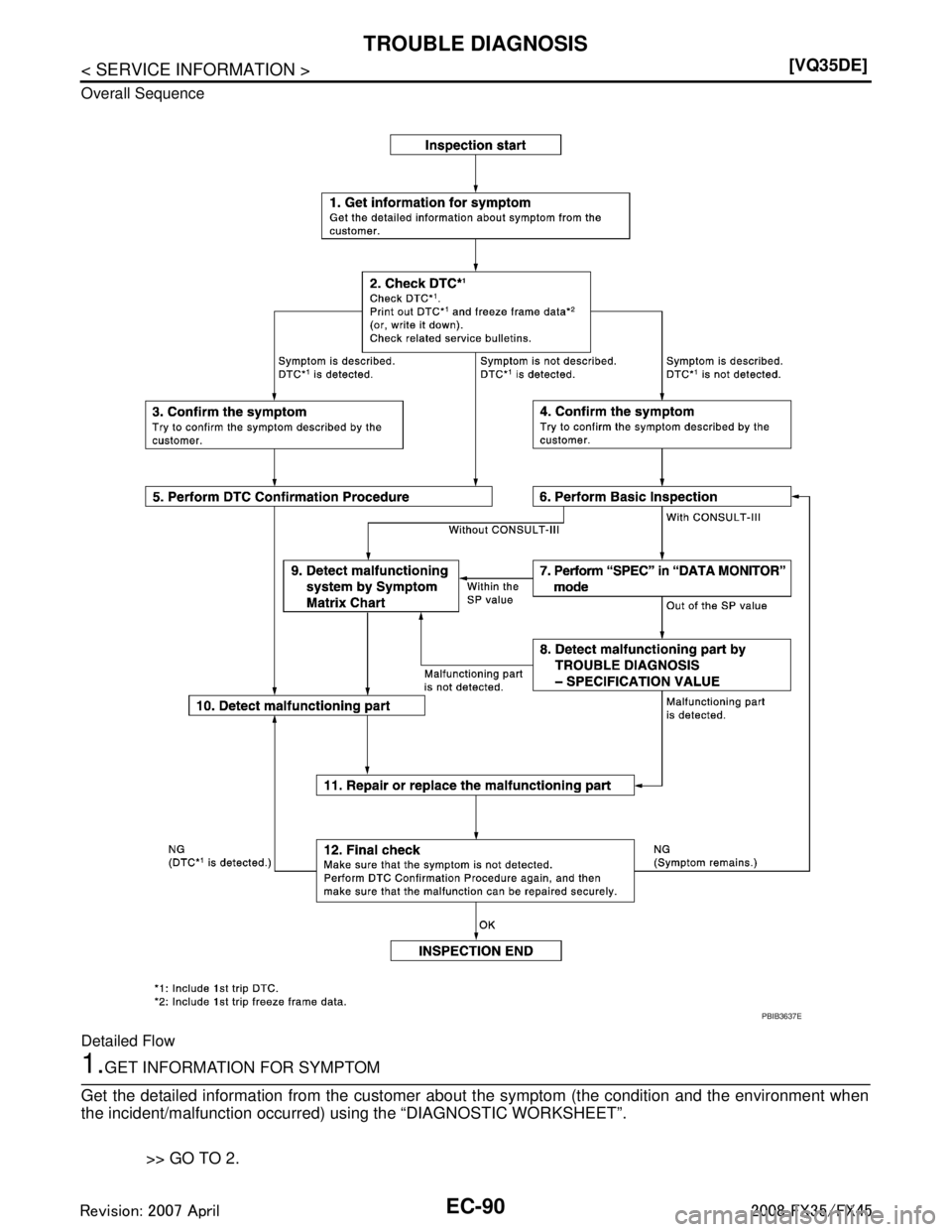

Overall Sequence
Detailed Flow
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition a

Page 1331 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISEC-91
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2.CHECK DTC*1
1. Check DTC*1.
2. Perform the following procedure if DTC*
1 is displayed.
- Record DTC*
1 and fr

TROUBLE DIAGNOSISEC-91
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2.CHECK DTC*1
1. Check DTC*1.
2. Perform the following procedure if DTC*
1 is displayed.
- Record DTC*
1 and freeze frame data*2. (Print them out with CONSULT-III or GST.)
- Erase DTC*
1. (Refer to EC-55, "Emission-Related Diagnostic Information".)
- Study the relationship between the cause detected by DTC*
1 and the symptom described by the cus-
tomer. (Symptom Matrix Chart is useful. Refer to EC-96, "
Symptom Matrix Chart".)
3. Check related service bulletins for information.
Is any symptom described and any DTC detected?
Symptom is described, DTC*1 is displayed>>GO TO 3.
Symptom is described, DTC*
1 is not displayed>>GO TO 4.
Symptom is not described, DTC*
1 is displayed>>GO TO 5.
3.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer (except MIL ON).
DIAGNOSIS WORK SHEET is usef ul to verify the incident.
Connect CONSULT-III to the vehicle and check diagnosis results.
Verify relation between the symptom and t he condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
DIAGNOSIS WORK SHEET is usef ul to verify the incident.
Connect CONSULT-III to the vehicle and check diagnosis results.
Verify relation between the symptom and t he condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC Confirmation Procedure for the displayed DTC*
1, and then make sure that DTC*1 is detected
again.
If two or more DTCs*
1 are detected, refer to EC-93, "DTC Inspection Priority Chart" and determine trouble
diagnosis order.
NOTE:
Freeze frame data*
2 is useful if the DTC*1 is not detected.
Perform Overall Function Check if DTC Confirma tion Procedure is not included on Service Manual. This
simplified check procedure is an effective alternative though DTC*
1 cannot be detected during this check.
If the result of Overall Function Check is NG, it is the same as the detection of DTC*
1 by DTC Confirmation
Procedure.
Is DTC*
1 detected?
Yes >> GO TO 10.
No >> Check according to EC-139
.
6.PERFORM BASIC INSPECTION
Perform EC-80, "
Basic Inspection"
With CONSULT-III>>GO TO 7.
Without CONSULT-III>>GO TO 9.
7.PERFORM SPEC IN DATA MONITOR MODE
With CONSULT-III
Make sure that “MAS A/F SE-B1”, “B/FUEL SCHDL”, and “A/F ALPHA-B1”, “A/F ALPHA-B2” are within the SP
value using CONSULT-III “SPEC” in “DATA MONITOR” mode. Refer to EC-131, "
Diagnosis Procedure".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1332 of 3924

INFINITI FX35 2008 Service Manual
EC-92
< SERVICE INFORMATION >[VQ35DE]
TROUBLE DIAGNOSIS
Are they within the SP value?
Ye s > > G O T O 9 .
No >> GO TO 8.
8.DETECT MALFUNCTIONING PART BY TROUBL
E DIAGNOSIS - SPECIFICATION VALUE
De

EC-92
< SERVICE INFORMATION >[VQ35DE]
TROUBLE DIAGNOSIS
Are they within the SP value?
Ye s > > G O T O 9 .
No >> GO TO 8.
8.DETECT MALFUNCTIONING PART BY TROUBL
E DIAGNOSIS - SPECIFICATION VALUE
Detect malfunctioning part according to EC-131
.
Is malfunctioning part detected?
Ye s > > G O T O 11 .
No >> GO TO 9.
9.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM MATRIX CHART
Detect malfunctioning system according to EC-96, "
Symptom Matrix Chart" based on the confirmed symptom
in step 4, and determine the trouble diagnosis order based on possible causes and symptom.
>> GO TO 10.
10.DETECT MALFUNCTIONING PA RT BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnostic Procedure. For details, refer to Circuit Inspection in GI-
25, "How to Perform Efficient Diagnosis for an Electrical Incident".
Is malfunctioning part detected?
Ye s > > G O T O 11 .
No >> Monitor input data from related sensors or check voltage of related ECM terminals using CON-
SULT-III. Refer to EC-127, "
CONSULT-III Reference Value in Data Monitor Mode", EC-109, "ECM
Terminal and Reference Value".
11 .REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace- ment.
3. Check DTC. If DTC is displayed, erase it, refer to EC-55, "
Emission-Related Diagnostic Information".
>> GO TO 12.
12.FINAL CHECK
When DTC was detected in step 2, perform DTC Conf irmation Procedure or Overall Function Check again,
and then make sure that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure
that the symptom is not detected.
OK or NG
NG (DTC*1 is detected)>>GO TO 10.
NG (Symptom remains)>>GO TO 6.
OK >> 1. Before returning the vehicle to the customer, make sure to erase unnecessary DTC*
1 in ECM
and TCM (Transmission Control Module). (Refer to EC-55, "
Emission-Related Diagnostic
Information" and AT-38, "OBD-II Diagnostic Trouble Code (DTC)".)
2. If the completion of SRT is needed, drive vehicl e under the specific driving pattern. Refer to
EC-55, "
Emission-Related Diagnostic Information".
3. INSPECTION END
*1: Include 1st trip DTC.
*2: Include 1st trip freeze frame data.

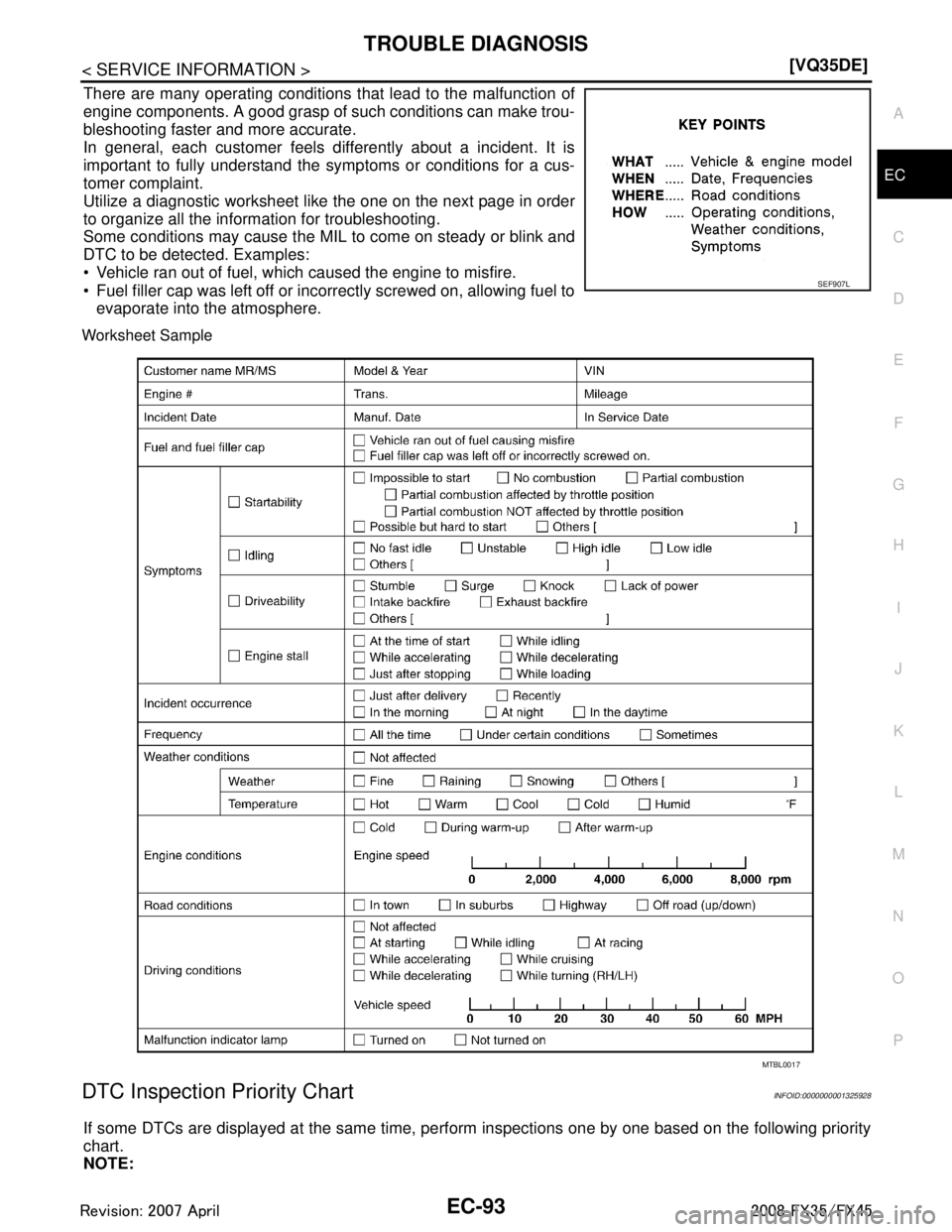

DIAGNOSTIC WORKSHEET
Description
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1333 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISEC-93
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such con

Page 1334 of 3924

INFINITI FX35 2008 Service Manual
EC-94
< SERVICE INFORMATION >[VQ35DE]
TROUBLE DIAGNOSIS

If DTC U1000 or U1001 is displayed with other DT C, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-146
.
If DTC U10

EC-94
< SERVICE INFORMATION >[VQ35DE]
TROUBLE DIAGNOSIS

If DTC U1000 or U1001 is displayed with other DT C, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-146
.
If DTC U1010 is displayed with other DTC, fi rst perform the trouble diagnosis for DTC U1010.
Refer to EC-148
.
*: Models with ICC.Priority Detected items (DTC)
1 U1000 U1001 CAN communication line U1010 CAN communication
P0101 P0102 P0103 Mass air flow sensor
P0112 P0113 P0127 Intake air temperature sensor
P0117 P0118 P0125 Engine coolant temperature sensor
P0128 Thermostat function
P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
P0181 P0182 P0183 Fuel tank temperature sensor
P0327 P0328 Knock sensor
P0335 Crankshaft position sensor (POS)
P0340 P0345 Camshaft position sensor (PHASE)
P0460 P0461 P0462 P0463 Fuel level sensor
P0500 Vehicle speed sensor
P0605 ECM
P0643 Sensor power supply
P0700 TCM
P0705 Park/neutral position (PNP) switch
P0850 Park/neutral position (PNP) switch
P1610 - P1615 NATS
P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor
2 P0031 P0032 P0051 P0052 Air fuel ratio (A/F) sensor 1 heater P0037 P0038 P0057 P0058 Heated oxygen sensor 2 heater
P0075 P0081 Intake valve timing control solenoid valve
P0130 P0131 P0132 P0133 P0150 P0151 P0152 P0153 P2A00 P2A03 Air fuel ratio (A/F) sensor 1
P0137 P0138 P0139 P0157 P0158 P0159 Heated oxygen sensor 2
P0441 EVAP control system purge flow monitoring
P0443 P0444 P0445 EVAP canister purge volume control solenoid valve
P0447 P0448 EVAP canister vent control valve
P0451 P0452 P0453 EVAP control system pressure sensor
P0550 Power steering pressure sensor
P0603 ECM power supply
P0710 P0717 P0720 P0731 P0732 P0733 P0734 P0735 P0740 P0744 P0745 P1730 P1752 P1757 P1762 P1767
P1772 P1774 A/T related sensors, solenoid valves and switches
P1217 Engine over temperature (OVERHEAT)
P1805 Brake switch
P2100 P2103 P2118 Electric throttle control actuator
P2101 Electric throttle control function
3 P0011 P0021 Intake valve timing control P0171 P0172 P0174 P0175 Fuel injection system function
P0300 - P0306 Misfire
P0420 P0430 Three way catalyst function
P0442 EVAP control system (SMALL LEAK)
P0455 EVAP control system (GROSS LEAK)
P0456 EVAP control sys tem (VERY SMALL LEAK)
P0506 P0507 Idle speed control system
P1148 P1168 Closed loop control
P1211 TCS control unit
P1212 TCS communication line
P1421 COLD START CONTROL
P1564 ICC steering switch/ASCD steering switch
P1568 ICC command valve*
P1572 ICC brake switch/ASCD brake switch
P1574 ICC vehicle speed sensor/ASCD vehicle speed sensor
P1715 Turbine revolution sensor
P2119 Electric throttle control actuator
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1335 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISEC-95
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Fail-Safe ChartINFOID:0000000001325929
When the DTC listed below is detected, the EC
M enters fail-safe mode an

TROUBLE DIAGNOSISEC-95
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Fail-Safe ChartINFOID:0000000001325929
When the DTC listed below is detected, the EC
M enters fail-safe mode and the MIL lights up.
When there is an open circuit on MIL circuit, the ECM c annot warn the driver by MIL lighting up when there
is malfunction on engine control system.
Therefore, when electrical controlled throttle and pa rt of ECM related diagnoses are continuously detected
as NG for 5 trips, ECM warns the driver that engi ne control system malfunctions and MIL circuit is open by
means of operating fail-safe function.
The fail-safe function also operates when above diagnos es except MIL circuit are detected and demands the
driver to repair the malfunction.
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103 Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118 Engine coolant tempera-
ture sensor circuit Engine coolant temperature will be determined by ECM based on the following condition.
CONSULT-III displays the engine coolant temperature decided by ECM.
Condition Engine coolant temperature decided
(CONSULT-III display)
Just as ignition switch is turned ON
or START 40
°C (104 °F)
Approx. 4 minutes or more after
engine starting. 80
°C (176 °F)
Except as shown above 40 - 80
°C (104 - 176 °F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.
P0122
P0123
P0222
P0223
P2135 Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P0643 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2100
P2103 Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2101 Electric th rottle control
function ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2118 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2119 Electric thro ttle control ac-
tuator (When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.
(When ECM detects the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the
engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or
more.
P2122
P2123
P2127
P2128
P2138 Accelerator pedal position
sensor
The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1336 of 3924

INFINITI FX35 2008 Service Manual
EC-96
< SERVICE INFORMATION >[VQ35DE]
TROUBLE DIAGNOSIS
Symptom Matrix Chart
INFOID:0000000001325930
SYSTEM — BASIC ENGINE CONTROL SYSTEM
Engine operating condition in fail-safe mode Engine speed w

Load next 8 pages

Page: < prev 1-10 ... 1297-1304 1305-1312 1313-1320 1321-1328 1329-1336 1337-1344 1345-1352 1353-1360 1361-1368 ... 3928 next >

radio antenna run flat spare tire dead battery open trunk dimensions wheel size
