Page 3289 of 3924

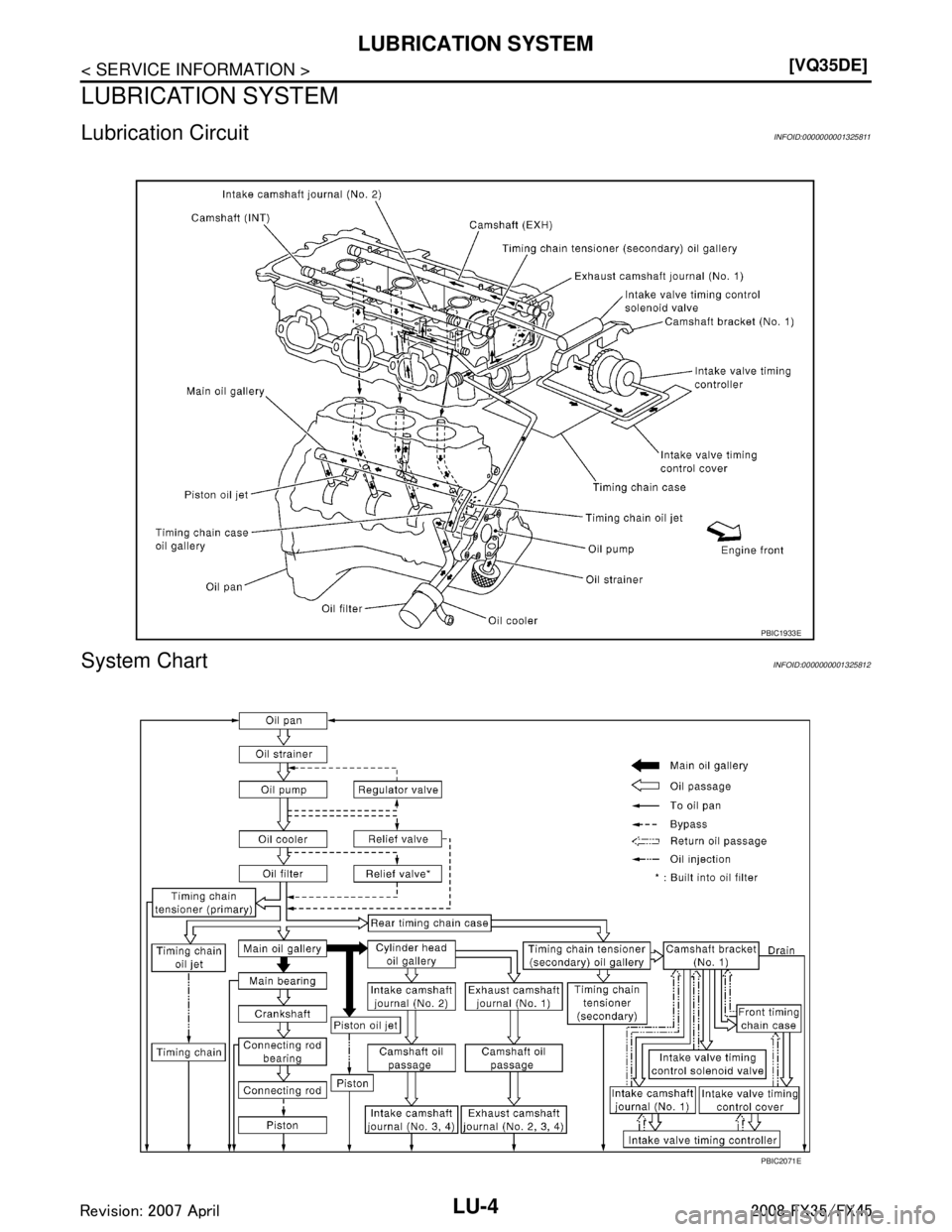

INFINITI FX35 2008 Service Manual LU-4 < SERVICE INFORMATION >[VQ35DE] LUBRICATION SYSTEM LUBRICATION SYSTEM Lubrication CircuitINFOID:0000000001325811 System ChartINFOID:0000000001325812 PBIC1933E PBIC2071E 3AA93ABC3ACD3AC03ACA3AC03

Page 3290 of 3924

INFINITI FX35 2008 Service Manual ENGINE OILLU-5 < SERVICE INFORMATION > [VQ35DE] C D E F G H I J K L M A LU NP O ENGINE OIL InspectionINFOID:0000000001325813 ENGINE OIL LEVEL NOTE: Before starting engine, put vehicle horizontally an

Page 3291 of 3924

INFINITI FX35 2008 Service Manual LU-6 < SERVICE INFORMATION >[VQ35DE] ENGINE OIL WARNING: • Be careful not to get burn your self, as engine oil may be hot.  Oil pressure check should be done in “Parking position”. 1. Check t

Page 3292 of 3924

INFINITI FX35 2008 Service Manual ENGINE OILLU-7 < SERVICE INFORMATION > [VQ35DE] C D E F G H I J K L M A LU NP Oc. After warming up engine, make sure there is no leakage of engine oil with running engine. Changing Engine OilINFOID:0

Page 3293 of 3924

INFINITI FX35 2008 Service Manual LU-8 < SERVICE INFORMATION >[VQ35DE] OIL FILTER OIL FILTER Removal and InstallationINFOID:0000000001325815 REMOVAL 1. Remove front engine undercover with power tool. 2. Using oil filter wrench (SST),

Page 3294 of 3924

INFINITI FX35 2008 Service Manual OIL FILTERLU-9 < SERVICE INFORMATION > [VQ35DE] C D E F G H I J K L M A LU NP O 2. Start the engine, and check there is no leak of engine oil. 3. Stop the engine and wait for 10 minutes. 4. Check the

Page 3295 of 3924

INFINITI FX35 2008 Service Manual LU-10 < SERVICE INFORMATION >[VQ35DE] OIL FILTER BRACKET (AWD) OIL FILTER BRACKET (AWD) ComponentINFOID:0000000001325816 Removal and InstallationINFOID:0000000001325817 REMOVAL WARNING: Be careful no

Page 3296 of 3924

INFINITI FX35 2008 Service Manual OIL FILTER BRACKET (AWD)LU-11 < SERVICE INFORMATION > [VQ35DE] C D E F G H I J K L M A LU NP O  Align cutout on oil cooler with protrusion on oil filter bracket. Refer to LU-13, "Removal and Instal
