Page 1873 of 3924

INFINITI FX35 2008 Service Manual
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-633
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Therefore, when electrical controlled throttle and part
of ECM related diagnoses are continuou

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-633
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Therefore, when electrical controlled throttle and part
of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine c ontrol system malfunctions and MIL circuit is open by means
of operating fail-safe function.
The fail-safe function also operates when above diagnos es except MIL circuit are detected and demands the
driver to repair the malfunction.
Emission-related Di agnostic InformationINFOID:0000000001326512
EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
×:Applicable —: Not applicable
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut
Items
(CONSULT-III screen terms) DTC*
1
SRT code Trip MIL Reference page
CONSULT-III
GST*
2ECM*3
CAN COMM CIRCUIT U1000 1000*4—1× or — EC-724
CAN COMM CIRCUIT U1001
1001*4—2 —EC-724
CONTROL UNIT(CAN) U1010 1010 — 1 ×EC-726
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED. P0000 0000
——
Flashing*8—
INT/V TIM CONT-B1 P0011 0011 — 2 ×EC-727
INT/V TIM CONT-B2 P0021 0021 — 2 ×EC-727
A/F SEN1 HTR (B1) P0031 0031 — 2 ×EC-739
A/F SEN1 HTR (B1) P0032 0032 — 2 ×EC-739
HO2S2 HTR (B1) P0037 0037 — 2 ×EC-746
HO2S2 HTR (B1) P0038 0038 — 2 ×EC-746
A/F SEN1 HTR (B2) P0051 0051 — 2 ×EC-739
A/F SEN1 HTR (B2) P0052 0052 — 2 ×EC-739
HO2S2 HTR (B2) P0057 0057 — 2 ×EC-746
HO2S2 HTR (B2) P0058 0058 — 2 ×EC-746
INT/V TIM V/CIR-B1 P0075 0075 — 2 ×EC-754
INT/V TIM V/CIR-B2 P0081 0081 — 2 ×EC-754
MAF SEN/CIRCUIT-B1 P0101 0101 — 2 ×EC-761
MAF SEN/CIRCUIT-B1 P0102 0102 — 1 ×EC-768
MAF SEN/CIRCUIT-B1 P0103 0103 — 1 ×EC-768
IAT SEN/CIRCUIT-B1 P0112 0112 — 2 ×EC-775
IAT SEN/CIRCUIT-B1 P0113 0113 — 2 ×EC-775
ECT SEN/CIRC P0117 0117 — 1 ×EC-779
ECT SEN/CIRC P0118 0118 — 1 ×EC-779
TP SEN 2/CIRC-B1 P0122 0122 — 1 ×EC-784
TP SEN 2/CIRC-B1 P0123 0123 — 1 ×EC-784
ECT SENSOR P0125 0125 — 2 ×EC-790
IAT SENSOR-B1 P0127 0127 — 2 ×EC-793
THERMSTAT FNCTN P0128 0128 — 2 ×EC-796
A/F SENSOR1 (B1) P0130 0130 — 2 ×EC-798
A/F SENSOR1 (B1) P0131 0131 — 2 ×EC-806
A/F SENSOR1 (B1) P0132 0132 — 2 ×EC-814
A/F SENSOR1 (B1) P0133 0133 ×2 × EC-822
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1874 of 3924

INFINITI FX35 2008 Service Manual
EC-634
< SERVICE INFORMATION >[VK45DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
HO2S2 (B1) P0137 0137
×2 × EC-831
HO2S2 (B1) P0138 0138 ×2 × EC-840
HO2S2 (B1) P0139 0139 ×2 × EC-852
A/F SENSOR1 (B2) P0

EC-634
< SERVICE INFORMATION >[VK45DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
HO2S2 (B1) P0137 0137
×2 × EC-831
HO2S2 (B1) P0138 0138 ×2 × EC-840
HO2S2 (B1) P0139 0139 ×2 × EC-852
A/F SENSOR1 (B2) P0150 0150 — 2 ×EC-798
A/F SENSOR1 (B2) P0151 0151 — 2 ×EC-806
A/F SENSOR1 (B2) P0152 0152 — 2 ×EC-814
A/F SENSOR1 (B2) P0153 0153 ×2 × EC-822
HO2S2 (B2) P0157 0157 ×2 × EC-831
HO2S2 (B2) P0158 0158 ×2 × EC-840
HO2S2 (B2) P0159 0159 ×2 × EC-852
FUEL SYS-LEAN-B1 P0171 0171 — 2 ×EC-861
FUEL SYS-RICH-B1 P0172 0172 — 2 ×EC-871
FUEL SYS-LEAN-B2 P0174 0174 — 2 ×EC-861
FUEL SYS-RICH-B2 P0175 0175 — 2 ×EC-871
FTT SENSOR P0181 0181 — 2 ×EC-881
FTT SEN/CIRCUIT P0182 0182 — 2 ×EC-885
FTT SEN/CIRCUIT P0183 0183 — 2 ×EC-885
TP SEN 1/CIRC-B1 P0222 0222 — 1 ×EC-889
TP SEN 1/CIRC-B1 P0223 0223 — 1 ×EC-889
MULTI CYL MISFIRE P0300 0300 — 2 ×EC-895
CYL 1 MISFIRE P0301 0301 — 2 ×EC-895
CYL 2 MISFIRE P0302 0302 — 2 ×EC-895
CYL 3 MISFIRE P0303 0303 — 2 ×EC-895
CYL 4 MISFIRE P0304 0304 — 2 ×EC-895
CYL 5 MISFIRE P0305 0305 — 2 ×EC-895
CYL 6 MISFIRE P0306 0306 — 2 ×EC-895
CYL 7 MISFIRE P0307 0307 — 2 ×EC-895
CYL 8 MISFIRE P0308 0308 — 2 ×EC-895
KNOCK SEN/CIRC-B1 P0327 0327 — 2 — EC-902
KNOCK SEN/CIRC-B1 P0328 0328 — 2 —EC-902
KNOCK SEN/CIRC-B2 P0332 0332 — 2 —EC-902
KNOCK SEN/CIRC-B2 P0333 0333 — 2 —EC-902
CKP SEN/CIRCUIT P0335 0335 — 2×EC-906
CMP SEN/CIRC-B1 P0340 0340 — 2 ×EC-911
TW CATALYST SYS-B1 P0420 0420 ×2 × EC-917
TW CATALYST SYS-B2 P0430 0430 ×2 × EC-917
EVAP PURG FLOW/MON P0441 0441 ×2 × EC-921
EVAP SMALL LEAK P0442 0442 ×2 × EC-926
PURG VOLUME CONT/V P0443 0443 — 2 ×EC-933
PURG VOLUME CONT/V P0444 0444 — 2 ×EC-940
PURG VOLUME CONT/V P0445 0445 — 2 ×EC-940
VENT CONTROL VALVE P0447 0447 — 2 ×EC-946
Items
(CONSULT-III screen terms) DTC*
1
SRT code Trip MIL Reference page
CONSULT-III
GST*
2ECM*3
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1875 of 3924

INFINITI FX35 2008 Service Manual
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-635
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
OVENT CONTROL VALVE P0448 0448 — 2
×EC-951
EVAP SYS PRES SEN P0451 0451 — 2 ×EC-957
EVAP SY

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-635
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
OVENT CONTROL VALVE P0448 0448 — 2
×EC-951
EVAP SYS PRES SEN P0451 0451 — 2 ×EC-957
EVAP SYS PRES SEN P0452 0452 — 2 ×EC-960
EVAP SYS PRES SEN P0453 0453 — 2 ×EC-966
EVAP GROSS LEAK P0455 0455 — 2 ×EC-973
EVAP VERY SML LEAK P0456 0456
×*72 × EC-979
FUEL LEV SEN SLOSH P0460 0460 — 2 ×EC-986
FUEL LEVEL SENSOR P0461 0461 — 2 ×EC-988
FUEL LEVL SEN/CIRC P0462 0462 — 2 ×EC-990
FUEL LEVL SEN/CIRC P0463 0463 — 2 ×EC-990
VEH SPEED SEN/CIRC*5P0500 0500 — 2 ×EC-992
ISC SYSTEM P0506 0506 — 2 ×EC-994
ISC SYSTEM P0507 0507 — 2 ×EC-996
PW ST P SEN/CIRC P0550 0550 — 2 — EC-998
ECM BACK UP/CIRCUIT P0603 0603 — 2×EC-1003
ECM P0605 0605 — 1 or 2 × or — EC-1007
SENSOR POWER/CIRC P0643 0643 — 1 ×EC-1009
TCM P0700 0700 — 1 ×AT- 1 0 1
PNP SW/CIRC P0705 0705 — 2 ×AT- 1 0 2
ATF TEMP SEN/CIRC P0710 0710 — 2 ×AT- 1 3 2
TURBINE SENSOR P0717 0717 — 2 ×AT- 1 0 6
VEH SPD SEN/CIR AT*5P0720 0720 — 2 ×AT- 1 0 8
A/T 1ST GR FNCTN P0731 0731 — 2 ×AT- 11 4
A/T 2ND GR FNCTN P0732 0732 — 2 ×AT- 11 6
A/T 3RD GR FNCTN P0733 0733 — 2 ×AT- 11 8
A/T 4TH GR FNCTN P0734 0734 — 2 ×AT- 1 2 0
A/T 5TH GR FNCTN P0735 0735 — 2 ×AT- 1 2 2
TCC SOLENOID/CIRC P0740 0740 — 2 ×AT- 1 2 4
A/T TCC S/V FNCTN P0744 0744 — 2 ×AT- 1 2 6
L/PRESS SOL/CIRC P0745 0745 — 2 ×AT- 1 2 8
P-N POS SW/CIRCUIT P0850 0850 — 2 ×EC-1014
INTK TIM S/CIRC-B1 P1140 1140 — 2 ×EC-1019
INTK TIM S/CIRC-B2 P1145 1145 — 2 ×EC-1019
CLOSED LOOP-B1 P1148 1148 — 1 ×EC-1027
CLOSED LOOP-B2 P1168 1168 — 1 ×EC-1027
TCS C/U FUNCTN P1211 1211 — 2 — EC-1028
TCS/CIRC P1212 1212 — 2 —EC-1029
ENG OVER TEMP P1217 1217 — 1×EC-1030
CTP LEARNING-B1 P1225 1225 — 2 — EC-1041
CTP LEARNING-B1 P1226 1226 — 2 —EC-1043
COLD START CONTROL P1421 1421 — 2×EC-1045
Items
(CONSULT-III screen terms) DTC*
1
SRT code Trip MIL Reference page
CONSULT-III
GST*
2ECM*3
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1876 of 3924

INFINITI FX35 2008 Service Manual
EC-636
< SERVICE INFORMATION >[VK45DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
*1: 1st trip DTC No. is
the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-

EC-636
< SERVICE INFORMATION >[VK45DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
*1: 1st trip DTC No. is
the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: The troubleshooting for this DTC needs CONSULT-III.
*5: When the fail-safe operations for both self-diagnoses occur, the MIL illuminates. ASCD SW P1564 1564 — 1 —
EC-1047
(Models
with ICC)
EC-1053
(Models
with ASCD)
ACC COMMAND VALUE*
6P1568 1568 — 1 — EC-1059
ASCD BRAKE SW P1572 1572 — 1 — EC-1060
(Models
with ICC)
EC-1068
(Models
with ASCD)
ASCD VHL SPD SEN P1574 1574 — 1 — EC-1075
(Models
with ICC)
EC-1077
(Models
with ASCD)
LOCK MODE P1610 1610 — 2 — BL-4
ID DISCORD, IMM-ECM P1611 1611 — 2 —BL-4
CHAIN OF ECM-IMMU P1612 1612 — 2 —BL-4
CHAIN OF IMMU-KEY P1614 1614 — 2 —BL-4
DIFFERENCE OF KEY P1615 1615 — 2 —BL-4
IN PULY SPEED P1715 1715 — 2 —EC-1079
A/T INTERLOCK P1730 1730 — 1×AT- 1 3 9
I/C SOLENOID/CIRC P1752 1752 — 1 ×AT- 1 4 3
FR/B SOLENOID/CIRC P1757 1757 — 1 ×AT- 1 4 5
D/C SOLENOID/CIRC P1762 1762 — 1 ×AT- 1 4 7
HLR/C SOL/CIRC P1767 1767 — 1 ×AT- 1 4 9
LC/B SOLENOID/CIRC P1772 1772 — 1 ×AT- 1 5 1
LC/B SOLENOID FNCT P1774 1774 — 1 ×AT- 1 5 3
VIAS S/V-1 P1800 1800 — 2 — EC-1080
BRAKE SW/CIRCUIT P1805 1805 — 2 —EC-1084
ETC MOT PWR-B1 P2100 2100 — 1×EC-1088
ETC FNCTN/CIRC-B1 P2101 2101 — 1 ×EC-1092
ETC MOT PWR P2103 2103 — 1 ×EC-1088
ETC MOT-B1 P2118 2118 — 1 ×EC-1098
ETC ACTR-B1 P2119 2119 — 1 ×EC-1102
APP SEN 1/CIRC P2122 2122 — 1 ×EC-1104
APP SEN 1/CIRC P2123 2123 — 1 ×EC-1104
APP SEN 2/CIRC P2127 2127 — 1 ×E C - 111 0
APP SEN 2/CIRC P2128 2128 — 1 ×E C - 111 0
TP SENSOR-B1 P2135 2135 — 1 ×E C - 111 6
APP SENSOR P2138 2138 — 1 ×EC-1122
A/F SENSOR1 (B1) P2A00 2A00 — 2 ×EC-1129
A/F SENSOR1 (B2) P2A03 2A03 — 2 ×EC-1129
Items
(CONSULT-III screen terms) DTC*
1
SRT code Trip MIL Reference page
CONSULT-III
GST*
2ECM*3
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1877 of 3924

INFINITI FX35 2008 Service Manual
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-637
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*6: Models with ICC.
*7: SRT code will not be set if the self-diagnostic result is NG.
*8: When

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-637
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*6: Models with ICC.
*7: SRT code will not be set if the self-diagnostic result is NG.
*8: When the ECM is in the mode of displaying SRT status, MIL may flash. For the details, refer to "How to Display SRT Status".
DTC AND 1ST TRIP DTC
The 1st trip DTC (whose number is the same as the DT
C number) is displayed for the latest self-diagnostic
result obtained. If the ECM memory was cleared previous ly, and the 1st trip DTC did not reoccur, the 1st trip
DTC will not be displayed.
If a malfunction is detected during the 1st trip, the 1st trip DTC is stored in the ECM memory. The MIL will not
light up (two trip detection logic). If the same malfunc tion is not detected in the 2nd trip (meeting the required
driving pattern), the 1st trip DTC is cleared from the ECM memory. If the same malfunction is detected in the
2nd trip, both the 1st trip DTC and DTC are stored in t he ECM memory and the MIL lights up. In other words,
the DTC is stored in the ECM memory and the MIL light s up when the same malfunction occurs in two consec-
utive trips. If a 1st trip DTC is stored and a non-diagnostic operation is performed between the 1st and 2nd
trips, only the 1st trip DTC will continue to be stored. Fo r malfunctions that blink or light up the MIL during the
1st trip, the DTC and 1st trip DTC are stored in the ECM memory.
Procedures for clearing the DTC and the 1st trip DT C from the ECM memory are described in "HOW TO
ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION".
For malfunctions in which 1st trip DTCs are displa yed, refer to "EMISSION-RELATED DIAGNOSTIC INFOR-
MATION ITEMS". These items are required by legal r egulations to continuously monitor the system/compo-
nent. In addition, the items monitored non-cont inuously are also displayed on CONSULT-III.
1st trip DTC is specified in Service $07 of SAE J1979. 1st trip DTC detection occurs without lighting up the MIL
and therefore does not warn the driver of a malfunction. However, 1st trip DTC detection will not prevent the
vehicle from being tested, for example during Inspection/Maintenance (I/M) tests.
When a 1st trip DTC is detected, check, print out or write down and erase (1st trip) DTC and Freeze Frame
data as specified in Work Flow procedure Step 2, refer to EC-666, "
Trouble Diagnosis Introduction". Then per-
form DTC Confirmation Procedure or Overall Function Che ck to try to duplicate the malfunction. If the mal-
function is duplicated, the item requires repair.
How to Read DTC and 1st Trip DTC
DTC and 1st trip DTC can be read by the following methods.
With CONSULT-III
With GST
CONSULT-III or GST (Generic Scan Tool ) Examples: P0340, P0850, P1148, etc.
These DTCs are prescribed by SAE J2012.
(CONSULT-III also displays the malfunctioning component or system.)
No Tools
The number of blinks of the MIL in the Diagnostic Test Mode II (Self-Diagnostic Results) indicates the DTC.
Example: 0340, 0850, 1148, etc.
These DTCs are controlled by NISSAN.
1st trip DTC No. is the same as DTC No.
Output of a DTC indicates a malfunc tion. However, GST or the Diagnostic Test Mode II do not indi-
cate whether the malfunction is stil l occurring or has occurred in the past and has returned to nor-
mal. CONSULT-III can identify malfunction status as shown below. Therefore, using CONSULT-III (if
available) is recommended.
A sample of CONSULT-III display for DTC and 1st trip DT C is shown below. DTC or 1st trip DTC of a malfunc-
tion is displayed in SELF-DIAGNOSTIC RESULTS m ode of CONSULT-III. Time data indicates how many
times the vehicle was driven after the last detection of a DTC.
If the DTC is being detected currently, the time data will be [0].
If a 1st trip DTC is stored in the ECM, the time data will be [1t].
FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA
The ECM records the driving conditions such as fuel system status, calculated load value, engine coolant tem-
perature, short term fuel trim, long term fuel trim, engi ne speed, vehicle speed, absolute throttle position, base
fuel schedule and intake air temperature at the moment a malfunction is detected.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data.
The data, stored together with the DTC data, are ca lled freeze frame data and displayed on CONSULT-III or
GST. The 1st trip freeze frame data can only be displa yed on the CONSULT-III screen, not on the GST. For
details, see EC-695, "
CONSULT-III Function (ENGINE)".
Only one set of freeze frame data (either 1st trip freez e frame data or freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM me mory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1878 of 3924

INFINITI FX35 2008 Service Manual
EC-638
< SERVICE INFORMATION >[VK45DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
freeze frame data (2nd trip detection/MIL on) is stored
in the ECM memory, 1st trip freeze frame data is no
longer stored. Rem

EC-638
< SERVICE INFORMATION >[VK45DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
freeze frame data (2nd trip detection/MIL on) is stored
in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.
For example, the EGR malfunction (Priority: 2) was detected and the freeze frame data was stored in the 2nd
trip. After that when the misfire (Priority: 1) is detected in another trip, the freeze frame data will be updated
from the EGR malfunction to the misfire. The 1st trip freeze frame data is updated each time a different mal-
function is detected. There is no priority for 1st trip freeze frame data. However, once freeze frame data is
stored in the ECM memory, 1st trip freeze data is no longer stored (because only one freeze frame data or 1st
trip freeze frame data can be stored in the ECM). If fr eeze frame data is stored in the ECM memory and freeze
frame data with the same priority occurs later, t he first (original) freeze frame data remains unchanged in the
ECM memory.
Both 1st trip freeze frame data and freeze frame dat a (along with the DTCs) are cleared when the ECM mem-
ory is erased. Procedures for clearing the ECM me mory are described in "HOW TO ERASE EMISSION-
RELATED DIAGNOSTIC INFORMATION".
SYSTEM READINESS TEST (SRT) CODE
System Readiness Test (SRT) code is specified in Service $01 of SAE J1979.
As part of an enhanced emissions test for Inspection & Ma intenance (I/M), certain states require the status of
SRT be used to indicate whether the ECM has completed self-diagnosis of major emission s\
ystems and com-
ponents. Completion must be verified in order for the emissions inspection to proceed.
If a vehicle is rejected for a State emissions inspec tion due to one or more SRT items indicating “INCMP”, use
the information in this Service Manual to set the SRT to “CMPLT”.
In most cases the ECM will automatically complete its self-diagnosis cycle during normal usage, and the SRT
status will indicate “CMPLT” for each application system . Once set as “CMPLT”, the SRT status remains
“CMPLT” until the self-diagnosis memory is erased.
Occasionally, certain portions of the self-diagnostic test may not be completed as a result of the customer's
normal driving pattern; the SRT will indicate “INCMP” for these items.
NOTE:
The SRT will also indicate “INCMP” if the self-diagnosis memory is erased for any reason or if the ECM mem-
ory power supply is interrupted for several hours.
If, during the state emissions inspection, the SRT indica tes “CMPLT” for all test items, the inspector will con-
tinue with the emissions test. However, if the SRT indi cates “INCMP” for one or more of the SRT items the
vehicle is returned to the customer untested.
NOTE:
If MIL is ON during the state emissions inspection, the vehicle is also returned to the customer untested even
though the SRT indicates “CMPLT” for all test items. T herefore, it is important to check SRT (“CMPLT”) and
DTC (No DTCs) before the inspection.
SRT Item
The table below shows required self-diagnostic items to set the SRT to “CMPLT”.
Priority Items
1 Freeze frame data Misfire — DTC: P0300 - P0308
Fuel Injection System Function — DTC: P0171, P0172, P0174, P0175
2 Except the above items (Includes A/T related items)
3 1st trip freeze frame data
SRT item
(CONSULT-III indication) Performance
Priority* Required self-diagnostic items to set the SRT to “CMPLT” Corresponding
DTC No.
CATALYST 2 Three way catalyst function P0420, P0430
EVAP SYSTEM 2 EVAP control system purge flow monitoring P0441
1 EVAP control system P0442
2 EVAP control system P0456
HO2S 2 Air fuel ratio (A/F) sensor 1 P0133, P0153 Heated oxygen sensor 2 P0137, P0157
Heated oxygen sensor 2 P0138, P0158
Heated oxygen sensor 2 P0139, P0159
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1879 of 3924

INFINITI FX35 2008 Service Manual
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-639
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*: If completion of several SRTs is required, perform driving patterns (DTC confirmation proced

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-639
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*: If completion of several SRTs is required, perform driving patterns (DTC confirmation procedure), one by one based on the pr
iority for
models with CONSULT-III.
SRT Set Timing
SRT is set as “CMPLT” after self-diagnosis has been performed one or more times. Completion of SRT is
done regardless of whether the result is OK or NG. T he set timing is different between OK and NG results and
is shown in the table below.
OK: Self-diagnosis is carried out and the result is OK.
NG: Self-diagnosis is carried out and the result is NG.
—: Self-diagnosis is not carried out.
When all SRT related self-diagnoses showed OK results in a single cycle (Ignition OFF-ON-OFF), the SRT will
indicate “CMPLT”. → Case 1 above
When all SRT related self-diagnoses showed OK results through several different cycles, the SRT will indicate
“CMPLT” at the time the respective se lf-diagnoses have at least one OK result. → Case 2 above
If one or more SRT related self-diagnoses showed NG re sults in 2 consecutive cycles, the SRT will also indi-
cate “CMPLT”. → Case 3 above
The table above shows that the minimum number of cyc les for setting SRT as “INCMP” is one (1) for each
self-diagnosis (Case 1 & 2) or two (2) for one of self-di agnoses (Case 3). However, in preparation for the state
emissions inspection, it is unnecessary for each self-di agnosis to be executed twice (Case 3) for the following
reasons:
The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.
The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results.
When, during SRT driving pattern, 1st trip DTC (NG) is detected prior to “CMPLT” of SRT, the self-diagnosis
memory must be erased from ECM after repair.
If the 1st trip DTC is erased, all the SRT will indicate “INCMP”. NOTE:
SRT can be set as “CMPLT” together with the DTC(s) . Therefore, DTC check must always be carried out
prior to the state emission inspection even though the SRT indicates “CMPLT”.

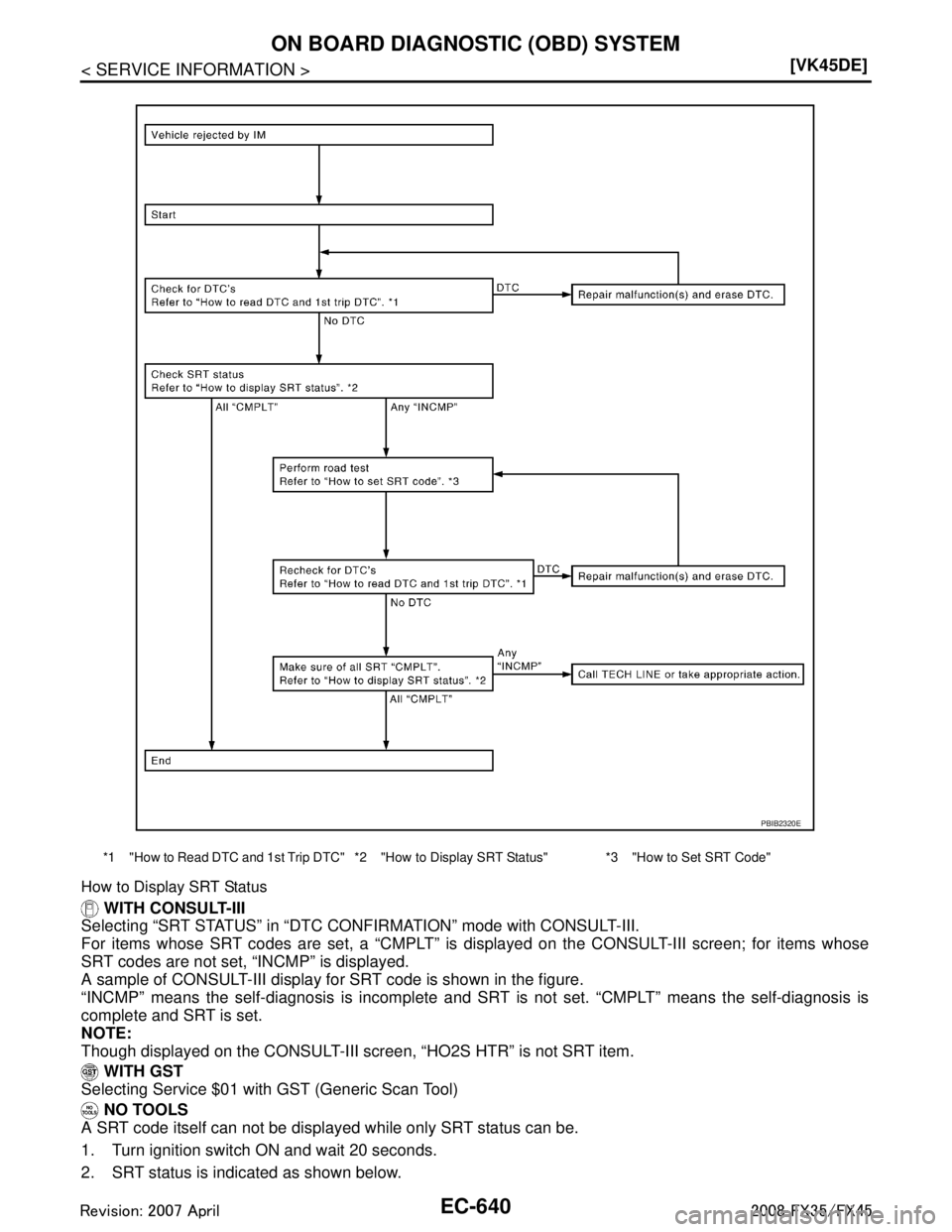

SRT Service Procedure
If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review
the flowchart diagnostic sequence on the next page.
Self-diagnosis result Example
Diagnosis Ignition cycle
← ON → OFF ← ON → OFF ← ON → OFF ← ON →
All OK Case 1 P0400 OK (1) — (1) OK (2) — (2) P0402 OK (1) — (1) — (1) OK (2)
P1402 OK (1) OK (2) — (2) — (2)
SRT of EGR “CMPLT” “CMPLT” “CMPLT” “CMPLT”
Case 2 P0400 OK (1) — (1) — (1) — (1) P0402 — (0) — (0) OK (1) — (1)
P1402 OK (1) OK (2) — (2) — (2)
SRT of EGR “INCMP” “INCMP” “CMPLT” “CMPLT”
NG exists Case 3 P0400 OK OK — — P0402 — — — —
P1402 NG — NG NG
(Consecutive
NG)
(1st trip) DTC 1st trip DTC — 1st trip DTC
DTC
(= MIL ON)
SRT of EGR “INCMP” “INCMP” “INCMP” “CMPLT”
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1880 of 3924

INFINITI FX35 2008 Service Manual
EC-640
< SERVICE INFORMATION >[VK45DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
How to Display SRT Status

WITH CONSULT-III
Selecting “SRT STATUS” in “DTC CO NFIRMATION” mode with CONSULT-III.
For i

Load next 8 pages

Page: < prev 1-10 ... 1841-1848 1849-1856 1857-1864 1865-1872 1873-1880 1881-1888 1889-1896 1897-1904 1905-1912 ... 3928 next >

oil change width key fob bulb fuel pump oil temperature
