Page 2665 of 3924

INFINITI FX35 2008 Service Manual
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-181
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
16. Loosen mounting nuts in reverse order as shown in the figure to
remove exhaust mani

Page 2666 of 3924

INFINITI FX35 2008 Service Manual
EM-182
< SERVICE INFORMATION >[VK45DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Install exhaust manifold and tighten mounting nuts in numerical
order as shown in the figure.
NOTE:
Tighten mounting n

Page 2667 of 3924

INFINITI FX35 2008 Service Manual
OIL PAN AND OIL STRAINEREM-183
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
OIL PAN AND OIL STRAINER
ComponentINFOID:0000000001325778
Refer to
GI-8, "Component" for symbols in

Page 2668 of 3924

INFINITI FX35 2008 Service Manual
EM-184
< SERVICE INFORMATION >[VK45DE]
OIL PAN AND OIL STRAINER
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-37, "
Changing Engine Coolant".
CAUTION:
Perform this

EM-184
< SERVICE INFORMATION >[VK45DE]
OIL PAN AND OIL STRAINER
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-37, "
Changing Engine Coolant".
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belts.
7. Remove drive belts. Refer to EM-170, "
Component".
8. Remove auto tensioner of power steering oil pump belt. Refer to EM-172, "
Drive Belt Auto Tensioner and
Idler Pulley".
9. Remove power steering oil pump with piping connect ed, and temporarily secure it aside with ropes or
equivalent. Refer to PS-27, "
On-Vehicle Inspection and Service".
10. Remove A/C compressor with piping connected, and tem porarily secure it aside with ropes or equivalent.
Refer to ATC-121, "
Component".
11. Remove A/C compressor fitting bolts, and install A/C compressor temporarily on vehicle side with ropes or equivalent.
12. Remove harness of lower side of oil pan.
13. Remove crankshaft position sensor (POS) from transmission. CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble it.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location wh ere they are exposed to magnetism.
14. Install engine slinger and hang engine assembly to secure position. Refer to EM-237, "
Component".
15. Remove front suspension member with power tool. Refer to FSU-16, "
Removal and Installation".
16. Remove front final drive assembly. Refer to FFD-14, "
Removal and Installation (VQ35DE Models)".
17. Remove oil filter. Refer to LU-26, "
Removal and Installation".
18. Disconnect oil cooler water hoses, and remove oil cooler water pipe and oil cooler. Refer to LU-27, "
Com-
ponent".
19. Remove oil pan as the follows:
a. Remove rear plate cover.
b. Remove transmission joint bolts which pierce oil pan. Refer to AT-243, "
Removal and Installation (AWD
Models)".
c. Loosen mounting bolts with power tool in reverse order as shown in the figure.
NOTE:
Disregard the numerical order No. 11 and 17 in removal.
d. Insert seal cutter (SST) between oil pan and cylinder block. Slide seal cutter by tapping on the side of seal cutter with ham-
mer. Remove oil pan.
CAUTION:
Be careful not to damage the mating surfaces.
Do not insert screwdriver, th is will damage the mating
surface.
e. Remove O-rings from bottom of oil pump and front cover.
20. As necessary, pull axle pipe from oil pan.
PBIC0194E
SEM365E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2669 of 3924

INFINITI FX35 2008 Service Manual
OIL PAN AND OIL STRAINEREM-185
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Hold pipes and pull them out to front drive shaft (left) installing side.
21. Remove oil strainer.
IN

OIL PAN AND OIL STRAINEREM-185
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Hold pipes and pull them out to front drive shaft (left) installing side.
21. Remove oil strainer.
INSPECTION AFTER REMOVAL
Clean oil strainer if any object attached.
INSTALLATION
1. Install oil strainer.
2. Install axle pipe to oil pan, if removed. Lubricate O-ring groove of axle pipe, O-ring, and O-ring joint ofoil pan with new engine oil.
Right/left O-ring diameters differ from each other. O-ring with
identification paint mark is installed on front drive shaft (left)
installing side.
Install axle pipe to oil pan from (left) side.
CAUTION:
Insert it with care to prevent O-ring from sliding.
3. Install oil pan as follows:
a. Use scraper to remove old liquid gasket from mating surfaces. Also remove the old liquid gasket from mating surface of cylinder block.
Remove old liquid gasket from the bolt holes and threads.
CAUTION:
Do not scratch or damage the mating su rfaces when cleaning off old liquid gasket.
b. Install new O-rings to oil pump and front cover side.
c. Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to the cylinder block mating surfaces
of oil pan to a limited portion as shown in the figure.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
CAUTION:
Attaching should be done wi thin 5 minutes after coating.
d. Install oil pan. CAUTION:
Install avoiding misal ignment of O-rings.
Tighten mounting bolts in numerical order as shown in the fig- ure.
NOTE:
Tighten mounting bolts No. 1 and 2 in two steps. The numeri-
cal order No. 11 and 17 shown second steps.
There are three types of mounting bolts. Refer to the following for locating bolts.
e. Tighten transmission joint bolts. Refer to AT-243, "
Removal and Installation (AWD Models)".
f. Install rear plate cover.
4. Install oil pan drain plug with new drain plug washer.
PBIC2336E
PBIC0195E
M6 × 30 mm (1.18 in) : 18, 19
M8 × 100 mm (3.94 in) : 5, 9
M8 × 45 mm (1.77 in) : Except the above
PBIC0194E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2670 of 3924

INFINITI FX35 2008 Service Manual
EM-186
< SERVICE INFORMATION >[VK45DE]
OIL PAN AND OIL STRAINER
Refer to the figure of components of former page for
installation direction of drain plug washer. Refer to
"Removal and Installation

Page 2671 of 3924

INFINITI FX35 2008 Service Manual
IGNITION COILEM-187
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
IGNITION COIL
ComponentINFOID:0000000001325780
Removal and InstallationINFOID:0000000001325781
REMOVAL
1. Remove e

Page 2672 of 3924

INFINITI FX35 2008 Service Manual
EM-188
< SERVICE INFORMATION >[VK45DE]

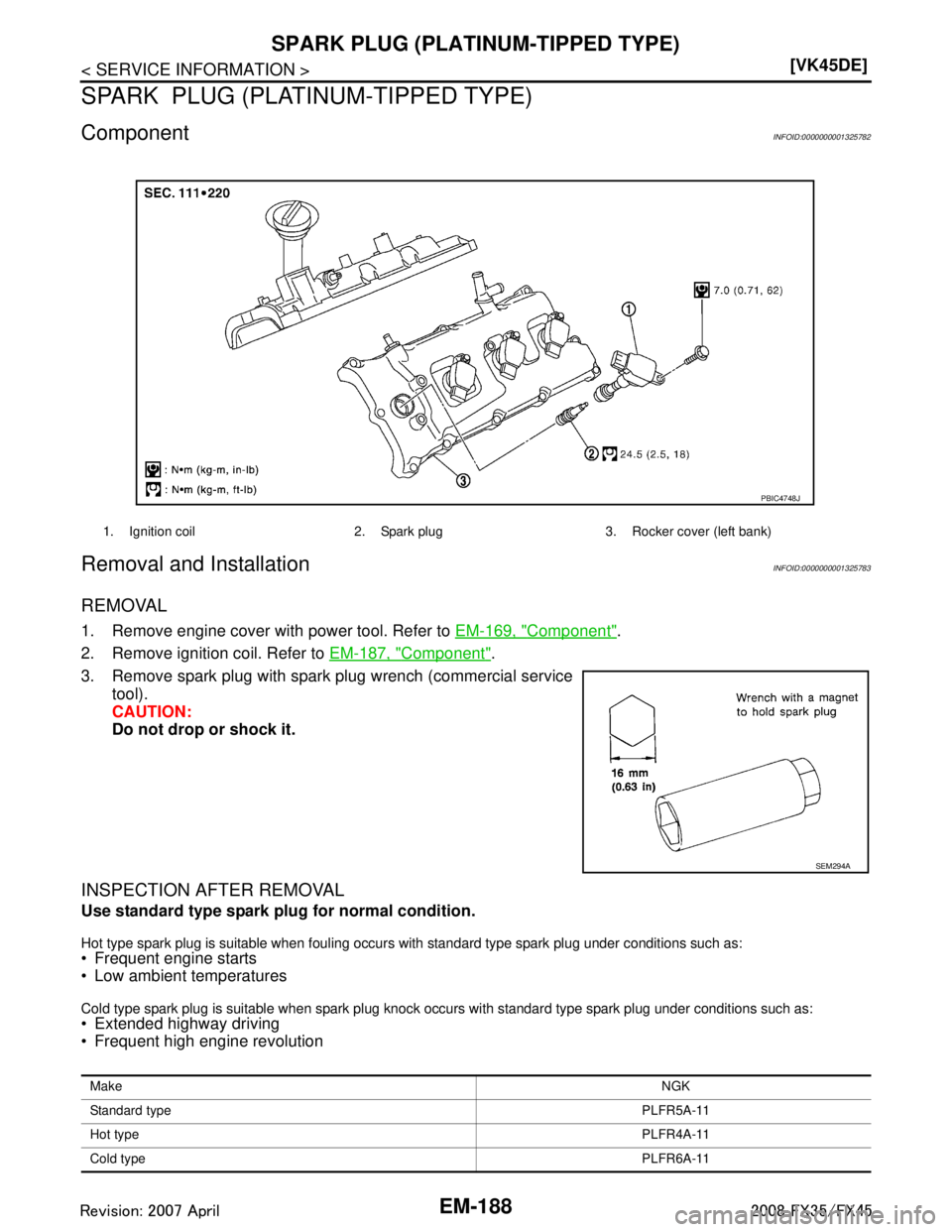

SPARK PLUG (PLATI
NUM-TIPPED TYPE)
SPARK PLUG (PLATINUM-TIPPED TYPE)
ComponentINFOID:0000000001325782
Removal and InstallationINFOID:0000000001325783
REMOVAL
1
