5.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect “fuel level sensor unit and fuel pump” harness con- nector.
4. Turn ignition switch ON.
5. Check voltage between “fuel level sensor unit and fuel pump”
terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 6.
6.CHECK 15A FUSE
1. Turn ignition switch OFF.
2. Disconnect 15A fuse.
3. Check 15A fuse.
OK or NG
OK >> GO TO 7.
NG >> Replace fuse.
7.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-IV
1. Disconnect IPDM E/R harness connector E8.
2. Check harness continuity between IPDM E/R terminal 39 and “fuel level sensor unit and fuel pump” termi-
nal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, B6
Harness for open or short between IPDM E/R and “fuel level sensor unit and fuel pump”
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1572E
Voltage: Battery voltage should exist for 1 second after ignition switch is turned ON.
PBIB0795E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1802 of 3924
![INFINITI FX35 2008 Service Manual
EC-562
< SERVICE INFORMATION >[VQ35DE]
FUEL PUMP
9.CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between “fuel level sensor unit and fuel pump” terminal 3 and gro INFINITI FX35 2008 Service Manual
EC-562
< SERVICE INFORMATION >[VQ35DE]
FUEL PUMP
9.CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between “fuel level sensor unit and fuel pump” terminal 3 and gro](/manual-img/42/57017/w960_57017-1801.png)
EC-562
< SERVICE INFORMATION >[VQ35DE]
FUEL PUMP
9.CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between “fuel level sensor unit and fuel pump” terminal 3 and ground.
Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to power in harness or connectors.
10.CHECK FUEL PUMP
Refer to EC-1159, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> Replace “fuel level sensor unit and fuel pump”.
11 .CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17
NG >> Repair or replace harness or connectors.
Component InspectionINFOID:0000000001326448
FUEL PUMP
1. Disconnect “fuel level sensor unit and fuel pump” harness connector.
2. Check resistance between “fuel level sensor unit and fuel pump” terminals 1 and 3.
Removal and InstallationINFOID:0000000001326449
FUEL PUMP
Refer to FL-4.
Continuity should exist.
Resistance: 0.2 - 5.0
Ω [at 25 °C (77 °F)]
SEC918C
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1803 of 3924
ICC BRAKE SWITCHEC-563
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ICC BRAKE SWITCH
Component DescriptionINFOID:0000000001326450
When the brake pedal is depressed, ICC brake switch is turned OFF
and stop lamp switch is turned ON. ECM detects the state of the
brake pedal by this input of two kinds (ON/OFF signal)
Refer to
ACS-7
for the ICC function.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000001326451
Specification data are reference values.
PBIB1539E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ICC brake switch) Ignition switch: ON Brake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch) Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1804 of 3924
EC-564
< SERVICE INFORMATION >[VQ35DE]
ICC BRAKE SWITCH

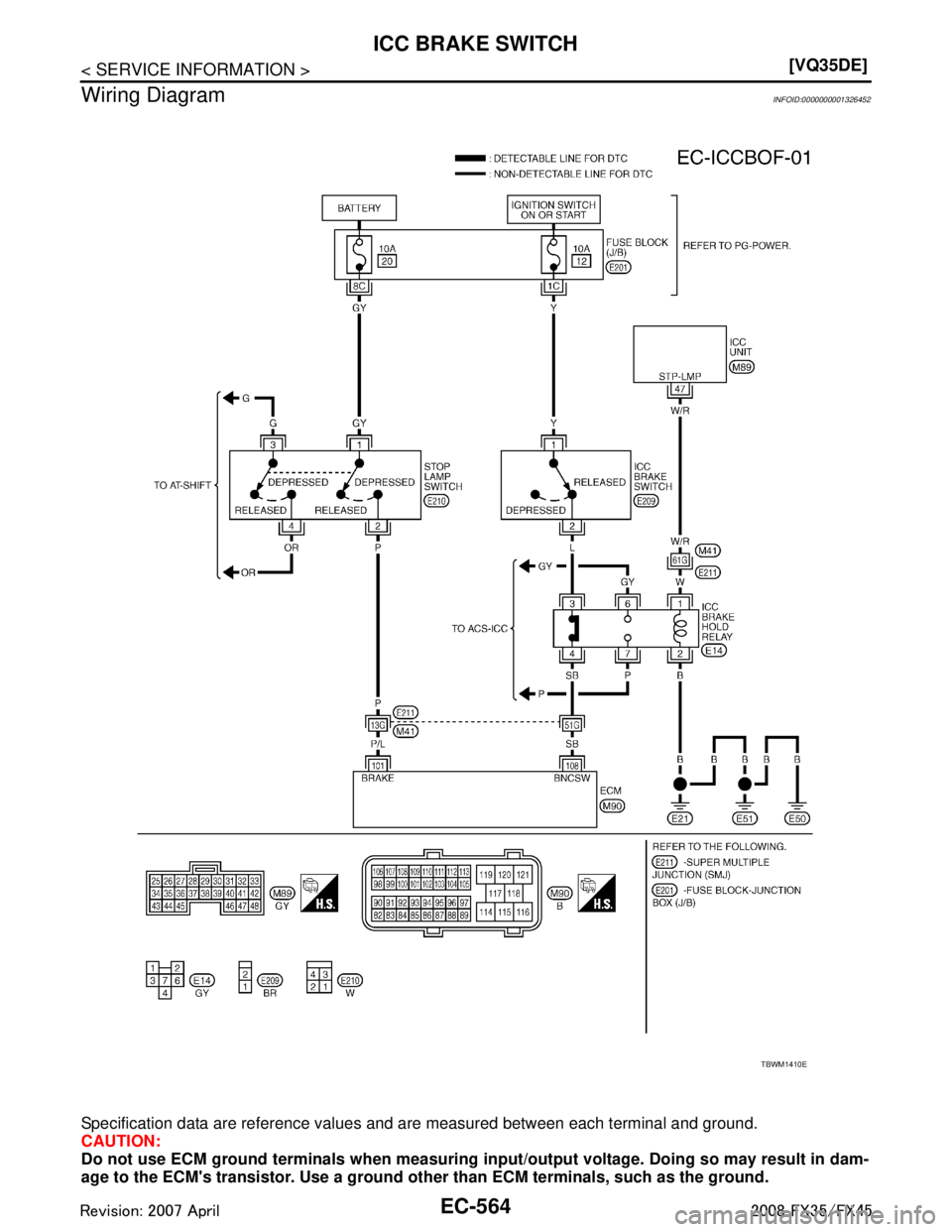

Wiring Diagram
