ENGINE ASSEMBLYEM-117
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Component (AWD Models)INFOID:0000000001325744
Removal and Installation (AWD Models)INFOID:0000000001325745
WARNI

Page 2602 of 3924

INFINITI FX35 2008 Service Manual
EM-118
< SERVICE INFORMATION >[VQ35DE]
ENGINE ASSEMBLY
At first, remove the engine, the transmission assembly
, the transfer assembly and the front final drive assem-
bly with front suspension member

EM-118
< SERVICE INFORMATION >[VQ35DE]
ENGINE ASSEMBLY
At first, remove the engine, the transmission assembly
, the transfer assembly and the front final drive assem-
bly with front suspension member downward. Then separa te the engine, the transmission assembly, the trans-
fer and the front final drive assembly.
Preparation
1. Release fuel pressure. Refer to EC-87, "Fuel Pressure Check".
2. Drain engine coolant from radiator. Refer to CO-10, "
Changing Engine Coolant".
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belts.
3. Disconnect both battery terminals. Refer to SC-4, "
How to Handle Battery".
4. Remove the following parts: Engine cover: Refer to EM-19, "
Component".
Front road wheel and tires
Front and rear engine undercover
Front cross bar: Refer to FSU-16, "
Removal and Installation".
Cowl top cover (right): Refer to EI-23, "
Component Parts Location".
Air duct and air cleaner case assembly: EM-17, "
Component".
5. Discharge refrigerant from A/C circuit. Refer to ATC-120, "
HFC-134a (R-134a) Service Procedure".
6. Remove radiator hoses (upper and lower). Refer to CO-13, "
Component".
Engine Room
1. Disconnect heater hose from vehicle-side, and fit a plug onto hose end to prevent engine coolant leak.
2. Disconnect grounding cable (between vehicle to left bank cylinder head).
3. Disconnect battery positive cable harness at v ehicle side and temporarily fasten it on engine.
4. Disconnect A/C piping from A/C compressor, and tem porarily fasten it on vehicle with a rope. Refer to
ATC-120, "
HFC-134a (R-134a) Service Procedure".
5. Disconnect engine room harness connectors shown in the fig- ure.
6. Disconnect two body ground cables.
7. Disconnect brake booster vacuum hose.
8. Disconnect fuel feed hose (with damper) and EVAP hose. Refer to EM-45, "
Component"
CAUTION:
Fit plugs onto disconnected hoses to prevent fuel leak.
9. Remove reservoir tank of power steering oil pump and piping from vehicle, and temporarily secure them
on engine. Refer to PS-27, "
On-Vehicle Inspection and Service".
CAUTION:
When temporarily securing, keep the reservo ir tank upright to avoid a fluid leak.
Passenger Room Side
Follow procedure below to disconnect engine room har ness connectors at passenger room side, and tempo-
rarily secure them on engine.
1. Remove passenger-side kicking plate, das h side finisher, and glove box. Refer to EI-38, "
Component
Parts Location" and IP-10, "Component Parts Location".
SBIA0472E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2603 of 3924

INFINITI FX35 2008 Service Manual
ENGINE ASSEMBLYEM-119
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
2. Disconnect engine room harness connectors at unit sides TCM,
ECM and other.
3. Disengage intermediate fixing

ENGINE ASSEMBLYEM-119
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
2. Disconnect engine room harness connectors at unit sides TCM,
ECM and other.
3. Disengage intermediate fixing point. Pull out engine room harnesses to engine room side, and temporarily secure them on engine.
CAUTION:
When pulling out harnesses, take care no t to damage harnesses and connectors.
After temporarily securing, cover connectors with vi nyl or similar material to protect against for-
eign material adhesion.
Vehicle Underbody
1. Remove A/T fluid cooler hoses and pow er steering oil pump oil cooler hoses.
Install plug to avoid leakage of A/T fluid and power steering fluid.
2. Remove exhaust front tube and center muffler. Refer to EX-3, "
Checking Exhaust System".
3. Disconnect steering lower joint at power steering gear assembly side, and release steering lower shaft.
Refer to PS-12, "
Removal and Installation".
4. Remove tunnel stay. Refer to RSU-5, "
On-Vehicle Inspection and Service".
5. Remove rear propeller shaft. Refer to PR-7, "
On-Vehicle Inspection".
6. Remove front drive shaft (both side). Refer to FAX-13, "
On-Vehicle Inspection".
7. Disconnect harness connector from transmission assembly and transfer assembly.
8. Disengage A/T control rod at control device assembly side. Then, temporarily secure it on the transmis-
sion assembly, so that it does not sag. Refer to AT-205, "
Control Device Removal and Installation".
9. Remove rear plate from oil pan (upper). Then remove bolts fixing drive plate to torque converter. Refer to
EM-30, "
Component (2WD Models)" and AT-241, "Removal and Installation (2WD Models)".
10. Remove bolts fixing the transmission assembly to lower rear side of oil pan (upper). Refer to AT-241,
"Removal and Installation (2WD Models)".
11. Remove front stabilizer. Refer to FSU-15
.
12. Separate steering outer sockets from steering knuckle. Refer to PS-17, "
Removal and Installation".
13. Separate transverse links from suspension member and vehicle body. Refer to FSU-13, "
Removal and
Installation".
Removal Work

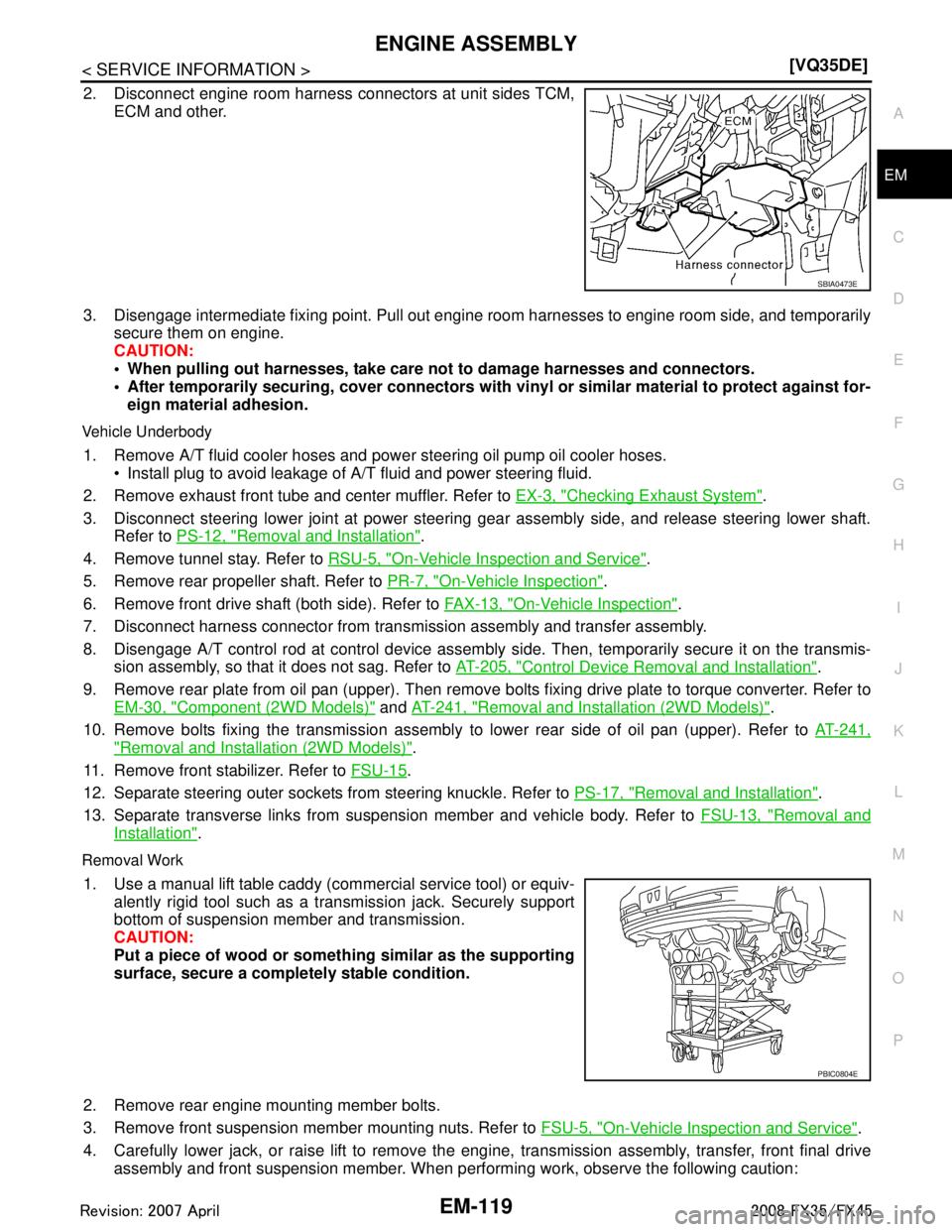

1. Use a manual lift table caddy (commercial service tool) or equiv-
alently rigid tool such as a transmission jack. Securely support
bottom of suspension member and transmission.
CAUTION:
Put a piece of wood or someth ing similar as the supporting
surface, secure a completely stable condition.
2. Remove rear engine mounting member bolts.
3. Remove front suspension member mounting nuts. Refer to FSU-5, "
On-Vehicle Inspection and Service".
4. Carefully lower jack, or raise lift to remove the engi ne, transmission assembly, transfer, front final drive
assembly and front suspension member. When per forming work, observe the following caution:
SBIA0473E
PBIC0804E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2604 of 3924

INFINITI FX35 2008 Service Manual
EM-120
< SERVICE INFORMATION >[VQ35DE]
ENGINE ASSEMBLY
CAUTION:
Confirm there is no interference with the vehicle.
Make sure that all connection
points have been disconnected.
Keep in mind the

EM-120
< SERVICE INFORMATION >[VQ35DE]
ENGINE ASSEMBLY
CAUTION:
Confirm there is no interference with the vehicle.
Make sure that all connection
points have been disconnected.
Keep in mind the center of the vehicle gravity changes. If necessary, use jack(s) to support the
vehicle at rear jacking point(s) to pr event it from falling it off the lift.
Separation Work

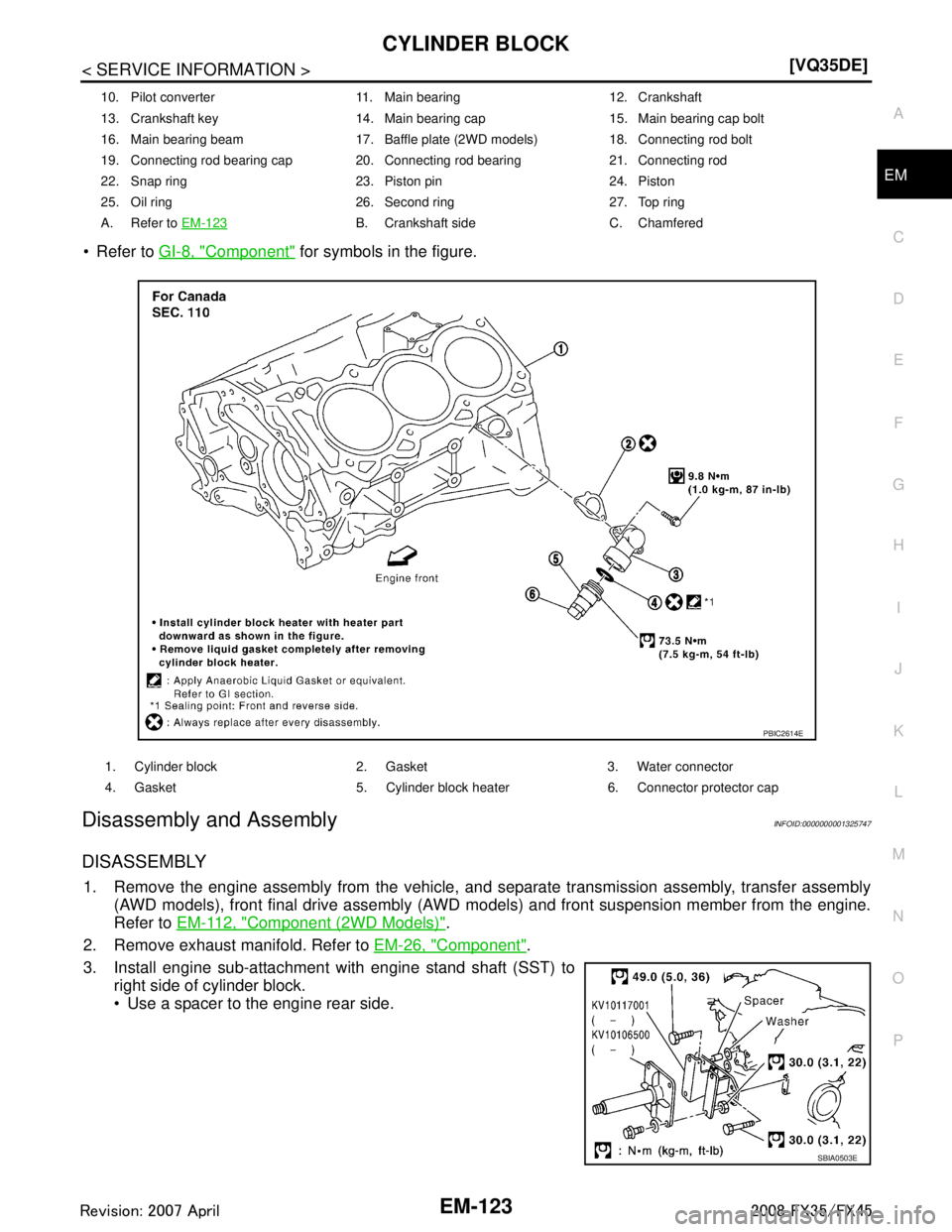

1. Install engine slingers into front of cylinder head (right bank) and
rear of cylinder head (left bank).
To protect rocker cover against damage caused by tilting ofengine slinger, insert spacer between cylinder head and
engine rear lower slinger, in direction shown in the figure.
NOTE:
Spacer is a component part of engine rear upper slinger
assembly.
2. Remove power steering oil pump from engine side. Refer to PS-27, "
On-Vehicle Inspection and Service".
3. Remove engine mounting insulators (RH and LH) under side nuts with power tool.
4. Lift with hoist and separate the engine, the transmi ssion assembly, the transfer assembly and the front
final drive assembly from front suspension member.
CAUTION:
Before and during this lifting, always check if any harnesses are left connected.
Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.
5. Remove alternator. Refer to SC-19, "
System Description".
6. Remove starter motor. Refer to SC-8
.
7. Remove front propeller shaft from the front final drive assembly side. Refer to PR-4, "
On-Vehicle Inspec-
tion".
8. Separate the engine from the transmission assembly. Refer to AT-241, "
Removal and Installation (2WD
Models)".
9. Remove the front final drive assembly from oil pan (upper). Refer to FFD-14, "
Removal and Installation
(VQ35DE Models)".
10. Remove each engine mounting insulator and each engine mounting bracket from the engine with power
tool.
11. Remove rear engine mounting member and engine m ounting insulator (rear) from the transmission
assembly.
12. Remove dynamic damper from the transfer assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.
Do not allow engine mounting insulator to be damage and careful no engine oil gets on it.
For a location with a positioning pin, insert it securely into hole of mating part.
For a part with a specified installation orientation, refer to component figure in EM-117, "
Component (AWD
Models)".
Slinger bolts:
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
PBIC2061E
KBIA1017E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2605 of 3924

INFINITI FX35 2008 Service Manual
ENGINE ASSEMBLYEM-121
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
When installing engine mounting bracket (RH and LH) on cylinder
block, tighten two upper bolts (shown as “A�

ENGINE ASSEMBLYEM-121
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
When installing engine mounting bracket (RH and LH) on cylinder
block, tighten two upper bolts (shown as “A” in the figure) first.
Then tighten two lower bolts (shown as “B” in the figure).
Install engine mounting bracket (RH) (lower) as follows:
- Temporarily tighten mounting bolts (shown as “C”, “D” and “E” in the figure).
- Tighten mounting bolts to the specified torque with following mounting surfaces touched.
Engine mounting bracket (RH) to engine mounting bracket (RH)
(lower) (shown as “C” and “D” in figure).
Front final drive to engine mounting bracket (RH) (lower) (shown as “E” in figure).
Make sure all engine mounting insulators are seated properly, then
tighten mounting nuts.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.
Before starting engine, check oil/fluid levels incl uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-9, "
Fluids and Lubricants".
Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-
age at connection points.
- Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
Warm up engine thoroughly to make sure there is no leak age of fuel, exhaust gases, or any oil/fluids includ-
ing engine oil and engine coolant.
Bleed air from lines and hoses of applicable lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the specified level, if necessary.
Summary of the inspection items:
*: Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
PBIC3042E
Items Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2606 of 3924

INFINITI FX35 2008 Service Manual
EM-122
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
CYLINDER BLOCK
ComponentINFOID:0000000001325746
1. Reinforcement plate 2. Drive plate 3. Rear oil seal retainer
4. Cover 5. Gasket 6. Cylinder bl

Page 2607 of 3924

INFINITI FX35 2008 Service Manual
CYLINDER BLOCKEM-123
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Refer to
GI-8, "Component" for symbols in the figure.
Disassembly and AssemblyINFOID:0000000001325747
DISASSEM

Page 2608 of 3924

INFINITI FX35 2008 Service Manual
EM-124
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK

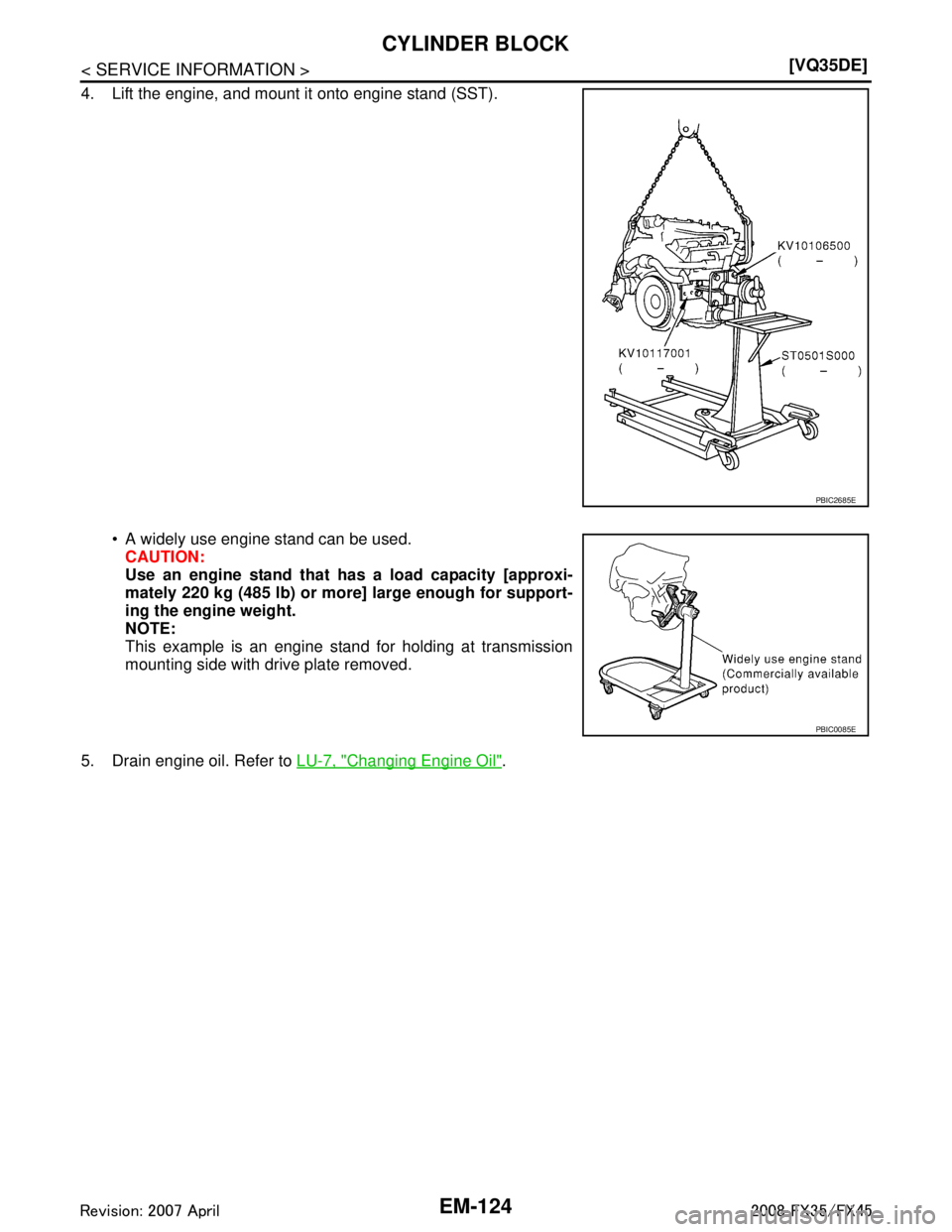

4. Lift the engine, and mount it onto engine stand (SST).
A widely use engine stand can be used.CAUTION:
Use an engine stand that h as a load c

Load next 8 pages

Page: < prev 1-10 ... 2569-2576 2577-2584 2585-2592 2593-2600 2601-2608 2609-2616 2617-2624 2625-2632 2633-2640 ... 3928 next >

trunk battery location display apple carplay engine warning light
