Page 1729 of 3924

INFINITI FX35 2008 Service Manual
DTC P1805 BRAKE SWITCHEC-489
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

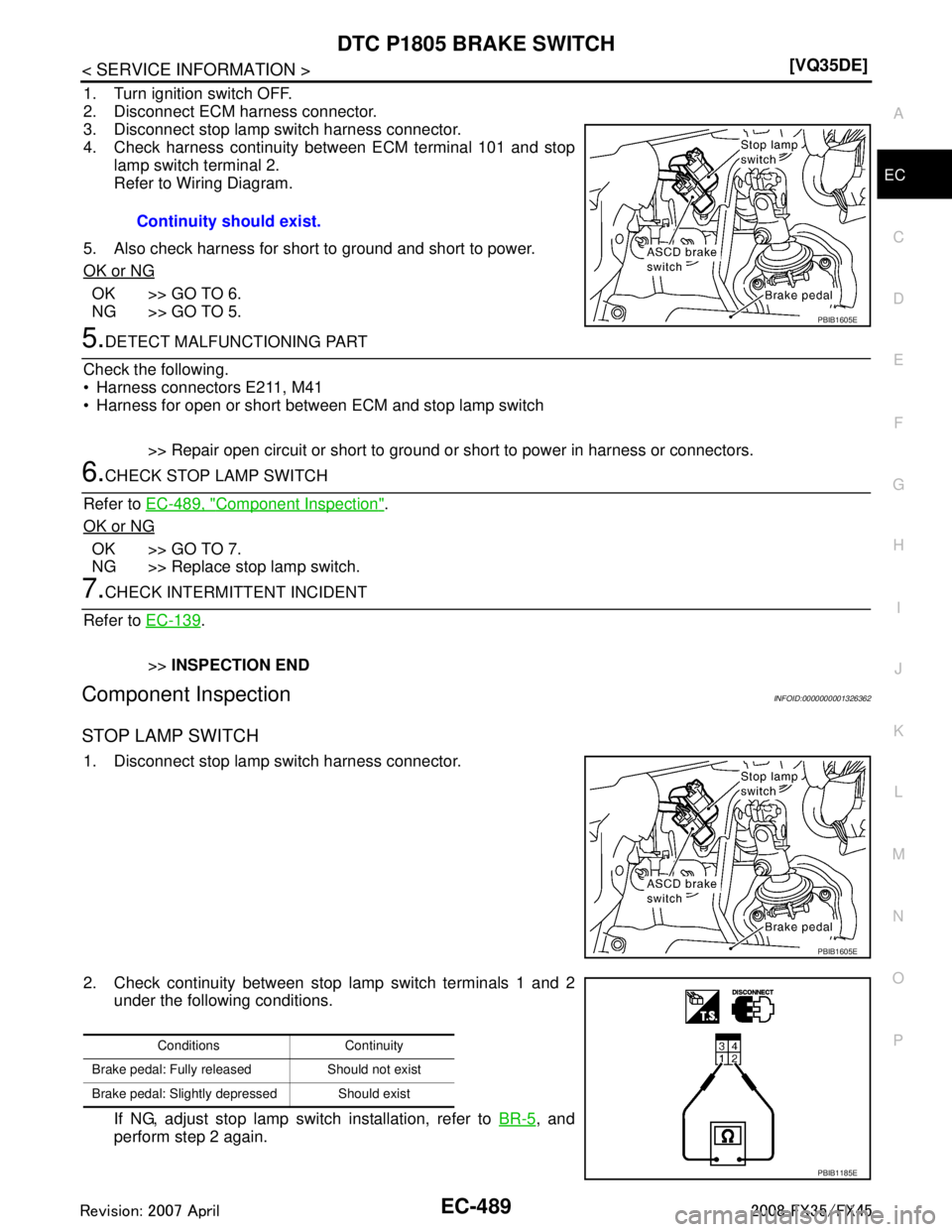

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect stop lamp switch harness

Page 1730 of 3924

INFINITI FX35 2008 Service Manual
EC-490
< SERVICE INFORMATION >[VQ35DE]
DTC P2100, P2103 THROTTLE
CONTROL MOTOR RELAY
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Component DescriptionINFOID:0000000001326363
Power supply for the t

EC-490
< SERVICE INFORMATION >[VQ35DE]
DTC P2100, P2103 THROTTLE
CONTROL MOTOR RELAY
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Component DescriptionINFOID:0000000001326363
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326364
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326365
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MlL lights up.
DTC Confirmation ProcedureINFOID:0000000001326366
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P2100
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to EC-492, "
Diagnosis Procedure".
With GST
Follow the procedure “With CONSULT-III” above.
PROCEDURE FOR DTC P2103
TESTING CONDITION:
Before performing the following procedure, co nfirm that battery voltage is more than 8V.
1. Turn ignition switch ON and wait at least 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-492, "
Diagnosis Procedure".
MONITOR ITEM CONDITION SPECIFICATION
THRTL RELAY Ignition switch: ON ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2100
2100 Throttle control motor
relay circuit open ECM detects a voltage of power source for
throttle control motor is excessively low. Harness or connectors
(Throttle control moto r relay circuit is
open)
Throttle control motor relay
P2103
2103 Throttle control motor
relay circuit short ECM detects the throttle control motor relay is
stuck ON. Harness or connectors
(Throttle control moto r relay circuit is
shorted)
Throttle control motor relay
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1731 of 3924

INFINITI FX35 2008 Service Manual
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
EC-491
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

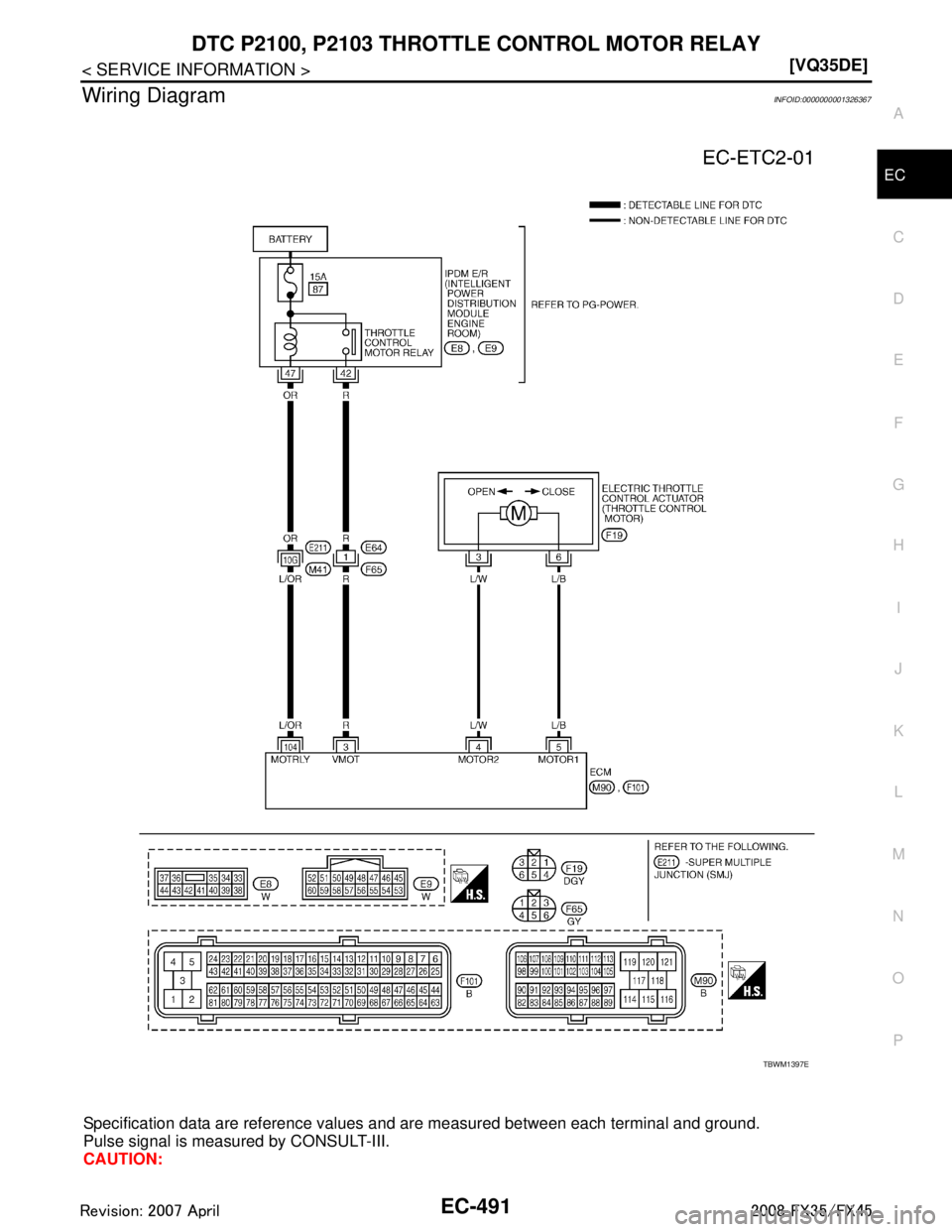

Wiring DiagramINFOID:0000000001326367
Specification data are reference values
an

Page 1732 of 3924

INFINITI FX35 2008 Service Manual
EC-492
< SERVICE INFORMATION >[VQ35DE]
DTC P2100, P2103 THROTTLE
CONTROL MOTOR RELAY
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM

Page 1733 of 3924

INFINITI FX35 2008 Service Manual
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
EC-493
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41

Page 1734 of 3924

INFINITI FX35 2008 Service Manual
EC-494
< SERVICE INFORMATION >[VQ35DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
DTC P2101 ELECTRIC THRO
TTLE CONTROL FUNCTION
DescriptionINFOID:0000000001326369
NOTE:
If DTC P2101 is displayed wi

EC-494
< SERVICE INFORMATION >[VQ35DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
DTC P2101 ELECTRIC THRO
TTLE CONTROL FUNCTION
DescriptionINFOID:0000000001326369
NOTE:
If DTC P2101 is displayed with DT C P2100 or 2119, first perform the trouble diagnosis for DTC P2100
or P2119. Refer to EC-490
or EC-504.
Electric throttle control actuator consists of th rottle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control mo tor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagn osis LogicINFOID:0000000001326370
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326371
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following pr ocedure, confirm that battery voltage is more than 11V when the
engine is running.
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to EC-496, "
Diagnosis Procedure".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2101
2101 Electric throttle control
performance Electric throttle control function does not oper-
ate properly. Harness or connectors
(Throttle control motor circuit is open or
shorted)
Electric throttle control actuator
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1735 of 3924

INFINITI FX35 2008 Service Manual
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-495
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Wiring DiagramINFOID:0000000001326372
Specification data are reference values
and

Page 1736 of 3924

INFINITI FX35 2008 Service Manual
EC-496
< SERVICE INFORMATION >[VQ35DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Do not use ECM ground terminals when measuring in
put/output voltage. Doing so may result in dam-
age to the ECMs
