DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-497
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check voltage between ECM terminal 3 and ground under the fol-
lowing conditions with CONSULT-III or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 3.
3.CHECK THROTTLE CONTROL MOTOR
RELAY INPUT SIGNAL CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector E8.
4. Check continuity between ECM terminal 3 and IPDM E/R terminal 42. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E64, F65
Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch OFF.
3. Check voltage between ECM terminal 104 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 6.
6.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check continuity between ECM terminal 104 and IPDM E/R terminal 47. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
Ignition switch Voltage OFF Approximately 0V
ON Battery voltage
(11 - 14V)
MBIB0028E
Continuity should exist.
Voltage: Battery voltage
PBIB1171E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1738 of 3924
![INFINITI FX35 2008 Service Manual
EC-498
< SERVICE INFORMATION >[VQ35DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open INFINITI FX35 2008 Service Manual
EC-498
< SERVICE INFORMATION >[VQ35DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open](/manual-img/42/57017/w960_57017-1737.png)
EC-498
< SERVICE INFORMATION >[VQ35DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK FUSE
1. Disconnect 15A fuse.
2. Check 15A fuse for blown.
OK or NG
OK >> GO TO 9.
NG >> Replace 15A fuse.
9.CHECK INTERMITTENT INCIDENT
Refer to EC-139
.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17.
NG >> Repair or replace harness or connectors.
10.CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair or replace.
11 .CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Remove the intake air duct.
2. Check if foreign matter is caught between the throttle valve and the housing.
OK or NG
OK >> GO TO 12.
NG >> Remove the foreign matter and clean the electric throttle control actuator inside.
12.CHECK THROTTLE CONTROL MOTOR
Refer to EC-499, "
Component Inspection".
Electric throttle control
actuator terminal ECM terminal Continuity
3 5 Should not exist
4 Should exist
6 5 Should exist
4 Should not exist
PBIB1557E
PBIB1556E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1739 of 3924
![INFINITI FX35 2008 Service Manual
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-499
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 13.
NG >> GO TO 14.
13.CHECK INTERMITTENT INCIDENT
Refer to E INFINITI FX35 2008 Service Manual
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-499
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 13.
NG >> GO TO 14.
13.CHECK INTERMITTENT INCIDENT
Refer to E](/manual-img/42/57017/w960_57017-1738.png)
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-499
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 13.
NG >> GO TO 14.
13.CHECK INTERMITTENT INCIDENT
Refer to EC-139
.
OK or NG
OK >> GO TO 14.
NG >> Repair or replace harness or connectors.
14.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-85, "
Throttle Valve Closed Position Learning".
3. Perform EC-85, "
Idle Air Volume Learning".
>> INSPECTION END
Component InspectionINFOID:0000000001326374
THROTTLE CONTROL MOTOR
1. Disconnect electric throttle c ontrol actuator harness connector.
2. Check resistance between terminals 3 and 6.
3. If NG, replace electric throttle control actuator and go to next step.
4. Perform EC-85, "
Throttle Valve Closed Position Learning".
5. Perform EC-85, "
Idle Air Volume Learning".
Removal and InstallationINFOID:0000000001326375
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-19.
Resistance: Approximately 1 - 15
Ω [at 25 °C (77 °F)]
PBIB0095E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1740 of 3924
![INFINITI FX35 2008 Service Manual
EC-500
< SERVICE INFORMATION >[VQ35DE]
DTC P2118 THROTTLE CONTROL MOTOR
DTC P2118 THROTTLE CONTROL MOTOR
Component DescriptionINFOID:0000000001326376
The throttle control motor is operated by the ECM INFINITI FX35 2008 Service Manual
EC-500
< SERVICE INFORMATION >[VQ35DE]
DTC P2118 THROTTLE CONTROL MOTOR
DTC P2118 THROTTLE CONTROL MOTOR
Component DescriptionINFOID:0000000001326376
The throttle control motor is operated by the ECM](/manual-img/42/57017/w960_57017-1739.png)
EC-500
< SERVICE INFORMATION >[VQ35DE]
DTC P2118 THROTTLE CONTROL MOTOR
DTC P2118 THROTTLE CONTROL MOTOR
Component DescriptionINFOID:0000000001326376
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected
by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control mo tor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagn osis LogicINFOID:0000000001326377
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326378
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to EC-502, "
Diagnosis Procedure".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2118
2118 Throttle control motor
circuit short ECM detects short in both circuits between
ECM and throttle control motor. Harness or connectors
(Throttle control motor circuit is shorted.)
Electric throttle control actuator
(Throttle control motor)
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1741 of 3924
DTC P2118 THROTTLE CONTROL MOTOREC-501
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

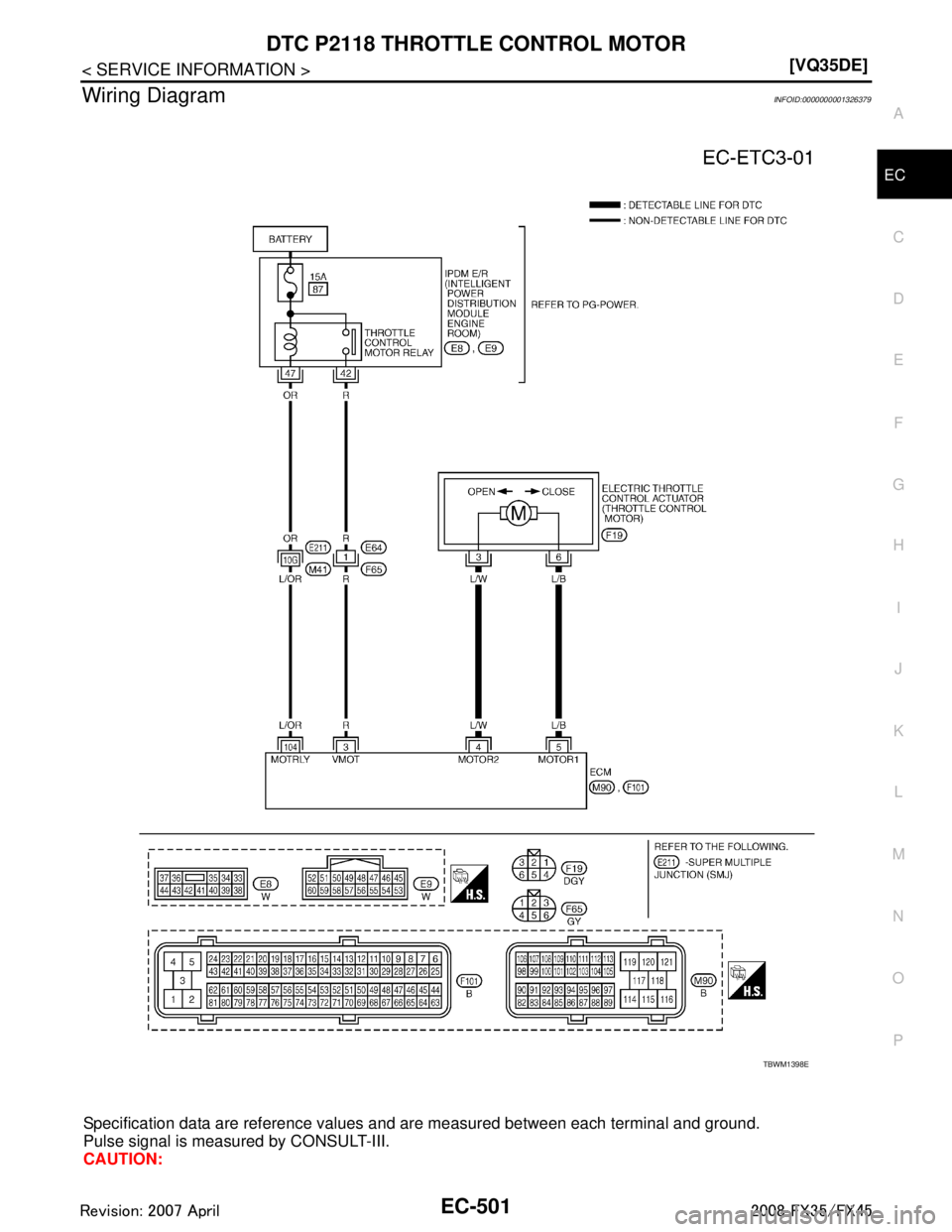

Wiring DiagramINFOID:0000000001326379
Specification data are reference values
and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
TBWM1398E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1742 of 3924
![INFINITI FX35 2008 Service Manual
EC-502
< SERVICE INFORMATION >[VQ35DE]
DTC P2118 THROTTLE CONTROL MOTOR
Do not use ECM ground terminals when measuring in
put/output voltage. Doing so may result in dam-
age to the ECMs transistor. INFINITI FX35 2008 Service Manual
EC-502
< SERVICE INFORMATION >[VQ35DE]
DTC P2118 THROTTLE CONTROL MOTOR
Do not use ECM ground terminals when measuring in
put/output voltage. Doing so may result in dam-
age to the ECMs transistor.](/manual-img/42/57017/w960_57017-1741.png)
EC-502
< SERVICE INFORMATION >[VQ35DE]
DTC P2118 THROTTLE CONTROL MOTOR
Do not use ECM ground terminals when measuring in
put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureINFOID:0000000001326380
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-144, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
TER-
MI-
NAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
3R Throttle contro
l motor relay
power supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
4L/W Throttle control motor
(Close) [Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully released 0 - 14V
5L/B Throttle control motor
(Open) [Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully depressed 0 - 14V
104 L/OR Throttle co ntrol motor relay[Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON] 0 - 1.0V
PBIB1104E
PBIB1105E
PBIB2625E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1743 of 3924
![INFINITI FX35 2008 Service Manual
DTC P2118 THROTTLE CONTROL MOTOREC-503
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Disconnect electric throttle c
ontrol actuator harness connector.
2. Disconnect ECM harness INFINITI FX35 2008 Service Manual
DTC P2118 THROTTLE CONTROL MOTOREC-503
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Disconnect electric throttle c
ontrol actuator harness connector.
2. Disconnect ECM harness](/manual-img/42/57017/w960_57017-1742.png)
DTC P2118 THROTTLE CONTROL MOTOREC-503
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Disconnect electric throttle c
ontrol actuator harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3.CHECK THROTTLE CONTROL MOTOR
Refer to EC-503, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4.CHECK INTERMITTENT INCIDENT
Refer to EC-139
.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness or connectors.
5.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-85, "
Throttle Valve Closed Position Learning".
3. Perform EC-85, "
Idle Air Volume Learning".
>> INSPECTION END
Component InspectionINFOID:0000000001326381
THROTTLE CONTROL MOTOR
1. Disconnect electric throttle c ontrol actuator harness connector.
2. Check resistance between terminals 3 and 6.
3. If NG, replace electric throttle control actuator and go to next step.
4. Perform EC-85, "
Throttle Valve Closed Position Learning".
5. Perform EC-85, "
Idle Air Volume Learning".
Removal and InstallationINFOID:0000000001326382
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-19.
Electric throttle control
actuator terminal ECM terminal Continuity
3 5 Should not exist
4 Should exist
6 5 Should exist
4 Should not exist
PBIB1557E
Resistance: Approximately 1 - 15
Ω [at 25 °C (77 °F)]
PBIB0095E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1744 of 3924
![INFINITI FX35 2008 Service Manual
EC-504
< SERVICE INFORMATION >[VQ35DE]
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
DTC P2119 ELECTRIC TH
ROTTLE CONTROL ACTUATOR
Component DescriptionINFOID:0000000001326383
Electric throttle contro INFINITI FX35 2008 Service Manual
EC-504
< SERVICE INFORMATION >[VQ35DE]
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
DTC P2119 ELECTRIC TH
ROTTLE CONTROL ACTUATOR
Component DescriptionINFOID:0000000001326383
Electric throttle contro](/manual-img/42/57017/w960_57017-1743.png)
EC-504
< SERVICE INFORMATION >[VQ35DE]
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
DTC P2119 ELECTRIC TH
ROTTLE CONTROL ACTUATOR
Component DescriptionINFOID:0000000001326383
Electric throttle control actuator consists of th rottle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle va lve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. T he ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the thrott le control motor to make the throttle valve opening
angle properly in response to driving condition.
On Board Diagn osis LogicINFOID:0000000001326384
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326385
NOTE:
Perform PROCEDURE FOR MALFUNCTION A AND B first. If the DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION C.
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A AND B
1. Turn ignition switch ON and wait at least 1 second.
2. Shift selector lever to D position and wait at least 3 seconds.
3. Shift selector lever to P, N position.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Turn ignition switch ON and wait at least 1 second.
6. Shift selector lever to D position and wait at least 3 seconds.
7. Shift selector lever to P, N position.
8. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
9. Check DTC.
10. If DTC is detected, go to EC-505, "
Diagnosis Procedure".
PROCEDURE FOR MALFUNCTION C
1. Turn ignition switch ON and wait at least 1 second.
2. Shift selector lever to D position and wait at least 3 seconds.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2119
2119 Electric throttle control
actuator A)
Electric throttle control
actuator does not func-
tion properly due to the return spring malfunc-
tion. Electric throttle control actuator
B) Throttle valve opening angle in fail-safe mode is
not in specified range.
C) ECM detect the throttle valve is stuck open.
Detected items Engine operating condition in fail-safe mode
Malfunction A The ECM controls the electric throttle actuator by regulating the throttle opening around the idle position.
The engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction C While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or more.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
