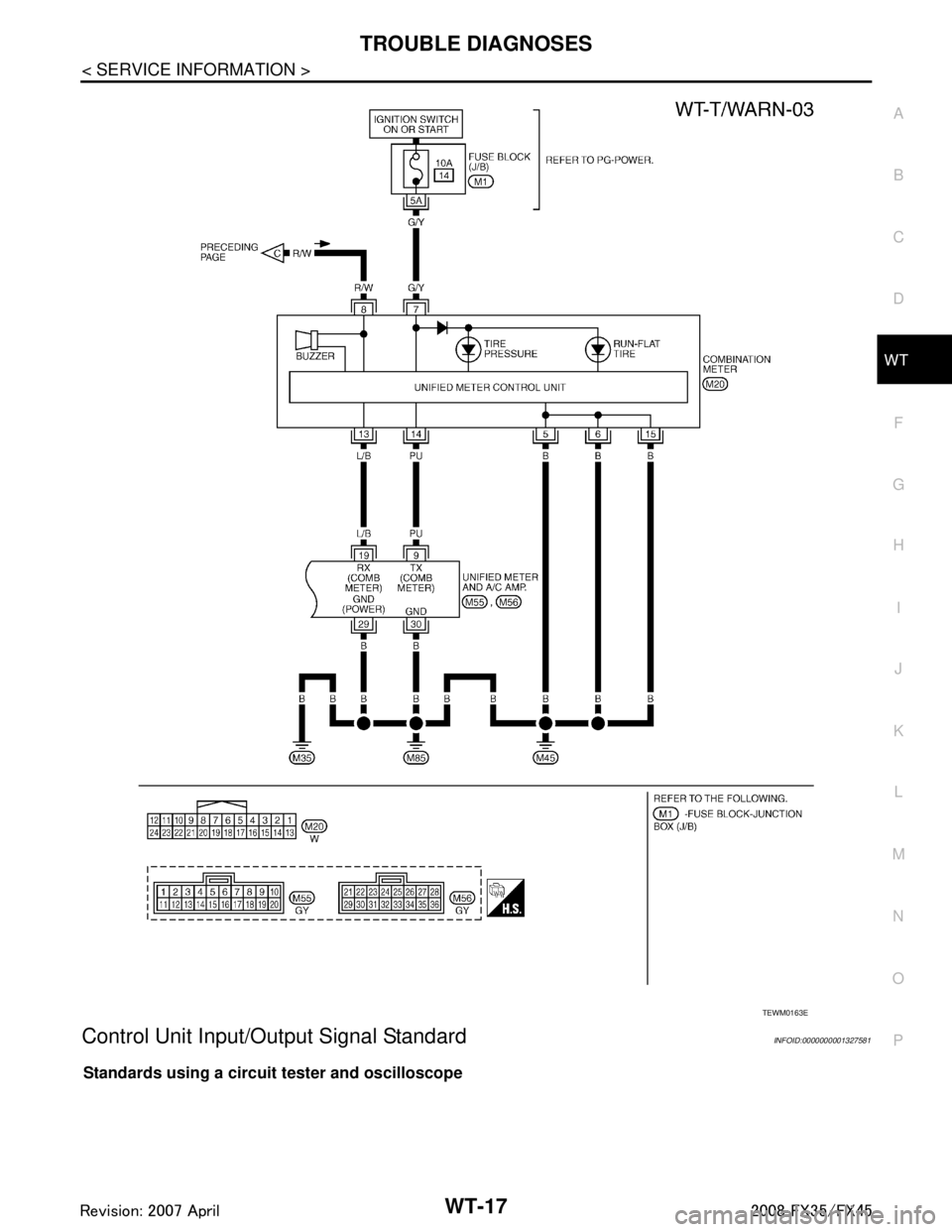

TROUBLE DIAGNOSESWT-17
< SERVICE INFORMATION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
Control Unit Input/Out put Signal StandardINFOID:0000000001327581
Standards using a circuit tester and oscilloscope
TEW

Page 3858 of 3924

INFINITI FX35 2008 Service Manual
WT-18
< SERVICE INFORMATION >
TROUBLE DIAGNOSES
Te r m i n a lItem Condition Voltage (V)
Approx. value
+ (wire color) –
15 (G)
Ground Tire pressure
warning check
connector Always 5V
18 (B) Remote

Page 3859 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSESWT-19
< SERVICE INFORMATION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
ID Registration ProcedureINFOID:0000000001327582
ID REGISTRATION WITH ACTIVATION TOOL
This procedure must be done after

TROUBLE DIAGNOSESWT-19
< SERVICE INFORMATION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
ID Registration ProcedureINFOID:0000000001327582
ID REGISTRATION WITH ACTIVATION TOOL
This procedure must be done after replacemen t of a transmitter, BCM or rotating wheels.
1. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen, and select “ID REGIST”.
2. With the transmitter activati on tool (J-45295) pushed against the
front-left transmitter position of the air valve, press and hold the
button 5 seconds.
3. Register the IDs in order from FR LH, FR RH, RR RH to RR LH. When ID registration of each wheel has been completed, turn
signal lamp blinks.
4. After completing all ID registrations, press “END” to complete the procedure.
NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results dis-
play will not function properly.
ID Registration without Tr ansmitter Activation Tool
CAUTION:
This procedure must be done after replacement of a transmitter, BCM, or rotating wheels.
1. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen, and select “ID REGIST”.
2. Adjust the tire pressure to the values shown in t he table below for ID registration, and drive the vehicle at
40 km/h (25 MPH) or more for several minutes.
NOTE:
If ID registration is unable, buzzer beeps.
3. After completing all ID registrations, press “END” to complete the procedure.
46 (BR/W) GroundTurn signal (right)
Ignition switch ON
Combination switch is turn
signal (right)
49 (B) Ground — 0V
52 (B)
55 (G) Battery power supply (F /L) Always Battery voltage (12V)
Te r m i n a l
Item Condition Voltage (V)
Approx. value
+ (wire color) –
SKIA3009J
Activation tire position Turn signal lamp CONSULT-IIII
1 Front LH
2 times flashing “Red”
↓
“Green”
2Front RH
3Rear RH
4 Rear LH
SEIA0460E
Tire position
Tire pressure kPa (kg/cm2 , psi)
Front LH 240 (2.4, 34)
Front RH 220 (2.2, 31) Rear RH 200 (2.0, 29)
Rear RH 180 (1.8, 26)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 3860 of 3924

INFINITI FX35 2008 Service Manual
WT-20
< SERVICE INFORMATION >
TROUBLE DIAGNOSES
4. Inflate all tires to proper pressure. Refer to WT-35, "Tire".
Transmitter Wake Up OperationINFOID:0000000001327583
W I T H A C T I VAT I O N T O O

Page 3861 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSESWT-21
< SERVICE INFORMATION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
Diagnosis Item Symptom
(Ignition switch ON) Low tire pressure wa
rning lamp Cause Action
Low tire pres-
sure warning

Page 3862 of 3924

INFINITI FX35 2008 Service Manual
WT-22
< SERVICE INFORMATION >
TROUBLE DIAGNOSES
NOTE:
If more than one wheel transmitter is NOT activated, the warning lamp blinking patterns for those wheels will combine. (Example: one
blink/OFF/th

WT-22
< SERVICE INFORMATION >
TROUBLE DIAGNOSES
NOTE:
If more than one wheel transmitter is NOT activated, the warning lamp blinking patterns for those wheels will combine. (Example: one
blink/OFF/three blinks = Rear LH and Rear RH transmitters are not activated.)

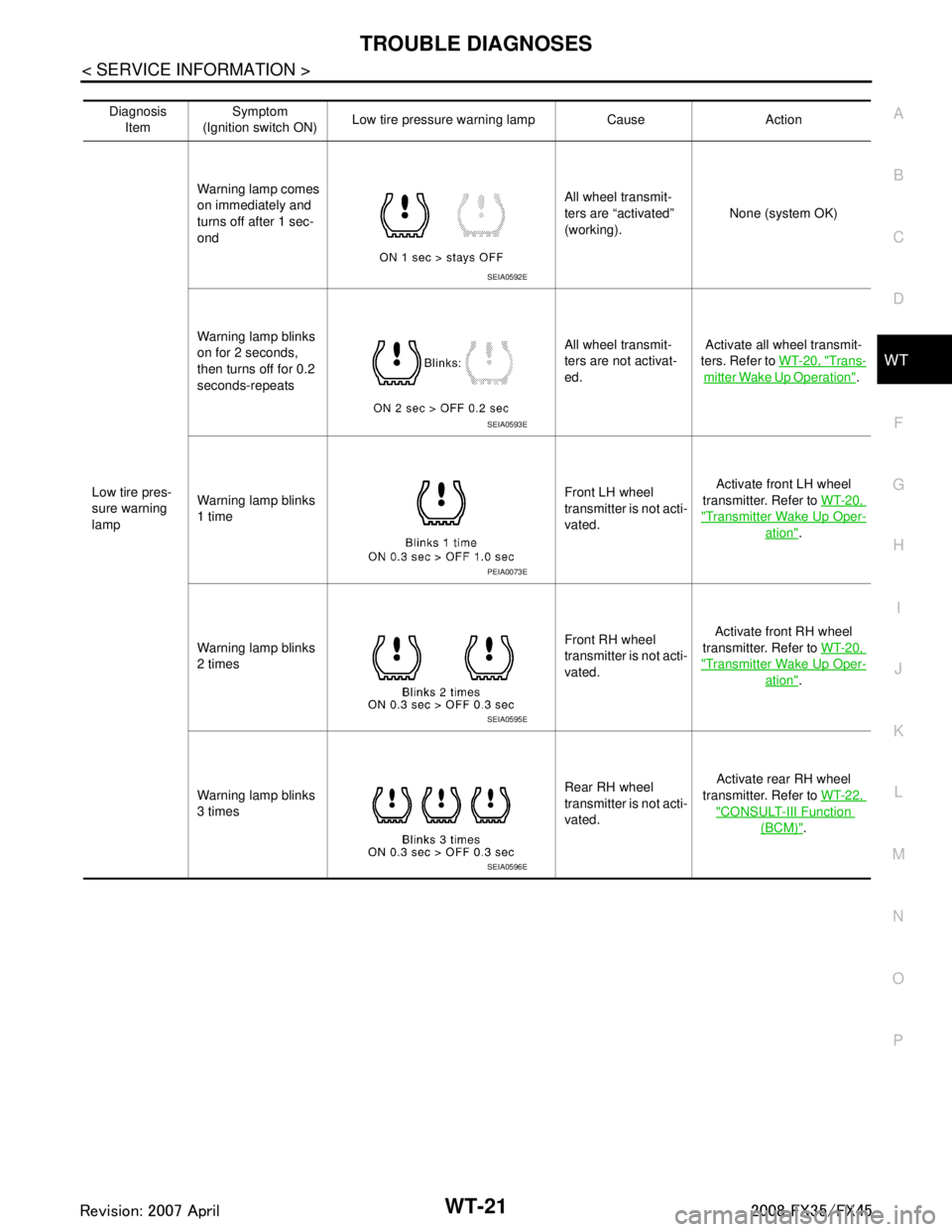

RUN-FLAT TIRE WARNING LAMP DIAGNOSTIC CHART
CONSULT-III Function (BCM)INFOID:0000000001327585
FUNCTION
CONSULT-III can display each self-diagnostic item using the diagnostic test modes shown following.
Low tire pres-
sure warning
lampWarning lamp blinks
4 times
Rear LH wheel trans-
mitter is not activat-
ed.Activate rear LH wheel
transmitter. Refer to WT-20,
"Transmitter Wake Up Oper-
ation".
Warning lamp comes
on and does not turn
off The fuse for combi-
nation meter from
battery is pulled out.
Check the fuse for combina-
tion meter from battery. In-
stall or replace (if needed).
BCM connector
pulled out. Check BCM connector. Re-
connect if needed.
Low tire pressure or
tire pressure moni-
toring system mal-
function. Perform CONSULT-III Self
Diagnosis. Refer to "Self-
Diagnosis".
- Perform ID Registration if needed. Refer to WT-19,
"ID Registration Proce-
dure".
Turn signal
lamp Turn signal lamp
does not flash 2 times
or horn does not
sound after transmit-
ter activation. 1. Tool J-45295
(special ser-
vice tool) bat-
tery low.
2. Ignition OFF
during activa-
tion.
3. Tool J-45295
(special ser-
vice tool) not
positioned cor-
rectly.
4. Transmitters al- ready activated. 1. Install new battery.
2. Make sure ignition is
ON during activation.
3. Position tool correctly during activation.
4. None
Diagnosis
Item Symptom
(Ignition switch ON) Low tire pressure wa
rning lamp Cause Action
SEIA0597E
SEIA0598E
Diagnosis
Item Symptom
(Ignition Switch ON) Run-flat tire warning lamp Cause Action
Run-flat tire
warning lamp Warning lamp comes
on and does not turn
off Tire pressure drop to
86 kPa (0.88 kg/cm
2,
12.5 psi) or less. 1. Check air pressure of
tire.
2. Repair or change the
tire (if needed)
3. Perform CONSULT-III Self Diagnosis. Refer
to WT-22, "
CONSULT-
III Function (BCM)".SEIA0793E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 3863 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSESWT-23
< SERVICE INFORMATION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
WORK SUPPORT MODE
Test Item
ID Read
ID Regist
ID Read
The registered ID number is displayed.
ID Regist
Refer to WT-

TROUBLE DIAGNOSESWT-23
< SERVICE INFORMATION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
WORK SUPPORT MODE
Test Item
ID Read
ID Regist
ID Read
The registered ID number is displayed.
ID Regist
Refer to WT-19, "ID Registration Procedure".
SELF-DIAGNOSTIC RESULTS MODE
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be different from that dis-
played on CONSULT-III.
DATA MONITOR MODE
Display item List
Diagnostic test mode Function
WORK SUPPORT This mode enables a technician to adjust some devices faster and more accurately by following
the indications on CONSULT-III.
SELF-DIAGNOSTIC RESULTS Self-diagnostic results can be read and erased quickly.
DATA MONITOR Input/Output data in the control unit can be read.
ACTIVE TEST Diagnostic Test Mode in with CONSULT-III drives some actuators apart from the control unit
(BCM) and also shifts some pa
rameters in a specified range.
Diagnostic item Diagnostic item is detected when ···
[C1704]
[C1705]
[C1706]
[C1707] LOW PRESSURE FL
LOW PRESSURE FR
LOW PRESSURE RR
LOW PRESSURE RL Front-left tire pressure drops to 173 kPa (1.8 kg/cm
2, 25 psi) or less.
Front-right tire pressure drops to 173 kPa (1.8 kg/cm2, 25 psi) or less.
Rear-right tire pressure dr ops to 173 kPa (1.8 kg/cm2, 25 psi) or less.
Rear-left tire pressure drops to 173 kPa (1.8 kg/cm2, 25 psi) or less.
[C1708]
[C1709]
[C1710]
[C1711] [NO DATA] FL
[NO DATA] FR
[NO DATA] RR
[NO DATA] RL Data from front-left transmitter can not be received.
Data from front-right transmitter can not be received.
Data from rear-right transm
itter can not be received.
Data from rear-left transmitter can not be received.
[C1712]
[C1713]
[C1714]
[C1715] [CHECKSUM ERR] FL
[CHECKSUM ERR] FR
[CHECKSUM ERR] RR
[CHECKSUM ERR] RL Checksum data from front-left transmitter is malfunctioning.
Checksum data from front-right transmitter is malfunctioning.
Checksum data from
rear-right transmitter is malfunctioning.
Checksum data from rear-left transmitter is malfunctioning.
[C1716]
[C1717]
[C1718]
[C1719] [PRESS DATA ERR] FL
[PRESS DATA ERR] FR
[PRESS DATA ERR] RR
[PRESS DATA ERR] RL Air pressure data from front-left transmitter is malfunctioning.
Air pressure data from front-right transmitter is malfunctioning.
Air pressure data from
rear-right transmitter is malfunctioning.
Air pressure data from rear-left transmitter is malfunctioning.
[C1720]
[C1721]
[C1722]
[C1723] [CODE ERR] FL
[CODE ERR] FR
[CODE ERR] RR
[CODE ERR] RL Function code data from front-left transmitter is malfunctioning.
Function code data from front-right transmitter is malfunctioning.
Function code data from rear-righ
t transmitter is malfunctioning.
Function code data from rear-left transmitter is malfunctioning.
[C1724]
[C1725]
[C1726]
[C1727] [BATT VOLT LOW] FL
[BATT VOLT LOW] FR
[BATT VOLT LOW] RR
[BATT VOLT LOW] RL Battery voltage of front-left transmitter drops.
Battery voltage of front-right transmitter drops.
Battery voltage of rea
r-right transmitter drops.
Battery voltage of rear-left transmitter drops.
[C1729] VHCL SPEED SIG ERR Veh icle speed signal is error.
[C1730]
[C1731]
[C1732]
[C1733] FLAT TIRE FL
FLAT TIRE FR
FLAT TIRE RR
FLAT TIRE RL Front-left tire pressure drops to 86 kPa (0.88 kg/cm
2, 12.5 psi) or less.
Front-right tire pressure drops to 86 kPa (0.88 kg/cm2, 12.5 psi) or less.
Rear-right tire pressure dr ops to 86 kPa (0.88 kg/cm2, 12.5 psi) or less.
Rear-left tire pressure drops to 86 kPa (0.88 kg/cm2, 12.5 psi) or less.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 3864 of 3924

INFINITI FX35 2008 Service Manual
WT-24
< SERVICE INFORMATION >
TROUBLE DIAGNOSES
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be different from that dis-
played
