Page 1105 of 3924

INFINITI FX35 2008 Service Manual
CO-34
< SERVICE INFORMATION >[VK45DE]
OVERHEATING CAUSE ANALYSIS
OVERHEATING CAUSE ANALYSIS
Troubleshooting ChartINFOID:0000000001325866
Symptom Check items
Cooling sys-
tem parts
malfunction Poor h

Page 1106 of 3924

INFINITI FX35 2008 Service Manual
OVERHEATING CAUSE ANALYSISCO-35
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
Except cool-
ing system
parts mal-
function — Overload on engine
Abusive driving
High engine rpm un

Page 1107 of 3924

INFINITI FX35 2008 Service Manual
CO-36
< SERVICE INFORMATION >[VK45DE]
COOLING SYSTEM
COOLING SYSTEM

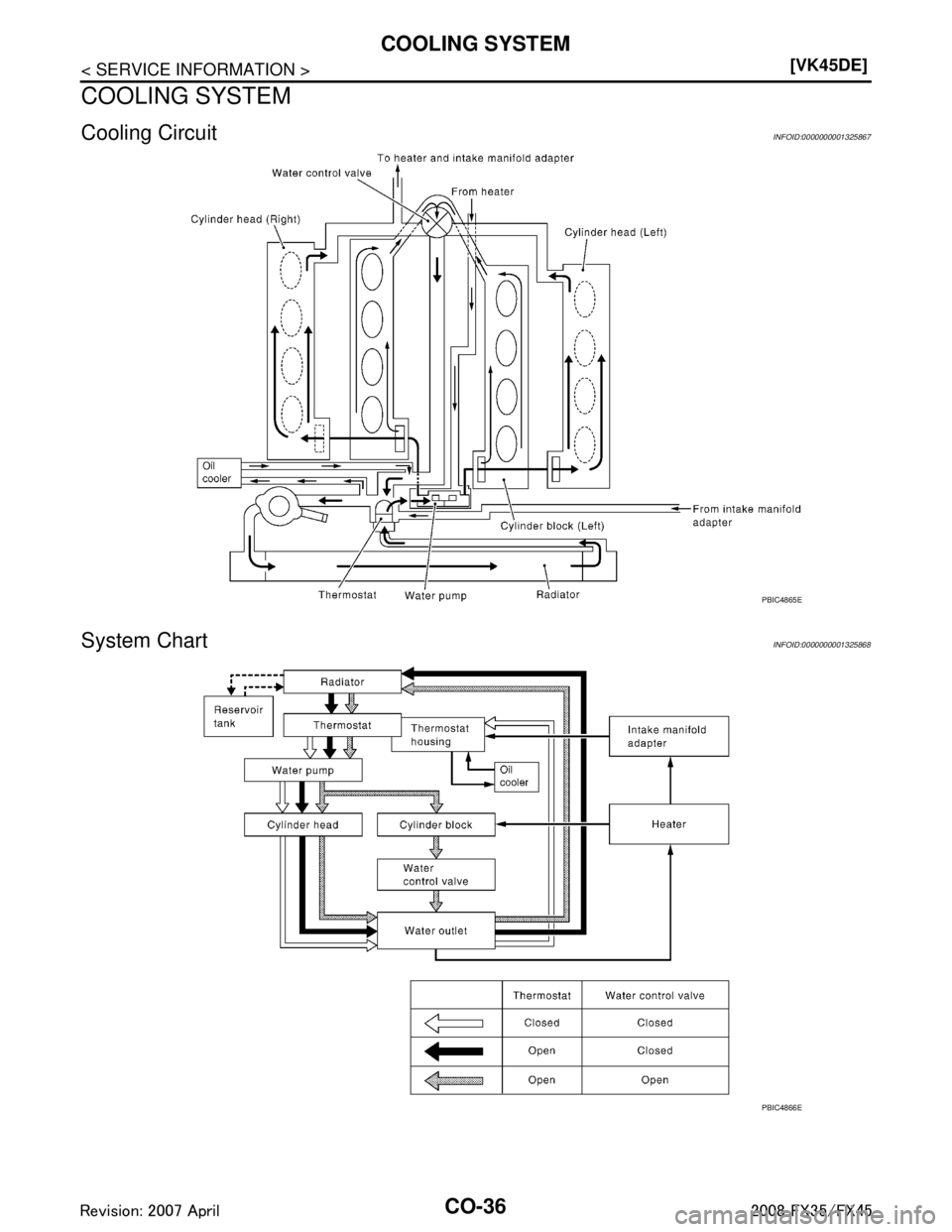

Cooling CircuitINFOID:0000000001325867
System ChartINFOID:0000000001325868
PBIC4865E
PBIC4866E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A91

Page 1108 of 3924

INFINITI FX35 2008 Service Manual
ENGINE COOLANTCO-37
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
ENGINE COOLANT
InspectionINFOID:0000000001325869
LEVEL CHECK
Check if the reservoir tank engine coolant level is

Page 1109 of 3924

INFINITI FX35 2008 Service Manual
CO-38
< SERVICE INFORMATION >[VK45DE]
ENGINE COOLANT
4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refe

CO-38
< SERVICE INFORMATION >[VK45DE]
ENGINE COOLANT
4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to "FLUSHING COOLING SYSTEM".
REFILLING ENGINE COOLANT
1. Install reservoir tank, and radiator drain plug.
CAUTION:
Be sure to clean radiator drain plug and install with new O-ring.
If water drain plugs on cylinder block are removed, close and tighten them. Refer to EM-242, "
Dis-
assembly and Assembly".
2. Make sure that each hose clamp has been firmly tightened.
3. Remove air relief plug on heater hose.
4. Fill thermostat housing and reservoir tank to specified level. Refill engine coolant up to fill er neck of thermostat housing.
Pour engine coolant through engine coolant filler neck slowly of less than 2 (2-1/8 US qt, 1-3/4
Imp qt) a minute to allo w air in system to escape.
Use Genuine NISSAN Long Life Anti freeze/Coolant or equivalent mixed with water (distilled or
demineralized). Refer to MA-9, "
Fluids and Lubricants".

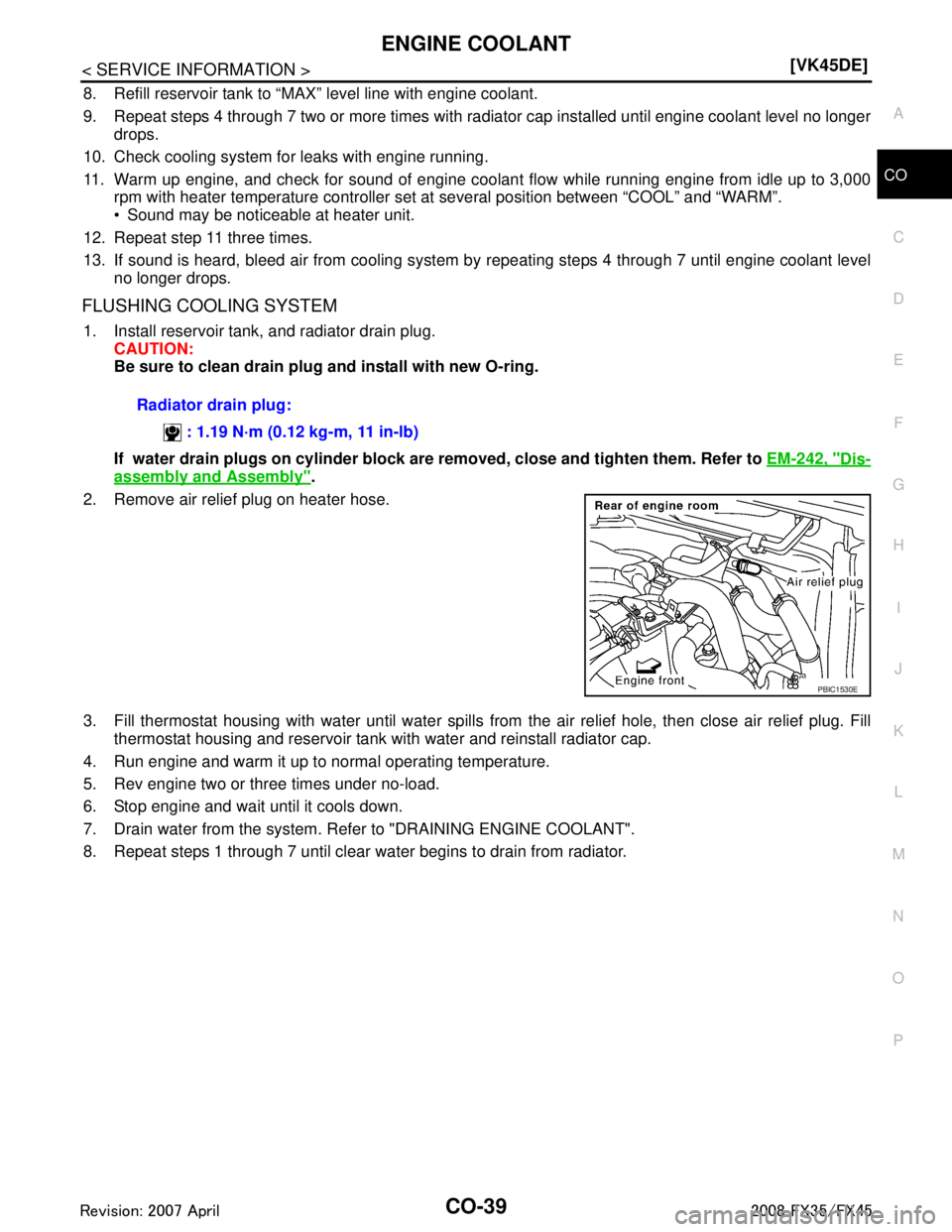

When engine coolant overflows air relief hole on heater hose, install air relief plug.
5. Install radiator cap.
6. Warm up until opening thermostat. Standard for warming- up time is approximately 10 minutes at 3,000
rpm.
Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat engine.
7. Stop engine and cool down to less than approximately 50 °C (122 °F).
Cool down using a fan to reduce the time.
If necessary, refill engine coolant up to filler neck of thermostat housing. Radiator drain plug:
: 1.19 N·m (0.12 kg-m, 11 in-lb)
PBIC1530E
Engine coolant capacity
(With reservoir tank at “MAX” level):Approx. 10.0 (10-5/8 US qt, 8-3/4 Imp qt)
Reservoir tank engine coolant capacity
(At “MAX” level):0.8 (7/8 US qt, 3/4 lmp qt)
SMA412B
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1110 of 3924

INFINITI FX35 2008 Service Manual
ENGINE COOLANTCO-39
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
8. Refill reservoir tank to “MAX” level line with engine coolant.
9. Repeat steps 4 through 7 two or more time

Page 1111 of 3924

INFINITI FX35 2008 Service Manual
CO-40
< SERVICE INFORMATION >[VK45DE]
RADIATOR
RADIATOR

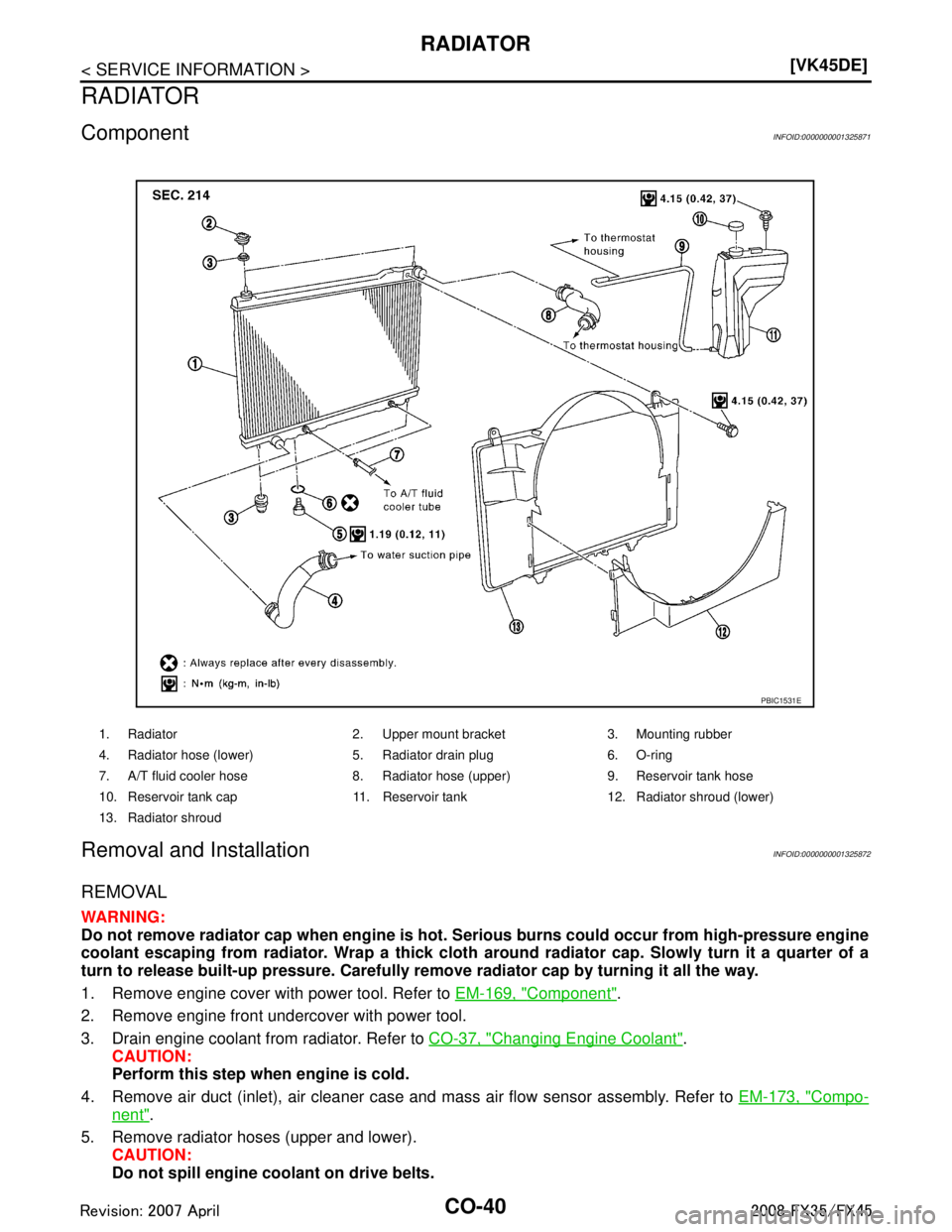

ComponentINFOID:0000000001325871
Removal and InstallationINFOID:0000000001325872
REMOVAL
WARNING:
Do not remove radiator cap when engine is hot

Page 1112 of 3924

INFINITI FX35 2008 Service Manual
RADIATORCO-41
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
6. Disconnect A/T fluid cooler hoses.
Install blind plug to avoid leakage of A/T fluid.

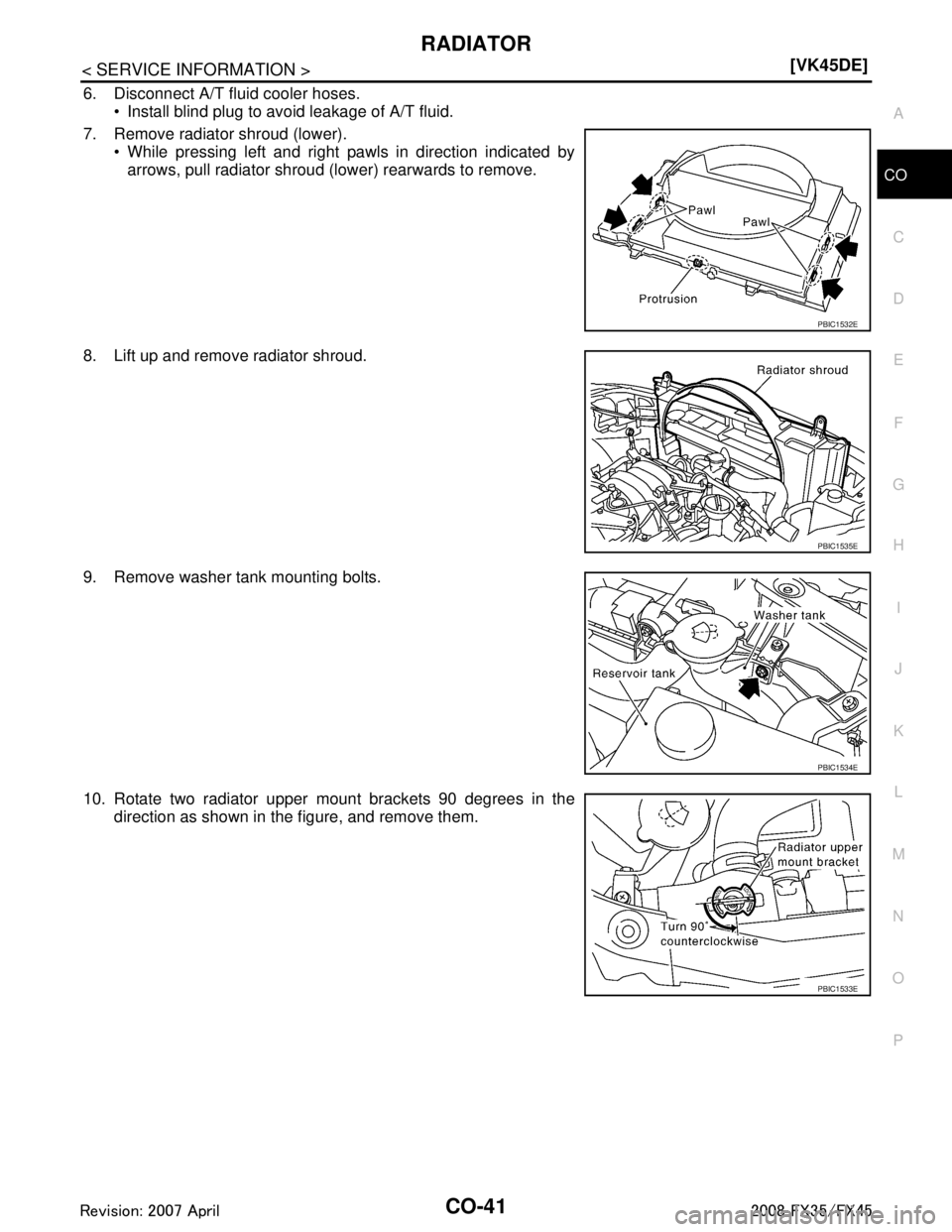

7. Remove radiator shroud (lo
