Page 1297 of 3924

INFINITI FX35 2008 Service Manual
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-57
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
OVENT CONTROL VALVE P0447 0447 — 2
×EC-361
VENT CONTROL VALVE P0448 0448 — 2 ×EC-366
EVAP SY

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-57
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
OVENT CONTROL VALVE P0447 0447 — 2
×EC-361
VENT CONTROL VALVE P0448 0448 — 2 ×EC-366
EVAP SYS PRES SEN P0451 0451 — 2 ×EC-372
EVAP SYS PRES SEN P0452 0452 — 2 ×EC-375
EVAP SYS PRES SEN P0453 0453 — 2 ×EC-381
EVAP GROSS LEAK P0455 0455 — 2 ×EC-388
EVAP VERY SML LEAK P0456 0456
×*42 ×EC-394
FUEL LEV SEN SLOSH P0460 0460 — 2 ×EC-401
FUEL LEVEL SENSOR P0461 0461 — 2 ×EC-403
FUEL LEVL SEN/CIRC P0462 0462 — 2 ×EC-405
FUEL LEVL SEN/CIRC P0463 0463 — 2 ×EC-405
VEH SPEED SEN/CIRC*6P0500 0500 — 2 ×EC-407
ISC SYSTEM P0506 0506 — 2 ×EC-409
ISC SYSTEM P0507 0507 — 2 ×EC-411
PW ST P SEN/CIRC P0550 0550 — 2 — EC-413
ECM BACK UP/CIRCUIT P0603 0603 — 2×EC-418
ECM P0605 0605 — 1 or 2 × or — EC-422
SENSOR POWER/CIRC P0643 0643 — 1 ×EC-424
TCM P0700 0700 — 1 ×AT- 1 0 1
PNP SW/CIRC P0705 0705 — 2 ×AT- 1 0 2
ATF TEMP SEN/CIRC P0710 0710 — 2 ×AT- 1 3 2
TURBINE SENSOR P0717 0717 — 2 ×AT- 1 0 6
VEH SPD SEN/CIR AT*6P0720 0720 — 2 ×AT- 1 0 8
A/T 1ST GR FNCTN P0731 0731 — 2 ×AT- 11 4
A/T 2ND GR FNCTN P0732 0732 — 2 ×AT- 11 6
A/T 3RD GR FNCTN P0733 0733 — 2 ×AT- 11 8
A/T 4TH GR FNCTN P0734 0734 — 2 ×AT- 1 2 0
A/T 5TH GR FNCTN P0735 0735 — 2 ×AT- 1 2 2
TCC SOLENOID/CIRC P0740 0740 — 2 ×AT- 1 2 4
A/T TCC S/V FNCTN P0744 0744 — 2 ×AT- 1 2 6
L/PRESS SOL/CIRC P0745 0745 — 2 ×AT- 1 2 8
P-N POS SW/CIRCUIT P0850 0850 — 2 ×EC-429
CLOSED LOOP-B1 P1148 1148 — 1 ×EC-434
CLOSED LOOP-B2 P1168 1168 — 1 ×EC-434
TCS C/U FUNCTN P1211 1211 — 2 — EC-435
TCS/CIRC P1212 1212 — 2 —EC-436
ENG OVER TEMP P1217 1217 — 1×EC-437
CTP LEARNING-B1 P1225 1225 — 2 — EC-447
CTP LEARNING-B1 P1226 1226 — 2 —EC-449
COLD START CONTROL P1421 1421 — 2×EC-451
Items
(CONSULT-III screen terms) DTC*
1
SRT code Trip MIL
Reference
page
CONSULT-III
GST*
2ECM*3
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1298 of 3924

INFINITI FX35 2008 Service Manual
EC-58
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
*1: 1st trip DTC No. is
the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-d

EC-58
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
*1: 1st trip DTC No. is
the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: SRT code will not be set if the self-diagnostic result is NG. ASCD SW P1564 1564 — 1 —
EC-453
(Mod-
els with ICC)
EC-459
(Mod-
els with AS- CD)
ICC COMMAND VALUE*
7P1568 1568 — 1 — EC-464
ASCD BRAKE SW P1572 1572 — 1 — EC-465
(Mod-
els with ICC)
EC-474
(Mod-
els with AS- CD)
ASCD VHL SPD SEN P1574 1574 — 1 — EC-481
(Mod-
els with ICC)
EC-483
(Mod-
els with AS- CD)
LOCK MODE P1610 1610 — 2 — BL-4
ID DISCARD IMM-ECM P1611 1611 — 2 —BL-4
CHAIN OF ECM-IMMU P1612 1612 — 2 —BL-4
CHAIN OF IMMU-KEY P1614 1614 — 2 —BL-4
DIFFERENCE OF KEY P1615 1615 — 2 —BL-4
IN PULLY SPEED P1715 1715 — 2 —EC-485
A/T INTERLOCK P1730 1730 — 1×AT- 1 3 9
I/C SOLENOID/CIRC P1752 1752 — 1 ×AT- 1 4 3
FR/B SOLENOID/CIRC P1757 1757 — 1 ×AT- 1 4 5
D/C SOLENOID/CIRC P1762 1762 — 1 ×AT- 1 4 7
HLR/C SOL/CIRC P1767 1767 — 1 ×AT- 1 4 9
LC/B SOLENOID/CIRC P1772 1772 — 1 ×AT- 1 5 1
LC/B SOLENOID FNCT P1774 1774 — 1 ×AT- 1 5 3
BRAKE SW/CIRCUIT P1805 1805 — 2 — EC-486
ETC MOT PWR-B1 P2100 2100 — 1×EC-490
ETC FNCTN/CIRC-B1 P2101 2101 — 1 ×EC-494
ETC MOT PWR P2103 2103 — 1 ×EC-490
ETC MOT-B1 P2118 2118 — 1 ×EC-500
ETC ACTR-B1 P2119 2119 — 1 ×EC-504
APP SEN 1/CIRC P2122 2122 — 1 ×EC-506
APP SEN 1/CIRC P2123 2123 — 1 ×EC-506
APP SEN 2/CIRC P2127 2127 — 1 ×EC-512
APP SEN 2/CIRC P2128 2128 — 1 ×EC-512
TP SENSOR-B1 P2135 2135 — 1 ×EC-518
APP SENSOR P2138 2138 — 1 ×EC-524
A/F SENSOR1 (B1) P2A00 2A00 — 2 ×EC-532
A/F SENSOR1 (B2) P2A03 2A03 — 2 ×EC-532
Items
(CONSULT-III screen terms) DTC*
1
SRT code Trip MIL
Reference
page
CONSULT-III
GST*
2ECM*3
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1299 of 3924

INFINITI FX35 2008 Service Manual
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-59
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*5: The trouble shooting for this DTC needs CONSULT-III.
*6: When the fail-safe operations for b

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-59
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*5: The trouble shooting for this DTC needs CONSULT-III.
*6: When the fail-safe operations for both self-diagnoses occur, the MIL illuminates.
*7: For models with ICC system.

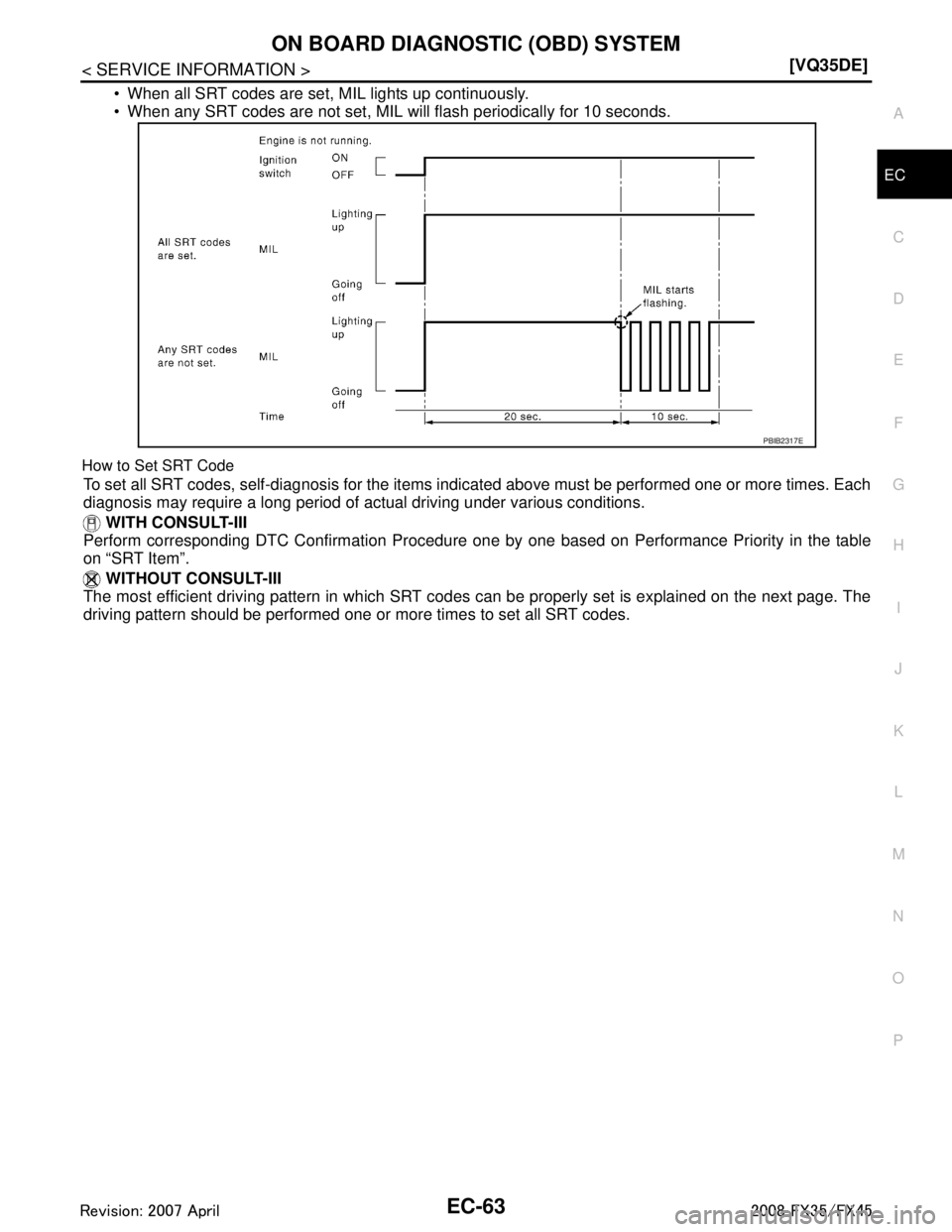

*8: When the ECM is in the mode of displaying SRT status, MIL ma
y flash. For the details, refer to “How to Display SRT Status”.
DTC AND 1ST TRIP DTC
The 1st trip DTC (whose number is the same as the DTC number) is displayed for the latest self-diagnostic
result obtained. If the ECM memory was cleared previous ly, and the 1st trip DTC did not reoccur, the 1st trip
DTC will not be displayed.
If a malfunction is detected during the 1st trip, the 1st trip DTC is stored in the ECM memory. The MIL will not
light up (two trip detection logic). If the same malfunc tion is not detected in the 2nd trip (meeting the required
driving pattern), the 1st trip DTC is cleared from the ECM memory. If the same malfunction is detected in the
2nd trip, both the 1st trip DTC and DTC are stored in t he ECM memory and the MIL lights up. In other words,
the DTC is stored in the ECM memory and the MIL light s up when the same malfunction occurs in two consec-
utive trips. If a 1st trip DTC is stored and a non-diagnostic operation is performed between the 1st and 2nd
trips, only the 1st trip DTC will continue to be stored. Fo r malfunctions that blink or light up the MIL during the
1st trip, the DTC and 1st trip DTC are stored in the ECM memory.
Procedures for clearing the DTC and the 1st trip DT C from the ECM memory are described in “HOW TO
ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION”.
For malfunctions in which 1st trip DTCs are displa yed, refer to “EMISSION-RELATED DIAGNOSTIC INFOR-
MATION ITEMS”. These items are required by legal r egulations to continuously monitor the system/compo-
nent. In addition, the items monitored non-cont inuously are also displayed on CONSULT-III.
1st trip DTC is specified in Service $07 of SAE J1979. 1st trip DTC detection occurs without lighting up the MIL
and therefore does not warn the driver of a malfunction. However, 1st trip DTC detection will not prevent the
vehicle from being tested, for example during Inspection/Maintenance (I/M) tests.
When a 1st trip DTC is detected, check, print out or write down and erase (1st trip) DTC and Freeze Frame
data as specified in Work Flow procedure Step II, refer to EC-89, "
Trouble Diagnosis Introduction". Then per-
form DTC Confirmation Procedure or Overall Function Che ck to try to duplicate the malfunction. If the mal-
function is duplicated, the item requires repair.
How to Read DTC and 1st Trip DTC
DTC and 1st trip DTC can be read by the following methods.
With CONSULT-III
With GST
CONSULT-III or GST (Generic Scan Tool ) Examples: P0340, P0850, P1148, etc.
These DTCs are prescribed by SAE J2012.
(CONSULT-III also displays the malfunctioning component or system.)
No Tools
The number of blinks of the MIL in the Diagnostic Test Mode II (Self-Diagnostic Results) indicates the DTC.
Example: 0340, 0850, 1148, etc.
These DTCs are controlled by NISSAN.
1st trip DTC No. is the same as DTC No.
Output of a DTC indicates a malfunc tion. However, GST or the Diagnostic Test Mode II do not indi-
cate whether the malfunction is stil l occurring or has occurred in the past and has returned to nor-
mal. CONSULT-III can identify malfunction status as shown below. Therefore, using CONSULT-III (if
available) is recommended.
DTC or 1st trip DTC of a malfunction is display ed in SELF-DIAGNOSTIC RESULTS mode of CONSULT-III.
Time data indicates how many times the vehicle was driven after the last detection of a DTC.
If the DTC is being detected currently, the time data will be [0].
If a 1st trip DTC is stored in the ECM, the time data will be [1t].
FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA
The ECM records the driving conditions such as fuel system status, calculated load value, engine coolant tem-
perature, short term fuel trim, long term fuel trim, engi ne speed, vehicle speed, absolute throttle position, base
fuel schedule and intake air temperature at the moment a malfunction is detected.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data.
The data, stored together with the DTC data, are ca lled freeze frame data and displayed on CONSULT-III or
GST. The 1st trip freeze frame data can only be displa yed on the CONSULT-III screen, not on the GST. For
details, see EC-117, "
CONSULT-III Function (ENGINE)".
Only one set of freeze frame data (either 1st trip freez e frame data or freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM me mory along with the 1st trip DTC. There is no priority
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1300 of 3924

INFINITI FX35 2008 Service Manual
EC-60
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
for 1st trip freeze frame data and it is updated each time
a different 1st trip DTC is detected. However, once
freeze frame dat

EC-60
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
for 1st trip freeze frame data and it is updated each time
a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.
For example, the EGR malfunction (Priority: 2) was detected and the freeze frame data was stored in the 2nd
trip. After that when the misfire (Priority: 1) is detected in another trip, the freeze frame data will be updated
from the EGR malfunction to the misfire. The 1st trip freeze frame data is updated each time a different mal-
function is detected. There is no priority for 1st trip freeze frame data. However, once freeze frame data is
stored in the ECM memory, 1st trip freeze data is no longer stored (because only one freeze frame data or 1st
trip freeze frame data can be stored in the ECM). If fr eeze frame data is stored in the ECM memory and freeze
frame data with the same priority occurs later, t he first (original) freeze frame data remains unchanged in the
ECM memory.
Both 1st trip freeze frame data and freeze frame dat a (along with the DTCs) are cleared when the ECM mem-
ory is erased. Procedures for clearing the ECM me mory are described in “HOW TO ERASE EMISSION-
RELATED DIAGNOSTIC INFORMATION”.

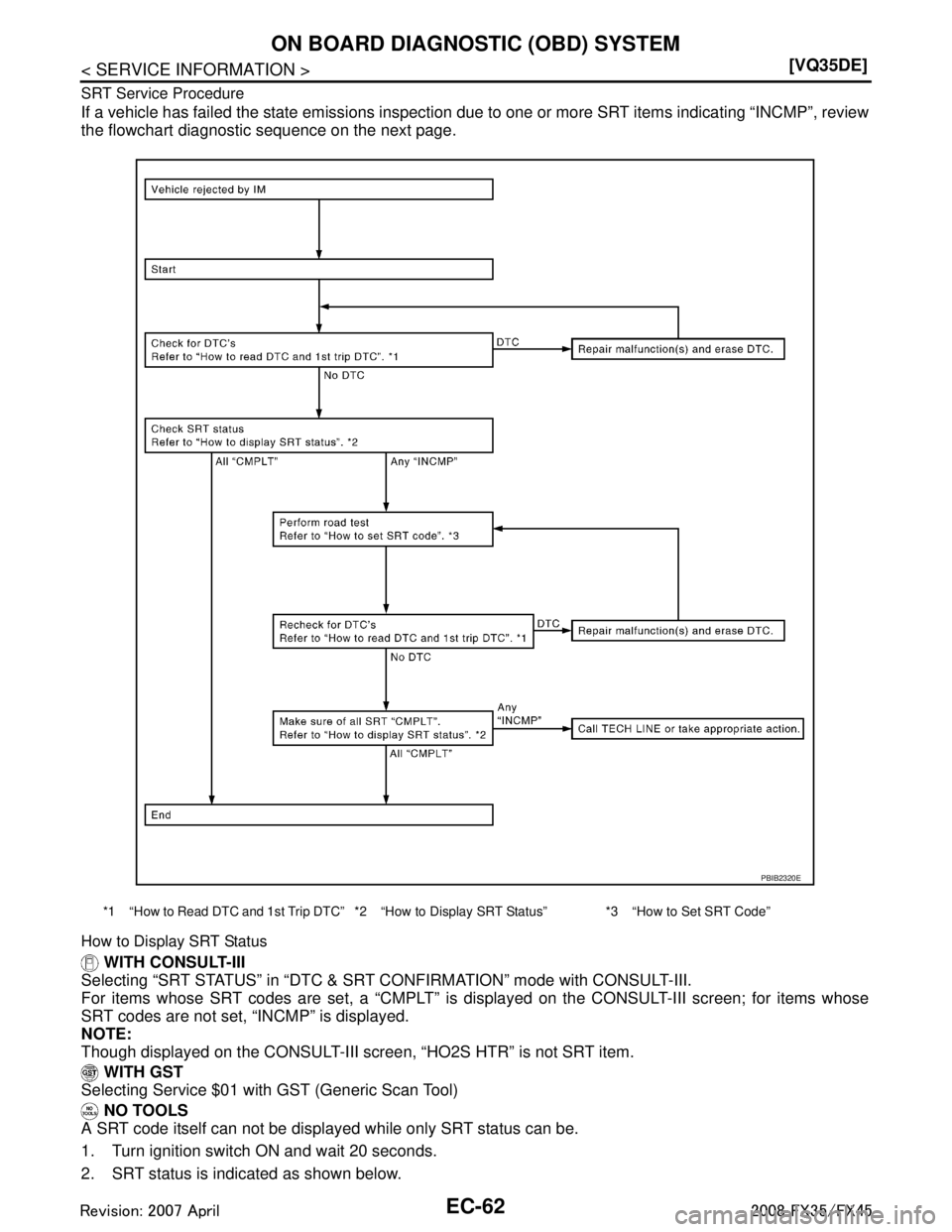

SYSTEM READINESS TEST (SRT) CODE
System Readiness Test (SRT) code is specified in Service $01 of SAE J1979.
As part of an enhanced emissions test for Inspection & Ma intenance (I/M), certain states require the status of
SRT be used to indicate whether the ECM has completed self-diagnosis of major emission s\
ystems and com-
ponents. Completion must be verified in order for the emissions inspection to proceed.
If a vehicle is rejected for a State emissions inspec tion due to one or more SRT items indicating “INCMP”, use
the information in this Service Manual to set the SRT to “CMPLT”.
In most cases the ECM will automatically complete its self-diagnosis cycle during normal usage, and the SRT
status will indicate “CMPLT” for each application system . Once set as “CMPLT”, the SRT status remains
“CMPLT” until the self-diagnosis memory is erased.
Occasionally, certain portions of the self-diagnostic test may not be completed as a result of the customer's
normal driving pattern; the SRT will indicate “INCMP” for these items.
NOTE:
The SRT will also indicate “INCMP” if the self-diagnosis memory is erased for any reason or if the ECM mem-
ory power supply is interrupted for several hours.
If, during the state emissions inspection, the SRT indica tes “CMPLT” for all test items, the inspector will con-
tinue with the emissions test. However, if the SRT indi cates “INCMP” for one or more of the SRT items the
vehicle is returned to the customer untested.
NOTE:
If MIL is ON during the state emissions inspection, the vehicle is also returned to the customer untested even
though the SRT indicates “CMPLT” for all test items. T herefore, it is important to check SRT (“CMPLT”) and
DTC (No DTCs) before the inspection.
SRT Item
The table below shows required self-diagnostic items to set the SRT to “CMPLT”.
Priority Items
1 Freeze frame data Misfire — DTC: P0300 - P0306
Fuel Injection System Function — DTC: P0171, P0172, P0174, P0175
2 Except the above items (Includes A/T related items)
3 1st trip freeze frame data
SRT item
(CONSULT-III indica- tion) Perfor-
mance Pri- ority* Required self-diagnostic items to set the SRT to “CMPLT” Corresponding DTC No.
CATALYST 2 Three way catalyst function P0420, P0430
EVAP SYSTEM 1 EVAP control system P0442
2 EVAP control system P0456
2 EVAP control system purge flow monitoring P0441
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1301 of 3924

INFINITI FX35 2008 Service Manual
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-61
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*: If completion of several SRTs is required, perform driving patterns (DTC confirmation procedu

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-61
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*: If completion of several SRTs is required, perform driving patterns (DTC confirmation procedure), one by one based on the pr
iority for
models with CONSULT-III.
SRT Set Timing
SRT is set as “CMPLT” after self-diagnosis has been performed one or more times. Completion of SRT is
done regardless of whether the result is OK or NG. T he set timing is different between OK and NG results and
is shown in the table below.
OK: Self-diagnosis is carried out and the result is OK.
NG: Self-diagnosis is carried out and the result is NG.
—: Self-diagnosis is not carried out.
When all SRT related self-diagnoses showed OK results in a single cycle (Ignition OFF-ON-OFF), the SRT will
indicate “CMPLT”. → Case 1 above
When all SRT related self-diagnoses showed OK results through several different cycles, the SRT will indicate
“CMPLT” at the time the respective se lf-diagnoses have at least one OK result. → Case 2 above
If one or more SRT related self-diagnoses showed NG re sults in 2 consecutive cycles, the SRT will also indi-
cate “CMPLT”. → Case 3 above
The table above shows that the minimum number of cyc les for setting SRT as “INCMP” is one (1) for each
self-diagnosis (Case 1 & 2) or two (2) for one of self-di agnoses (Case 3). However, in preparation for the state
emissions inspection, it is unnecessary for each self-di agnosis to be executed twice (Case 3) for the following
reasons:
The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.
The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results.
When, during SRT driving pattern, 1st trip DTC (NG) is detected prior to “CMPLT” of SRT, the self-diagnosis
memory must be erased from ECM after repair.
If the 1st trip DTC is erased, all the SRT will indicate “INCMP”. NOTE:
SRT can be set as “CMPLT” together with the DTC(s) . Therefore, DTC check must always be carried out
prior to the state emission inspection even though the SRT indicates “CMPLT”.
HO2S 2 Air fuel ratio (A/F) sensor 1 P0133, P0153
Heated oxygen sensor 2 P0137, P0157
Heated oxygen sensor 2 P0138, P0158
Heated oxygen sensor 2 P0139, P0159
SRT item
(CONSULT-III indica-
tion) Perfor-
mance Pri-
ority* Required self-diagnostic items to set the SRT to “CMPLT” Corresponding DTC No.
Self-diagnosis result Example
Diagnosis Ignition cycle
← ON → OFF ← ON → OFF ← ON → OFF ← ON →
All OK Case 1 P0400 OK (1) — (1) OK (2) — (2) P0402 OK (1) — (1) — (1) OK (2)
P1402 OK (1) OK (2) — (2) — (2)
SRT of EGR “CMPLT” “CMPLT” “CMPLT” “CMPLT”
Case 2 P0400 OK (1) — (1) — (1) — (1) P0402 — (0) — (0) OK (1) — (1)
P1402 OK (1) OK (2) — (2) — (2)
SRT of EGR “INCMP” “INCMP” “CMPLT” “CMPLT”
NG exists Case 3 P0400 OK OK — — P0402 — — — —
P1402 NG — NG NG
(Consecutive NG)
(1st trip) DTC 1st trip DTC — 1st trip DTC DTC
(= MIL ON)
SRT of EGR “INCMP” “INCMP” “INCMP” “CMPLT”
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1302 of 3924

INFINITI FX35 2008 Service Manual
EC-62
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
SRT Service Procedure
If a vehicle has failed the state emissions inspection
due to one or more SRT items indicating “INCMP�

Page 1303 of 3924

INFINITI FX35 2008 Service Manual
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-63
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
When all SRT codes are set, MIL lights up continuously.
When any SRT codes are not set, MIL

Page 1304 of 3924

INFINITI FX35 2008 Service Manual
EC-64
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Driving Pattern
The time required for each diagnosis varies with road su
rface conditions, weather, altitude, individual drivi

Load next 8 pages

Page: < prev 1-10 ... 1265-1272 1273-1280 1281-1288 1289-1296 1297-1304 1305-1312 1313-1320 1321-1328 1329-1336 ... 3928 next >

steering wheel adjustment gas type open hood fuel length hood release
